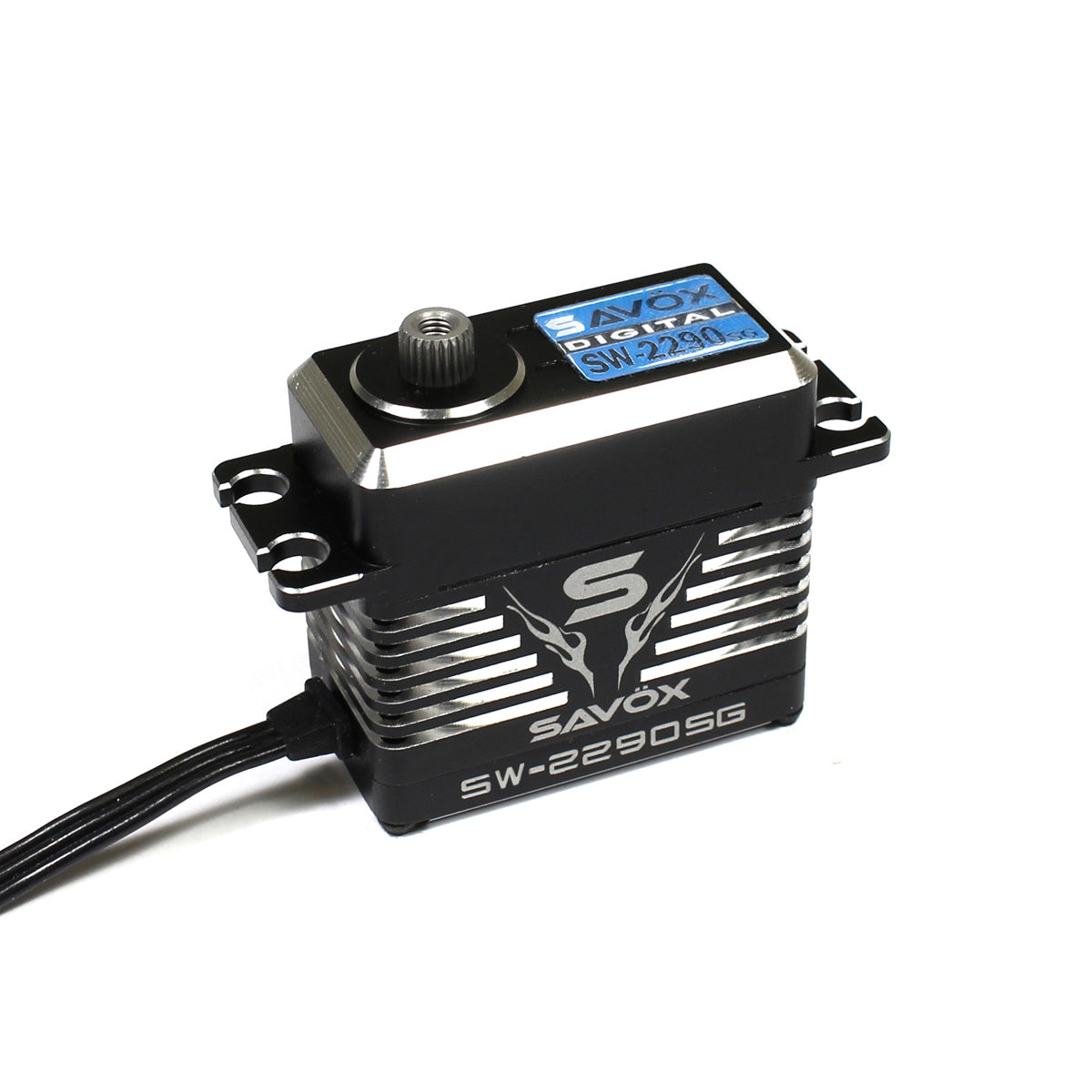

Remote-controlled (RC) servos are crucial components in many hobbyist and professional applications, ranging from model airplanes and cars to robotics. These devices act as actuators, converting electrical signals into precise mechanical movement. Choosing the right servo involves understanding various factors such as size, torque, speed, gear materials, and motor type. Here's a comprehensive look at RC servos and their specifications.
Servo Sizes and Their Scale Fit
RC servos come in various sizes, each suited to different applications and scales of models. Here’s a breakdown of common servo sizes and their ideal scale fit:
-
Micro Servos:
- Dimensions: Typically around 20x8x20 mm.
- Scale Fit: Suitable for small-scale models like micro airplanes, tiny cars, or small drones.
- Use Case: Ideal for lightweight applications where minimal torque is required but precise control is crucial.
-
Mini Servos:
- Dimensions: Roughly 23x12x25 mm.
- Scale Fit: Used in small to medium-scale models such as 1/16 to 1/18 scale cars, and smaller helicopters.
- Use Case: Provides a balance between size and power, making them versatile for a range of applications.
-
Standard Servos:
- Dimensions: Approximately 40x20x40 mm.
- Scale Fit: Fits medium to large-scale models like 1/10 to 1/12 scale cars, and larger airplanes.
- Use Case: Commonly used in many RC vehicles due to their robust performance and reasonable size.
-
Large Servos:
- Dimensions: About 50x25x50 mm or larger.
- Scale Fit: Ideal for larger scale models, such as 1/5 scale cars and large drones.
- Use Case: Designed for applications requiring higher torque and durability, such as heavy-duty tasks in larger models.
-
Giant Servos:
- Dimensions: Can exceed 70x35x70 mm.
- Scale Fit: Best for giant-scale models, including large aircraft and heavy machinery.
- Use Case: Employed in demanding applications where extreme torque and precision are necessary.
Torque and Speed
Two critical performance metrics for servos are torque and speed, which dictate how well a servo can handle its workload and how quickly it can respond.
-
Torque: This is the servo’s ability to apply rotational force. It is usually measured in kilogram-centimeters (kg-cm) or ounce-inches (oz-in). Higher torque values are necessary for larger or heavier models to ensure that the servo can handle the load without straining. For instance, a standard servo might provide 10 kg-cm of torque, while high-torque servos can deliver 30 kg-cm or more.
-
Speed: Speed refers to how quickly the servo can move its arm through a specified angle, often measured in seconds per 60 degrees. Faster servos are crucial for applications requiring quick and precise movements, such as in racing drones or high-speed cars. Typical speeds range from 0.10 to 0.25 seconds per 60 degrees of movement.
Gears
The gears inside a servo influence its durability and performance. They are typically made from three materials:
-
Plastic Gears: Common in lower-torque servos, these are cost-effective and lightweight but may wear out faster under heavy use.
-
Metal Gears: Found in mid-range to high-end servos, metal gears (often made from steel or titanium) offer greater durability and strength, making them suitable for high-torque applications.
-
Composite Gears: A combination of plastic and metal, these gears provide a balance between durability and weight, often used in high-performance servos to reduce wear while maintaining strength.
Motors
The motor within a servo drives its movement and is a crucial factor in determining overall performance:
-
Coreless Motors: These are commonly found in smaller servos. They are known for their smooth operation and quick response but may have less torque compared to their core-motor counterparts.
-
Core Motors: Used in high-torque and high-performance servos, these motors generally provide greater power and efficiency, making them suitable for demanding applications. They are more robust but can be less efficient compared to coreless motors.
Conclusion
Choosing the right RC servo involves matching the servo size to your model's scale, ensuring it has adequate torque and speed for its intended use, and selecting the appropriate gear and motor types for durability and performance. By understanding these factors, hobbyists and professionals alike can make informed decisions to optimize their RC vehicles, aircraft, and robots for better performance and reliability. Whether you're upgrading an existing model or building a new one from scratch, selecting the right servo is key to achieving precision and efficiency in your RC endeavors.
