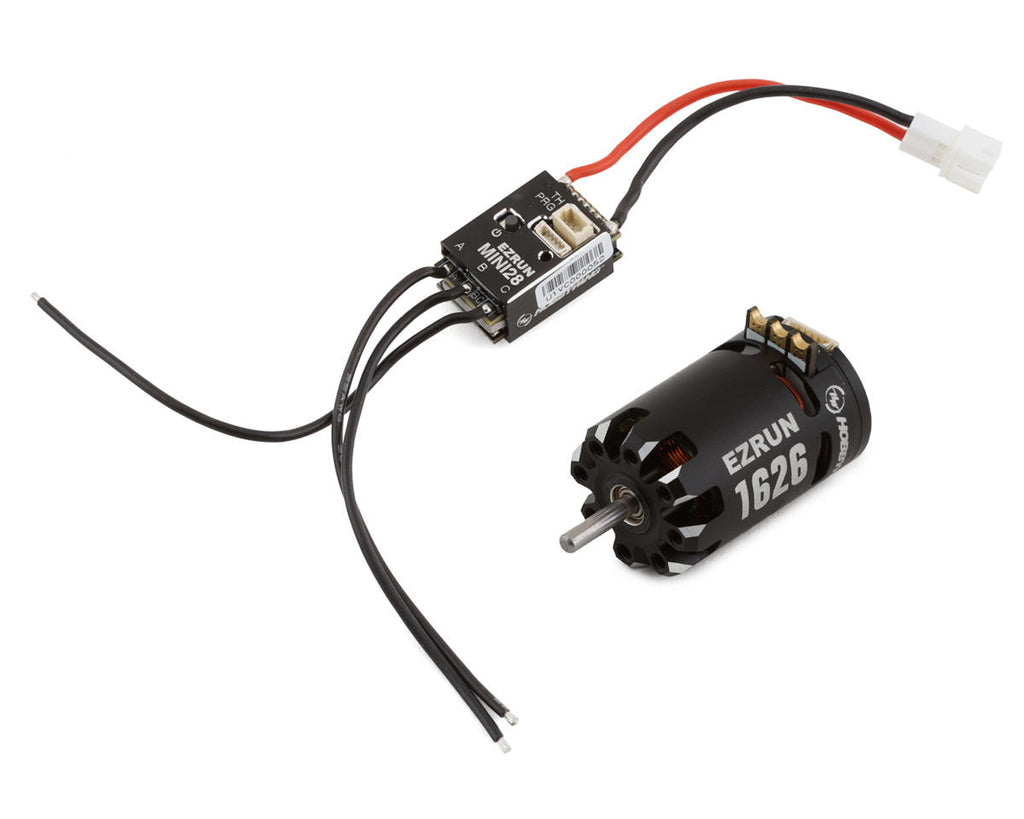

The Hobbywing EZRun MINI28 1/28th Scale Sensored Brushless Combo incorporates revolutionary features in a 1/28th scale package. Built for 1/28th scale racing this powerful ESC is packed with the features needed to provide a competitive advantage on the racetrack while the 1626 brushless motor provides incredible power in a small package. At only 22mm long and 14mm wide the MINI28 ESC will fit in most 1/28 vehicles with ease. To achieve this small size a large aluminum heat sink has been integrated helping to lower temperatures for consistent performance. Even though this ESC is small there are still 26 different adjustable parameters to choose from. With the ability to access these options from a smartphone using the optional Hobbywing OTA module (HWA30850400 - Sold Separately) makes adjustments easier than ever. Packed with features and performance this MINI28 ESC from Hobbywing is an excellent choice for your next 1/28 scale build.
Features:
-
ESC:
- Built specifically for 1/28 scale racing
- Small and lightweight design
- Large integrated heat sink
- Built in dual app mode
- High Voltage adjustable BEC
- OTA Bluetooth compatible
-
Motor:
- Improved top speed
- Precision response
- High efficiency with the cool operation
- When used with the EzRun Mini28 ESC, timing advance can be used to increase top speeds drastically.
- Zero cogging, consistent torque and excellent low-speed response give an amazing feel and driveability
- Modular detachable structure, convenient for daily cleaning and maintenance.
Specifications:
-
ESC:
-
Cont./Peak Current: 30A / 80A
-
Motor Type: Sensored / Sensorless Brushless Motors
-
Motor Limit: 1626 Size Motor
-
LiPo/NiMH Cells: 2S Lipo
-
BEC Output: 6V/7.4V Adjustable, 3.5A Peak (Switch-mode)
-
Size: 22.7x14.2x11.8mm
-
Weight: 5g (without wires)
-
Programming Port: Shared with throttle cable
-
Motor:
-
kV: 5000
-
Poles: 2
-
No-Load Current: 0.5A
-
Input Voltage: 2S
-
Motor Diameter: 16mm
-
Motor Length: 26mm
-
Motor Shaft Length: 8.5mm
-
Motor Shaft Diameter: 1.8mm
-
Weight: 18g
-
Application: 1/28th Mini
Includes:
- (1) EZRun MINI28 1/28th Scale Sensored Brushless ESC
- (1) ESC Manual

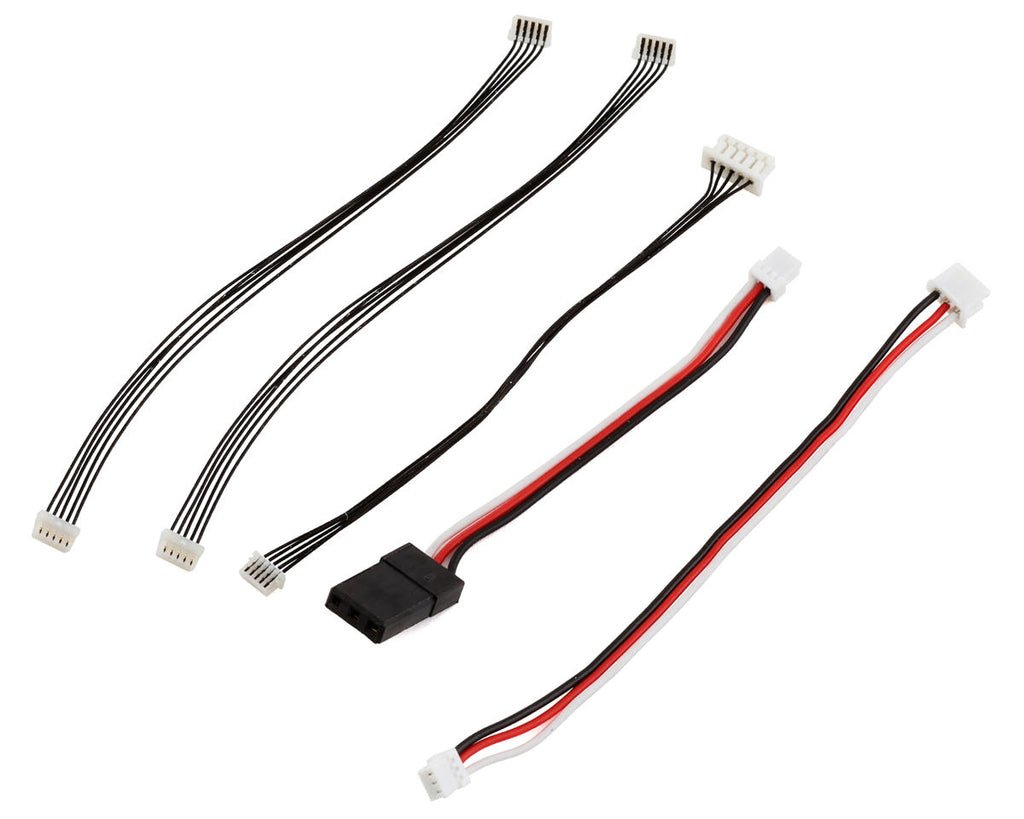

- Various wiring harnesses
- (1) EZRun 1626 Sensored Brushless Motor (5000Kv)
