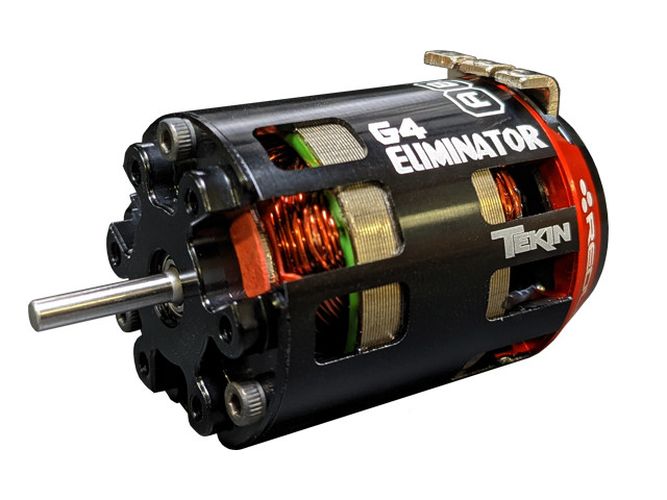

Tekin's Eliminator 13.5T Brushless motor is built purely for drag racing applications. Equipped with a modified stator and 13.5mm High Torque Yellow rotor, the 13.5T Eliminator is the GEN4 motor for the 13.5T No-Prep class!
FEATURES:
CNC Machined 6061-T6 Billet Aluminum Heat Sink Can
Neodymium Sintered Magnet
Precision Engineered for Maximum Energy Conversion
High Purity Copper Windings Maximize Conductivity
Dual-Plug Sensor Wire Harness for use with all Sensored and Sensorless Systems
Anodized Endbell Plates Maximize Corrosion and Wear Resistance
High RPM Precision Bearings
Oversized Front Bearing
Legal in Major Governing Race Bodies
Outlaw Motor NOT ROAR Approved
SPECS:
Motor Turns: 13.5T
Input Voltage: 1S-3S LiPo/LiHV / 4.2V-13.05V
Weight: 5.1oz / 145g
Shaft Size: 3.18mm / 1/8in
Motor Length: 50.25mm / 1.987in
Motor Diameter: 35.85mm / 1.40in
Bearing Dimensions: Front 4 x 13 x 5mm / Rear 1/8 x 3/8 x 5/32in
Rotor Size: 13.5mm Ultra Torque YELLOW
Max Operating Temperature: 180F / 82C
Max RPM: 100,000
Mounting Pattern: M3 @ 25.4mm / M3 @ 1.0in
Rebuildable: YES
