Overview

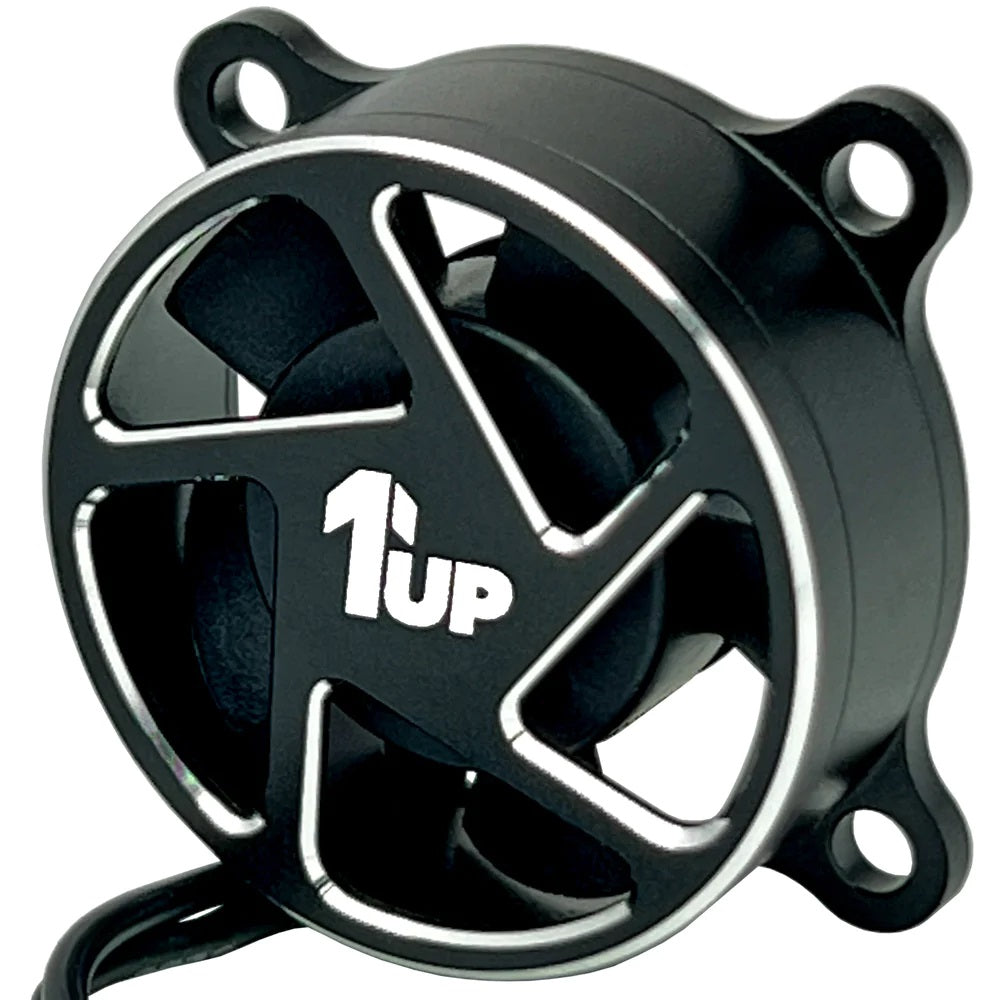

The 1UP Racing UltraLite 30mm High-Speed Aluminum Cooling Fan is a premium cooling solution engineered for racers and enthusiasts who demand maximum airflow with minimal weight. At just 10 grams, it's one of the lightest aluminum-housed 30mm fans available — ideal for competitive race builds where every gram counts.
An integrated aluminum fan guard enhances durability, protects the blades from debris, and allows shorter mounting screws for additional weight reduction.
Key Features
- CNC-machined aluminum housing with integrated guard
- Up to 29,000 RPM @ 8.4V for maximum airflow
- Ultra-lightweight — only 10.0g
- Dual ball bearing construction for long life
- Five-blade fan design for high efficiency
- Standard 24mm mounting pattern
Performance Benefits
- Highly effective ESC and motor temperature control
- Strong, lightweight aluminum housing
- Consistent performance under heavy race load
- Clean, race-ready appearance
Usage Notes
- Ideal for touring cars, buggies, and performance platforms
- Short 30mm cable plugs into ESC fan ports (2-pin)
- Included 200mm JR extension allows receiver power
- Works with optional 1UP Racing brass fan mounts (sold separately)
Specifications
- Input Voltage: 6.0 – 8.4V
- Maximum RPM: 29,000 @ 8.4V
- Dimensions: 12 x 30 x 30mm
- Mounting Hole Spacing: 24mm
- Weight: 10.0g
- Bearings: Dual ball bearing
Fitment
Compatible RC vehicles: Universal fit – all RC vehicles.

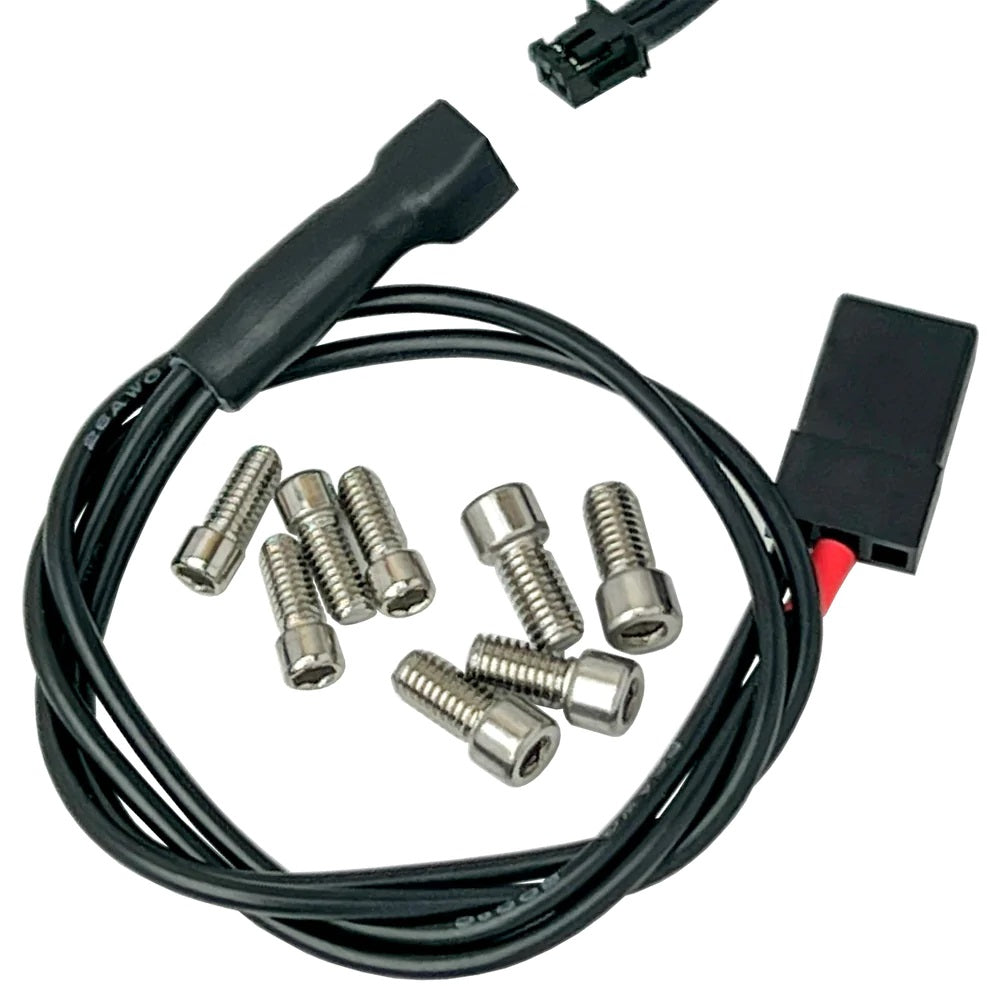

What's Included
- (1) 1UP Racing UltraLite 30mm High-Speed Aluminum Cooling Fan
- (1) 200mm JR extension cable
- (4) M2.5 x 6mm mounting screws
- (4) M3 x 6mm mounting screws
Summary
- Premium 30mm aluminum cooling fan – only 10g
- Integrated guard and dual ball bearings
- Up to 29,000 RPM for max airflow
- Includes full mounting hardware and JR extension
- Essential cooling upgrade for competitive RC builds
