Overview

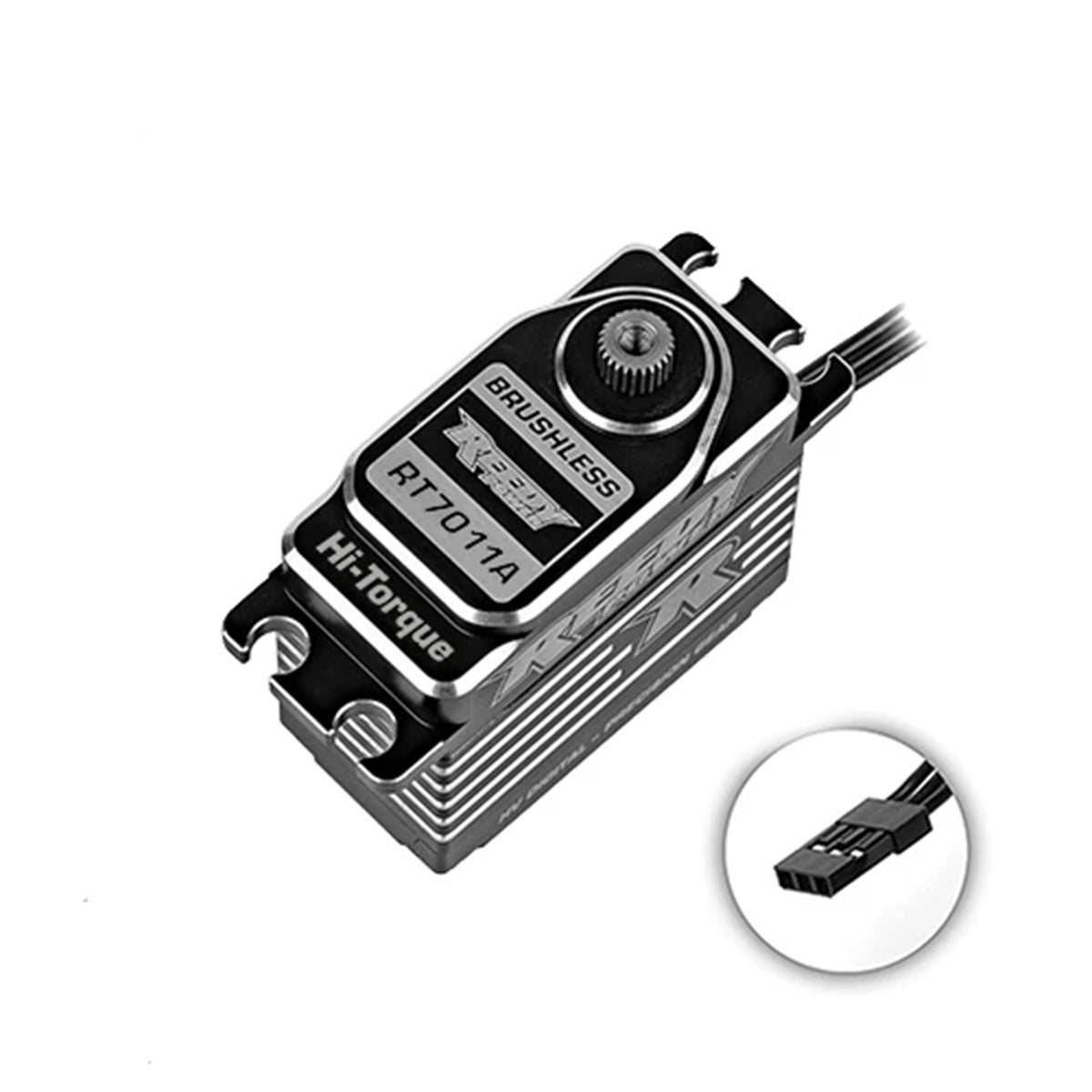

The Reedy Power RT7011A is a standard-size, high-voltage brushless servo built for 1:8 and 1:10 racing. It combines extreme torque with efficient power delivery and a steel gear train, and it is optimized for both steering and throttle/brake applications.
Inside a full CNC aluminum case with an integrated heat sink are a brushless motor, steel gears and precision ball bearings. It produces 763 oz-in (55 kg-cm) at 0.13 sec/60° on 7.4V and up to 972 oz-in (70 kg-cm) at 0.11 sec/60° on 8.4V, with a 25-tooth output spline.
Key Features
- Brushless motor with efficient power delivery
- High-voltage operation from 6.0V to 8.4V
- Standard-size case
- Steel gears for durability under heavy load
- Precision ball bearings
- Full CNC aluminum case with integrated heat sink
- 25-tooth output spline
- Suited to steering or throttle/brake duty
Performance Benefits
- Very high torque holds steering angle on heavy 1:8 buggies and truggies in rough sections
- Steel gear train resists stripping from landings and impacts
- Heat-sink case helps keep temperatures stable in long mains
- Strong enough for fast, accurate throttle/brake control on nitro vehicles
Usage Notes
- Best suited to 1:8 scale buggies and truggies (nitro and electric) and heavier 1:10 vehicles using standard-size servos
- Run on an HV-capable receiver supply or BEC (6.0–8.4V); check your ESC/BEC and receiver ratings
- Use a 25T aluminum servo horn or quality servo saver to make full use of the torque
Technical Specs
- Motor: Brushless
- Size: Standard
- Input voltage: 6.0–8.4V
- Speed @ 6.0V: 0.16 sec/60°
- Speed @ 7.4V: 0.13 sec/60°
- Speed @ 8.4V: 0.11 sec/60°
- Torque @ 6.0V: 625 oz-in (45 kg-cm)
- Torque @ 7.4V: 763 oz-in (55 kg-cm)
- Torque @ 8.4V: 972 oz-in (70 kg-cm)
- Gears: Steel
- Bearings: Precision ball bearings
- Case: CNC aluminum with integrated heat sink
- Dimensions: 40.3 x 20.2 x 37.6mm
- Weight: 81g
- Output spline: 25T
What's Included
- (1) Reedy Power RT7011A brushless hi-torque HV servo
Fitment
Compatible RC vehicles: Universal fit – 1:8 and 1:10 scale vehicles with standard-size servo mounts and a 25T servo saver/horn.
Summary
- Standard-size brushless HV servo for 1:8 and 1:10 racing
- 763 oz-in / 0.13 sec at 7.4V; 972 oz-in / 0.11 sec at 8.4V
- Steel gears, ball bearings and CNC aluminum heat-sink case
- For steering or throttle/brake; 81g, 25T spline
