Description
Overview

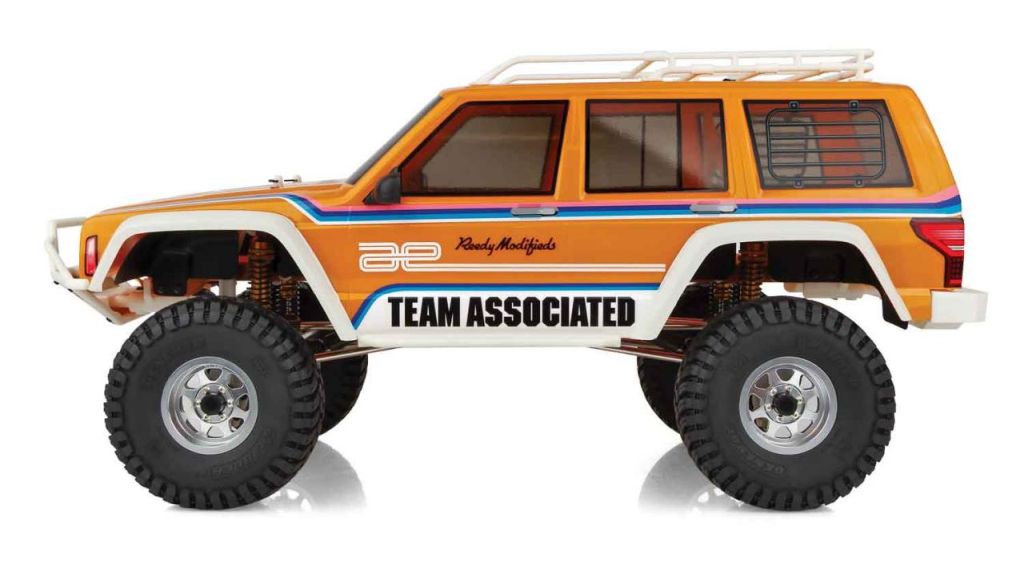

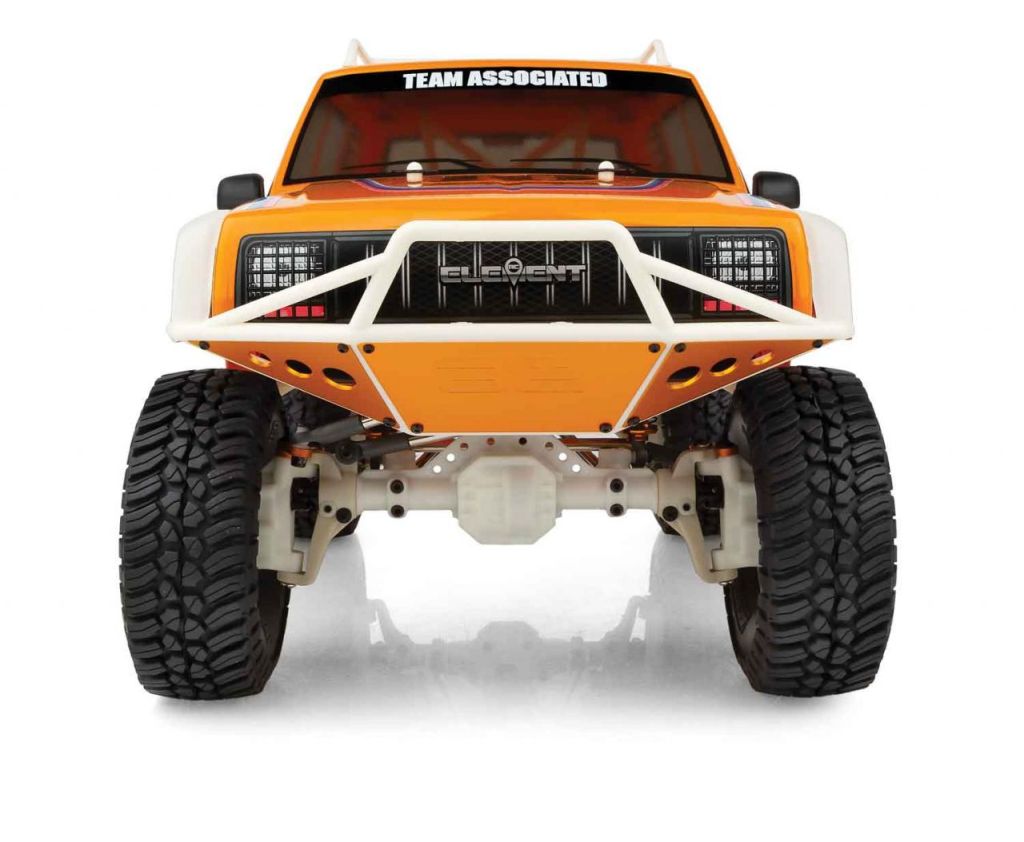

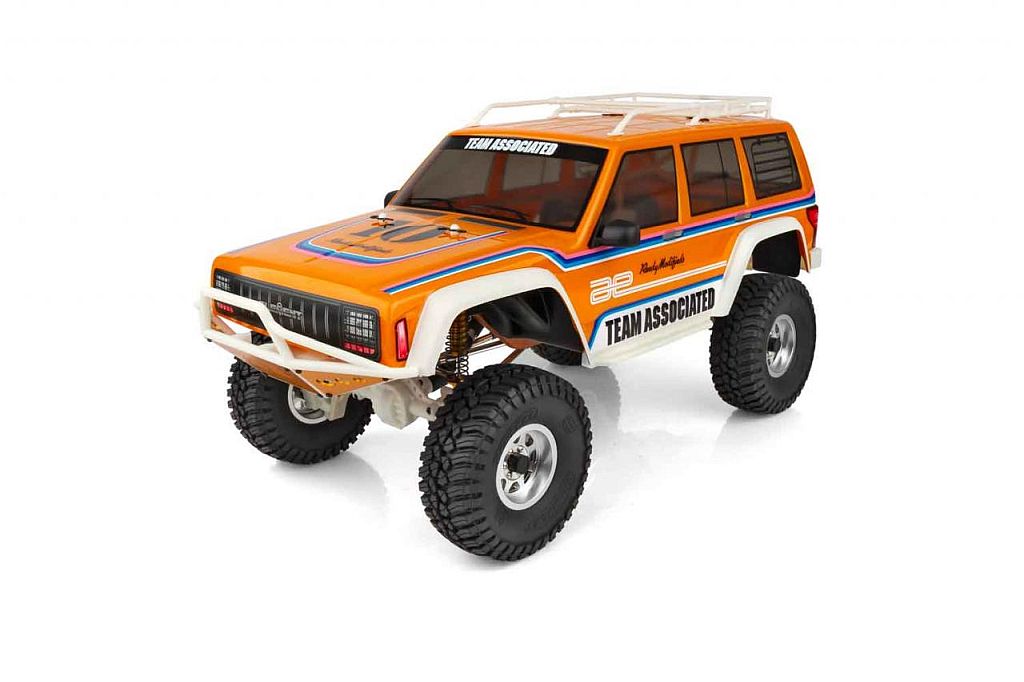

The Team Associated RC10 Trail Truck Portal Kit is a performance-oriented 1/10 scale rock crawler built to conquer the most challenging terrain with confidence. At the heart of this trail-ready machine is the revolutionary Stealth® X gearbox, which allows you to adjust the rear drive ratio independently of the front across three levels: stock overdrives the front end 5.7%, option 1 provides a one-to-one ratio, and option 2 overdrives the front end 11.83%. This versatility lets you optimize traction for any crawling situation.
The RC10 Trail Truck Portal Kit features new high-clearance portal axles that provide almost an inch more ground clearance than standard straight axles. These portal axles include all-metal gears, ball bearings, and a larger pocket for a heavier-duty inner input bearing. Combined with the Enduro drivetrain featuring 3-piece telescopic driveshafts, universal front drive axles, and hardened steel ring and pinion gears, this rig delivers reliable power to all four corners. The RC10-inspired styling pays tribute to the legendary 1984 off-road buggy with a full-color Camel Yellow tribute livery.
Key Features
- NEW high-clearance portal axles with all-metal gears and ball bearings
- Revolutionary Stealth® X gearbox with adjustable front-to-rear drive ratios
- CMS (Chassis Mounted Servo) with BTA (Behind-the-Axle) steering
- Bolt-on aluminum steering plates for adjustability and strength
- Integrated servo winch mount for accessory installation
- Gold anodized threaded aluminum shock bodies
- 3-piece telescopic driveshafts with extruded aluminum center sections
- Universal front drive axles with adjustable caster
- Gold colored stamped steel frame rails
- 12mm wheel hexes for wheel compatibility
- Licensed 1.9" General Grabber™ X3 tires in soft compound
- Licensed 1.9" Method 701 Trail Series beadlock wheels
- RC10-inspired polycarbonate body with roof rack and accessories
Performance Benefits
- Portal axles provide nearly an inch more ground clearance for obstacle navigation
- Adjustable drive ratios optimize traction for varying terrain conditions
- BTA steering improves approach angles and ground clearance
- Fluid-filled shocks maintain stability on rough trails
- All-metal portal gears handle high torque without stripping
- Six-screw portal gearbox design prevents gear separation under load
- Heavy-duty 5mm diameter steel links ensure durability
- Optimized ball cups provide fluid axle articulation
Portal Axle Technology
- High-clearance design adds nearly 1 inch of center axle clearance
- All-metal gears throughout for maximum durability
- Six screws secure each portal gearbox for strength
- Larger inner input bearing pocket for heavy-duty operation
- Zero percent underdrive pairs perfectly with Stealth® X transmission
- Optional 12/23 tooth gear set available for 36% additional overdrive
Usage Notes
The RC10 Trail Truck Portal Kit is designed for scale rock crawling and trail running on varied terrain. This kit requires assembly and separate electronics. The included General Grabber™ X3 tires provide excellent grip on rocks, dirt, and loose surfaces. Recommended for hobbyists who enjoy building and customizing their RC vehicles.
Technical Specs
- Scale: 1/10
- Drivetrain: 4WD with Portal Axles
- Length: 462mm (18.19 in)
- Width: 236mm (9.29 in)
- Wheelbase: 325mm (12.8 in)
- Chassis: Stamped Steel Frame Rails
- Suspension: 3-Link Front / 4-Link Rear
- Transmission: Stealth® X with Adjustable Ratios
- Tires: 1.9" General Grabber™ X3
- Wheels: 1.9" Method 701 Beadlocks
- Bearings: 24 Metal Ball Bearings
- Format: Kit (Unassembled)
- Brand: Team Associated
What's Included
- RC10 Trail Truck Portal Kit chassis (unassembled)
- High-clearance portal axles with all-metal gears
- Stealth® X transmission with 5.7% and 11.83% gear options
- Gold anodized threaded aluminum shocks
- Gold stamped steel frame rails
- Clear RC10 Trail Truck polycarbonate body
- Injection-molded roof rack, bumpers, and mirrors
- Polycarbonate inner fenders
- Licensed General Grabber™ X3 tires
- Licensed Method 701 beadlock wheels
- Full-color Camel Yellow tribute decal sheet
- 24 metal ball bearings
- Assembly hardware and instruction manual
Needed to Complete
- 2-channel transmitter and receiver
- High-torque steering servo
- 1/10 crawler ESC
- 1/10 crawler motor
- Compatible LiPo or NiMH battery
- Compatible battery charger
- Polycarbonate body paint
- Assembly tools
Summary
The Team Associated RC10 Trail Truck Portal Kit delivers trail-conquering performance with its revolutionary high-clearance portal axles and adjustable Stealth® X transmission. Combining RC10-inspired styling with modern crawler technology, this 1/10 scale 4x4 kit offers nearly an inch more ground clearance than standard axles, licensed General Grabber™ tires, and Method beadlock wheels. Build the ultimate trail rig and tackle any obstacle with confidence.
