Overview
The Team Associated RC10 Jay Halsey Chain Drive 4WD kit combines vintage RC10 styling with a modernized version of the experimental chain-driven concept raced at the 1985 IFMAR Off-Road World Championships. It is designed for builders who value RC history without giving up tunability or durable running gear.

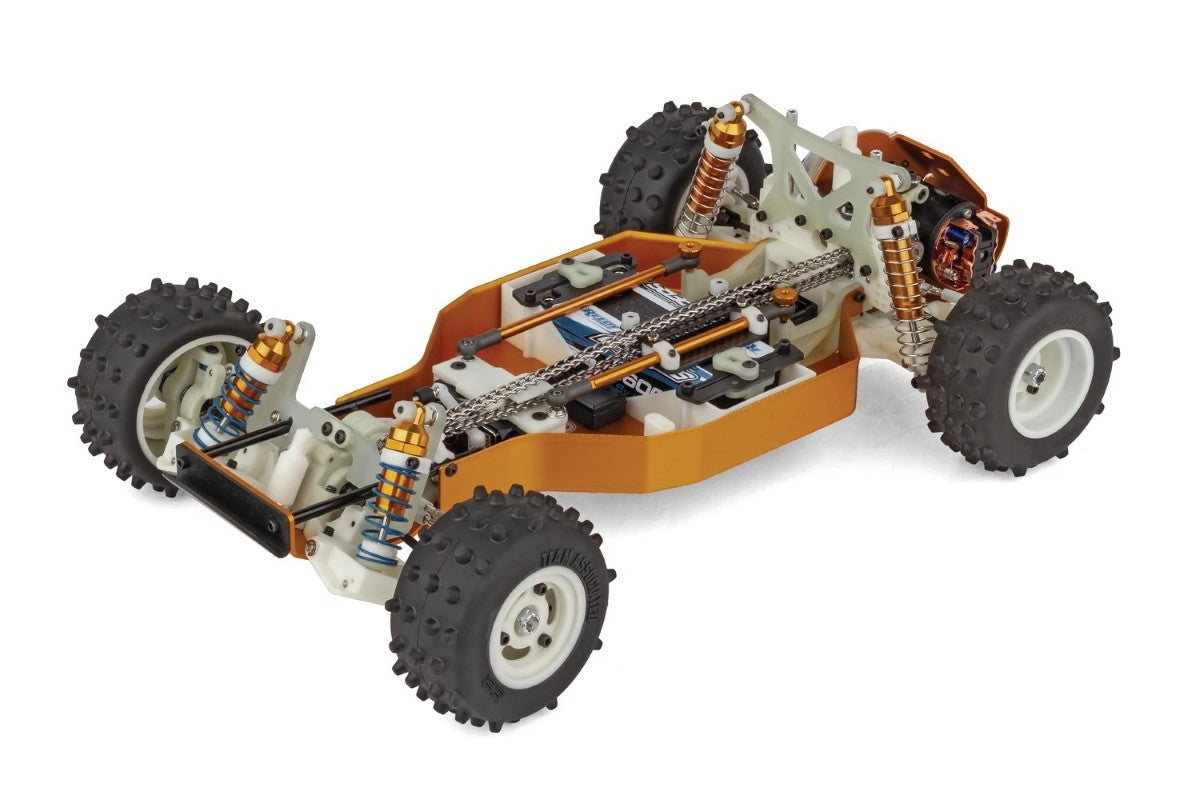

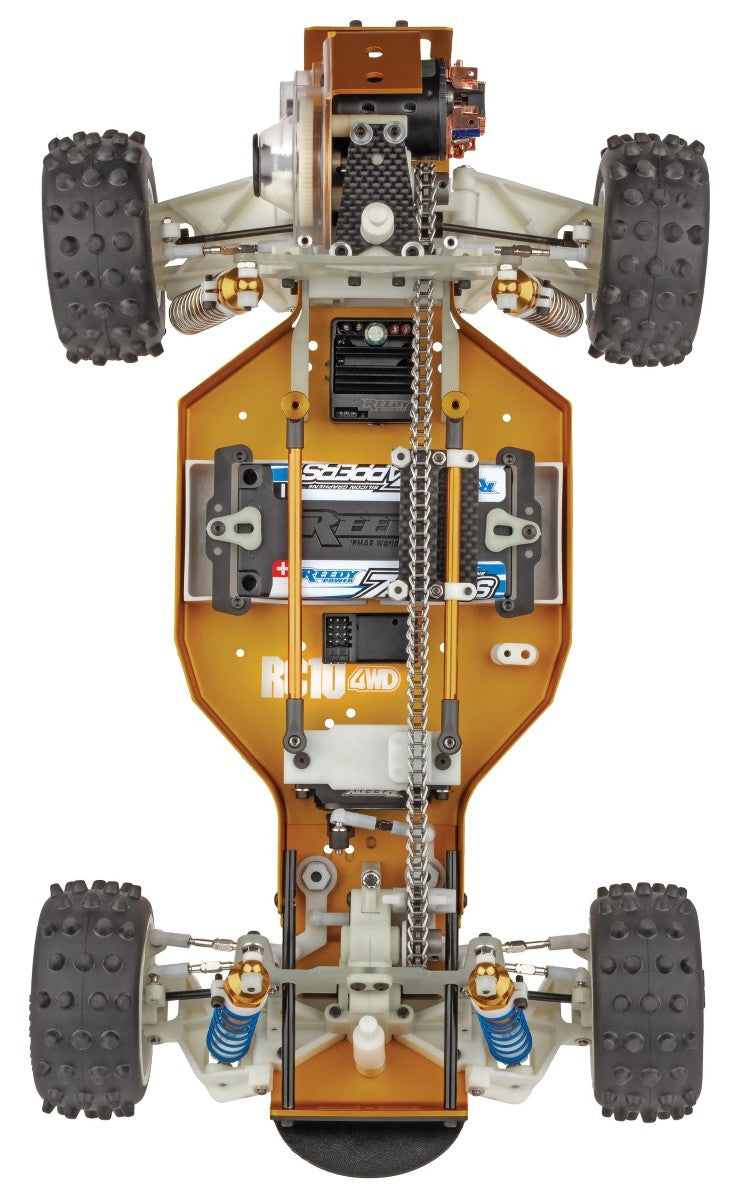

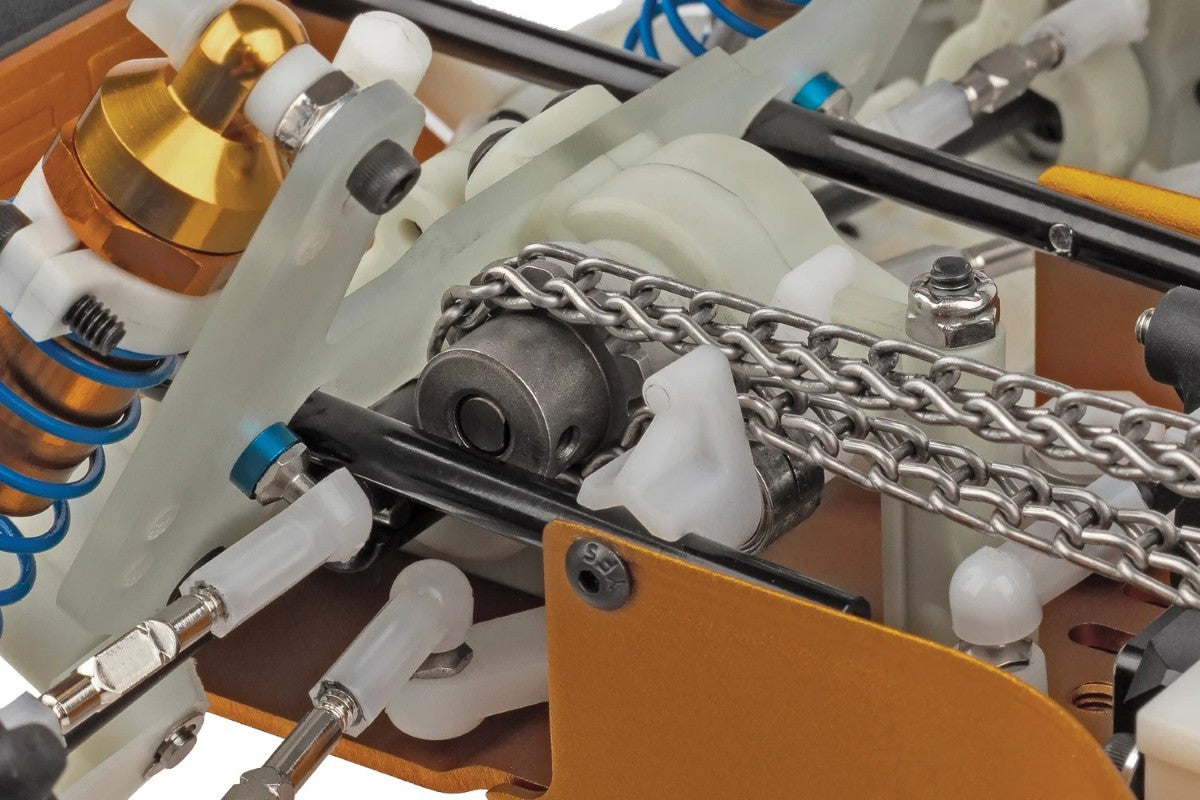

Its heavy-duty stainless-steel chain, hardened sprockets, carbon-fiber chain separator and adjustable tension system form the centerpiece of the drivetrain. Short-arm suspension geometry, long-travel aluminum shocks and high-torque ball differentials support precise off-road handling.
Key Features
- Stainless-steel heavy-duty chain drive
- Hardened chain sprocket gears
- Carbon-fiber chain separator and adjustable tension
- Front CVA axles and hardened driveshafts
- Sealed three-gear Stealth A.T.C. transmissions
- High-torque ball differentials
- Fluid-filled anodized aluminum coil-over shocks

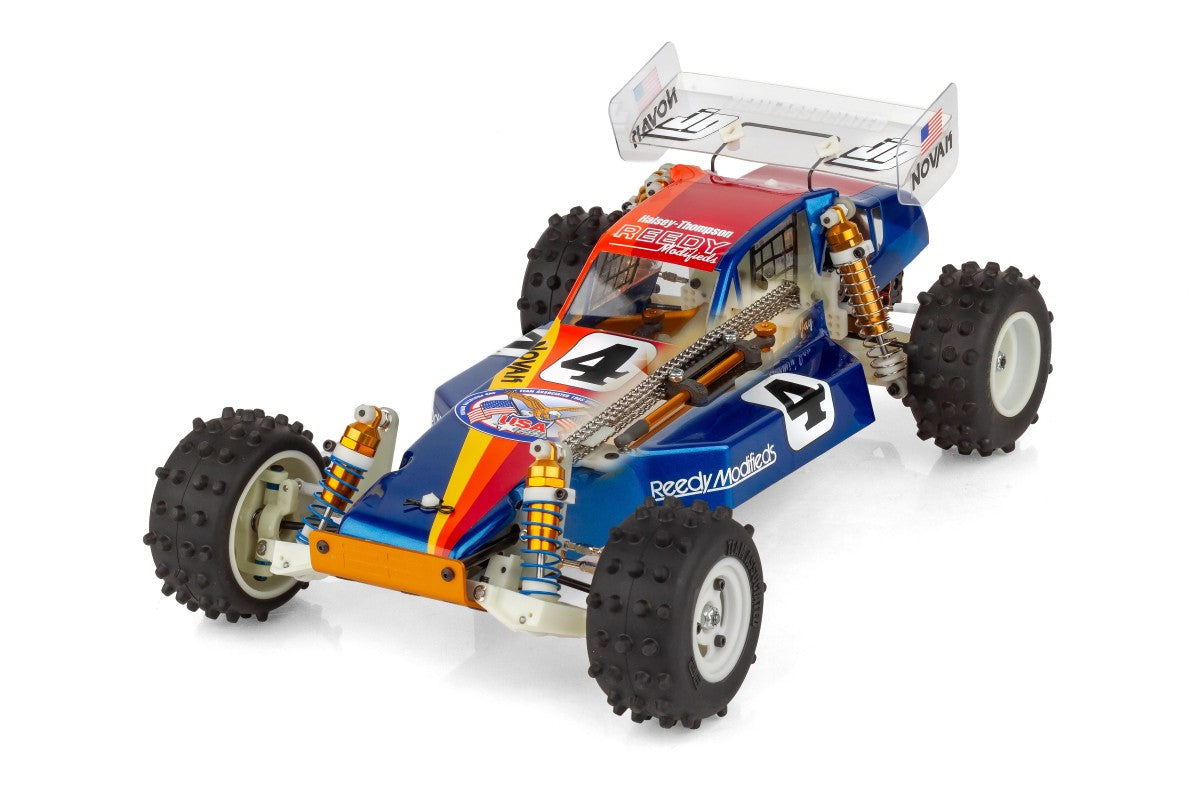

- Classic gold chassis and RC10 Protech body
- Full metal ball bearings
- Accepts 6-cell NiMH or 2S LiPo packs
Performance Benefits
True 4WD traction and a low center of gravity help the buggy accelerate and change direction with confidence, while long-travel suspension and generous ground clearance improve control over uneven off-road surfaces.
Usage Notes
This is an unassembled 1/10-scale kit intended for experienced hobbyists. Set chain tension and ball differentials carefully, use electronics appropriate for a vintage-style 1/10 buggy, and paint the clear polycarbonate body with compatible paint.
Technical Specs
- Scale: 1/10
- Drive: Chain-driven 4WD
- Power source: Electric
- Assembly level: Kit
- Length: 381mm (15.0in)
- Width: 226.8mm (8.93in)
- Wheelbase: 267.7mm (10.54in)
- Battery compatibility: 6-cell NiMH or 2S LiPo
What’s Included
- Unassembled RC10 4WD buggy kit
- Clear RC10 Classic Protech body and driver
- Jay Halsey-style clear rear wing
- RC10 Classic wheels and tires
- Decal sheet
- Instruction manual
Needed to Complete
- 2-channel transmitter and receiver
- Electronic speed control
- 540-size motor
- Steering servo
- Compatible 6-cell NiMH or 2S LiPo battery
- Compatible battery charger
- Polycarbonate paint
- Assembly tools
Summary
A distinctive limited-edition build that pairs landmark Team Associated styling with a functional, tunable chain-driven 4WD system.
