Overview
The Team Associated SR10M Dirt Oval Team Kit delivers all the dirt, clay, and pavement-racing excitement of full-scale dirt track racing in a precision-engineered 1/10 scale RC car. Often overlooked in the mainstream, dirt track racing is one of the most exciting forms of tire-scorching car racing action, with competitions held on oval tracks throughout the United States. The SR10M brings this year-round weekly racing experience to your local track with championship-caliber engineering.

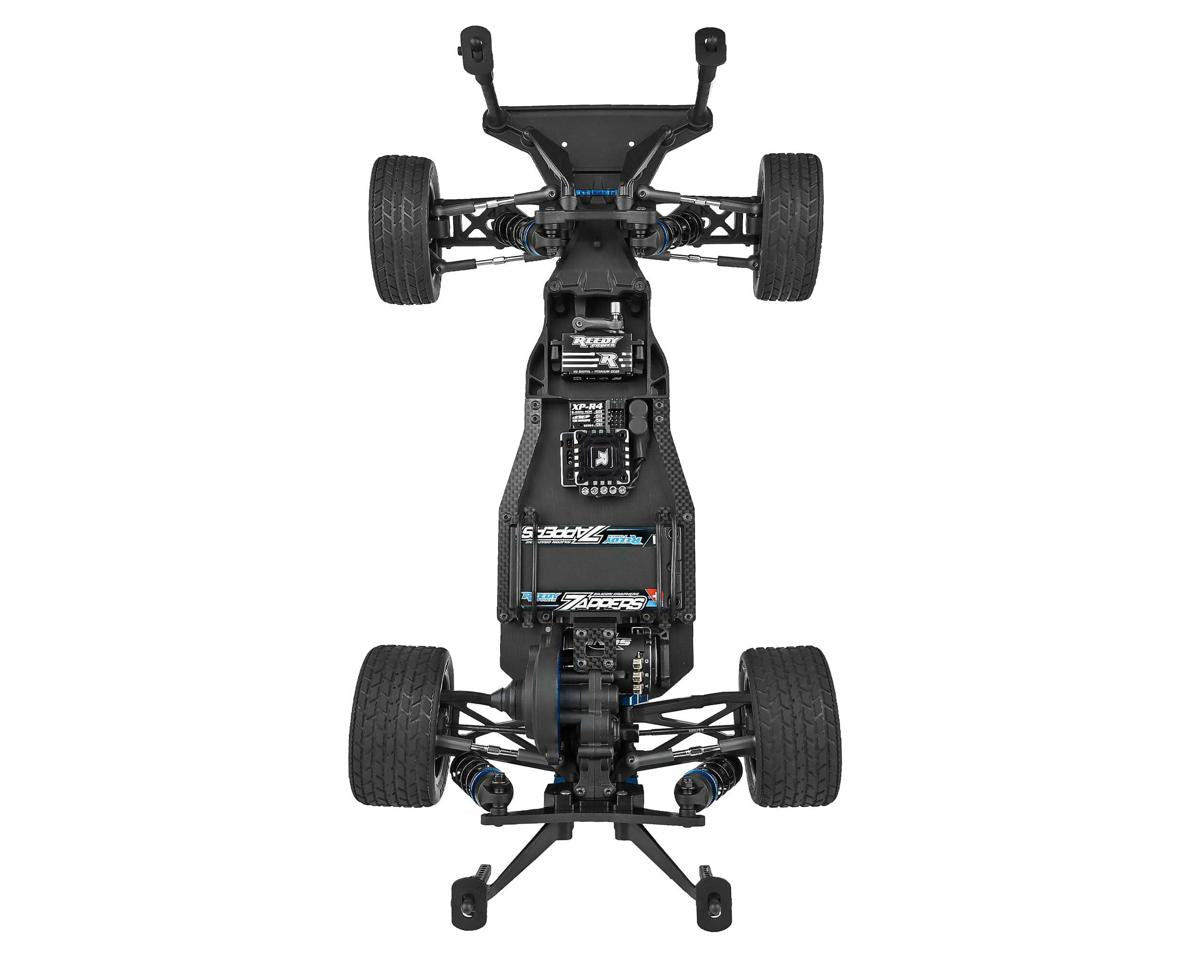

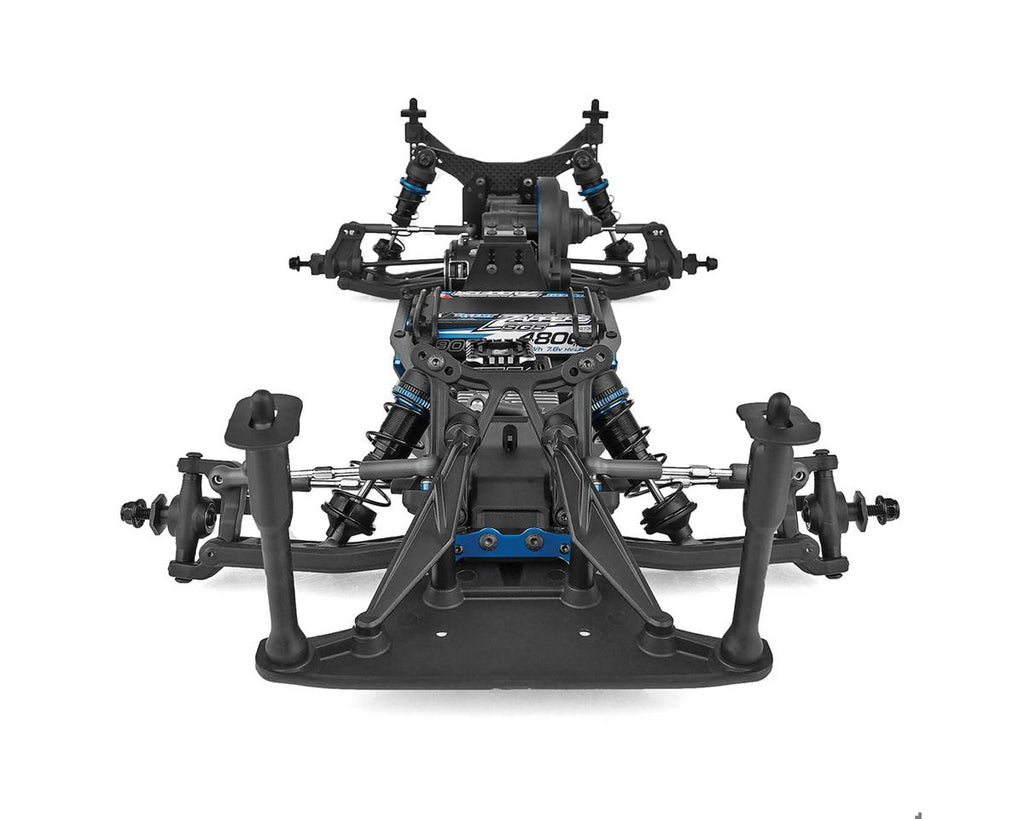

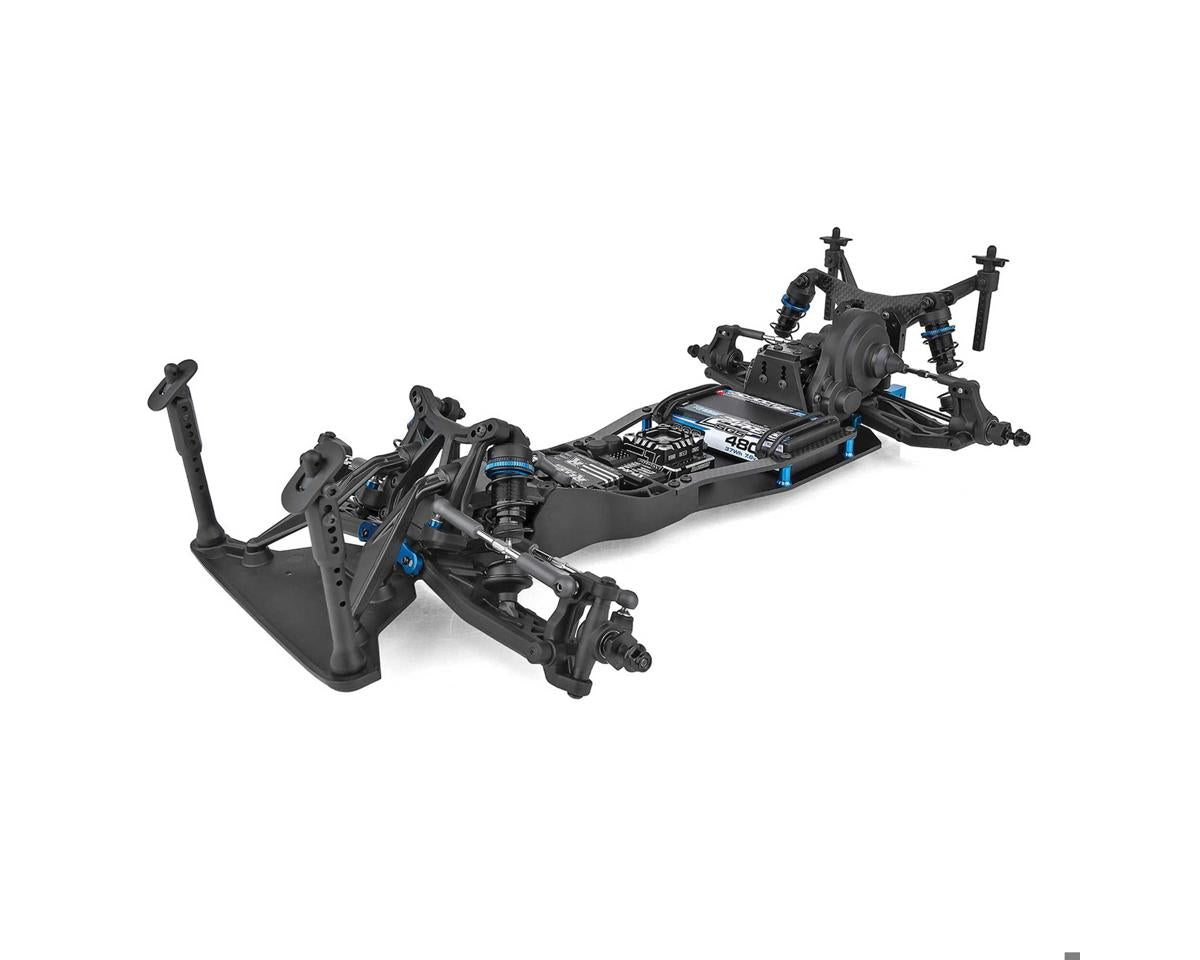

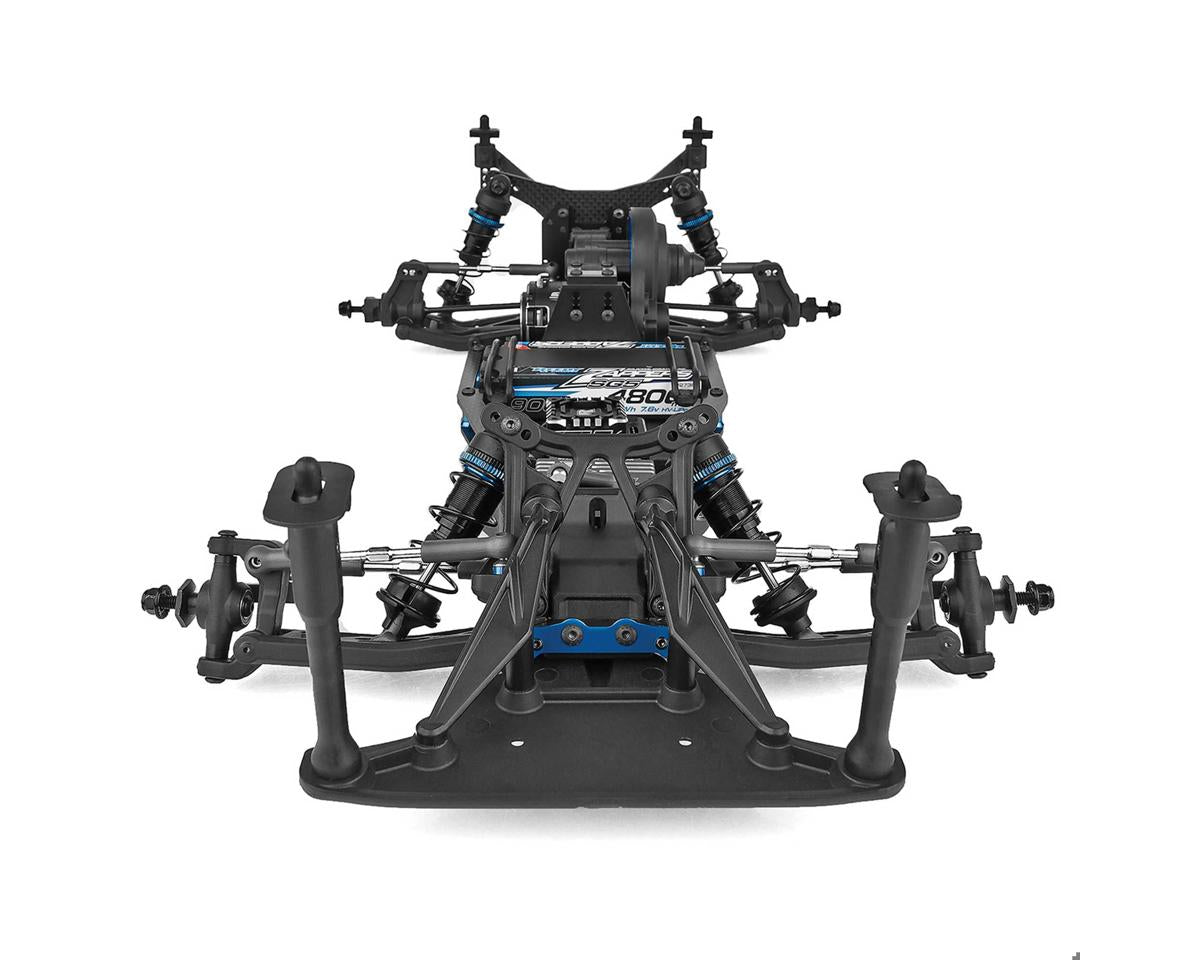

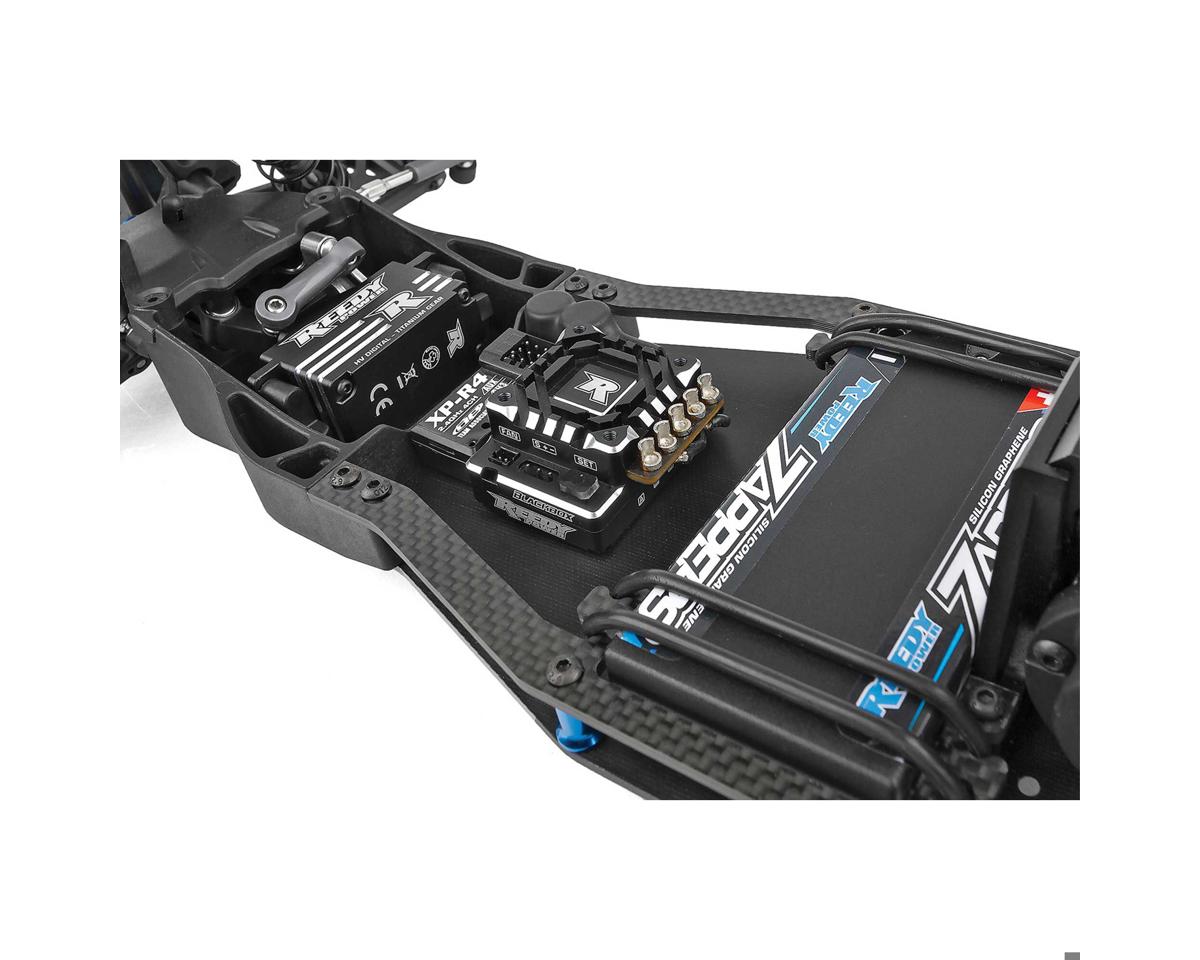

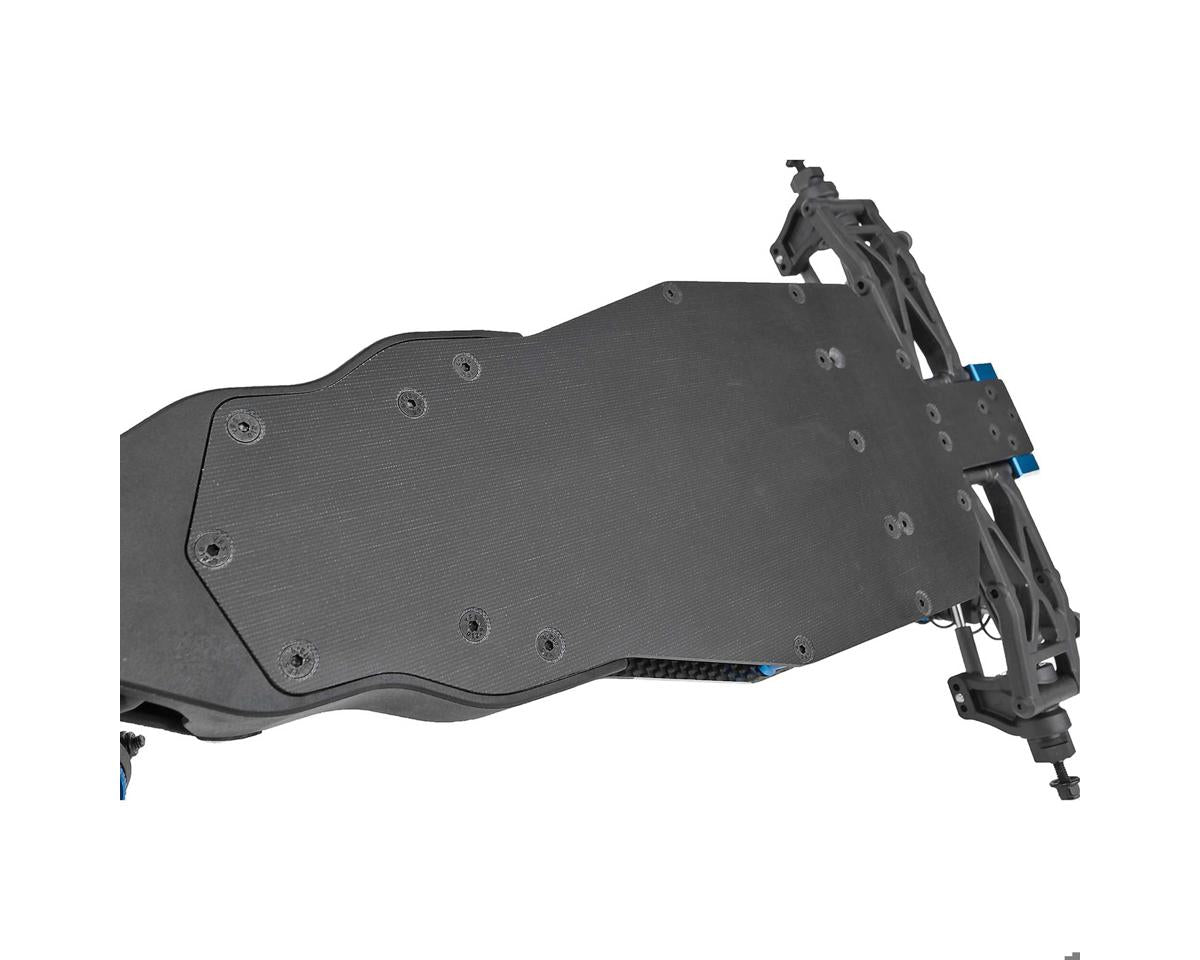

Built on a new mid-motor low center-of-gravity G10 fiberglass chassis with updated O-ring battery straps, the SR10M features carbon fiber chassis side braces for enhanced stability and a revised rear toe block specifically optimized for dirt oval racing. The new Octalock spur gear and 11mm Octalock pads provide maximum consistency and higher torque capacity for competitive oval racing. Whether you're racing at the club level or chasing national championships, the SR10M is ready to tear up the oval track.
Key Features
- Mid-motor low center-of-gravity G10 fiberglass chassis
- Updated O-ring battery straps for 2S LiPo shorty packs

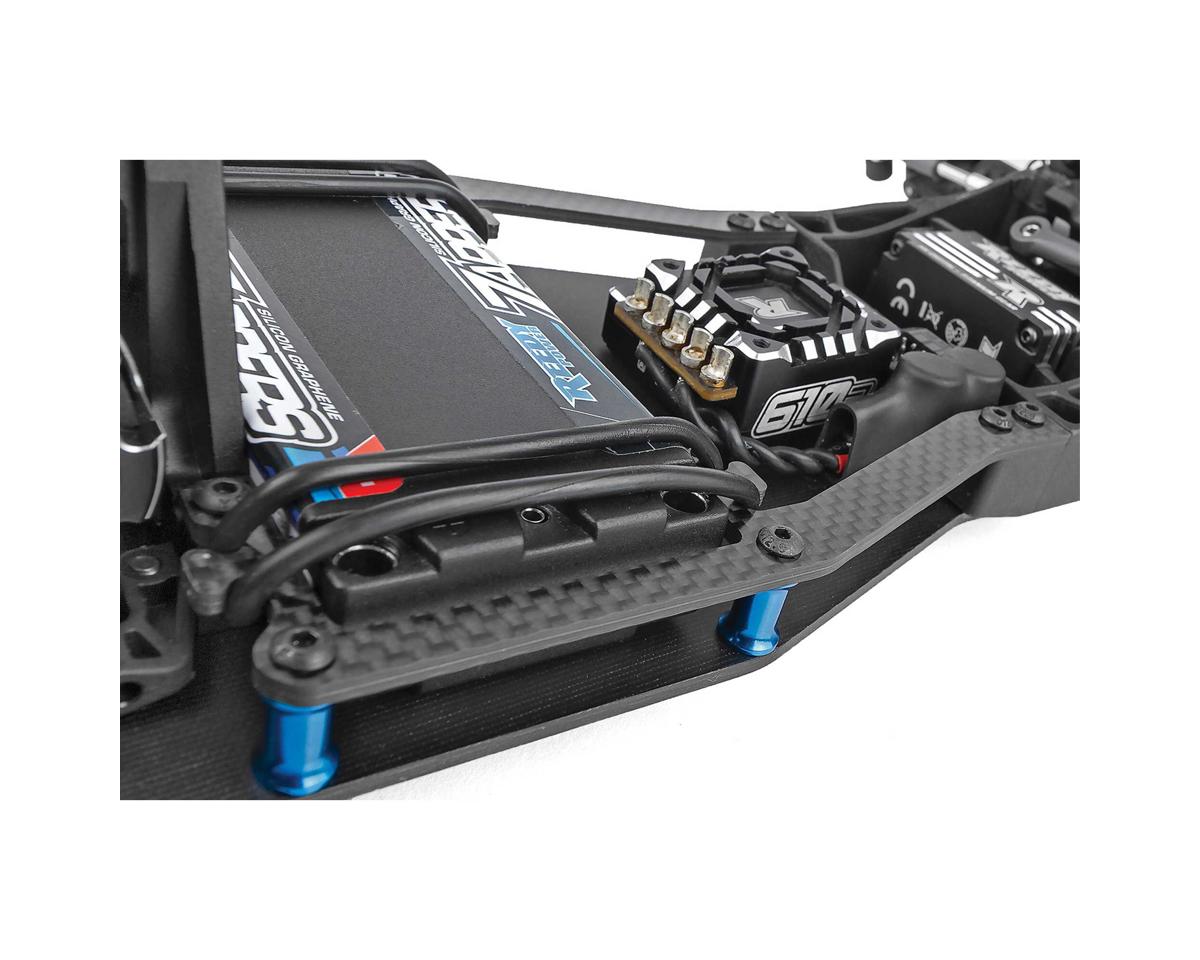

- Carbon fiber chassis side braces

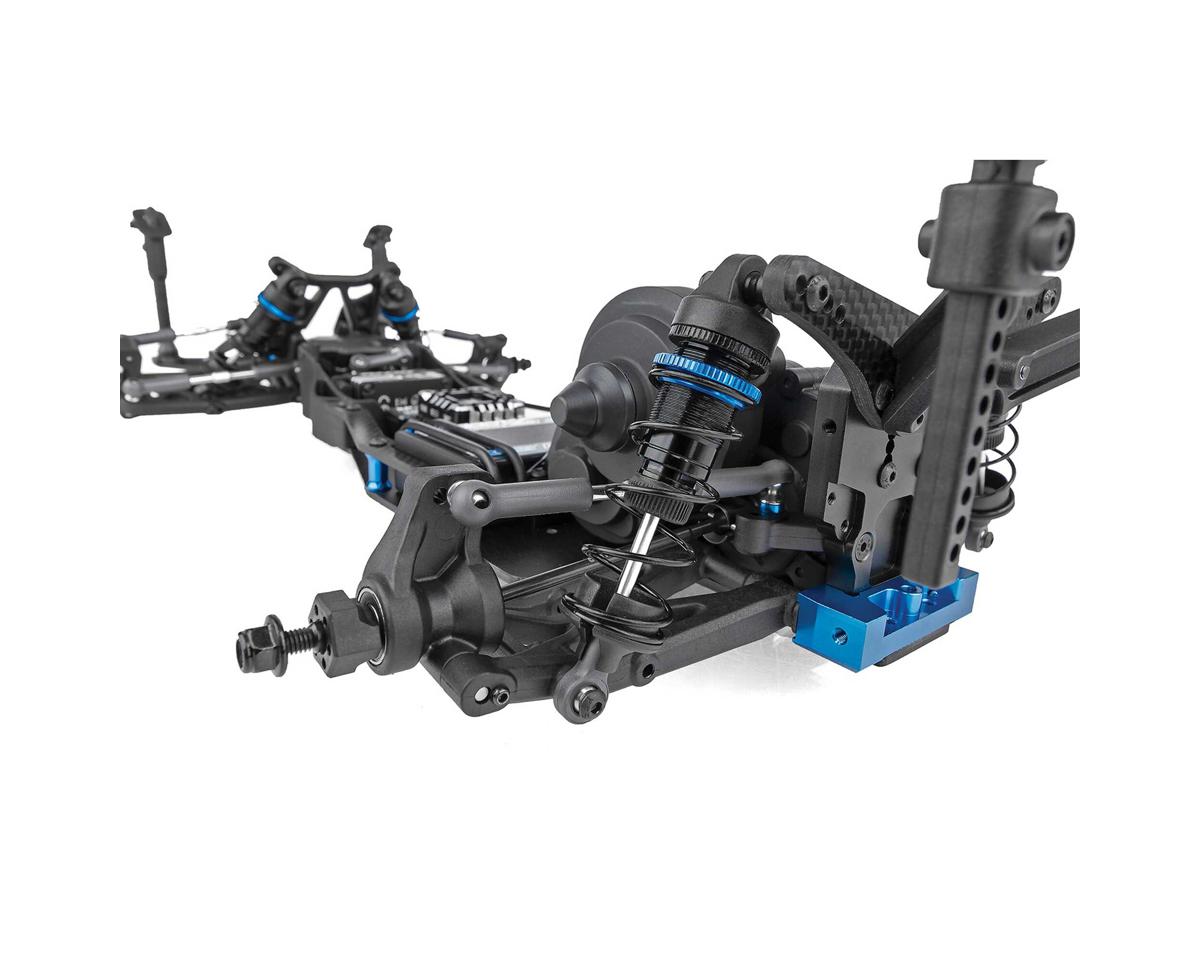

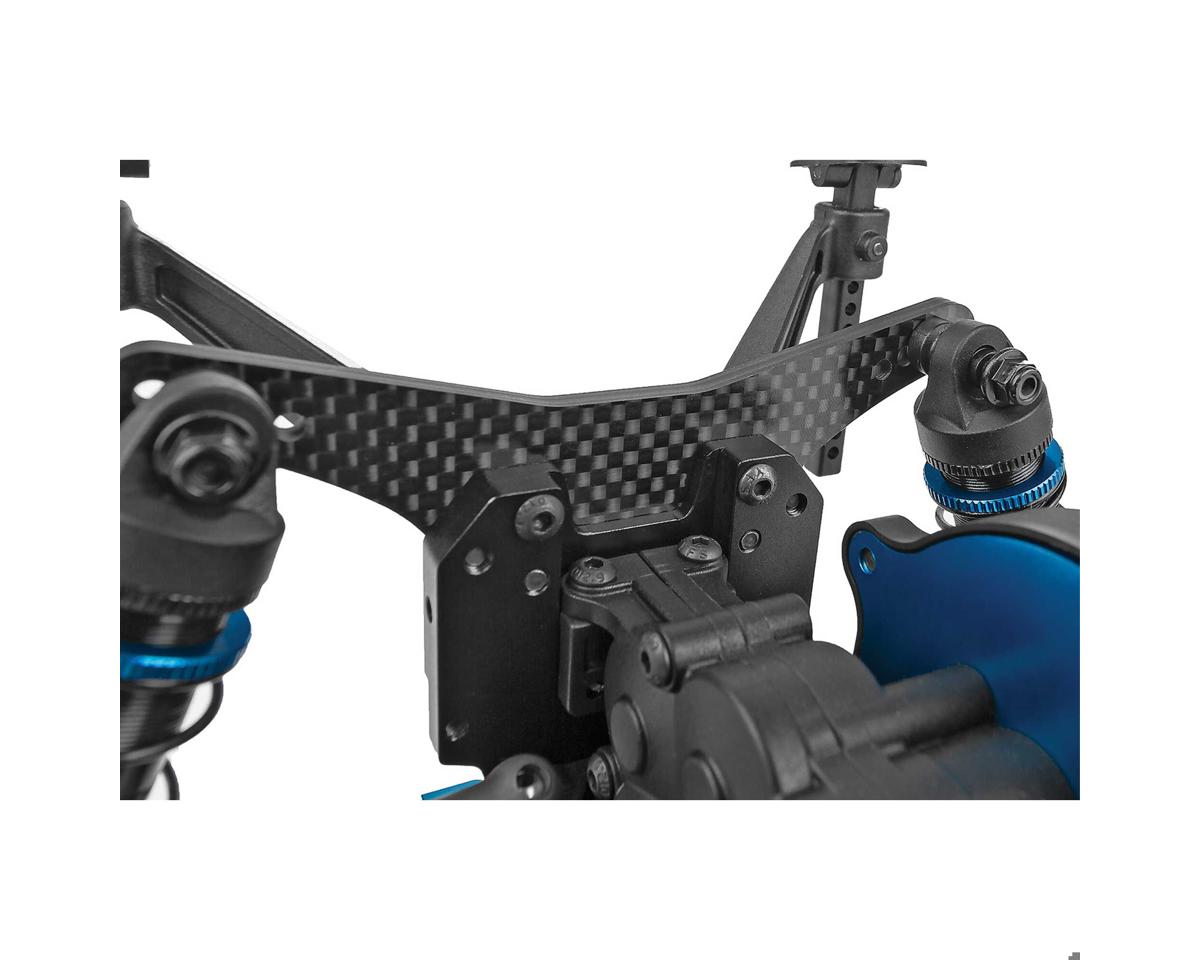

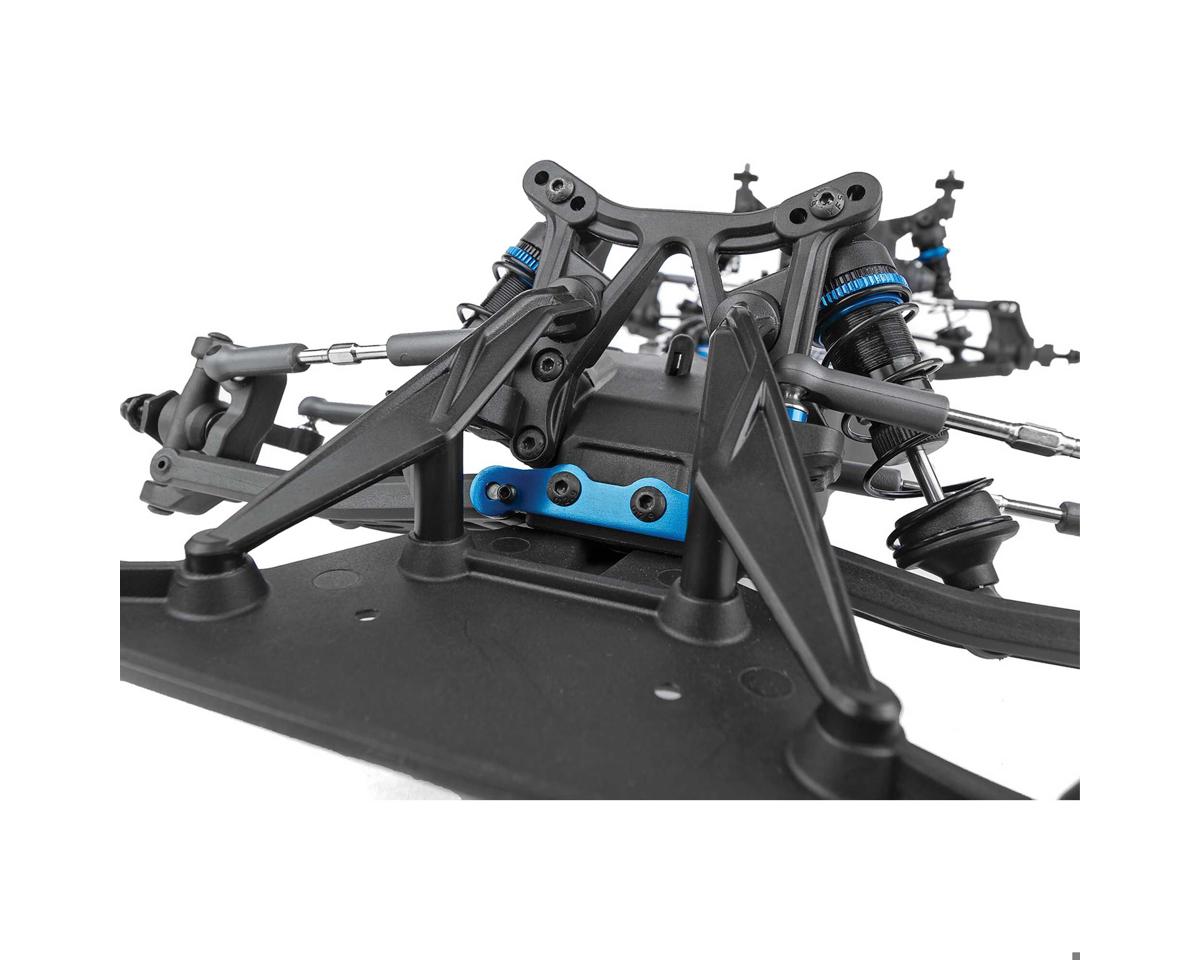

- Updated mid-motor rear carbon fiber shock tower for oval

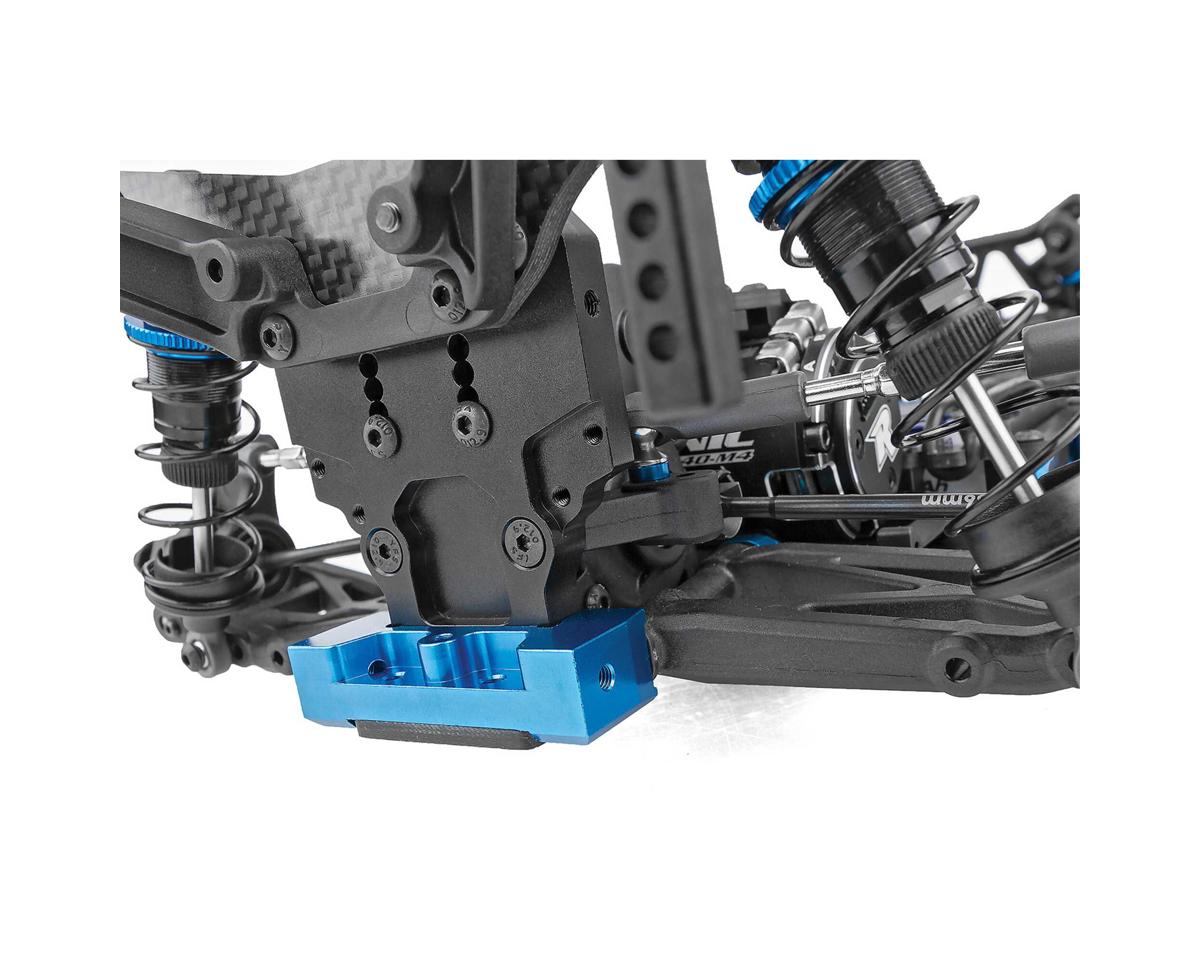

- Revised rear toe block for dirt oval racing
- New Octalock spur gear with 11mm Octalock pads
- Rear CVA driveshafts for reliability
- Durable lightweight aluminum top shaft

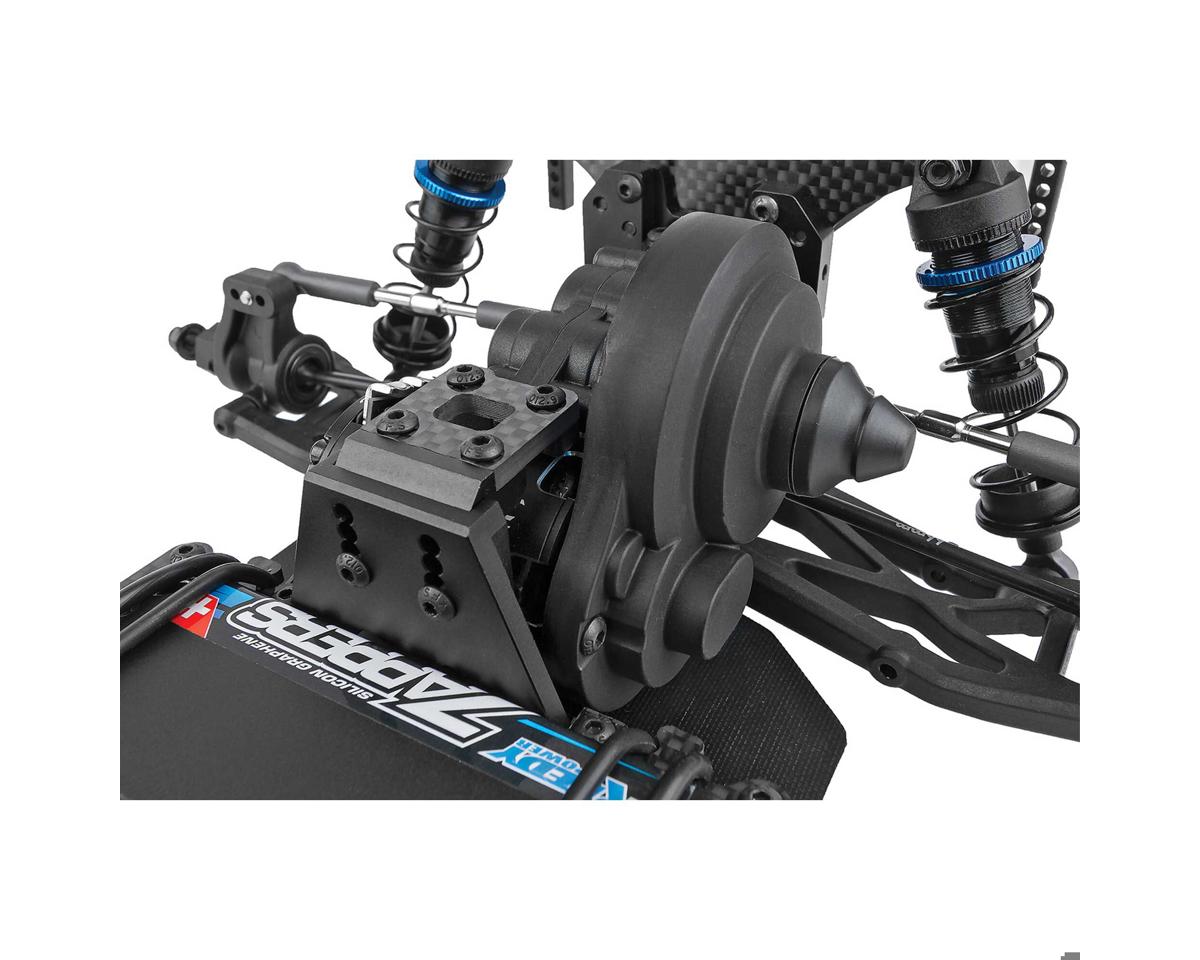

- 2.6:1 ratio gearbox with heavy-duty sealed gear differential
- Externally adjustable V2 slipper clutch

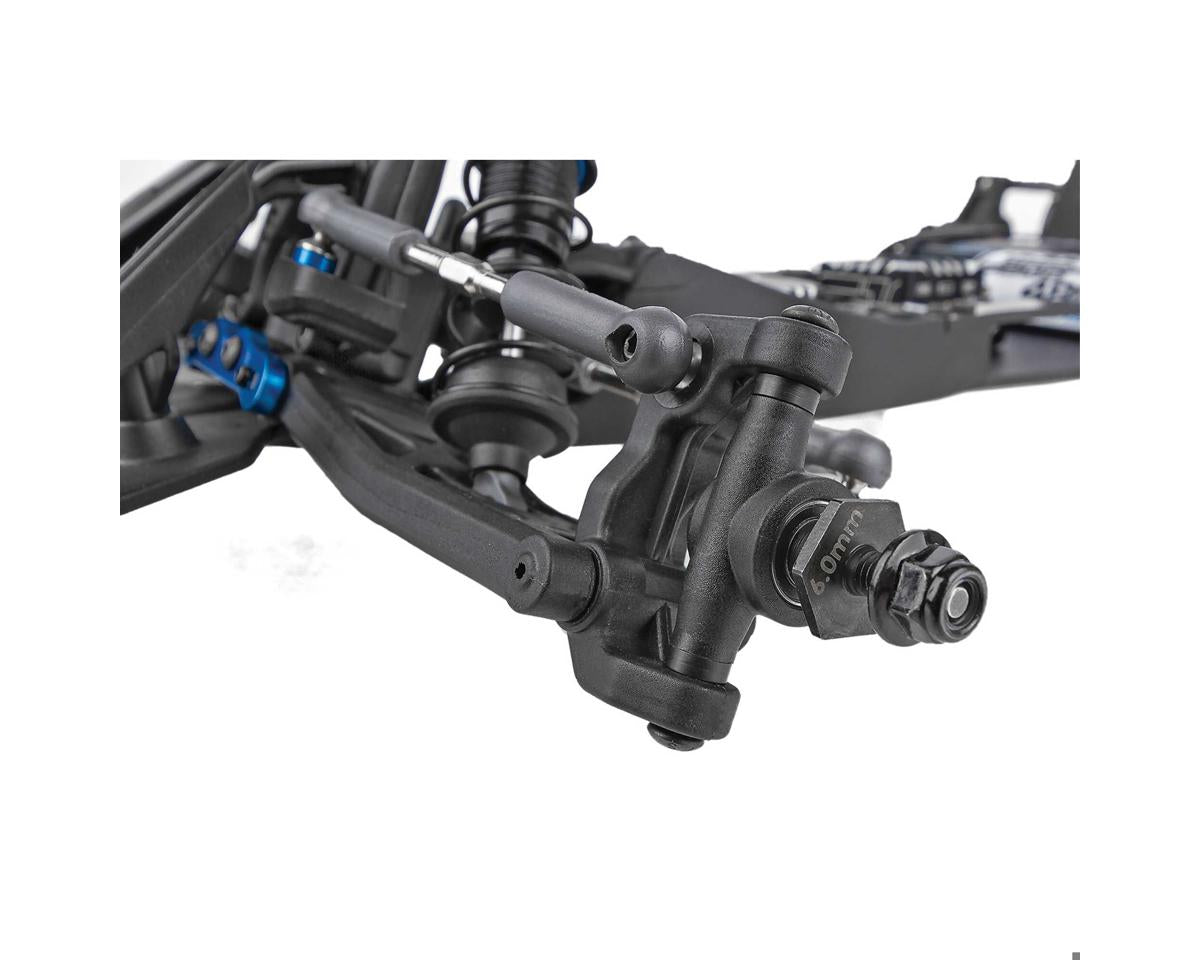

- Rugged steel turnbuckles for camber and toe-in adjustment
- Adjustable suspension geometry
- Vertical ball ends for roll center adjustments
- 24 precision rubber-sealed ball bearings
- Impact-absorbing front and rear bumpers
- Metric hardware throughout
Performance Benefits

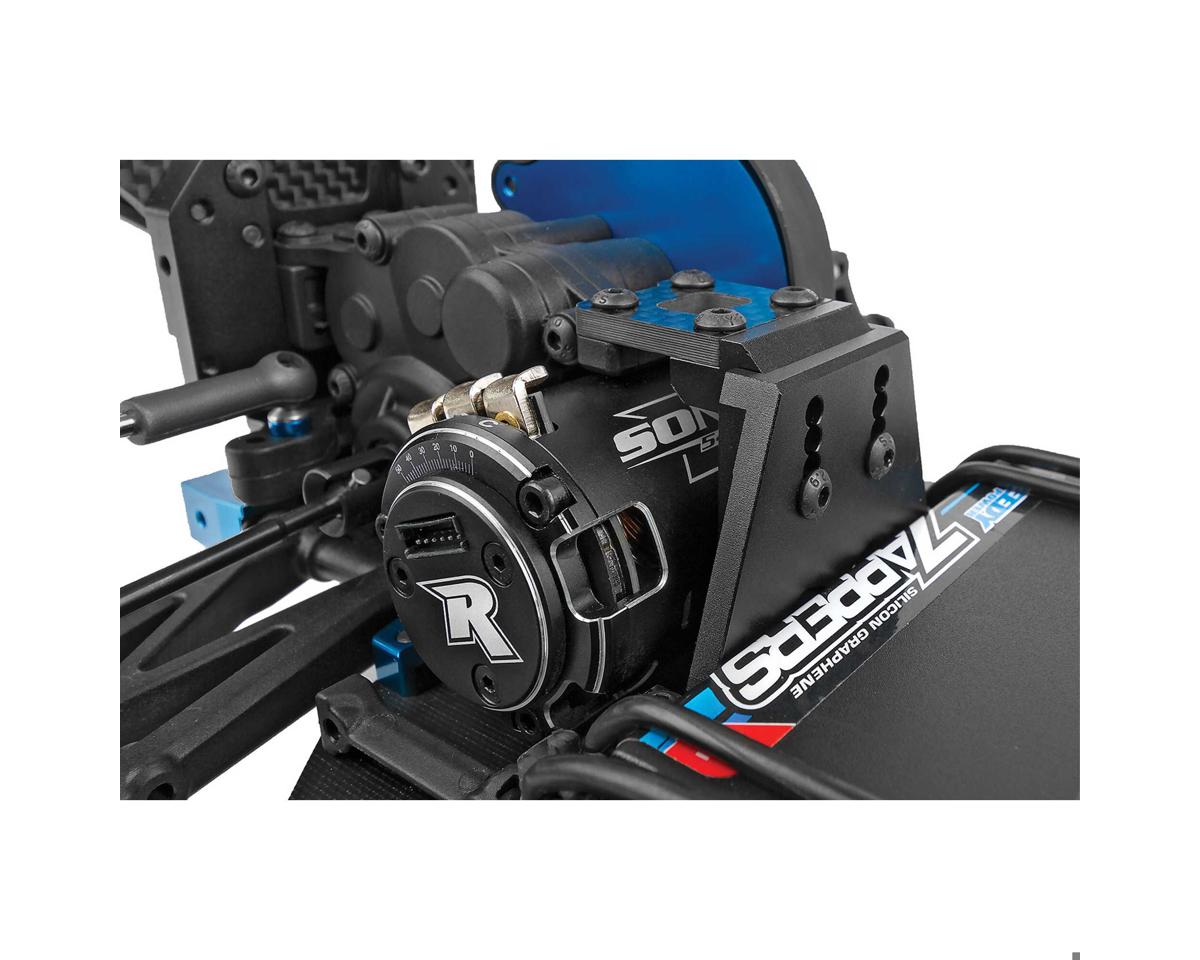

- Mid-motor layout optimizes weight distribution for oval racing
- Low CG chassis improves cornering stability
- Carbon fiber braces enhance chassis rigidity
- Octalock system delivers consistent power transfer
- Sealed gear diff provides reliable traction
- Adjustable slipper protects drivetrain
- Vertical ball ends allow precise roll center tuning
- Factory Team options available for further upgrades
Dirt Oval Specific Design
- Revised rear toe block geometry
- Oval-optimized shock tower positioning
- High-torque capacity drivetrain
- Adjustable front and rear body mounts

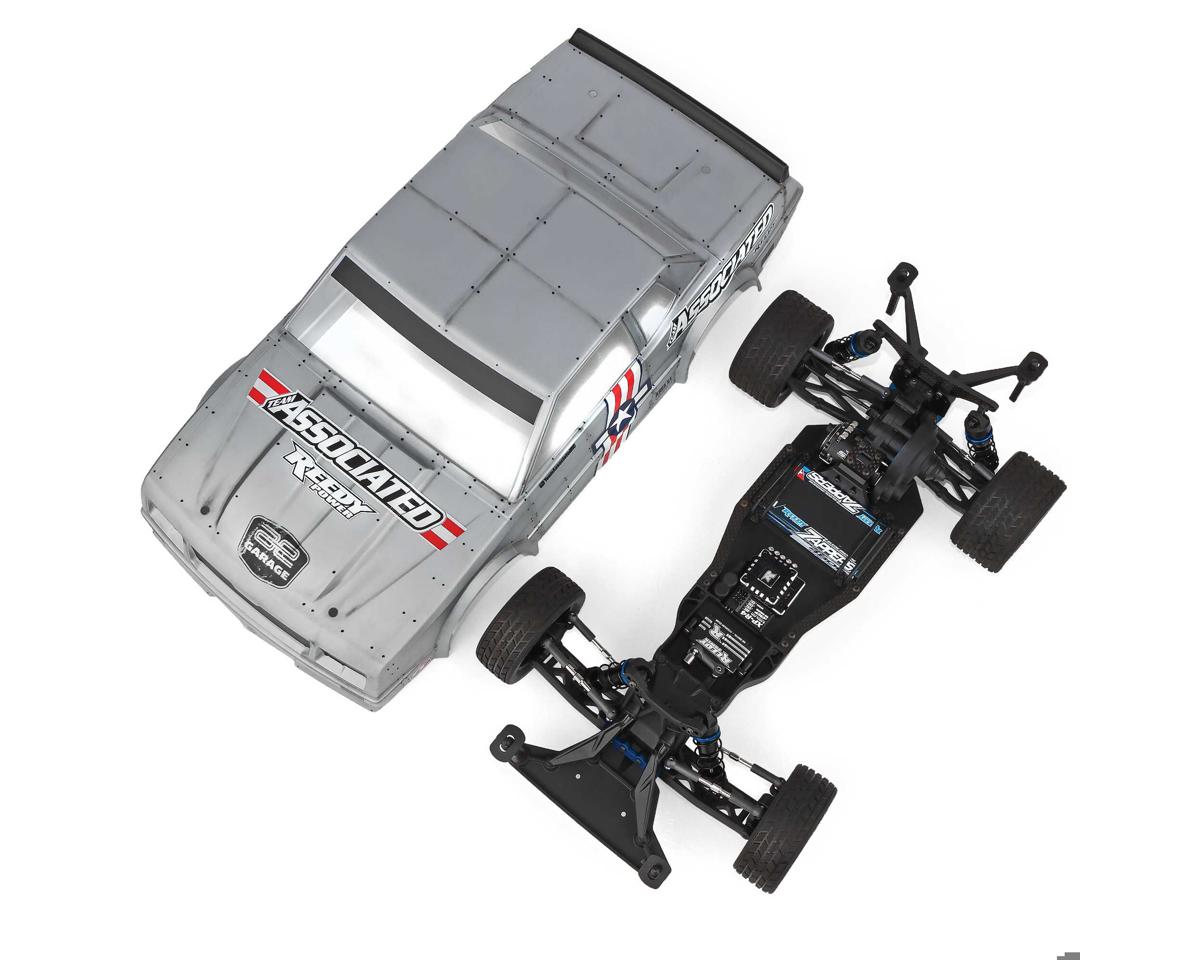

- Compatible with dirt oval street stock bodies
Usage Notes
The SR10M Dirt Oval Team Kit is designed for competitive 1/10 scale dirt oval racing including street stock classes. This kit requires assembly and electronics selection. Best suited for dirt, clay, and paved oval tracks. Recommended for ages 14 and up with RC building experience.
Technical Specs
-
Scale: 1/10
-
Drivetrain: 2WD
-
Length: 536.4mm (21.12 in)
-
Width: 250mm (9.84 in)
-
Wheelbase: 277.8mm (10.94 in)
-
Weight: 1424g (3.14 lbs) chassis only
-
Gear Ratio: 2.6:1
-
Chassis: G10 Fiberglass
-
Surface: Dirt/Clay/Paved Oval
-
Format: Team Kit (Unassembled)
-
Brand: Team Associated
What's Included
- SR10M Dirt Oval Team Kit chassis (unassembled)
- G10 fiberglass chassis with battery straps
- Carbon fiber shock tower and side braces
- 2.6:1 gearbox with sealed gear differential
- Octalock spur gear and pads
- V2 slipper clutch
- Rear CVA driveshafts
- 24x precision ball bearings
- Steel turnbuckles and hardware
- Front and rear bumpers
- Instruction manual
Needed to Complete
- 2-channel radio system (transmitter and receiver)

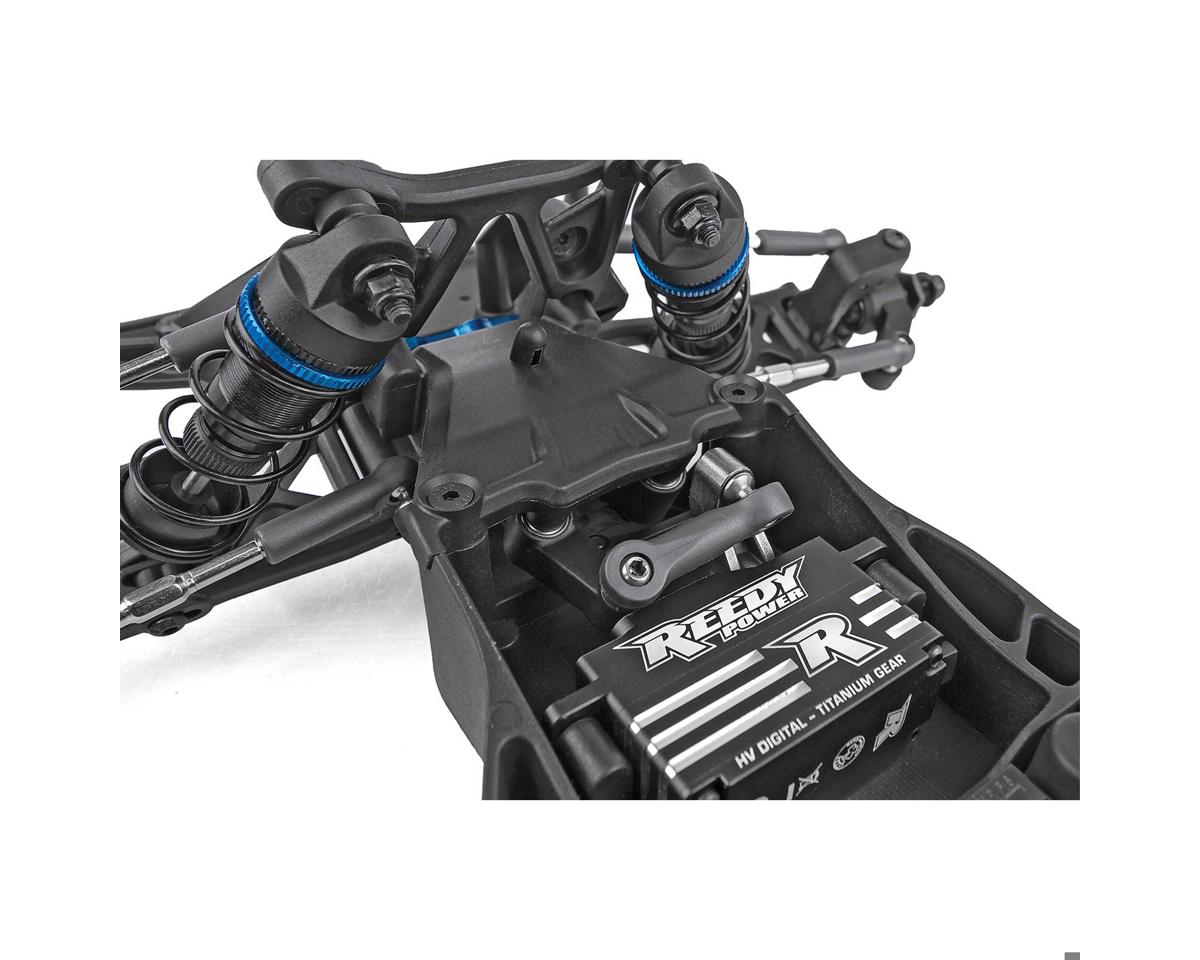

- Steering servo
- Electronic Speed Controller (ESC)
- 540-size electric motor
- Pinion gear
- 2S LiPo shorty battery
- Compatible battery charger

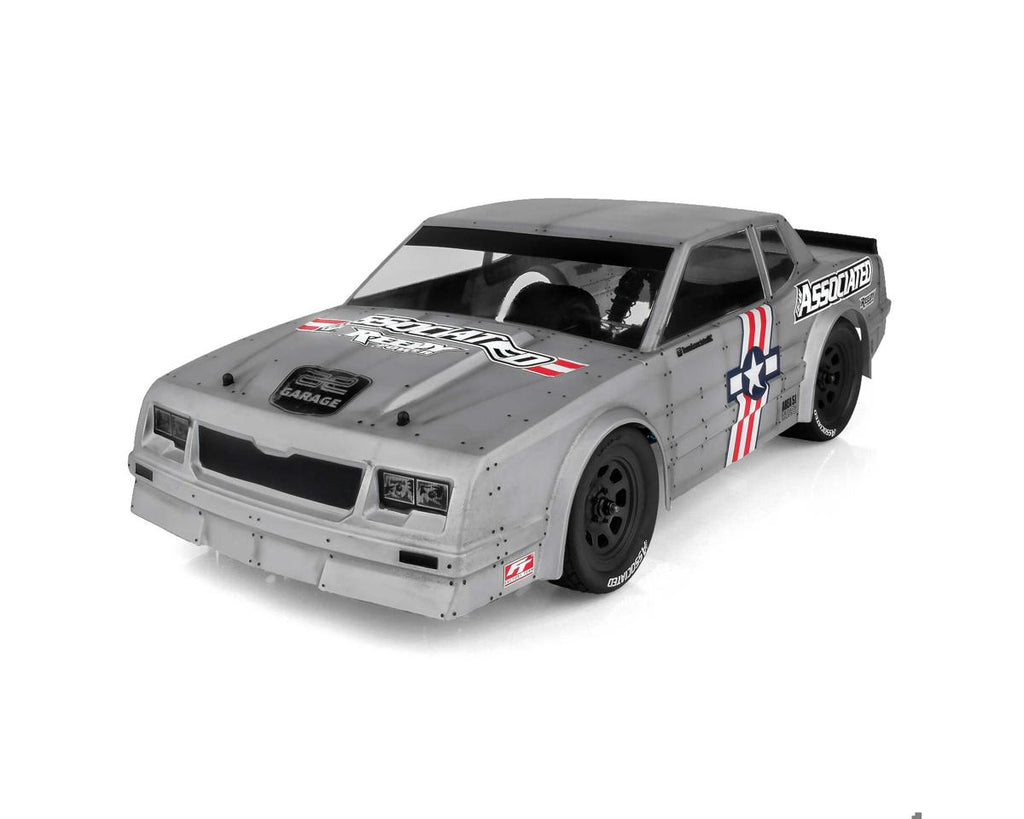

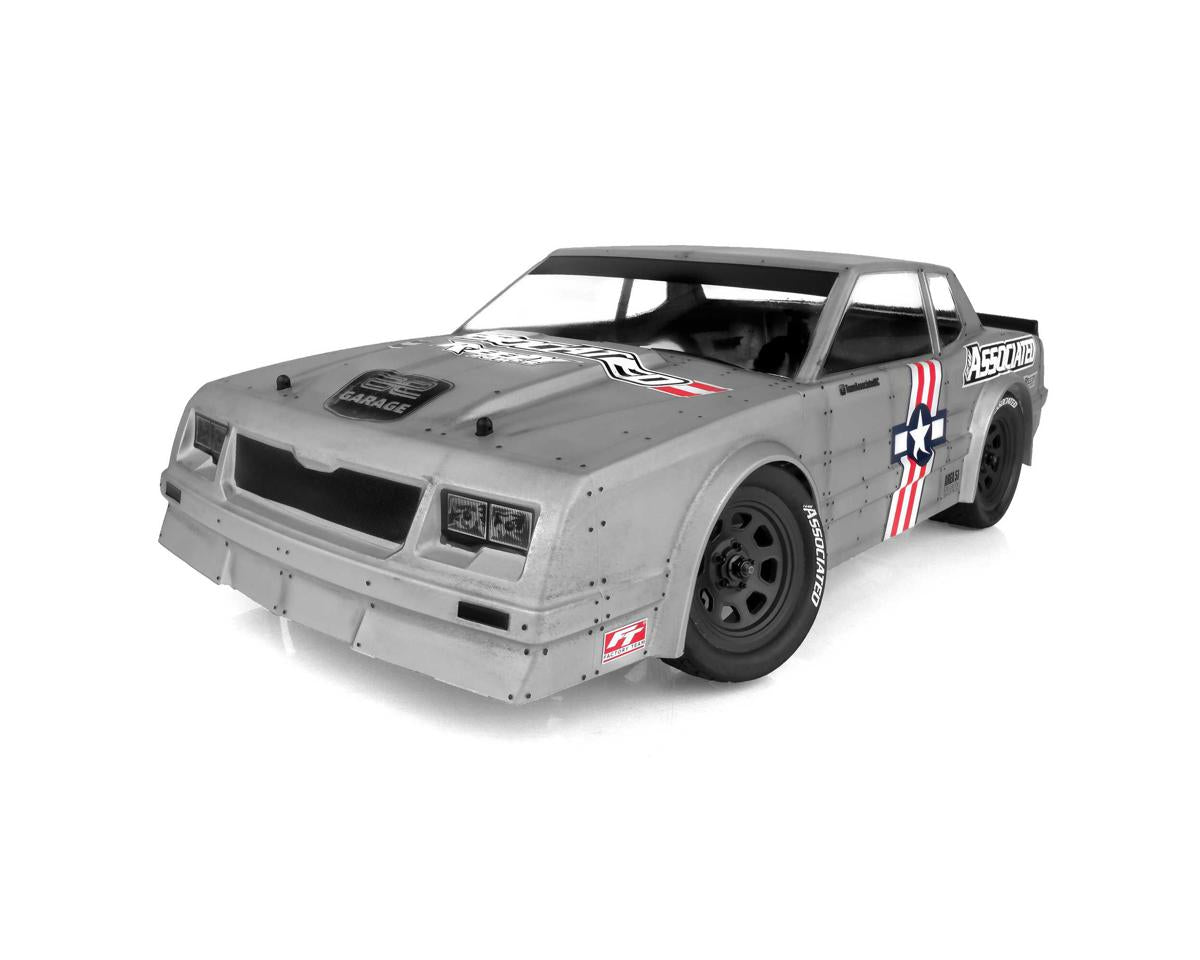

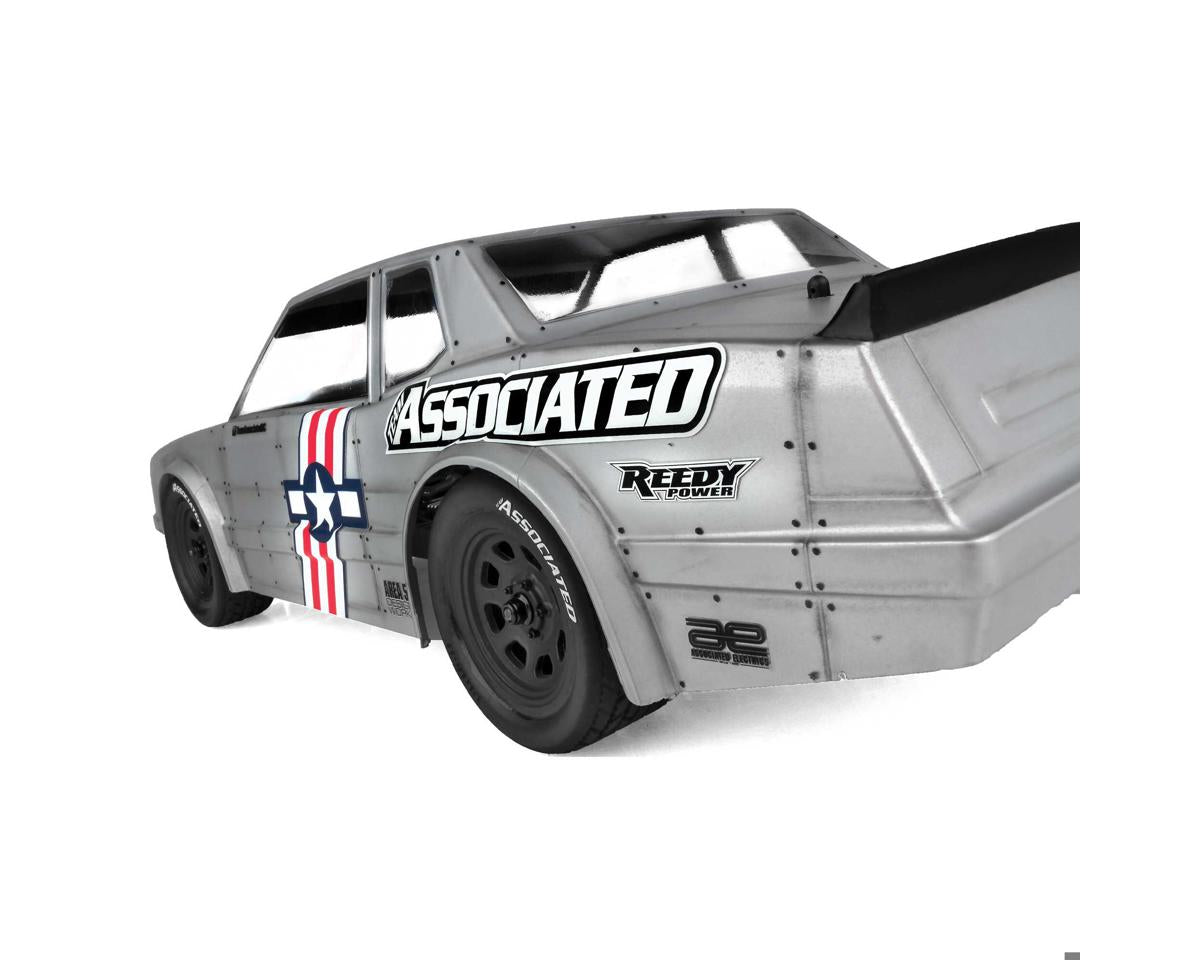

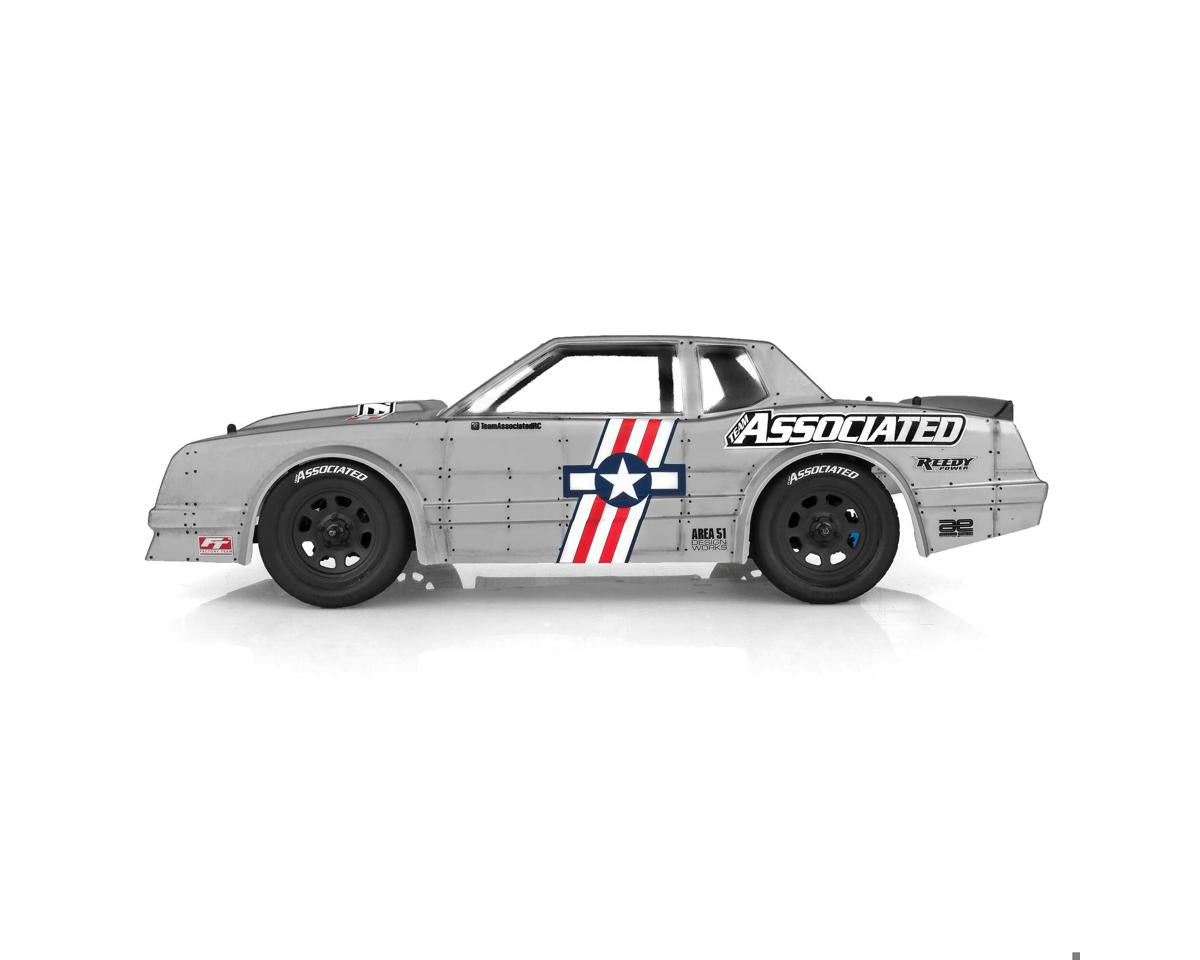

- 1/10 dirt oval street stock body
- 1/10 dirt oval wheels and tires
- Polycarbonate body paint
- Assembly tools and fluids
Summary
The Team Associated SR10M Dirt Oval Team Kit brings championship-caliber dirt track racing to 1/10 scale with its mid-motor G10 chassis, carbon fiber components, and Octalock drivetrain technology. Engineered specifically for oval racing, this kit delivers the precision and reliability serious oval racers demand. The time for tearing up the oval track is now!
