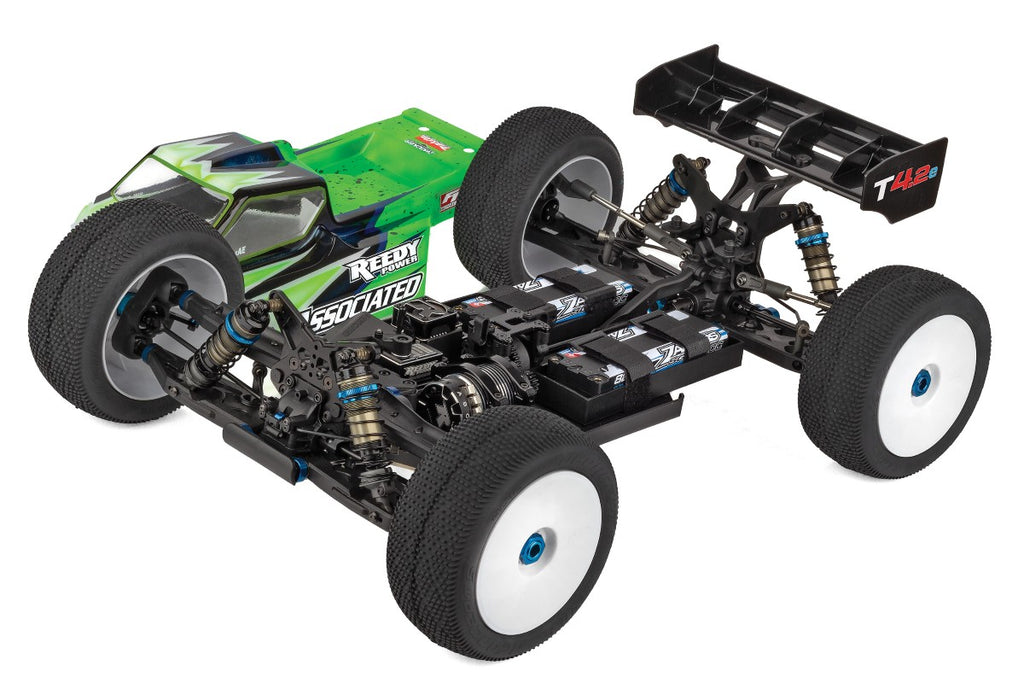

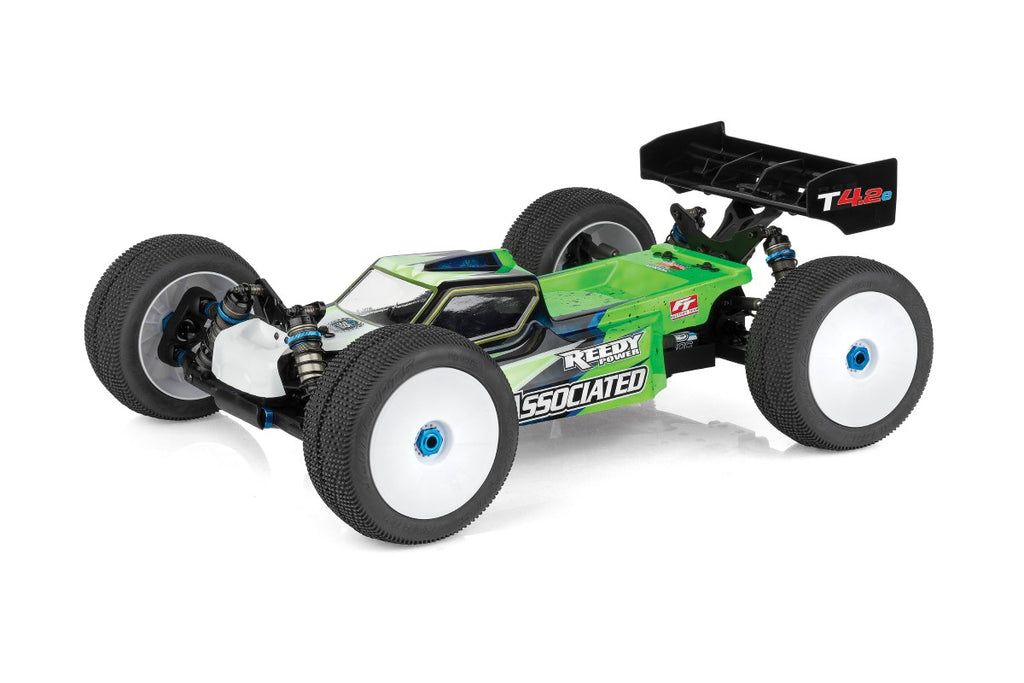

Team Associated RC8T4.2e Team 1:8 4WD Electric Off-Road Truggy Kit

Overview

The Team Associated RC8T4.2e Team Kit is a 1:8 scale 4WD electric off-road truggy kit built for competitive racing and high-power brushless setups. It uses the latest RC8T4.2 platform updates from Associated Electrics' Area 51 program, combining durable suspension components, refined geometry, and drivetrain tuning options in an electric race chassis.

This kit is for racers who want to select their own brushless motor, ESC, LiPo batteries, servo, radio system, tires, wheels, and body. It is not a ready-to-run vehicle; it is a competition kit designed for drivers who understand setup work and want control over every major performance component.

Key updates include molded height-adjustable gearboxes, updated shock towers, revised 16-degree KPI steering blocks, a high-volume center differential, Factory Team hardware, and drivetrain components sized for serious 1:8 truggy loads.

Key Features

• 1:8 scale 4WD electric off-road truggy competition kit
• Molded height-adjustable front and rear gearboxes
• Updated shock towers with expanded body mount height options
• New molded front and rear suspension arms for durability and modern geometry
• 16-degree KPI steering blocks with updated bump-steer geometry
• New rear anti-roll bar with wider mounting points
• New molded top plate included
• High-volume center differential for smooth electric power delivery
• 40/9 ring and pinion gear sets included
• 131mm universal driveshafts with 17mm outdrives
• 19mm and 20mm HTC internal differential gear sets included
• Bladder and emulsion-style shock seals included
• Factory Team hard-anodized aluminum shock bushings, hexes, and grooved pins

Performance Benefits

• The height-adjustable gearbox design gives racers more control over driveline angle, grip level, and chassis response.
• Updated steering geometry helps the truggy track accurately through rough sections and technical corners.
• The high-volume center differential helps manage brushless torque and improves consistency on corner exit.
• Factory Team shock and wheel hardware improves durability in high-load areas.
• Multiple differential and shock tuning options let racers adapt the vehicle to clay, loam, outdoor dirt, or high-bite surfaces.
• The electric layout is designed for clean brushless power installation while keeping the chassis race-focused.

Usage Notes

• Best for experienced 1:8 electric off-road racers building a competition truggy with their preferred electronics.
• Use a race-grade 1:8 brushless motor and ESC combination that matches the track size, battery voltage, and gearing plan.
• Pair with high-quality LiPo batteries, a strong steering servo, and truggy tires selected for the surface.
• Follow the manual for droop, shock build, differential oil, steering geometry, and battery/electronics placement.
• The kit requires assembly and painting and does not include motor, ESC, servo, radio, receiver, batteries, tires, wheels, or body.

Technical Specs

• Scale: 1:8
• Drive: 4WD
• Power source: Electric brushless system required
• Vehicle type: Off-road competition truggy
• Length: approximately 560mm / 22.05in
• Ring and pinion: 40/9 gear sets included
• Driveshafts: 131mm universals with 17mm outdrives
• Differential tuning: 19mm and 20mm HTC internal gear sets included
• Shock tuning: bladder and emulsion-style seals included
• Assembly level: Unassembled competition kit

Fitment

• Team Associated RC8T4.2e

What's Included

• Team Associated RC8T4.2e Team electric truggy kit

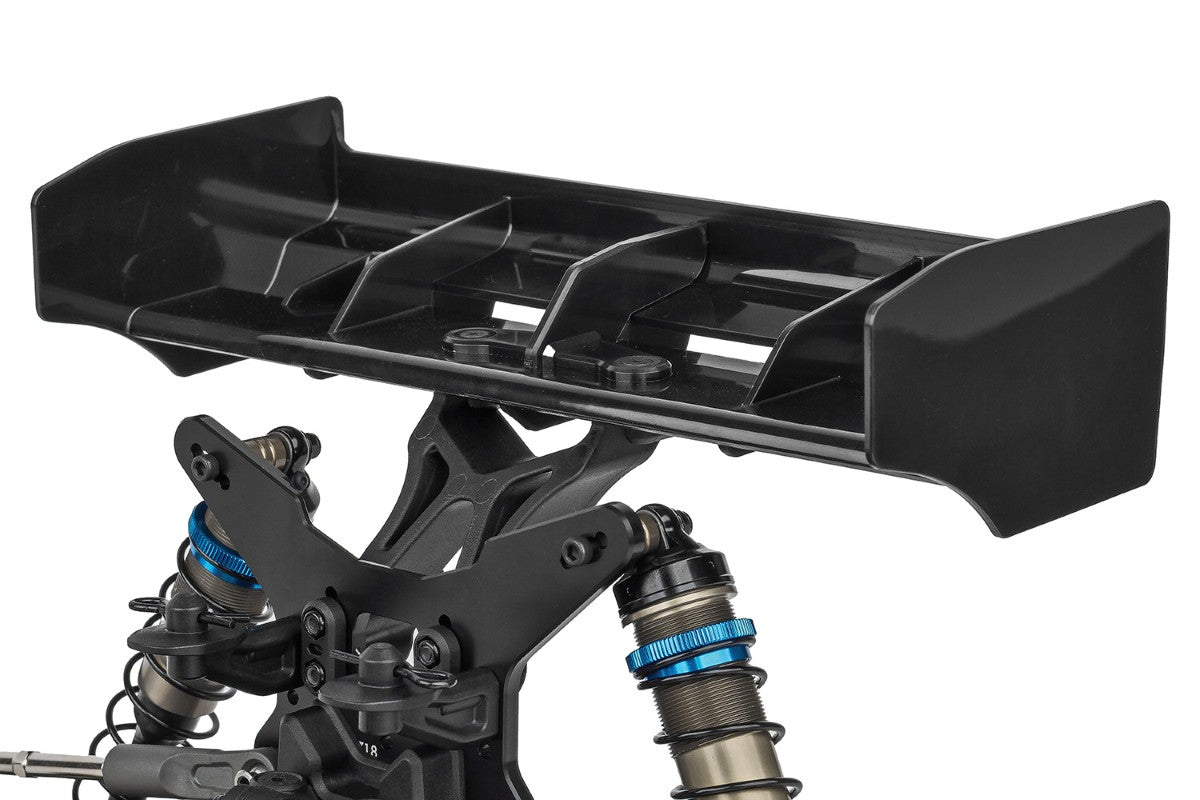

• High-downforce rear wing
• Height-adjustable gearbox components
• Factory Team hard-anodized aluminum shock bushings
• Factory Team hexes and grooved pins
• 40/9 ring and pinion gear sets
• 19mm and 20mm HTC differential internal gear sets
• Bladder and emulsion-style shock seals
• Assembly hardware and instruction manual

Needed to Complete

• 1:8 scale brushless motor
• Compatible 1:8 brushless ESC
• High-torque steering servo
• 2.4GHz radio system and receiver
• LiPo battery packs and compatible balance charger
• 1:8 truggy wheels, tires, and inserts
• 1:8 truggy body and polycarbonate paint
• Pinion gear, shock oils, differential oils, threadlock, grease, tools, and setup equipment as needed

Summary

The RC8T4.2e Team Kit is a premium electric truggy race platform for drivers who want Team Associated geometry, Factory Team hardware, and the freedom to install their preferred brushless power system. It is built for serious 1:8 competition where tuning range and durability matter.
