Overview

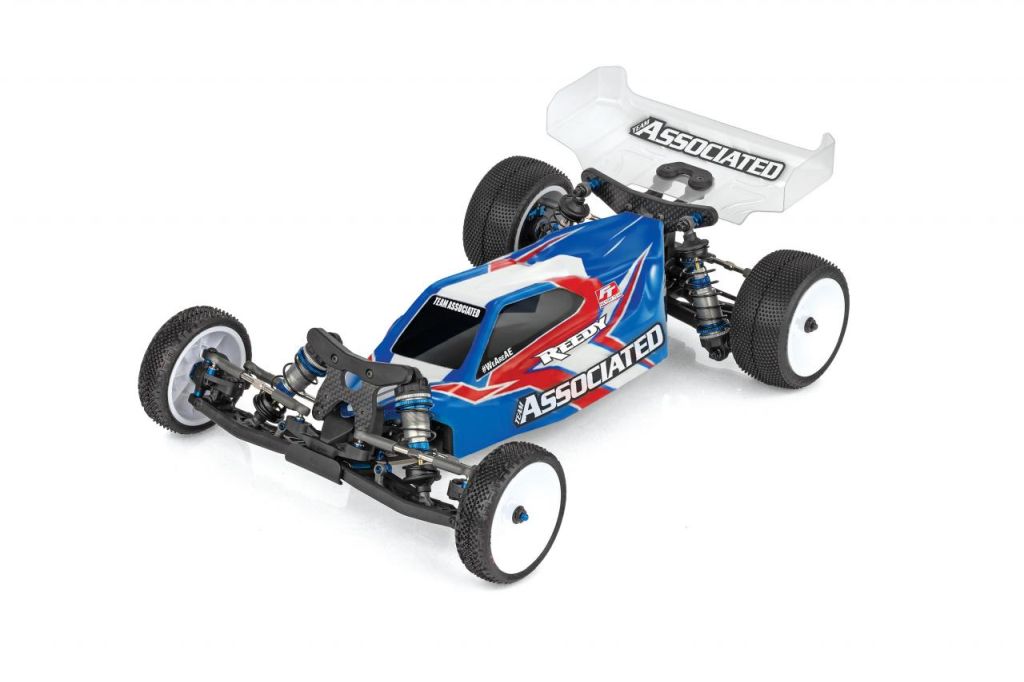

The Team Associated RC10B7.1 Team Kit represents the pinnacle of 2WD off-road racing evolution, purpose-built for carpet, AstroTurf, and high-grip sealed clay tracks. Drawing on over 40 years of championship heritage since the original RC10, the B7.1 delivers next-level performance with revolutionary long-arm suspension geometry, weight-centralized electronics layout, KPI-adjustable steering blocks, and comprehensive tunability throughout the entire chassis. These innovations dramatically increase grip potential, corner speed, and driving smoothness.
Optimized for high-grip conditions, the RC10B7.1 features an all-new high-volume gear differential, stiffer springs, and higher pack shock pistons for maximum traction and control. The revised 3-gear laydown transmission reduces rotational mass while maintaining optimal motor position, and front and rear anti-roll bars provide enhanced stability through high-speed corners.
Key Features
- NEW long-arm suspension geometry for maximum grip

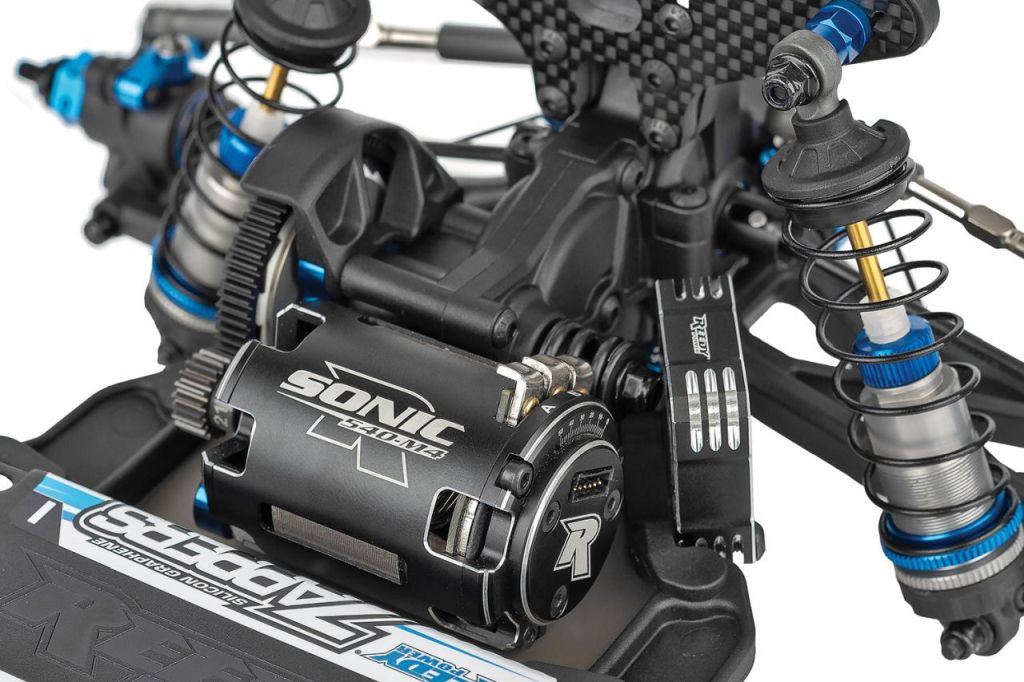

- 3-gear laydown transmission reduces rotational mass
- High-volume gear differential for high-grip conditions
- Front and rear anti-roll bars included
- NEW steering and caster block assembly - lighter, simpler
- KPI-adjustable steering blocks for precise tuning
- NEW -2mm front ballstud mount included
- NEW front suspension arms with hinge pin brace
- -2mm front shock tower and "Gull-Dropper" rear shock tower
- FT inverted rear shock standoff set
- NEW -1-degree arm mount "C"
- 78mm rear suspension arms with 69mm CVA bones

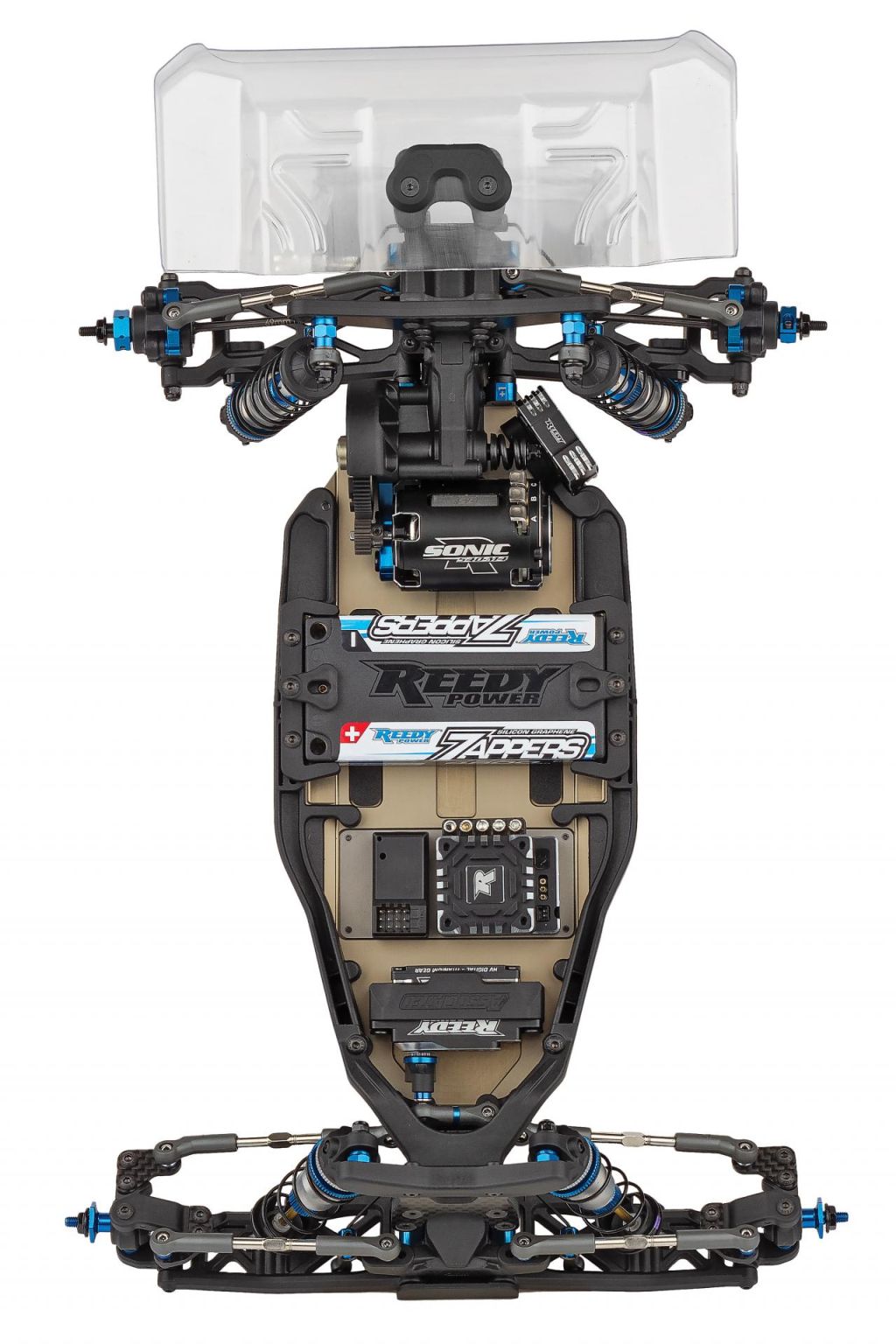

- Weight-centralized electronics layout
- 7075-T6 aluminum chassis with weight plate pockets
- Low-profile RC10B7 body with 7-inch rear wing
- 2.5-inch front wing included
- Shock tower covers front and rear
- 3.5mm turnbuckles and ball cups
- 13mm big-bore shocks
Performance Benefits
- Long-arm suspension maximizes grip and corner speed
- Gear differential provides consistent power delivery
- Anti-roll bars enhance high-speed cornering stability
- Reduced center of gravity via lowered shock towers
- Weight-centralized layout improves chassis balance
- Stiffer springs and higher pack pistons for high-grip
- Interchangeable parts with B7.1D for surface versatility
Usage Notes
The RC10B7.1 Team Kit is designed for competitive 2WD off-road racing on carpet, AstroTurf, and high-grip sealed clay surfaces. This kit requires assembly and electronics selection. Ideal for club through national-level competition. Parts are fully interchangeable with RC10B7.1D for surface-specific tuning.
Technical Specs
-
Scale: 1/10
-
Drivetrain: 2WD
-
Length: 390mm (15.35 in)
-
Chassis: 7075-T6 Aluminum
-
Differential: High-Volume Gear Differential
-
Transmission: 3-Gear Laydown
-
Shocks: 13mm Big-Bore
-
Battery: 2S LiPo Shorty
-
Surface: Carpet, AstroTurf, High-Grip Clay
-
Format: Team Kit (Unassembled)
-
Brand: Team Associated
What's Included
- RC10B7.1 Team Kit chassis and components
- 7075-T6 aluminum chassis with weight plate
- 3-gear laydown transmission
- High-volume gear differential
- Front and rear anti-roll bars with hardware
- 13mm big-bore threaded aluminum shocks
- FT inverted rear shock standoff set
- Shock tower covers front and rear
- 78mm rear suspension arms with 69mm CVA bones
- Low-profile polycarbonate body (clear)
- 7-inch rear wing and 2.5-inch front wing
- Decal sheet
- Assembly hardware and instruction manual
Needed to Complete
- 2-channel radio system (transmitter and receiver)
- Steering servo
- Electronic Speed Controller (ESC)
- 540-size electric motor
- 2S LiPo shorty battery
- Compatible battery charger
- 1/10 off-road wheels and tires
- Polycarbonate body paint
- Silicone shock fluids
- Assembly tools
Summary
The Team Associated RC10B7.1 Team Kit delivers championship-caliber 2WD buggy performance optimized for carpet and high-grip tracks. With revolutionary long-arm suspension, gear differential, anti-roll bars, and 40+ years of racing evolution, this kit provides the speed, grip, and adjustability serious racers demand for podium finishes.
