Overview

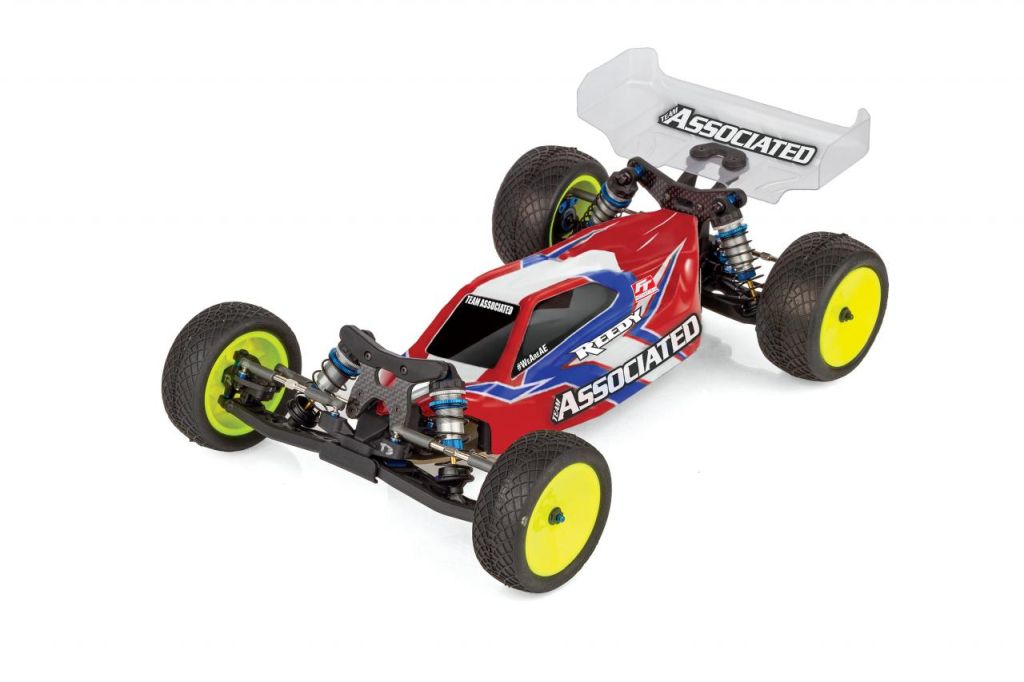

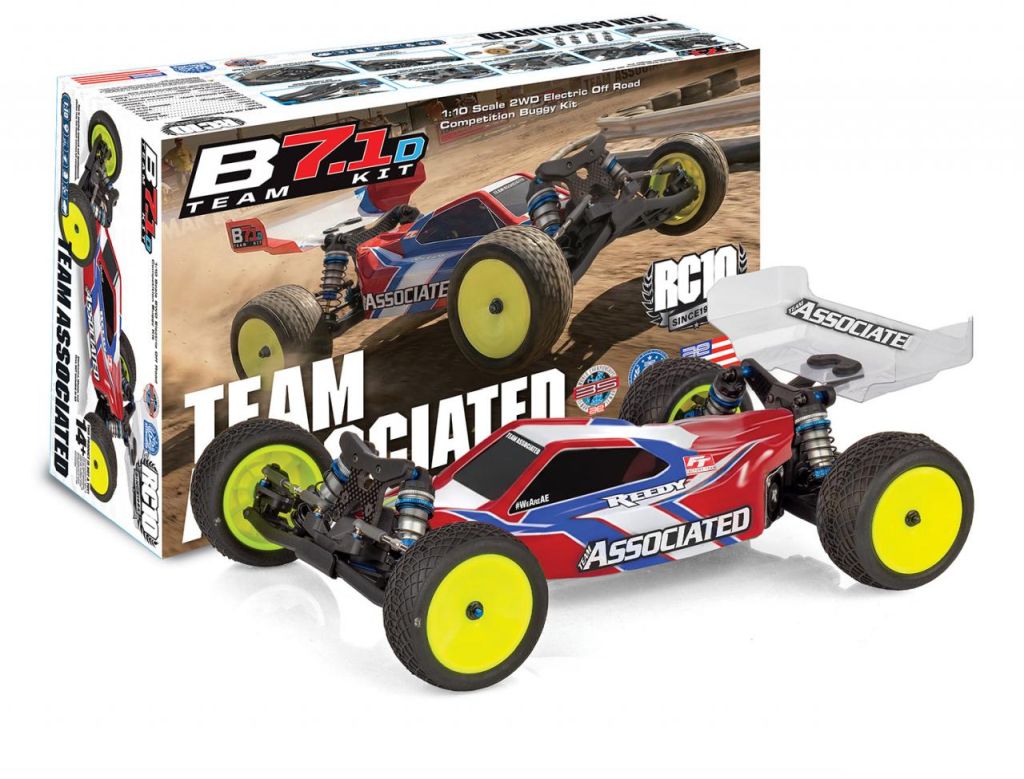

The Team Associated RC10B7.1D Team Kit represents over 40 years of 2WD off-road racing evolution, delivering next-level performance purpose-tuned for dirt, clay, and low-grip AstroTurf tracks. Built on the legendary RC10 platform that has dominated competitive racing since 1984, the B7.1D features revolutionary long-arm suspension geometry, weight-centralized electronics layout, KPI-adjustable steering blocks, and expanded tunability throughout the entire chassis. These innovations dramatically increase grip potential, corner speed, and driving smoothness for faster lap times.
The "D" designation indicates this kit is specifically optimized for dirt and low-grip conditions, equipped with a ball differential and setup including softer springs and lower pack shock pistons. The revised 3-gear laydown transmission reduces rotational mass while maintaining the original B7 motor position, and strengthened front suspension arms with hinge pin braces improve durability under aggressive driving.
Key Features
- NEW long-arm suspension geometry for increased grip and stability
- 3-gear laydown transmission reduces rotational mass

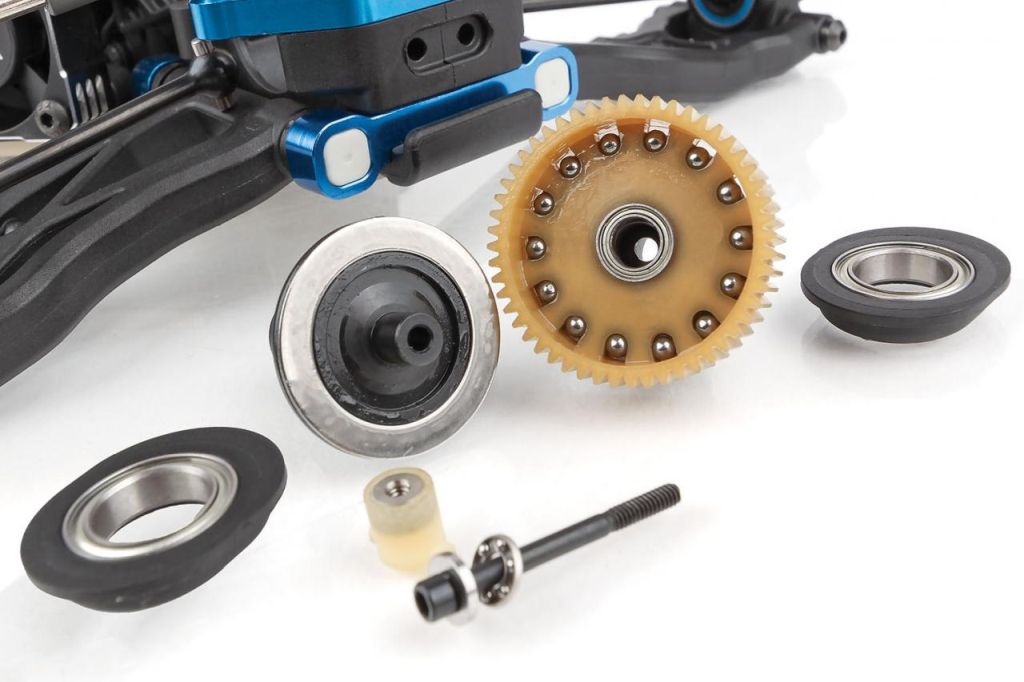

- Ball differential optimized for dirt and low-grip surfaces
- NEW steering and caster block assembly - lighter, simpler
- KPI-adjustable steering blocks for precise tuning
- NEW -2mm front ballstud mount included

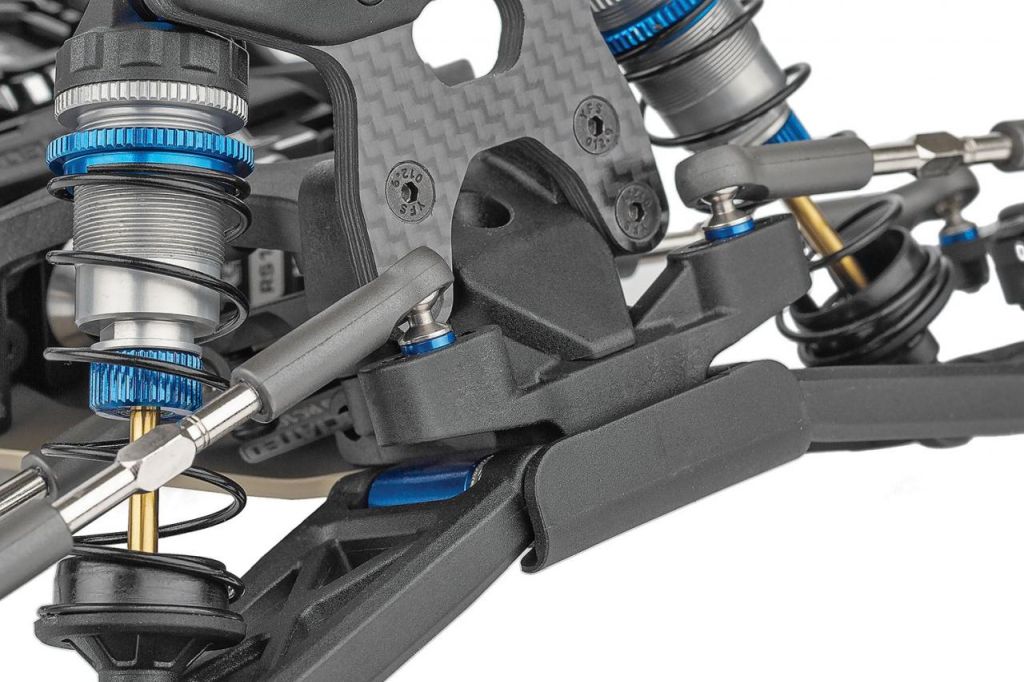

- NEW front suspension arms with hinge pin brace
- NEW -2mm front and FT -2mm rear shock towers
- 81mm rear suspension arms with 71mm CVA bones

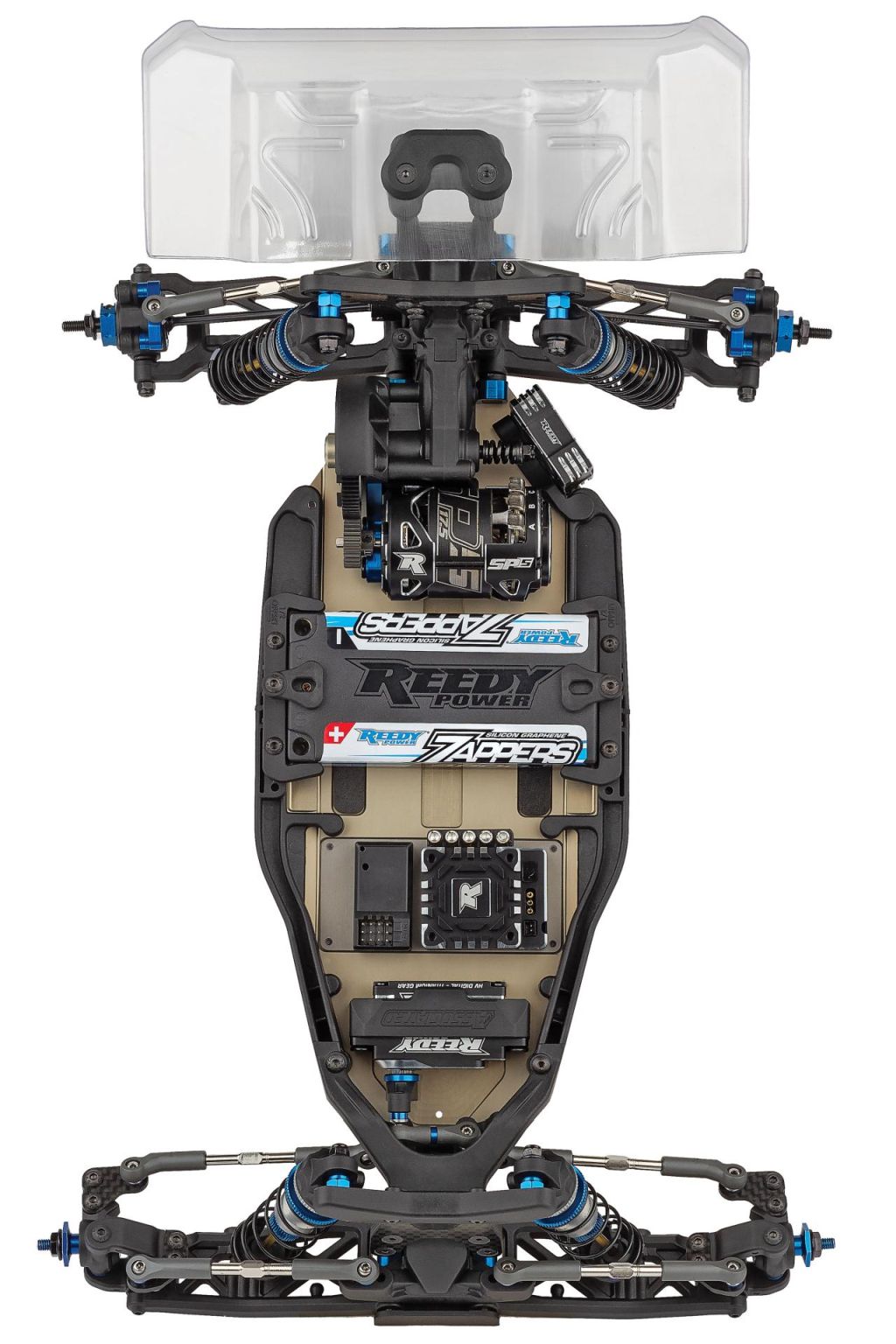

- Weight-centralized electronics layout
- 7075-T6 aluminum chassis with weight plate pockets
- Low-profile RC10B7 body with 7-inch rear wing
- 2.5-inch front wing included
- Shock tower covers front and rear
- 3.5mm turnbuckles and ball cups
- 13mm big-bore shocks
Performance Benefits
- Long-arm suspension dramatically improves grip and predictability
- Ball differential provides smooth power delivery on loose surfaces
- Reduced center of gravity via lowered shock towers and mounts
- Weight-centralized layout improves chassis balance
- Softer springs and lower pack pistons for dirt-specific damping
- Interchangeable parts with B7.1 for surface-specific tuning
- Laydown transmission reduces rotational weight and drag
Usage Notes
The RC10B7.1D Team Kit is designed for competitive 2WD off-road racing on dirt, clay, and low-grip AstroTurf surfaces. This kit requires assembly and electronics selection. Ideal for club through national-level competition. Parts are fully interchangeable with RC10B7.1 for easy surface-to-surface conversion.
Technical Specs
-
Scale: 1/10
-
Drivetrain: 2WD
-
Length: 390mm (15.35 in)
-
Chassis: 7075-T6 Aluminum
-
Differential: Ball Differential
-
Transmission: 3-Gear Laydown
-
Shocks: 13mm Big-Bore
-
Battery: 2S LiPo Shorty
-
Surface: Dirt, Clay, Low-Grip AstroTurf
-
Format: Team Kit (Unassembled)
-
Brand: Team Associated
What's Included
- RC10B7.1D Team Kit chassis and components
- 7075-T6 aluminum chassis with weight plate
- 3-gear laydown transmission
- Ball differential assembly
- 13mm big-bore threaded aluminum shocks
- Shock tower covers front and rear
- 81mm rear suspension arms with 71mm CVA bones
- Low-profile polycarbonate body (clear)
- 7-inch rear wing and 2.5-inch front wing
- Decal sheet
- Assembly hardware and instruction manual
Needed to Complete
- 2-channel radio system (transmitter and receiver)
- Steering servo
- Electronic Speed Controller (ESC)
- 540-size electric motor
- 2S LiPo shorty battery
- Compatible battery charger
- 1/10 off-road wheels and tires
- Polycarbonate body paint
- Silicone shock fluids
- Assembly tools
Summary
The Team Associated RC10B7.1D Team Kit delivers championship-caliber 2WD buggy performance optimized for dirt and low-grip tracks. With revolutionary long-arm suspension, ball differential, weight-centralized layout, and 40+ years of racing evolution, this kit provides the speed, grip, and adjustability serious racers demand for competitive success.
