Overview

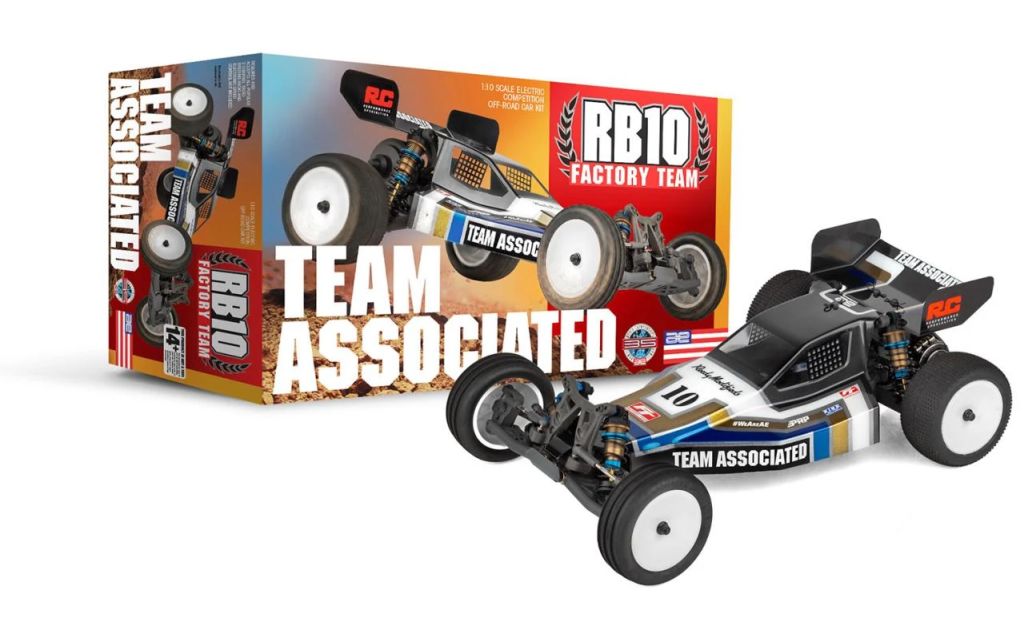

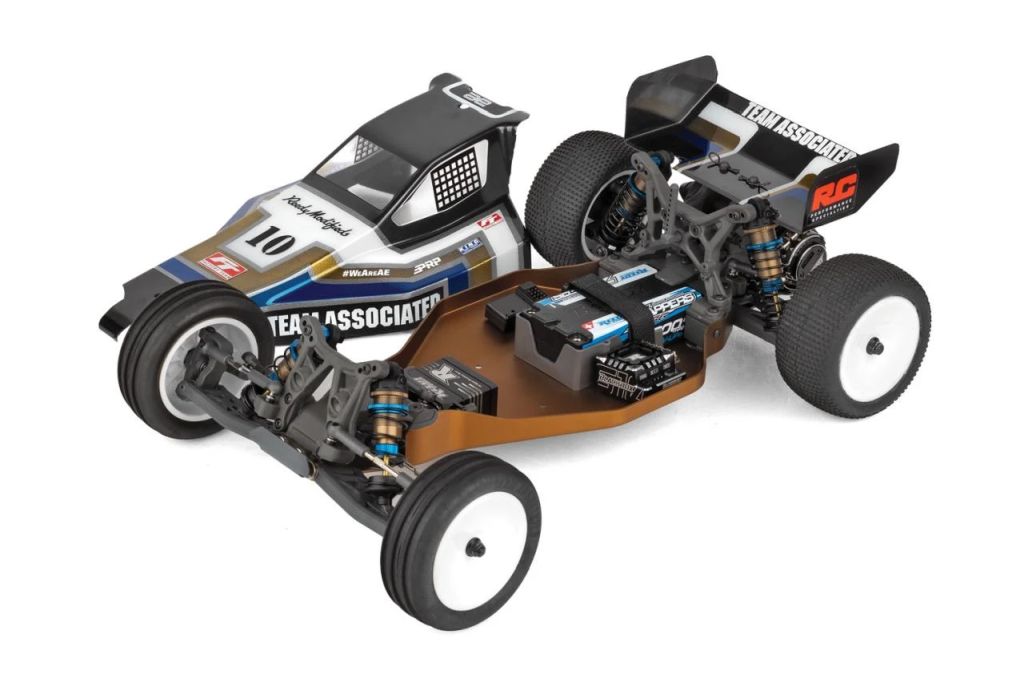

The Team Associated RB10 Factory Team Retro Kit pairs classic off-road buggy styling with proven B5-based engineering. It is a 1:10 scale, 2WD electric rear-motor buggy supplied as a kit, built around a Retro Bronze anodized aluminum B5 tub chassis with matching nose plate and motor plate, exclusive grey plastics and an authentic retro Viper body with a high-downforce 5.5" retro wing.

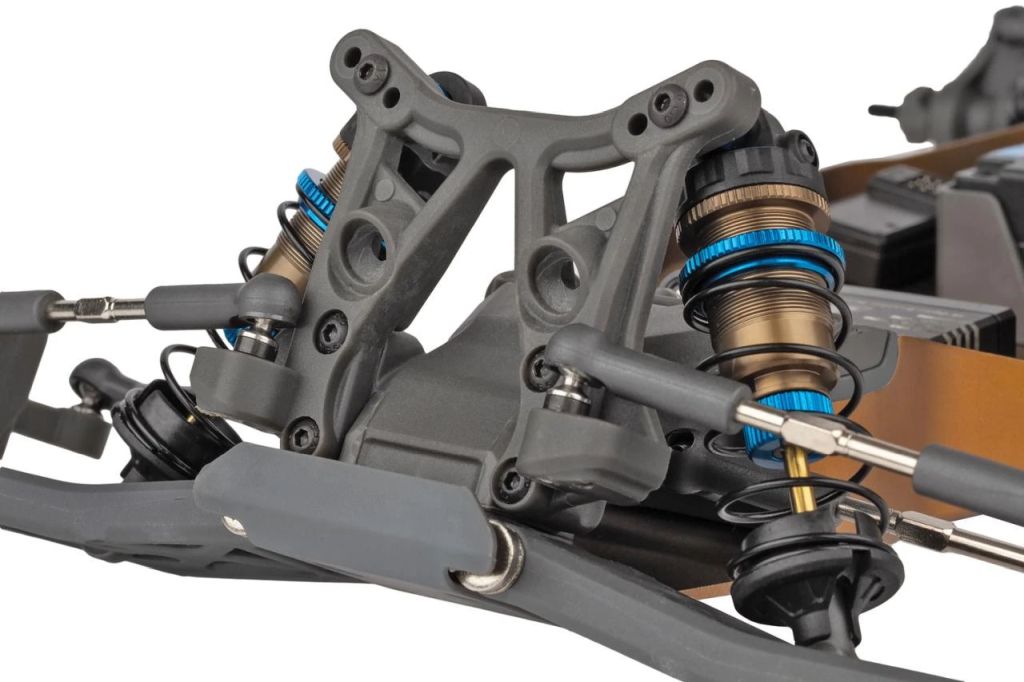

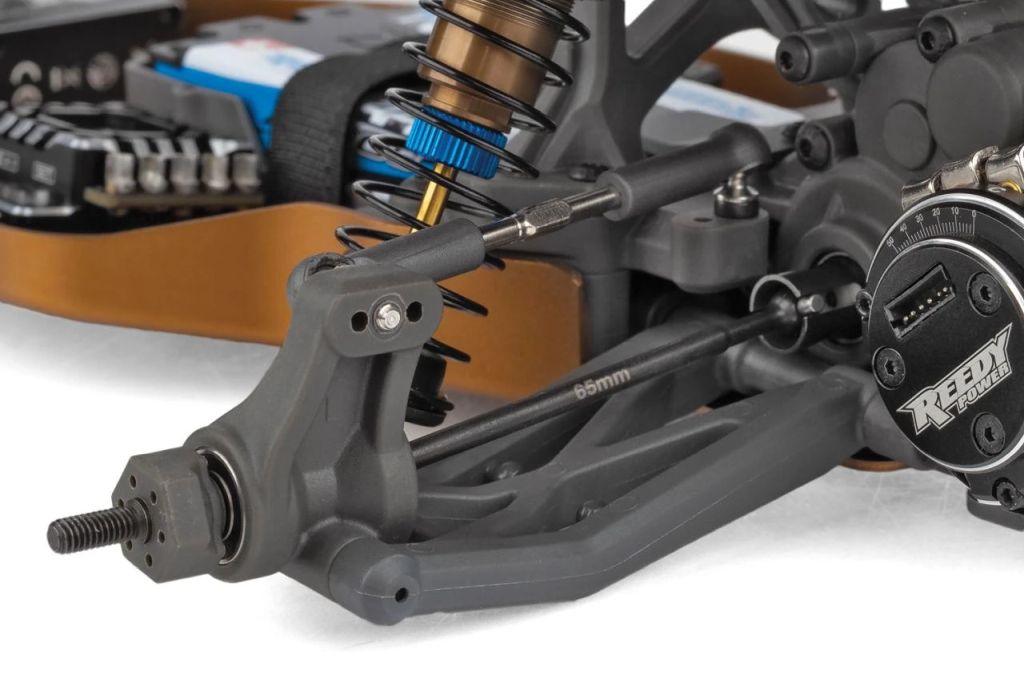

The Factory Team spec adds 13mm Kashima-coated big bore coil-over shocks and an adjustable V2 slipper. Underneath is the B5 rear-motor Stealth transmission with a 2.6:1 internal ratio and ball differential, rear CVA driveshafts for durability, steel turnbuckles for camber and toe adjustment, vertical ball ends for roll center tuning front and rear, full ball bearings and metric hardware throughout.
Key Features

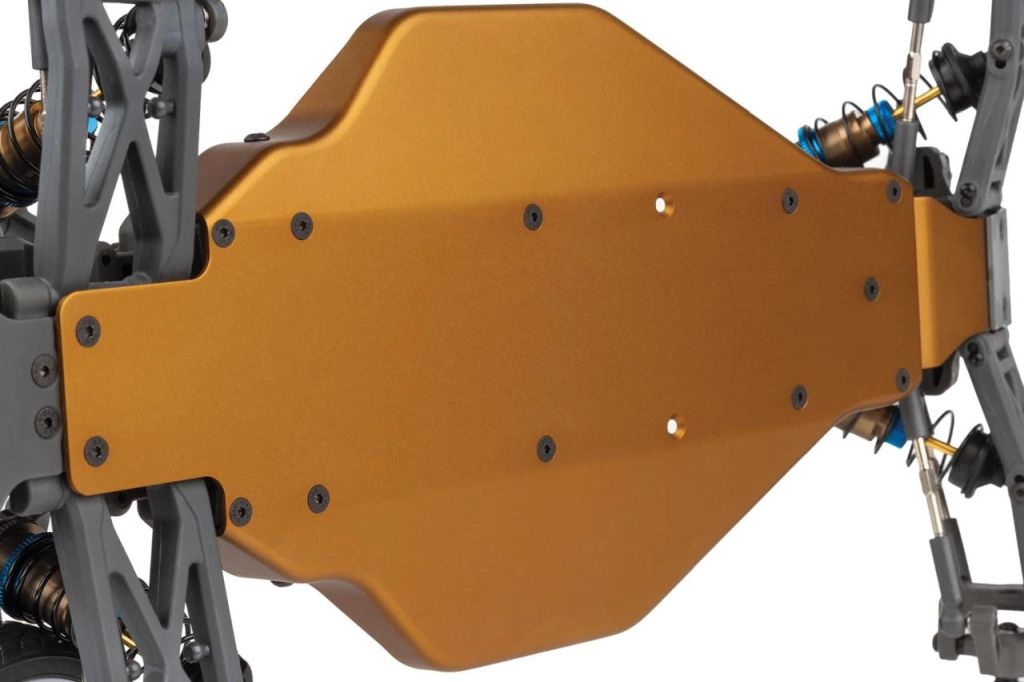

- Retro Bronze aluminum B5 tub chassis (rear motor)
- Retro Bronze aluminum front nose plate and bronze aluminum motor plate
- New front and rear molded bulkheads
- Exclusive grey plastics throughout
- Authentic retro Viper body and high-downforce 5.5" retro wing
- 12mm hex dish wheels
- 13mm Kashima-coated big bore coil-over shocks
- B5 rear-motor Stealth transmission, 2.6:1 internal ratio
- B5 ball differential with adjustable V2 slipper
- Rear CVA driveshafts
- Steel turnbuckles for camber and front toe-in
- Vertical ball ends for front and rear roll center adjustment
- Full ball bearings and metric hardware
Performance Benefits
- Kashima-coated big bore shocks provide smooth, consistent damping over bumps and landings
- Ball differential and V2 slipper allow fine control of traction and power delivery
- CVA driveshafts add durability over dogbones
- Fully adjustable geometry lets you set the car up for vintage racing or modern tracks
Usage Notes
- Supplied as an unassembled kit – requires building with the included manual and basic tools
- Ideal for vintage/retro racing classes, bashing and display builds
- Uses standard 1:10 buggy electronics: 540-size motor, 1:10 ESC and standard-size servo
- Fit 12mm hex 2.2" buggy tires to the included dish wheels
Technical Specs
- Scale: 1:10
- Drive: 2WD, rear motor
- Type: Electric off-road buggy
- Length: 400mm (15.75")
- Width: 248mm (9.76")
- Wheelbase: 266.7mm (10.5")
- Internal gear ratio: 2.6:1
- Differential: Ball differential with V2 slipper
- Shocks: 13mm Kashima-coated big bore coil-overs
- Wheel hex: 12mm
- Chassis: Retro Bronze anodized aluminum tub
- Assembly: Kit (requires assembly)
What's Included
- (1) RB10 Factory Team Retro chassis kit, unassembled
- (1) Retro Viper body
- (1) 5.5" retro wing
- (1) Set of 12mm hex dish wheels
- (4) 13mm Kashima big bore shocks
- (1) Instruction manual
Needed to Complete
- Motor (1:10 brushed or brushless, 540 size)
- Electronic speed control (ESC)
- Standard-size steering servo
- 2-channel transmitter and receiver
- 2S LiPo battery
- LiPo-compatible charger
- Pinion gear to suit your motor
- 1:10 2WD buggy tires (not listed in the kit contents)
- Polycarbonate body paint
- AA batteries for the transmitter (if required)
- Hex drivers, nut drivers, shock oil and basic building tools
Summary
- 1:10 2WD rear-motor buggy kit with retro Viper body and 5.5" wing
- Retro Bronze aluminum B5 chassis with exclusive grey plastics
- Factory Team Kashima 13mm big bore shocks and V2 slipper
- B5 Stealth transmission, ball diff and CVA driveshafts
- Requires electronics, battery, charger and tires to complete
