Overview

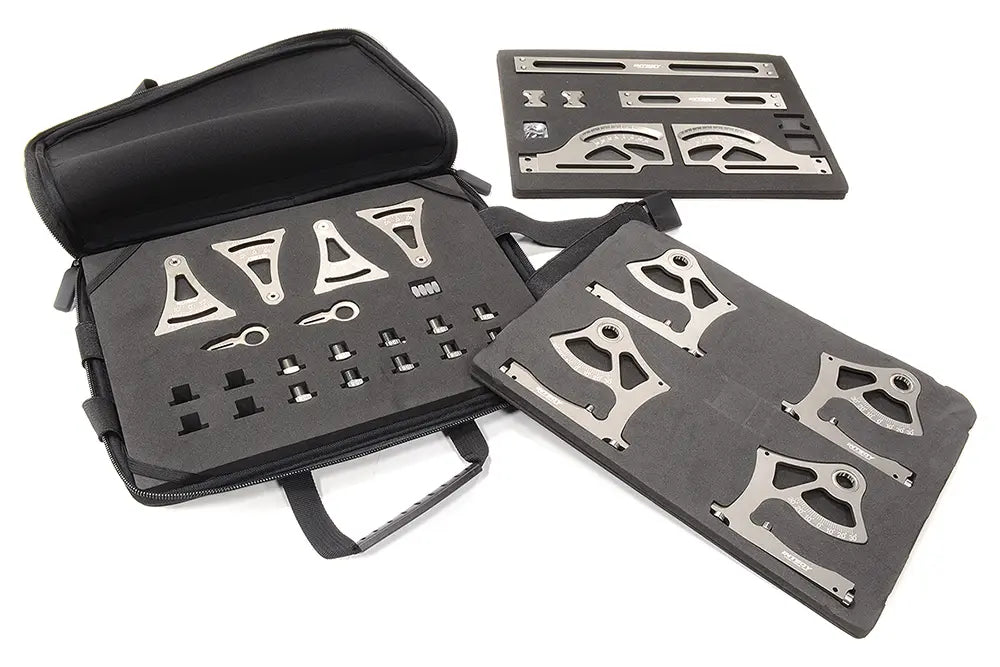

The Integy Universal Setup Station w/ Bag (C23291) is a 30-piece setup system for most 1/8 and 1/10 scale buggies, truggies, short course and monster trucks. Proper chassis setup is critical at the track, and this station measures each corner of your vehicle individually.
Crafted from aluminum and anodized in a gunmetal finish, it measures up to 15 degrees of camber, 30 degrees of caster and +35/-40 degrees of toe, with measuring plates that ride on ball bearings for smooth, precise readings. The included carrying bag has a rubber grip handle and two-sided zipper for storage on the move.
Key Features
- 30-piece universal setup system
- Aluminum construction, gunmetal anodized
- Measures each corner individually

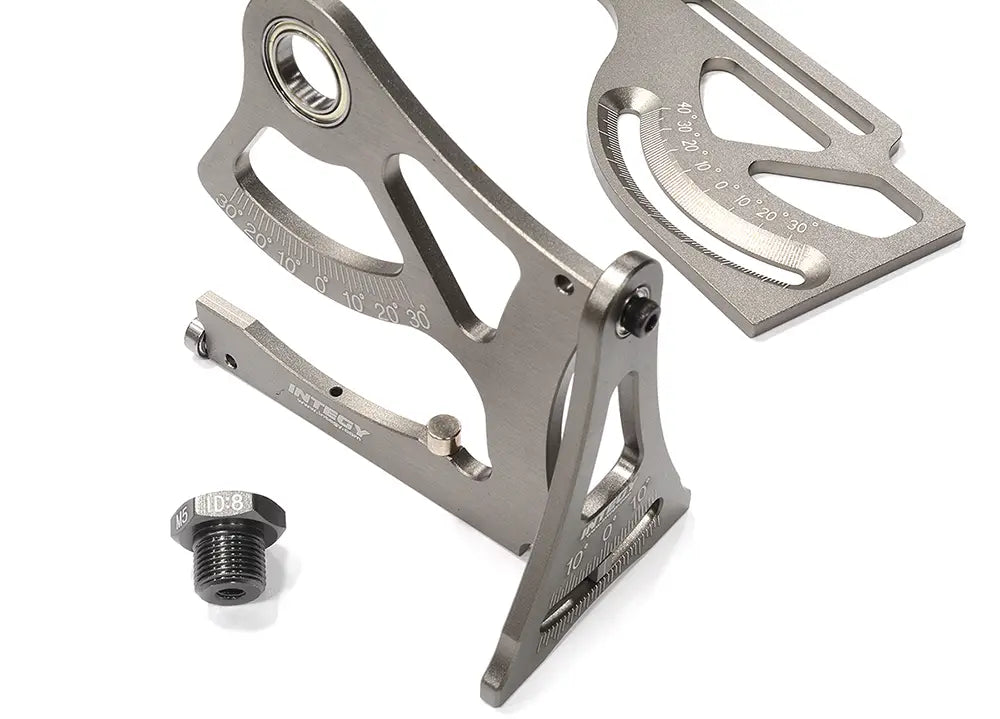

- Ball-bearing measuring plates
- Type-A adaptors for 6mm x M5-threaded axles
- Type-B adaptors for 8mm x M5-threaded axles (reverse thread one side)
Performance Benefits
- Accurate, repeatable camber, caster and toe readings
- Consistent setup corner to corner
- Helps dial in handling before race day
Usage Notes
- Works out of the box with most 1/8 buggies and truggies using standard 1/8 axles and wheel nuts
- Type-A adaptors fit Traxxas Revo/T-Maxx 2.5/3.3, HPI E-Savage and Losi LST1; Type-B fits HPI Savage 2.5/4.6/X/XL
- Other axle adapters sold separately – check the Integy axle adapter fitment chart
Technical Specs
-
Brand: Integy
-
Item No.: C23291
-
Scale: 1/8 and 1/10
-
Material: Aluminum, gunmetal anodized
-
Camber Range: Up to 15°
-
Caster Range: Up to 30°
-
Toe Range: +35°/-40°
-
Pieces: 30
What's Included

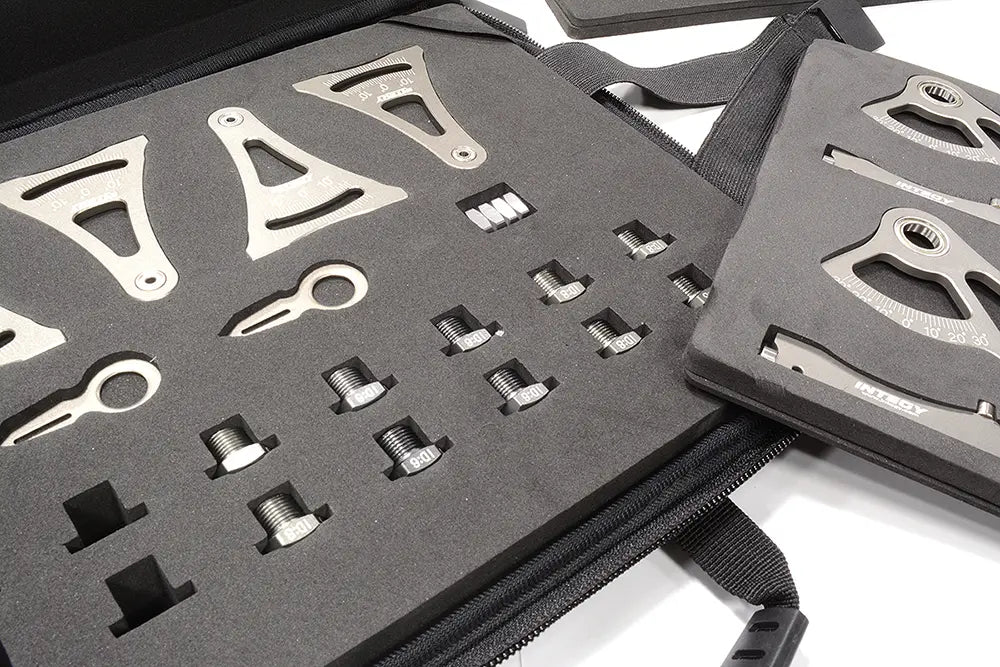

- (1) 30-piece universal setup station system
- (1) Set of Type-A adaptors (6mm x M5 axles)
- (1) Set of Type-B adaptors (8mm x M5 axles)

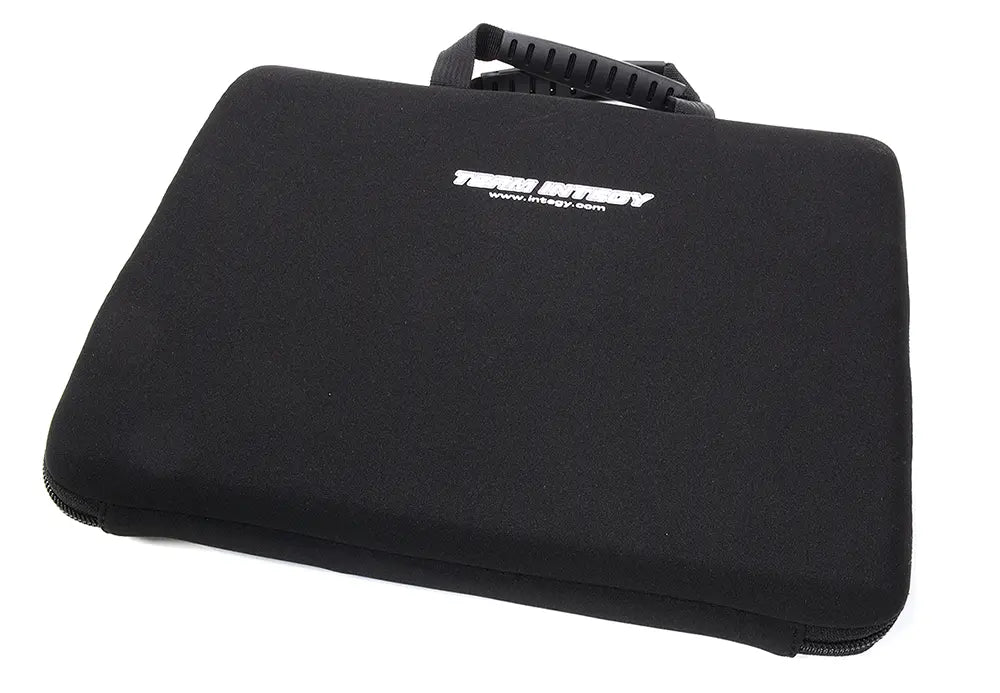

- (1) Carrying bag
Fitment
Compatible RC vehicles: Associated RC8, RC8T, SC8, Hobao Hyper series, HPI/Hot Bodies D8, D8T, HPI Hellfire, Kyosho Inferno series, Losi 8IGHT, 8IGHT-T, TLR 8IGHT-T, Mugen MBX, MBXT, OFNA LX One, Tamiya 801X, 801XT, XRAY XB8, XRAY 808, Traxxas Revo, T-Maxx 2.5/3.3, HPI E-Savage, Losi LST1, HPI Savage 2.5/4.6/X/XL.
Summary
- Measures camber, caster and toe at each corner
- Fits most 1/8 buggies and truggies out of the box
- Includes Type-A and Type-B axle adaptors plus carrying bag
