Overview

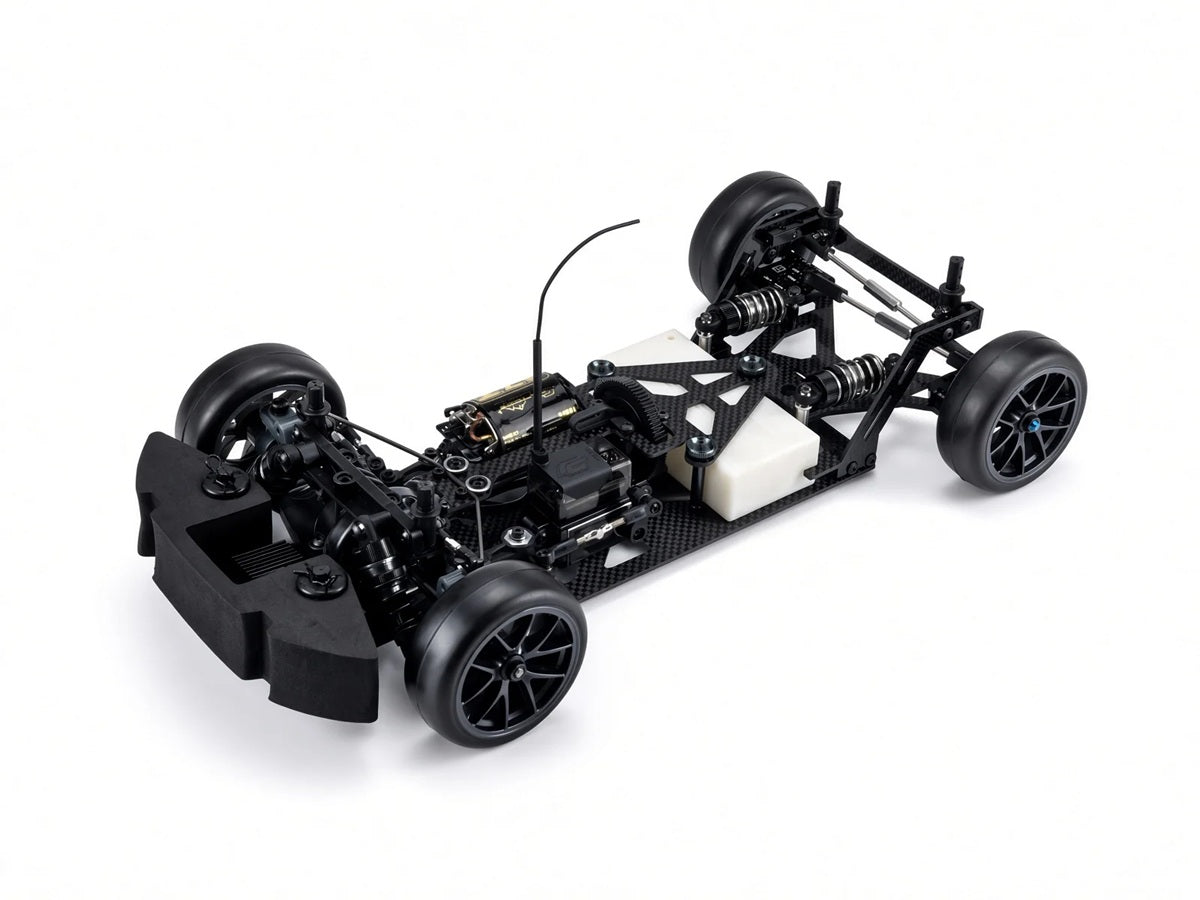

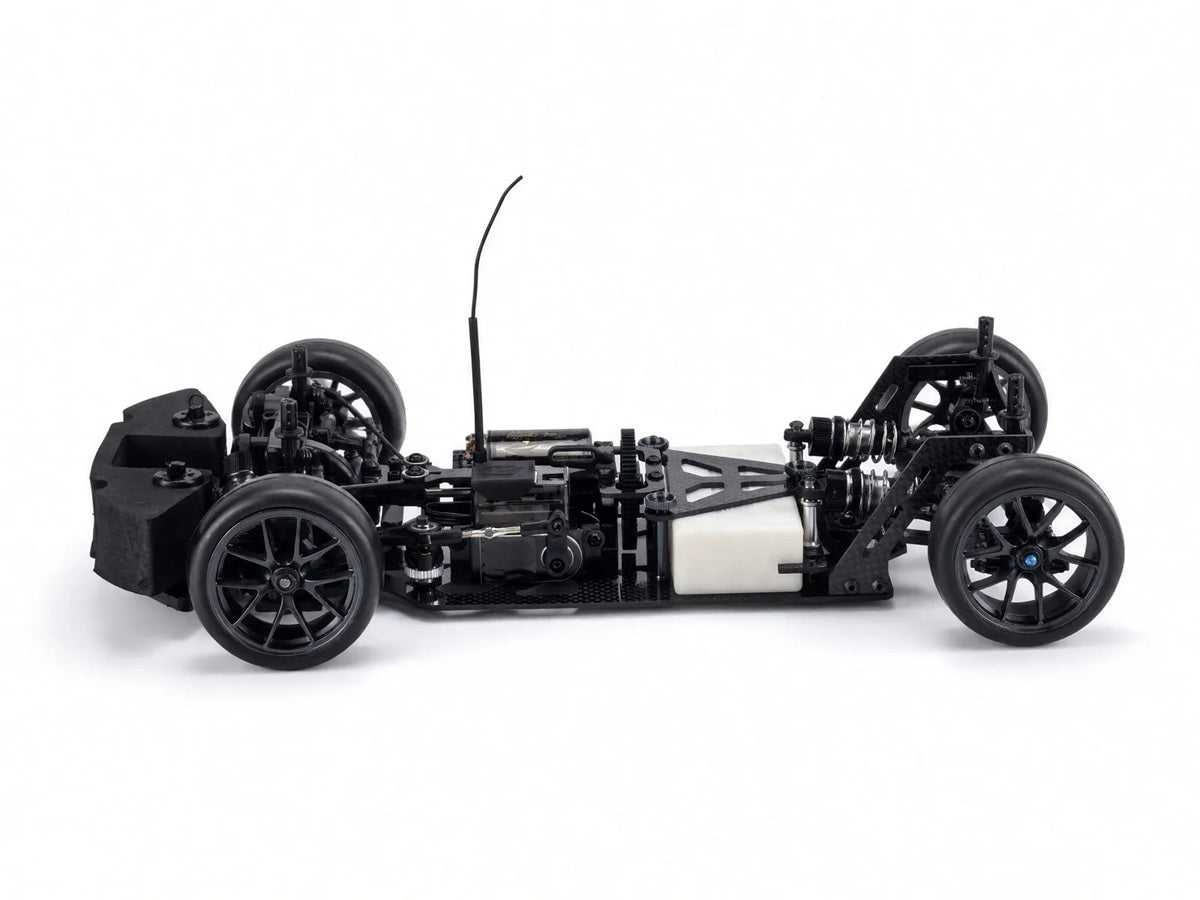

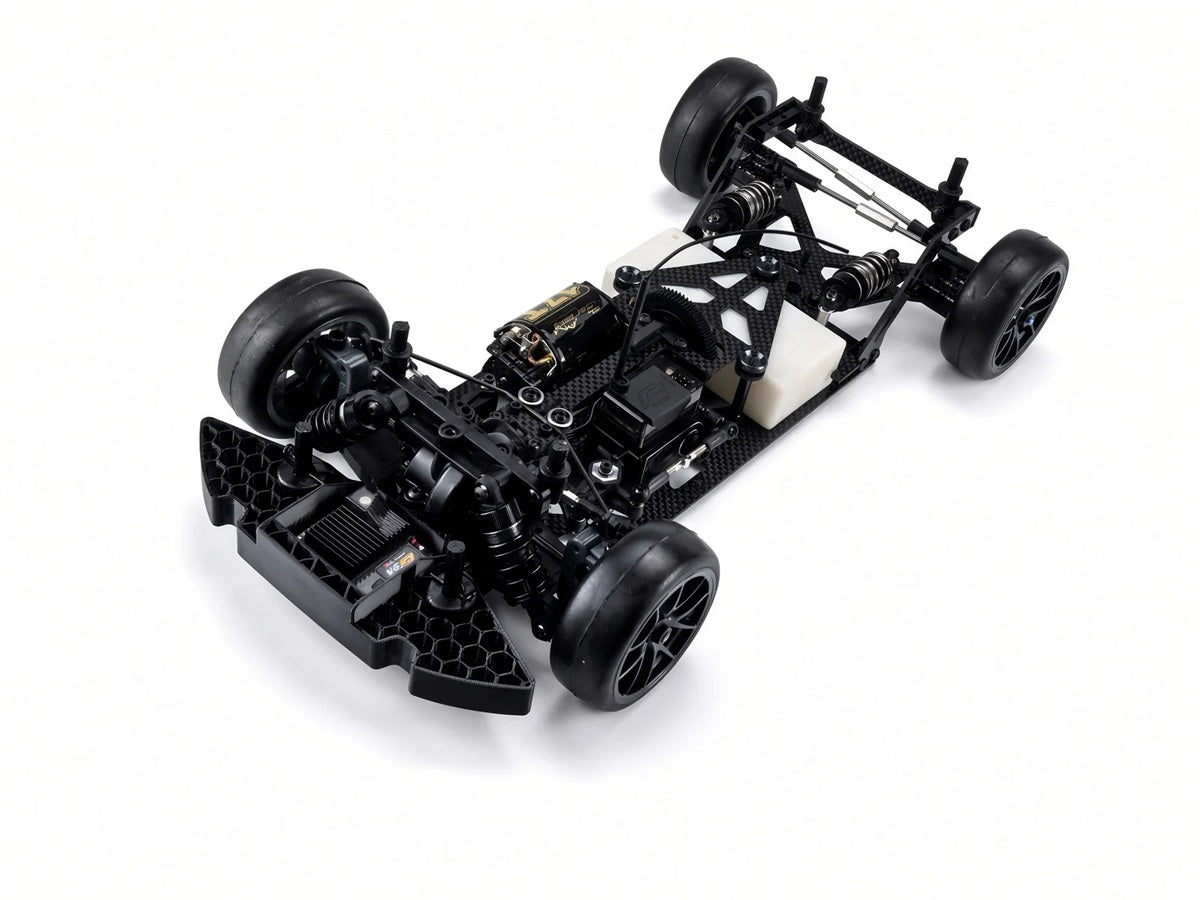

The Carisma M40F is a 1/10 scale front-wheel-drive assembly kit built around a mid-motor layout. It came out of an off-the-chart Carisma R&D program rather than a race class, and the goal was a car that feels different from a conventional 4WD touring chassis rather than one chasing a podium.
It is designed around 190 mm body shells, so the current crop of Honda Civic bodies drops straight on, and it runs standard 24 mm touring tires on 12 mm hexes. As an assembly kit you fit your own motor, ESC, servo, radio and battery, which makes it a straightforward second car alongside electronics and wheels you already own.
Key Features
- Mid-motor front-wheel-drive layout
- Carbon fiber main chassis with AI-assisted flex design

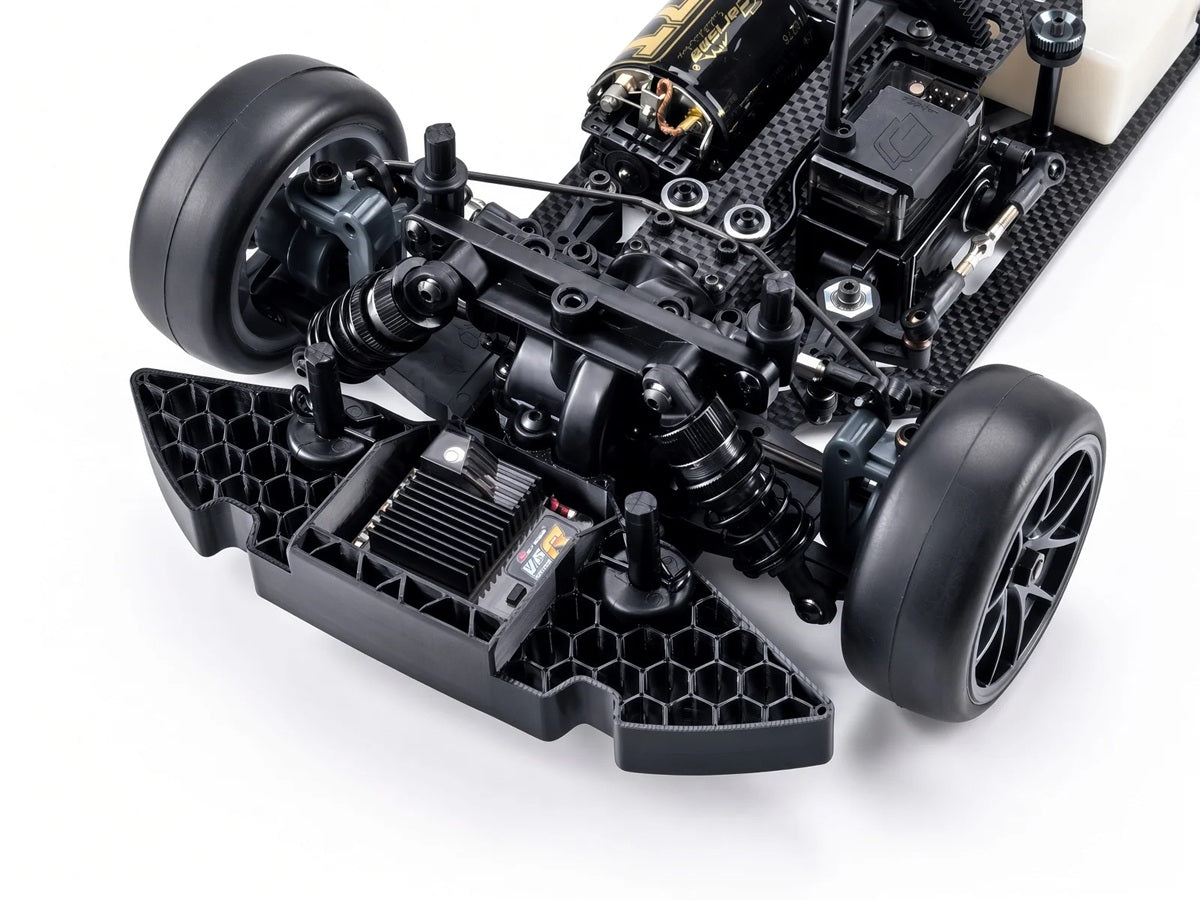

- Front-mounted ESC position for a strong front weight bias

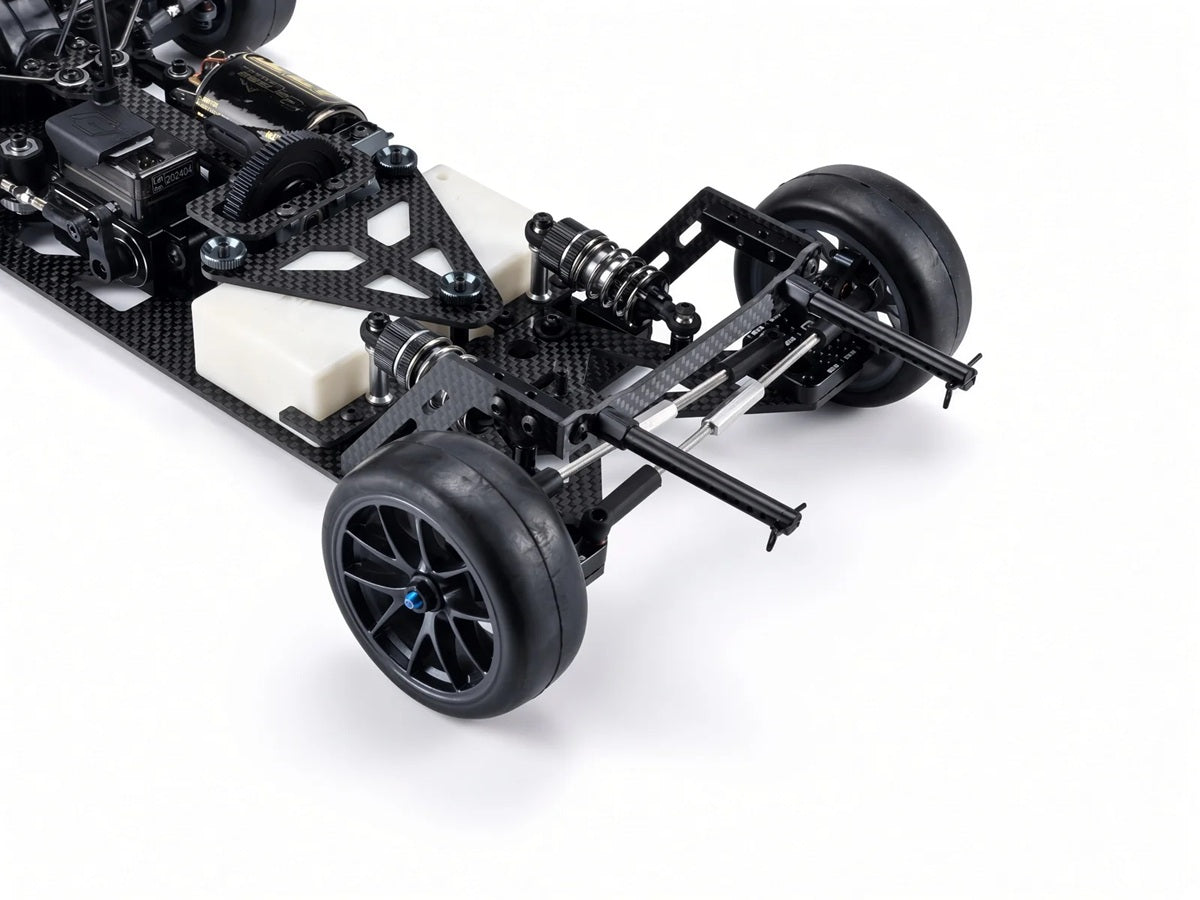

- Rear torsion plate suspension inspired by real-car design
- CNC motor mount
- Full metal gear front differential
- Carisma M40S 2.0 front suspension arms
- Adjustable wheelbase from 257 mm to 260 mm
- Adjustable camber and toe, front and rear
- Fits 190 mm body shells, 12 mm wheel hex and 24 mm tires
Performance Benefits
- FWD handling character that feels distinctly different from 4WD touring
- Forward weight bias for front-end bite under power
- Metal front diff gears for durability where the drivetrain works hardest
- Camber, toe and wheelbase adjustment to suit track grip
Usage Notes
- Supplied as an assembly kit, so allow build time before the first run
- Assembly calls for 1.5 mm, 2.0 mm and 2.5 mm hex drivers
- Shock oil is not included; have it on hand for the build
- Use a shorty battery and a shorty servo to suit the chassis layout
- Set the wheelbase within the 257-260 mm range to match your body shell
Technical Specs
- Brand: Carisma
- Item No.: CIS91668
- Scale: 1/10
- Drivetrain: mid-motor front-wheel drive
- Chassis: carbon fiber main plate
- Front differential: full metal gears
- Wheelbase: adjustable 257-260 mm
- Wheel hex: 12 mm
- Tire size: 24 mm standard touring
- Body fitment: 190 mm
What's Included
- (1) M40F mid-motor FWD assembly kit, including the carbon fiber chassis, CNC motor mount, metal gear front differential and suspension components
Needed to Complete
- Motor
- ESC
- Shorty steering servo
- Radio system (transmitter and receiver)
- Shorty battery
- 190 mm body shell
- 24 mm tires with 12 mm hex wheels
- Shock oil
- 1.5 mm, 2.0 mm and 2.5 mm hex drivers
Summary
- A 1/10 mid-motor FWD assembly kit for drivers who want a different feel
- Carbon fiber chassis, metal front diff and fully adjustable geometry
- Built around 190 mm bodies, 24 mm tires and 12 mm hexes
- Bring your own motor, ESC, servo, radio and battery
