Overview

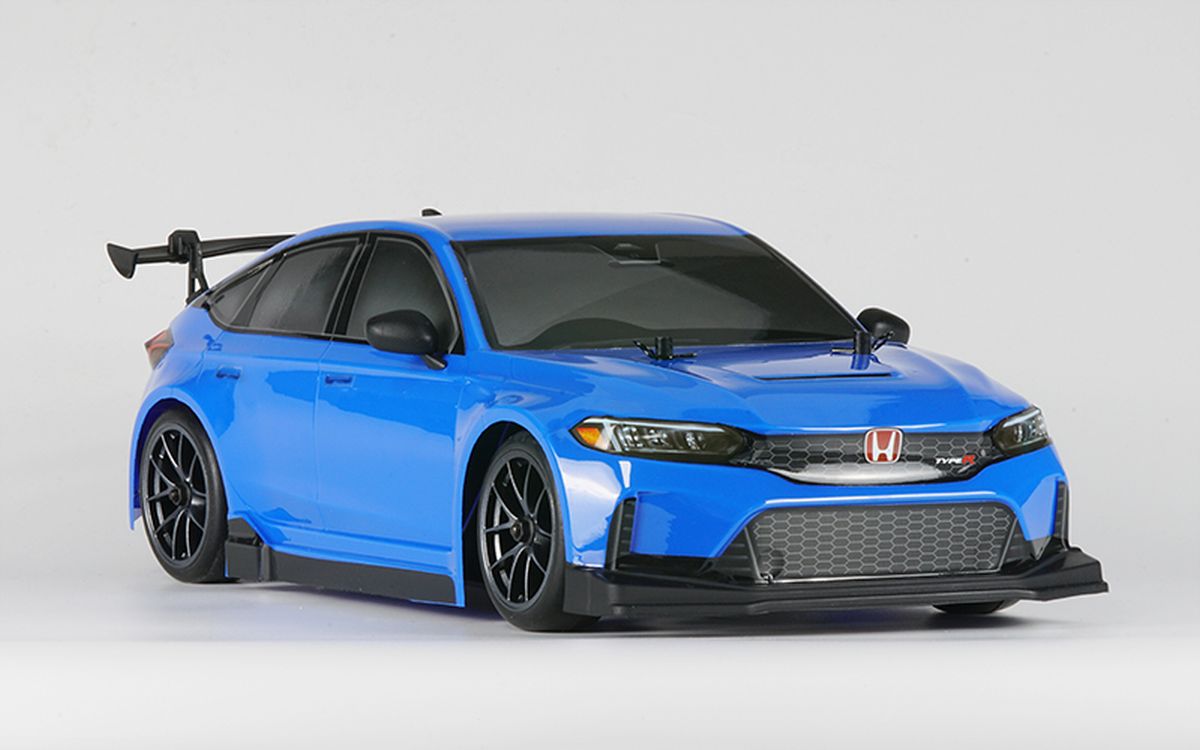

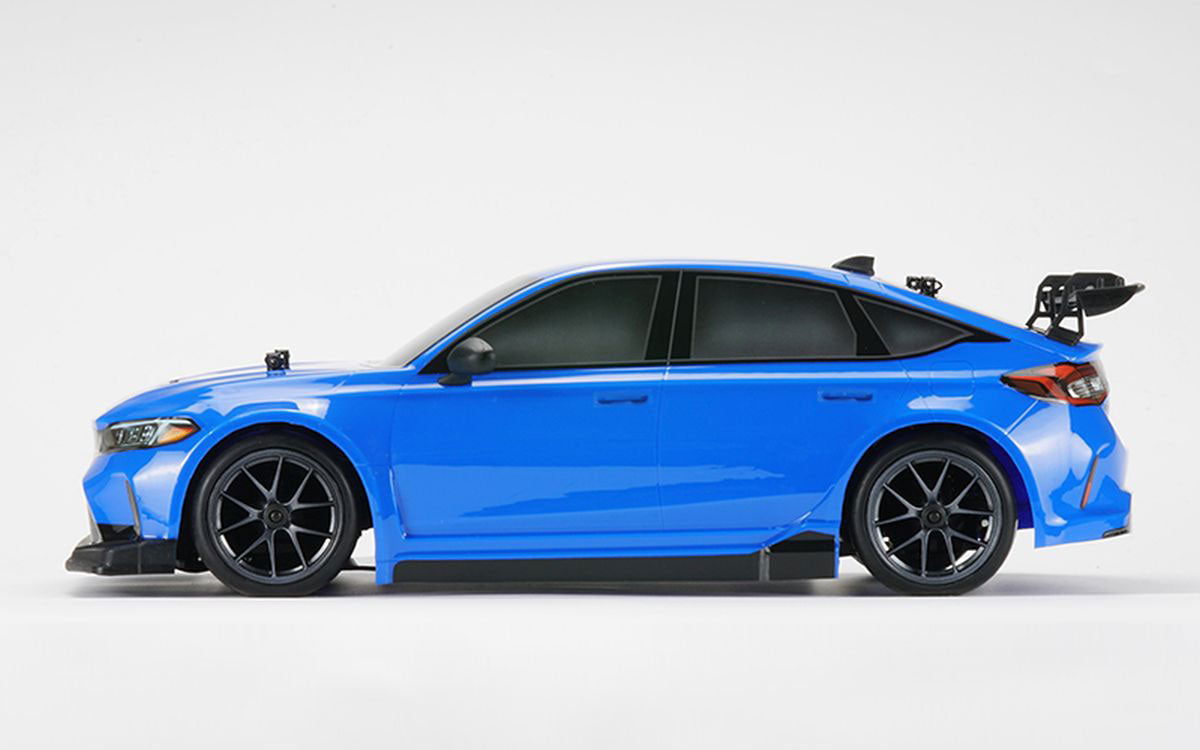

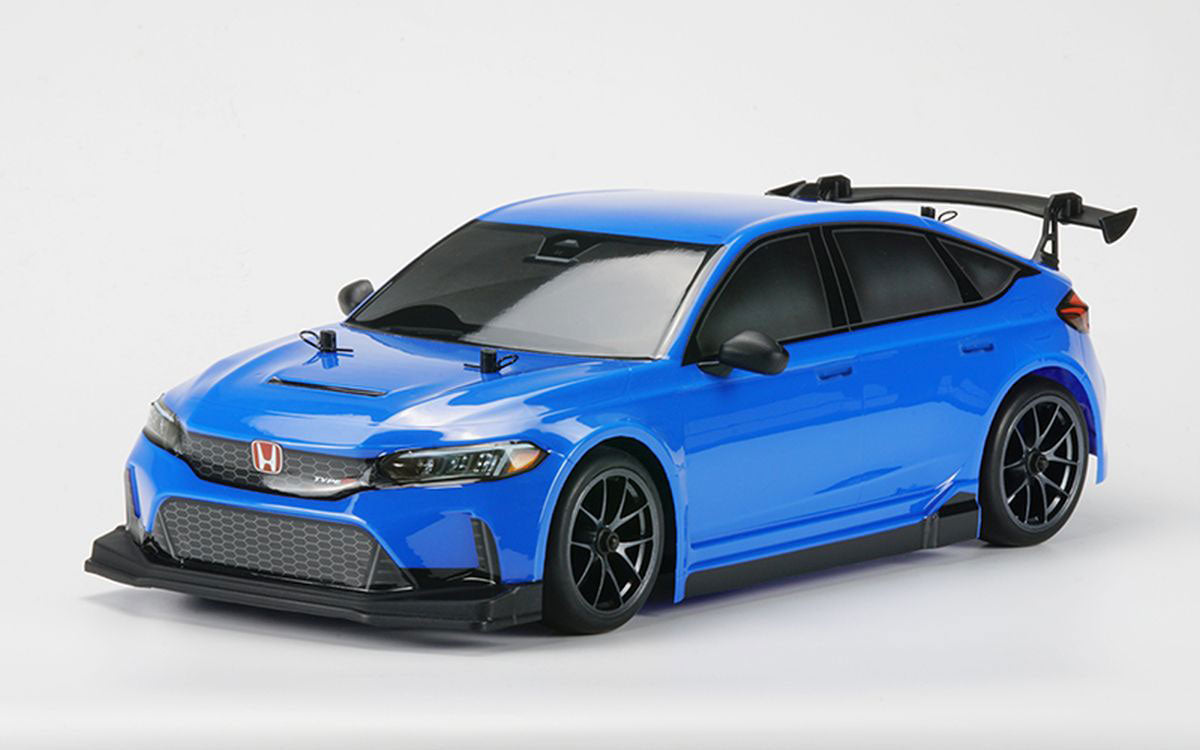

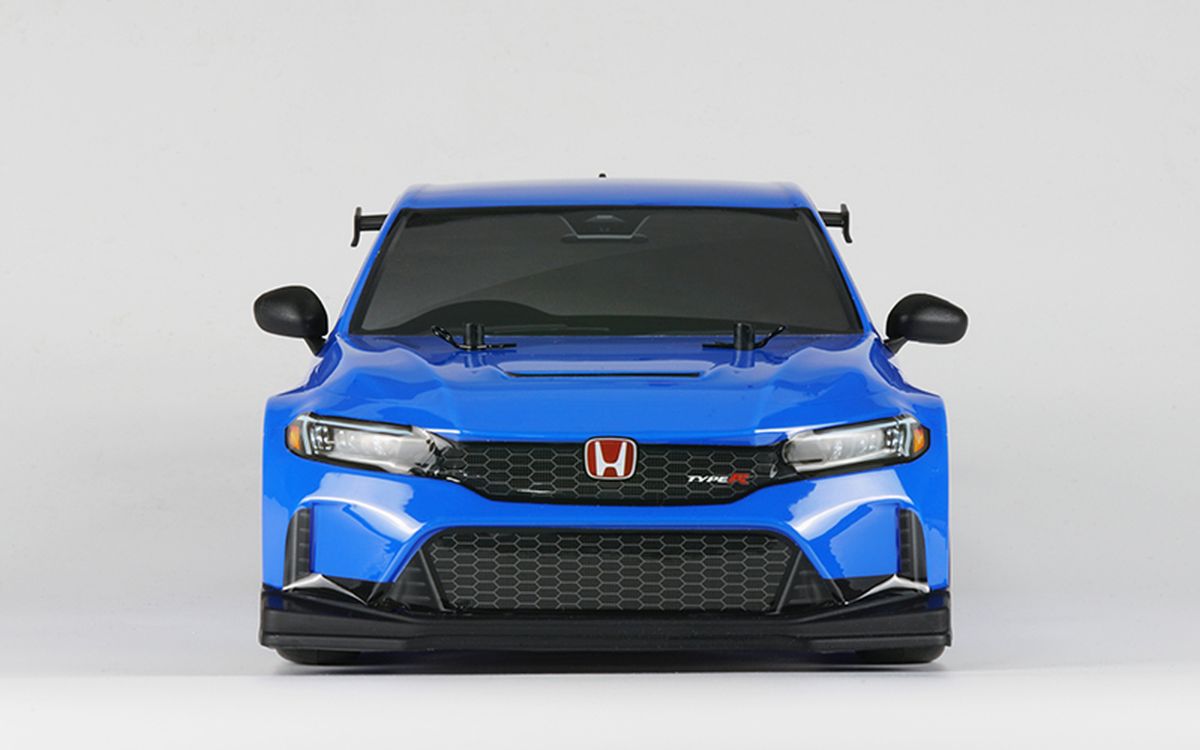

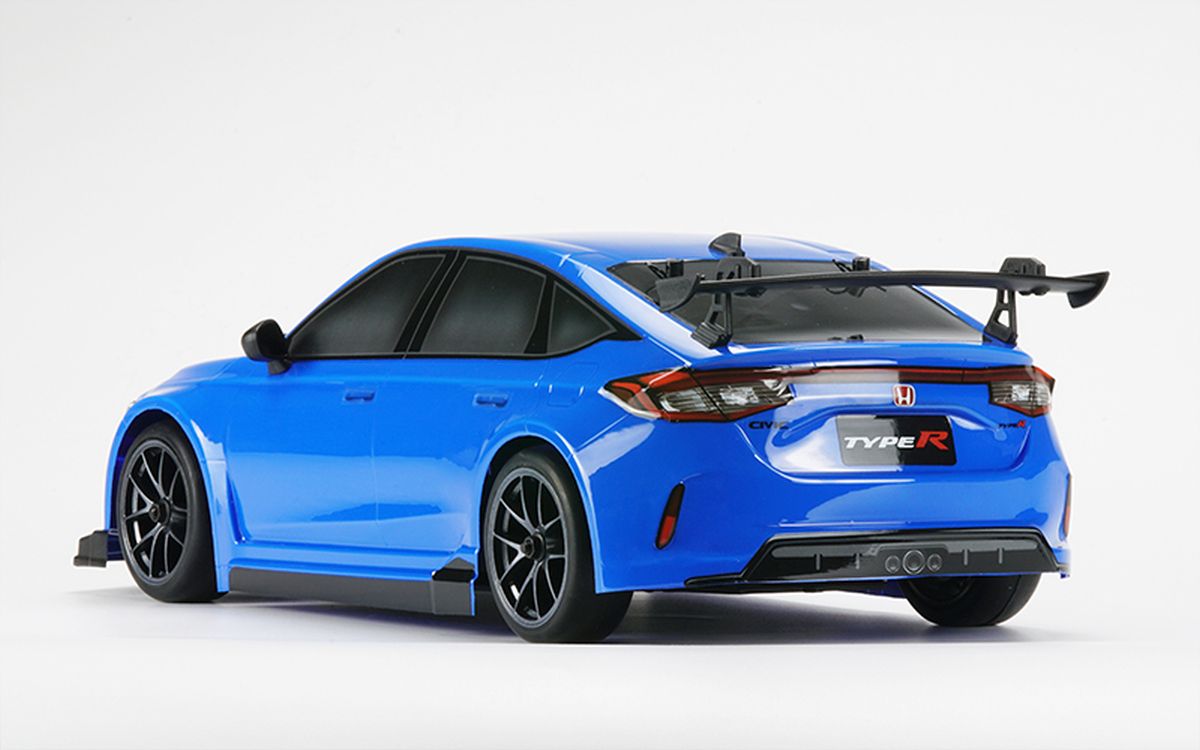

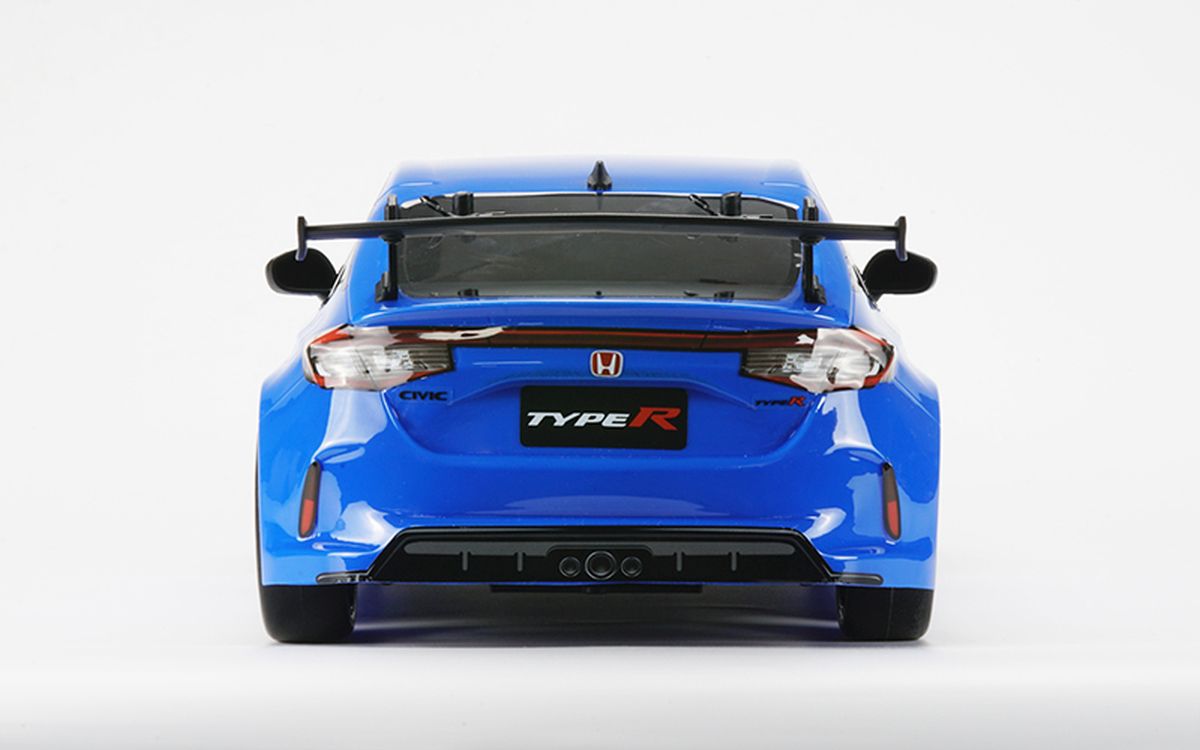

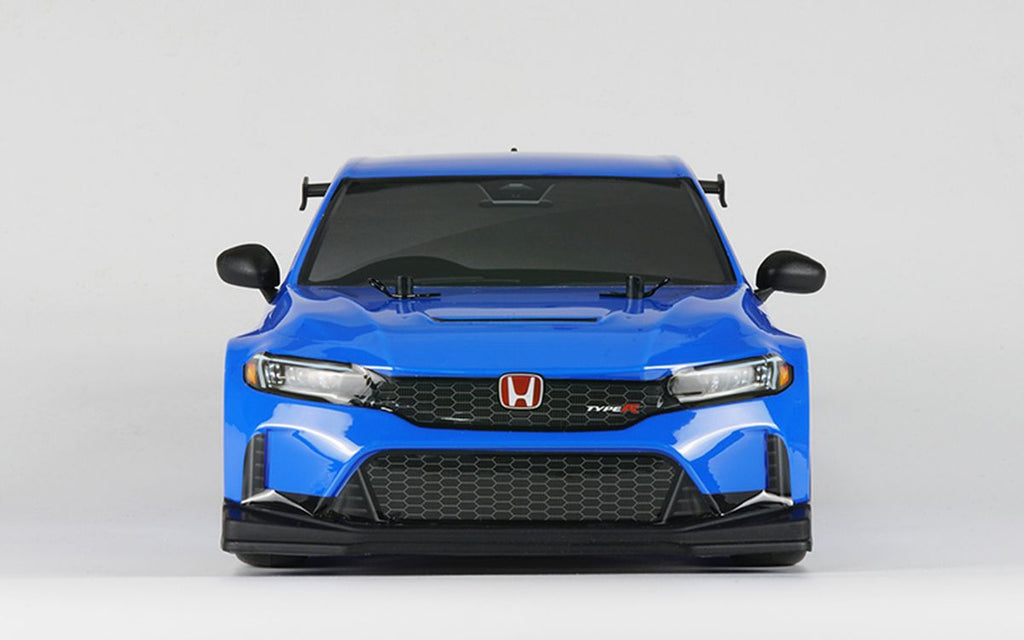

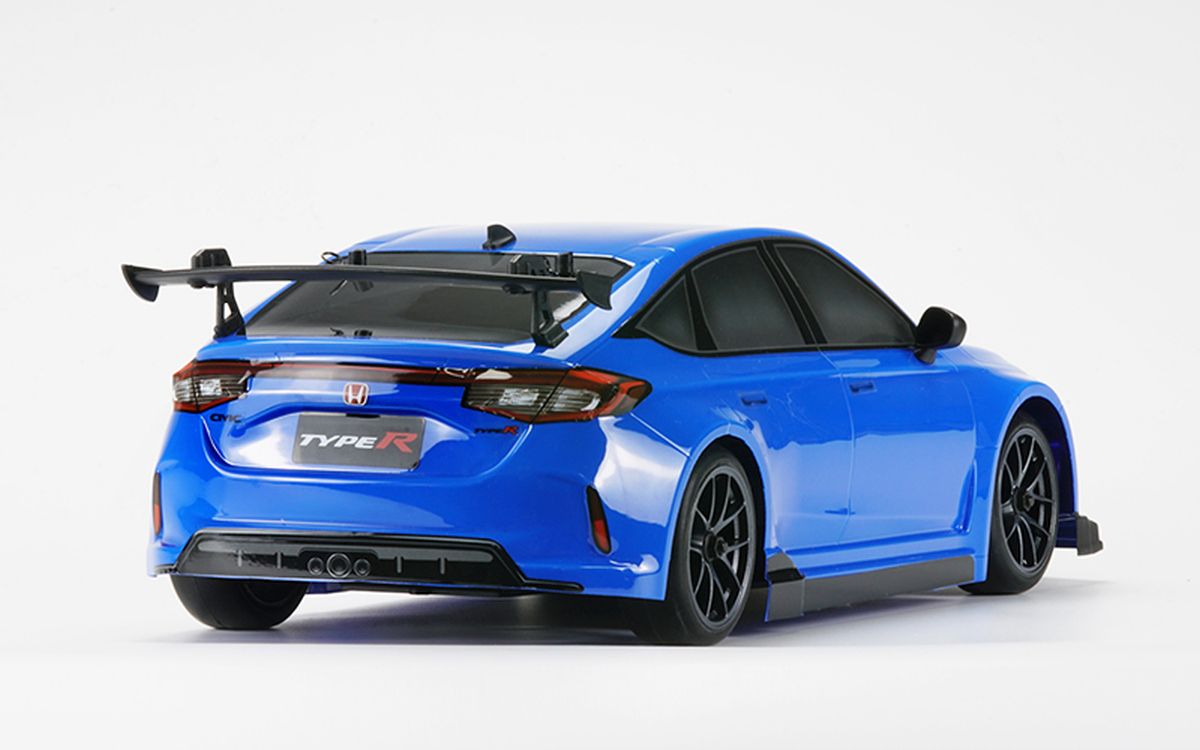

The Carisma M40S 2.0 Honda Civic Type R (FL5) Boost Blue Edition is a 1:10 scale, 4WD electric brushless touring car wearing an officially licensed FL5 Civic Type R body finished in Boost Blue. The FL5 body reproduces the real car's wide fenders, aggressive aero, injection-molded front spoiler and high-downforce rear wing.
Underneath is Carisma's M40S 2.0 chassis: a carbon composite bottom and top deck, permanent 4WD with front, center and rear differentials, aluminum oil-filled shocks, full ball bearings and front and rear anti-roll bars. It is supplied almost ready to run with a sensorless brushless motor, 3S-capable brushless ESC, 6kg metal gear steering servo and CTX-2000HP 2.4GHz radio installed, so it only needs a 2S or 3S LiPo battery and charger.
Key Features
- Officially licensed Honda Civic Type R FL5 body in Boost Blue
- Injection-molded front spoiler and high-downforce rear wing
- M40S 2.0 carbon composite chassis and top deck
- Permanent 4WD with front, center and rear differentials
- Sensorless brushless motor with 3S-capable brushless ESC
- Aluminum oil-filled shocks
- Front and rear anti-roll bars
- Full ball bearings
- 6kg metal gear steering servo
- CTX-2000HP 2.4GHz radio system
- Racing slick tires
Performance Benefits
- Three-differential 4WD drivetrain distributes power for stable acceleration and cornering
- 2S or 3S LiPo compatibility lets you choose between controllable and high-speed power
- Carbon composite chassis keeps weight down and stiffness up
- Anti-roll bars and oil shocks provide tunable, scale-like handling
Usage Notes
- Designed for on-road use on smooth asphalt, concrete or carpet
- Start on 2S LiPo to learn the car, then step up to 3S for more speed
- Supplied with a painted body; handle carefully to protect the Boost Blue finish
- Suitable for intermediate drivers and scale touring car enthusiasts
Technical Specs
- Scale: 1:10
- Drive: Permanent 4WD, shaft drive
- Differentials: Front, center and rear
- Wheelbase: 257mm
- Track width: 186mm
- Chassis: Carbon composite bottom and top deck
- Motor: Sensorless brushless
- ESC: Brushless, 2–3S LiPo capable
- Servo: 6kg metal gear
- Radio: CTX-2000HP 2.4GHz
- Shocks: Aluminum oil-filled
- Tires: Racing slicks
- Completion: ARTR (almost ready to run)
What's Included
- (1) M40S 2.0 chassis, factory assembled
- (1) Honda Civic Type R FL5 painted body, Boost Blue
- (1) Brushless motor and ESC, installed
- (1) 6kg metal gear steering servo, installed
- (1) CTX-2000HP 2.4GHz transmitter and receiver
- (4) Mounted wheels with racing slick tires
- (1) Instruction manual
Needed to Complete
- 2S or 3S LiPo battery
- LiPo-compatible charger
- AA batteries for the transmitter
Summary
- 1:10 4WD brushless touring car with licensed FL5 Civic Type R body in Boost Blue
- M40S 2.0 carbon chassis with three differentials and oil shocks
- Motor, ESC, servo and 2.4GHz radio installed
- 2–3S LiPo capable; needs battery, charger and AA batteries
