Description
Overview
The Corally SSX-125 Carbon Edition (00105-C) is Team Corally's flagship 1/12 scale on-road competition pan car kit, engineered in Belgium for serious carpet and asphalt racing. Building on Team Corally's decades of championship-winning pan car heritage, the SSX-125 represents a ground-up modern redesign focused on ultra-low center of gravity, advanced tuning options, and razor-sharp cornering performance — the kind of platform that wins club races and national-level events alike.

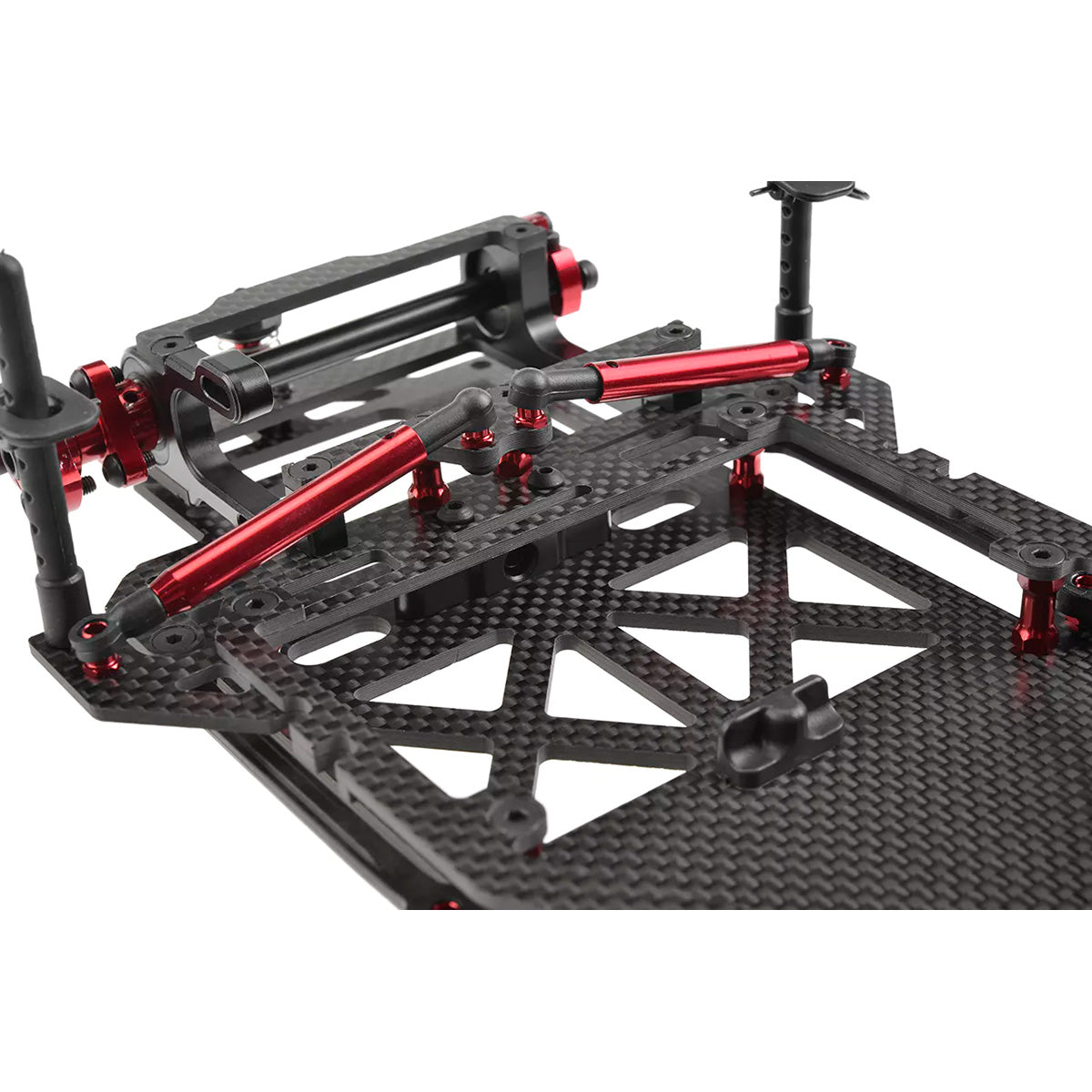

This particular kit ships with the 2.5mm high-quality carbon fiber chassis plate, precision-machined with strategically placed cutouts that optimize the balance between flex and rigidity. The carbon chassis delivers a nimble, responsive driving feel that rewards aggressive, technical drivers. Either chassis option pairs with a comprehensive package of pro-level components: a friction-based rear pod damper system that eliminates the traditional center shock, repositioning mass toward the rear for a dramatically lower CG; adjustable carbon side braces with aluminum posts that let you tailor lateral chassis flex to track conditions; an adjustable Ackermann steering system for fine-tuning steering feel; and a floating servo mount that minimizes interference with chassis flex.
Designed for 1S LiPo power and mini-sized servos (the standard for 1/12 pan car competition), the SSX-125 features a 93×47mm battery tray with O-ring mounting, eccentric plastic ride-height bushings for quick and precise adjustments, a solid rear axle for predictable power transfer on high-grip surfaces, and pre-cut access holes in the chassis for hassle-free pit-lane setup changes. The kit includes a 64DP, 90T spur gear and supports a wide range of 64DP pinion gears for gear-ratio fine-tuning. Whether you're a club-level competitor stepping up from a stock setup or a podium-chasing modified-class racer, the SSX-125 Carbon Edition offers the chassis, geometry, and tuning depth to elevate your lap times and unlock your driving potential on the modern 1/12 scene.
Key Features
- 2.5mm high-quality carbon fiber chassis plate with strategic flex cutouts
- Ultra-low center of gravity design (no traditional center shock)
- Innovative rear pod damper with friction-based system and adjustable preload
- Solid suspension front arms (0.5° camber, 6° caster fixed geometry)
- Carbon side braces with aluminum posts for adjustable chassis flex
- Adjustable Ackermann steering (two-screw system)
- Floating servo mount for mini-sized servos
- Included Kimbrough servo saver
- Lightweight, maintenance-free solid rear axle
- Eccentric plastic bushings for quick ride-height adjustment
- 1S LiPo battery tray (93×47mm) with O-ring mounting
- 64DP, 90T spur gear included; 64DP pinion gear options available
- Honeycomb front bumper for impact absorption
- Pre-cut chassis access holes for fast pit-lane maintenance
Performance Benefits
- Exceptional cornering speed: The ultra-low center of gravity and rear-biased mass distribution let the SSX-125 carry far more speed through corners than conventional pan car designs, particularly on high-grip carpet.
- Surgical steering precision: The adjustable Ackermann system, floating servo mount, and rigid front-end geometry combine to deliver razor-sharp turn-in response with predictable mid-corner behavior.
- Adaptable to any track surface: Adjustable chassis flex via the side braces, tunable rear damper preload, and ride-height eccentrics let you transform the car for bumpy outdoor asphalt, smooth indoor carpet, or anything in between.
- Race-day repeatability: Solid axle simplicity eliminates ball-diff inconsistency, while the friction damper provides the same response lap after lap — critical for podium-level consistency.
- Carbon-specific advantage: The 2.5mm carbon plate is lighter and more responsive than aluminum, giving the car a livelier, more reactive feel on technical, high-grip layouts.
- Long competitive lifespan: Premium materials and replaceable wear components mean a single SSX-125 chassis can serve you across many seasons of racing.
Usage Notes
- Surface compatibility: The SSX-125 is designed for smooth, high-grip surfaces — carpet, polished concrete, or sealed asphalt. It is not intended for outdoor or off-road use.
- Tire selection: Team Corally Attack Racing foam tires (30, 32, or 35 shore) are recommended; match shore hardness to track grip — softer compounds for low-grip surfaces, harder for high-grip carpet.
- Battery installation: Use a standard 93×47mm 1S LiPo and secure it with the O-ring system; verify polarity before powering on.
- Motor recommendations: 6.5T Vulcan II for Modified class racing; 13.5T or 17.5T for Stock class compliance — verify your local club's class rules before competing.
- Gear ratio tuning: Start with the included 90T spur and adjust pinion size to balance acceleration vs. top speed for your specific track length; monitor motor temps to avoid burning out the motor.
- Chassis flex adjustment: Loosen the carbon side brace top screws for more lateral flex on bumpy or low-grip surfaces; keep them tight for snap-quick corner exits on high-grip surfaces.
- Rear damper tuning: Adjust top-nut spring preload for ride height; experiment with different greases or damper fluids on the O-ring to fine-tune rear damping characteristics.
- Servo selection: Use a high-speed mini-sized servo (standard 1/12 spec); ensure proper centering for balanced left/right steering response.
- Maintenance: Inspect side springs, eccentric bushings, and pivot points after every event; clean foam tires regularly to preserve grip.
Technical Specs
- Scale: 1/12
- Drive: 2WD (rear-wheel drive, solid axle)
- Power Source: 1S LiPo (standard 93×47mm)
- Chassis Material: 2.5mm high-quality carbon fiber
- Spur Gear: 90T 64DP (included)
- Front Suspension: Solid arms — 0.5° camber, 6° caster (fixed)
- Rear Suspension: Link-style with composite side links and aluminum central hinge
- Servo Type: Mini-sized (standard 1/12 spec)
- Manufacturer: Team Corally
- Part Number: 00105-C
- Assembly Level: Unassembled kit

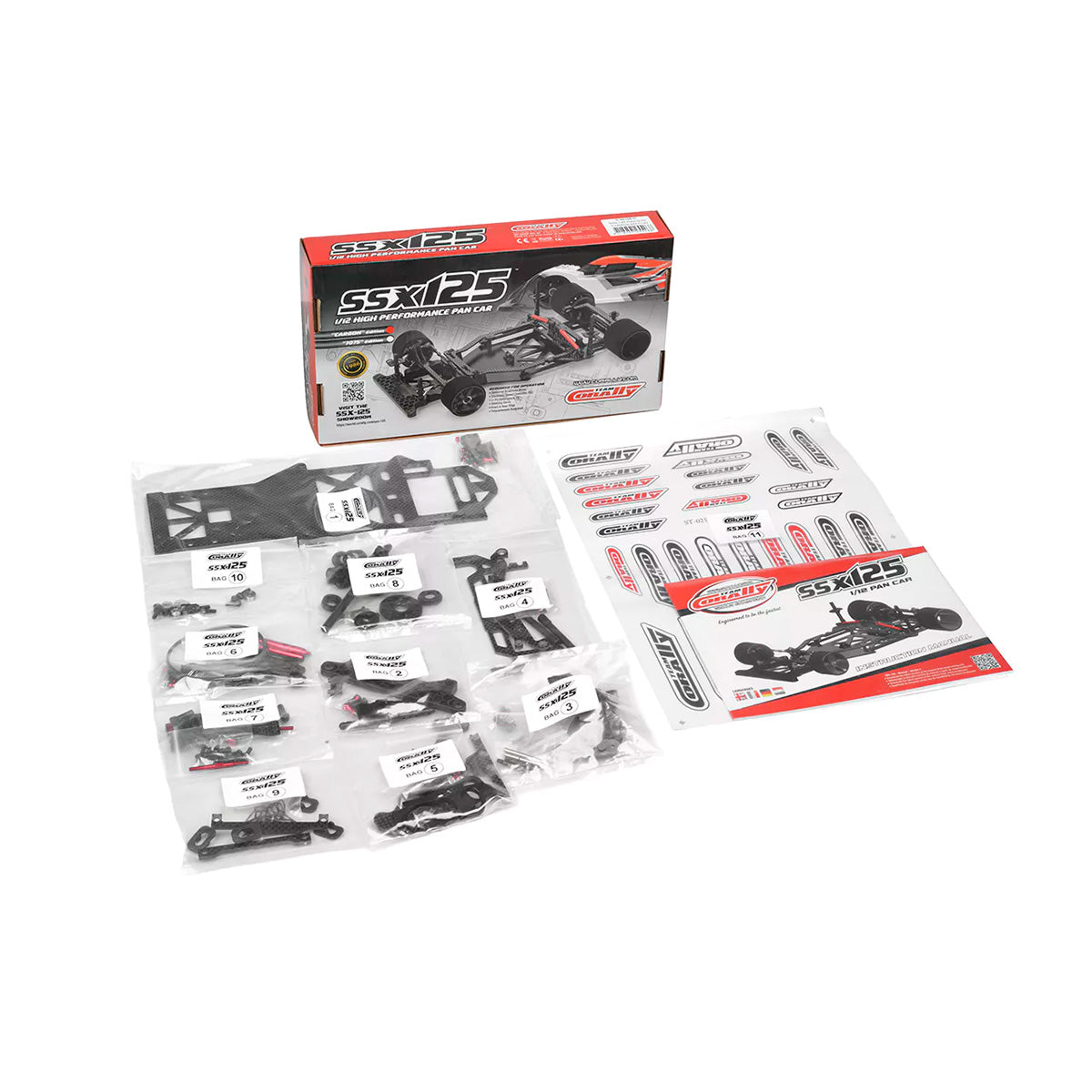

What's Included
- (1) SSX-125 Carbon Edition unassembled chassis kit
- 2.5mm high-quality carbon fiber main chassis plate
- Rear pod damper assembly
- Carbon side braces with aluminum posts
- Front honeycomb bumper
- 90T 64DP spur gear
- Kimbrough servo saver
- Solid rear axle
- Eccentric ride-height bushings
- 1S LiPo battery tray with O-ring mount
- Complete hardware and assembly instructions
Needed to Complete
- 1S LiPo battery pack (standard 93×47mm size)
- Compatible 1S LiPo battery charger
- 1/12 scale brushless motor (e.g. 6.5T Vulcan II for Modified, 13.5T/17.5T for Stock)
- 1/12 brushless ESC compatible with chosen motor
- Mini-sized steering servo (high-speed digital recommended)
- 2.4GHz radio system (transmitter and receiver)
- 1/12 pan car foam tires (front and rear) — Team Corally Attack Racing recommended
- Pinion gear (64DP, sized for your motor and target ratio)
- Damper fluid and grease for rear pod and side springs
- Tools: hex drivers, nut drivers, threadlock

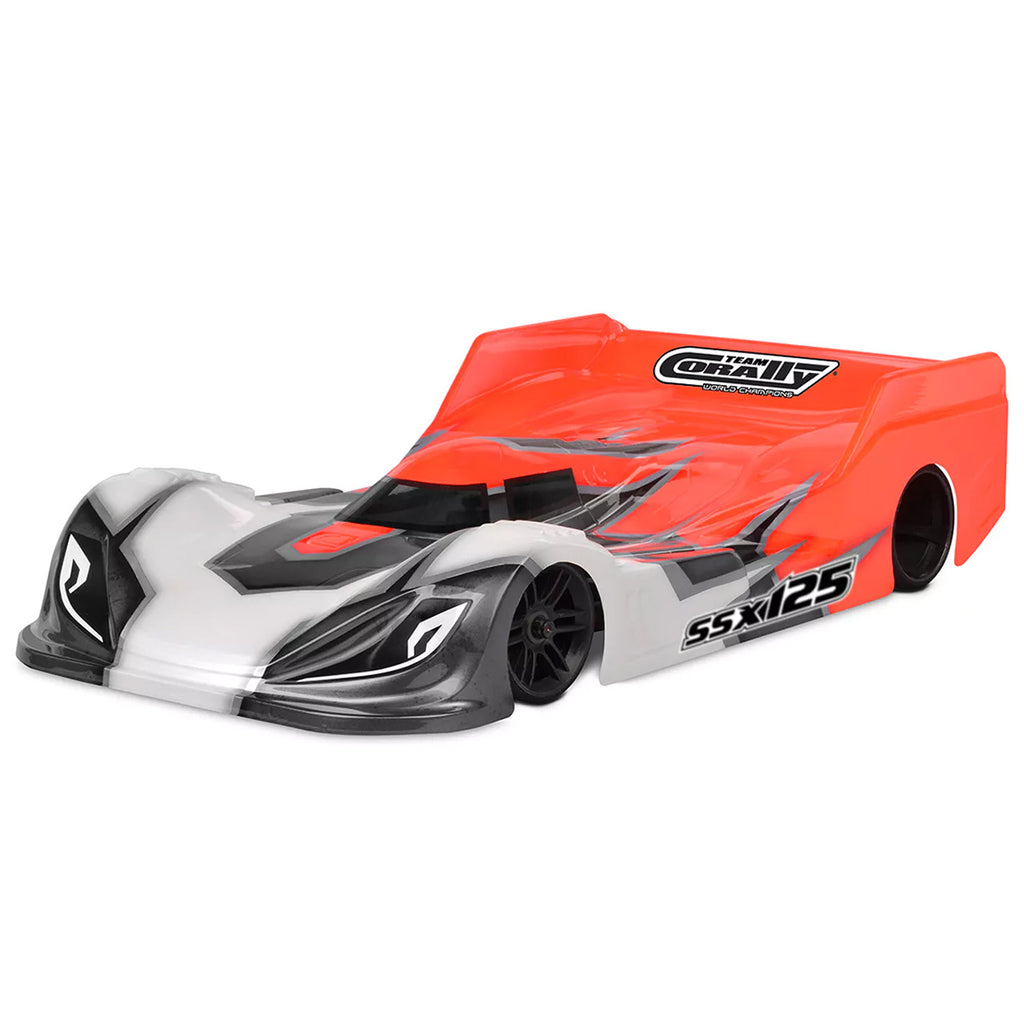

- Body and paint (if applicable)
Summary
The Corally SSX-125 Carbon Edition is a podium-ready 1/12 pan car chassis kit that combines decades of pan car racing heritage with modern ultra-low-CG design philosophy. The carbon chassis option lets you match the platform to your driving style and track conditions for serious competition results.
