Description
Overview

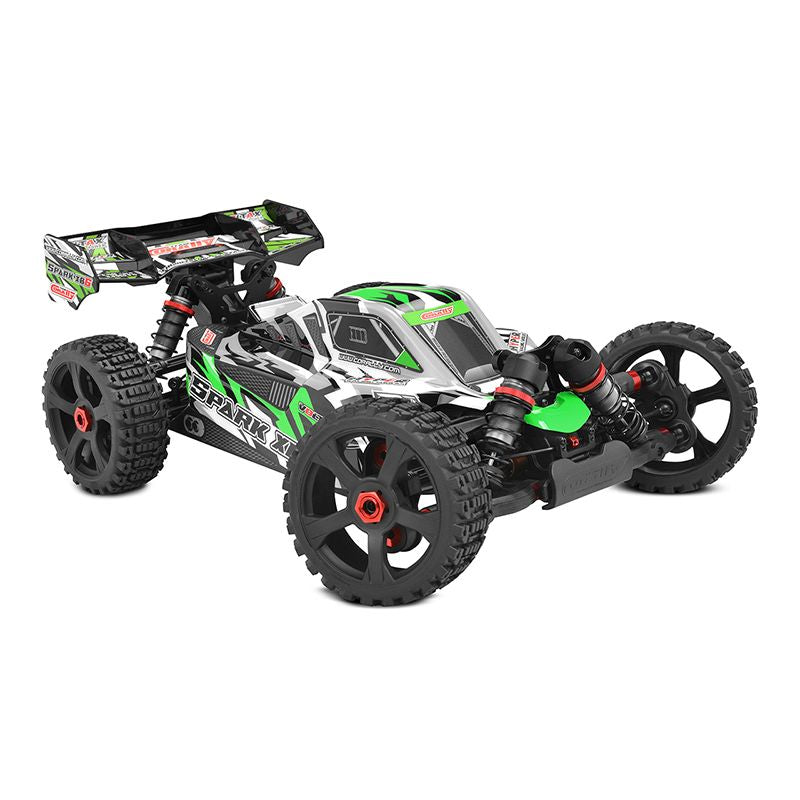

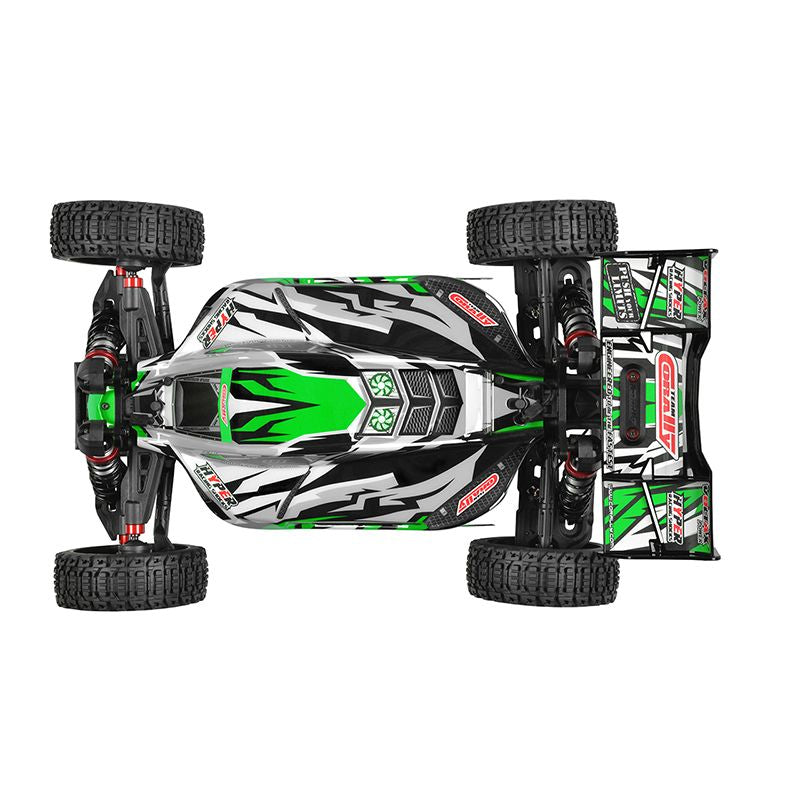

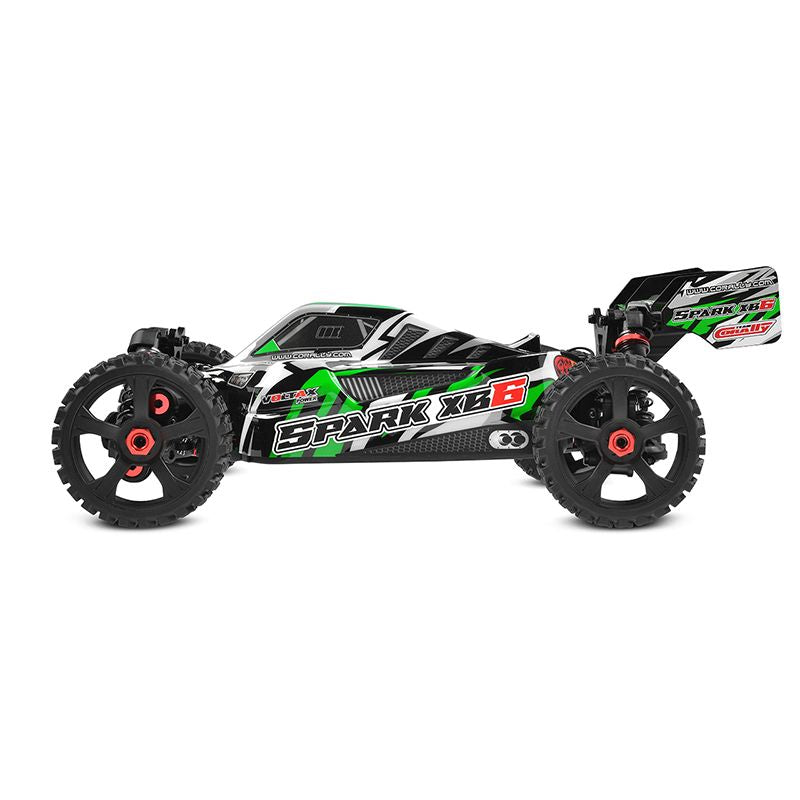

The Corally Spark XB6 1/8 Scale 6S 4WD Basher Buggy RTR (Green) is the first true 1:8 bash buggy from Team Corally — purpose-built from the ground up for hardcore bashing rather than adapted from a race platform. Customer feedback drove the design, with 46+ specific improvements over previous bash buggies. The result is a 1/8 6S monster that delivers genuine high-power bashing performance with race-derived precision and engineering. This listing is for the Ready-to-Run (RTR) configuration. It arrives factory-assembled with a complete 6S electronics package — Kuron 825 4-pole 2050kV brushless motor, Torox 185A 4-6S ESC with LiPo protection, CR-HV 7225 25kg HV metal-gear steering servo, and Team Corally CT2R 2.4GHz radio system — so you simply add a 6S battery, charger, and AA batteries to start bashing, finished with a striking matte black base accented in bold green.
The Spark XB6 separates itself from race-converted buggies through purpose-built bashing engineering at every level. The chassis features a 3mm aluminum main plate, X-Treme ultra-rigid hybrid chassis brace system at the front, center, and rear, reinforced chassis side guards with integrated body protection, a heavy-duty front bumper, and a central chassis reinforcement system with 3mm aluminum plate — designed to absorb the high-energy impacts that destroy lesser platforms. The drivetrain is bulletproof: hardened steel spur gear and motor pinion, three sealed metal differentials individually filled with silicone oil, an aluminum/steel central differential with quick-access design, complete hard-coated S2 steel outdrives, extra-surface-hardened steel front CVD joints, a 46T steel central gear, and a 2-piece adjustable aluminum motor holder with composite gear cover. Aluminum 17mm drive hexes complete the heavy-duty drive package.
The Spark XB6's suspension is engineered specifically for jumping, landing, and absorbing terrain that would damage race-spec geometry. CNC-machined 5mm aluminum shock towers (front and rear) anchor super-smooth 16mm threaded big-bore aluminum oil shocks with hard springs and 4mm-thick tuned shock pistons designed for very thick silicone oils. Oversized HD 13mm-thick composite suspension arms with aluminum anti-tear rings, oversized HD composite "pillow ball" steering blocks (re-engineered to prevent ball pop-out under extreme loads), oversized composite steering and rear camber links, CNC-machined 4mm aluminum arm holders, and a Team Corally RSP front and rear anti-roll bar system deliver the geometry, durability, and tunability needed for serious 6S bashing. Pre-glued high-speed XL buggy tires (130mm) on black 6-spoke nylon rims with 17mm hexes are matched to 6S power, while the splash- and dustproof electronics box, XL adjustable battery holder (accommodating packs up to 161×50mm), 3mm 7075 aluminum double-deck steering Ackermann system, and reinforced high-downforce wing with tower-connecting brace round out a serious 1/8 bash platform that's ready for everything from backyard fun to extreme stunt sessions.
Key Features
- 1/8 scale 4WD shaft-driven bash buggy
- Purpose-built for bashing — not a race-converted platform
- X-Treme ultra-rigid hybrid chassis brace system (front, center, rear)
- 3mm aluminum main chassis plate with central reinforcement plate
- Reinforced chassis side guards with integrated body protection
- Heavy-duty front bumper
- Bulletproof drivetrain with hardened steel components
- Three sealed metal differentials (silicone oil filled)
- Aluminum/steel central differential
- Quick-access diff design for fast maintenance
- Complete hard-coated S2 steel outdrives
- Extra-surface-hardened steel front CVD joints
- 46T steel central spur gear
- 2-piece aluminum motor mount with composite gear cover
- 16mm threaded big-bore aluminum oil shocks with hard springs
- 4mm thick tuned shock pistons (handles very thick silicone oils)
- CNC-machined 5mm aluminum shock towers (front and rear)
- Oversized HD 13mm composite suspension arms with aluminum anti-tear rings
- Oversized HD pillow-ball steering blocks (anti pop-out design)
- CNC-machined 4mm aluminum arm holders
- Team Corally RSP anti-roll bar system (front + rear)
- 3mm 7075 aluminum double-deck steering Ackermann system
- Aluminum pin and pivot ball collars on suspension arms
- Splash- and dustproof electronics box with transponder mount
- XL adjustable battery holder (up to 161×50mm)
- Pre-glued high-speed 130mm XL buggy tires on 6-spoke nylon rims
- Reinforced high-downforce wing with tower-connecting brace
- Polycarbonate body in matte black with green accents
- Kuron 825 4-pole 2050kV brushless motor (4-6S)
- Torox 185A 4-6S ESC with LiPo protection
- CR-HV 7225 25kg HV metal-gear digital servo
- CT2R ergonomic 2.4GHz transmitter
Performance Benefits
- Built for bashing, not converted from racing: Every component is engineered specifically to handle the impacts, jumps, and abuse of bashing — chassis, suspension, drivetrain, and electronics box are all overbuilt for the application, unlike race buggies that fail prematurely when bashed.
- 6S power capability: The platform is engineered to handle full 6S brushless power (22.2V), delivering massive acceleration, towering top speeds, and the kind of effortless big-air launches that lower-voltage platforms can't match.
- Bulletproof drivetrain: Hardened steel CVDs, S2 steel outdrives, aluminum/steel central diff, and 46T steel central gear are sized to handle 6S torque and heavy landings without stripping or failing.
- Anti-pop-out steering blocks: Re-engineered HD composite pillow-ball steering blocks specifically prevent the ball pop-out failure that's common on race-derived blocks under extreme bashing loads — a critical durability upgrade.
- Aggressive jump-and-land geometry: Wide track, low-CG aluminum chassis, and the X-Treme hybrid chassis brace system keep the buggy stable through long jumps, where narrow race-spec geometry tumbles.
- Big-bore aluminum shocks for serious damping: 16mm aluminum threaded shocks with 4mm tuned pistons handle very thick silicone oils — the heavy damping required to soak up huge jumps and prevent bottoming.
- RSP anti-roll bar system: Tunable front and rear sway bars let you adjust how much the chassis rolls in corners and how the buggy responds to weight transfer — a feature usually reserved for race platforms.
- Long service life: Premium materials, oversized components throughout, and bash-proven engineering mean a Spark XB6 can take years of abuse and still deliver top performance with normal wear-item replacement.
- Splash-proof electronics: Sealed electronics box with transponder mount keeps moisture, dirt, and debris out of the ESC and receiver during damp or dusty conditions.
- True ready-to-run experience: Factory-installed 6S electronics package means you just add a battery and start bashing — no electronics shopping, no soldering, no setup work.
Usage Notes
- Battery selection: Use 4S LiPo (14.8V) for moderate performance and longer runtimes, 5S for balanced bashing, or 6S LiPo (22.2V) for full-throttle 6S performance — XT90 connector required, accepts up to 161×50mm packs.
- Break-in: Run the first 2-3 packs at moderate throttle to break in the gears, bearings, and shock seals before going full-send.
- Diff oil tuning: Three independent diffs let you fine-tune handling — heavier front oil reduces understeer; heavier rear oil increases rear bite; center oil controls power transfer between front and rear.
- Shock setup for jumps: Use heavy silicone oils (~50-60+ wt) and stiff springs for big-air bashing to prevent bottoming. The 4mm pistons are designed for these heavy oils — don't run lighter than 30 wt with this piston design.
- Anti-roll bar tuning: Stiffer front sway bar = less front grip in corners (more pushing); stiffer rear = more rotation. Start neutral and adjust based on track conditions.
- Pinion options: If running RTR electronics, the motor mount supports common pinion sizes — increase pinion for top speed (raises motor temps), decrease for acceleration.
- Tire selection: The pre-glued XL buggy tires are matched to 6S power and excel on dirt, grass, and packed surfaces; rough concrete will accelerate wear significantly.
- Wing care: The high-downforce wing produces real downforce at speed — inspect mounting hardware regularly and replace the wing if cracked, as a damaged wing can cause unstable high-speed handling.
- Splash precaution: Splash-proof — NOT waterproof. Avoid puddles deeper than the wheel hubs and never submerge.
- Post-run maintenance: Brush dirt and debris off the chassis, check shock seals and diff seals, inspect drive cups, hinge pins, and pivot balls for wear; tighten loose hardware.
- Motor temp monitoring: Keep motor temps under 180°F (82°C) — under sustained 6S bashing, allow the motor to cool between hard runs.
- Battery storage: Always store LiPos at storage voltage (~3.85V/cell) in a fireproof bag; never leave a battery installed when not driving.
Technical Specs
- Scale: 1/8 XL Bash Buggy
- Drive: 4WD shaft-driven
- Power System: 4S–6S LiPo capable
- Chassis: 3mm aluminum with X-Treme hybrid brace system
- Differentials: 3× sealed metal, silicone-oil filled
- Spur Gear: 46T steel central
- Shocks: 16mm aluminum threaded big-bore (4mm pistons)
- Shock Towers: 5mm CNC aluminum (front and rear)
- Wheel Hex: 17mm
- Wheels/Tires: 130mm XL buggy tires on black 6-spoke nylon rims (pre-glued)
- Battery Connector: XT90 (included with electronics)
- Max Battery Size: 161×50×63mm (battery tray)
- Motor: Kuron 825 2050kV 4-pole sensorless brushless
- ESC: Torox 185A 4-6S with LiPo protection
- Servo: CR-HV 7225 25kg HV metal-gear digital
- Radio: CT2R 2.4GHz
- Manufacturer: Team Corally
- Color: Matte black with Green accents
What's Included
- (1) Spark XB6 1/8 Scale RTR buggy with painted matte black/green body
- Pre-glued tires on 6-spoke nylon rims
- Big-bore aluminum oil shocks (factory assembled)
- Reinforced high-downforce wing
- Kuron 825 brushless motor (installed)
- Torox 185A ESC (installed)
- CR-HV 7225 25kg HV servo (installed)
- CT2R 2.4GHz transmitter
- Instruction manual
Needed to Complete
- 4S, 5S, or 6S LiPo battery with XT90 connector (max 161×50mm)
- Compatible 4-6S LiPo battery charger
- 4× AA batteries for the CT2R transmitter
Summary
The Spark XB6 RTR (matte black/Green) is the first true 1/8 6S bash buggy from Team Corally — purpose-built for serious bashing with bulletproof drivetrain, race-derived geometry, and 6S-capable performance. Drop in a battery and unleash the full 6S bash experience right out of the box.
