Overview

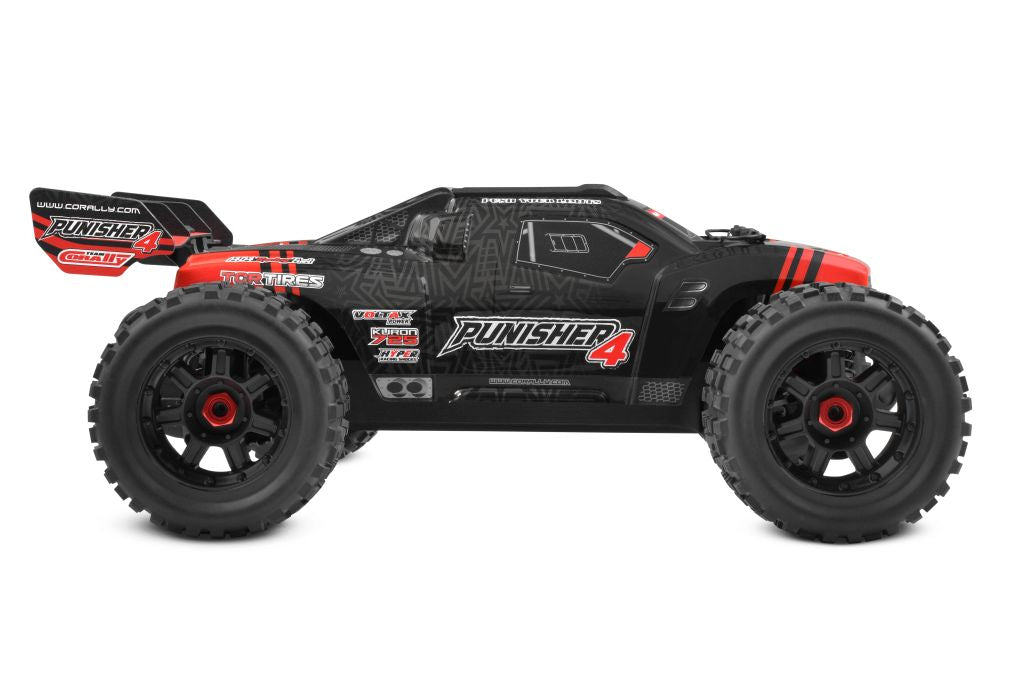

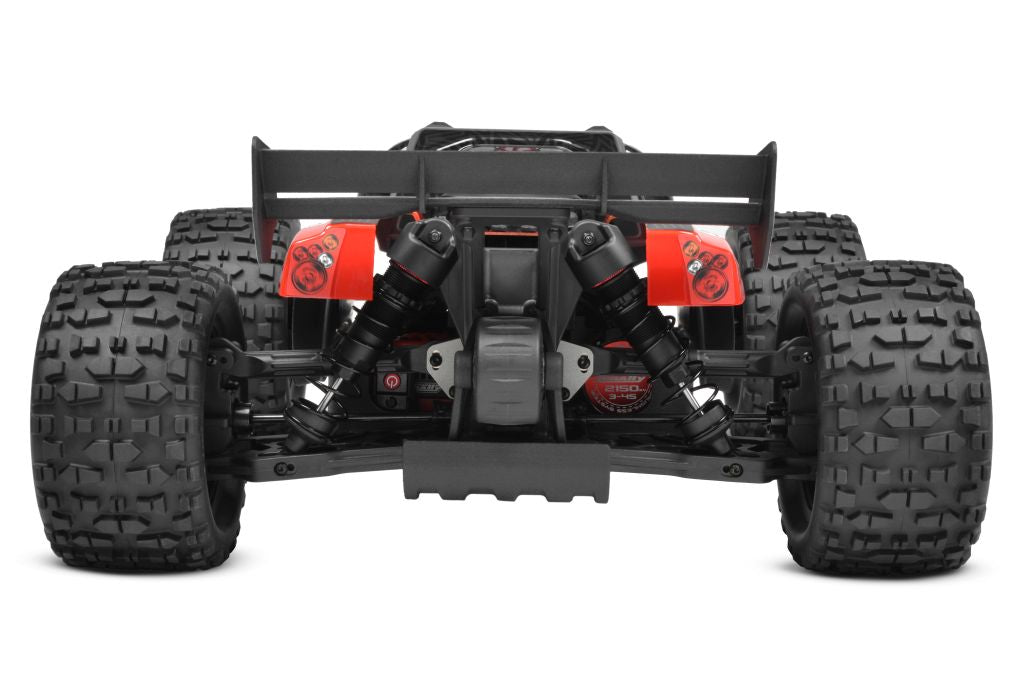

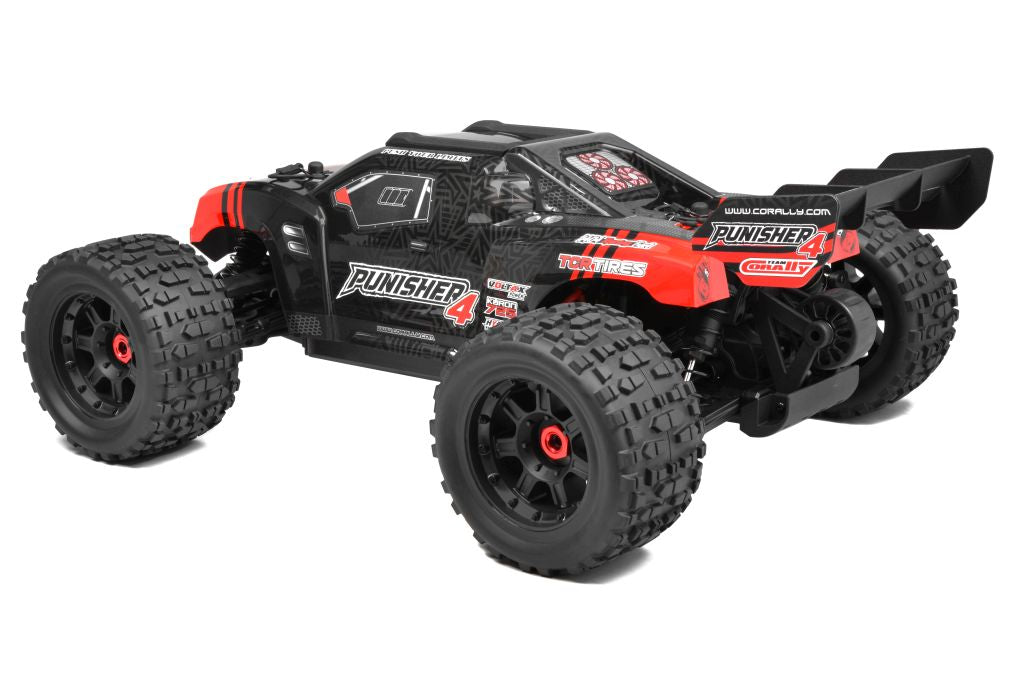

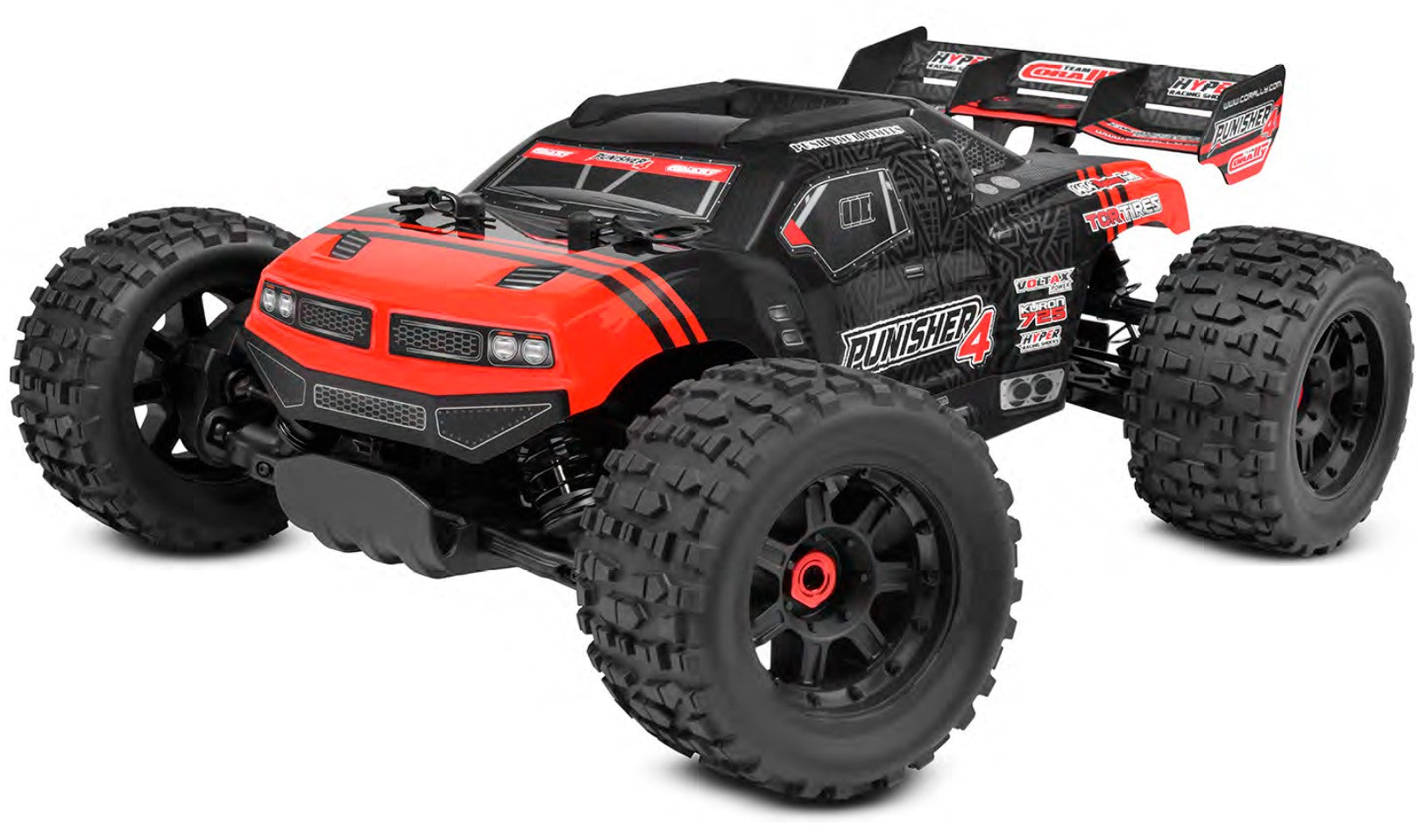

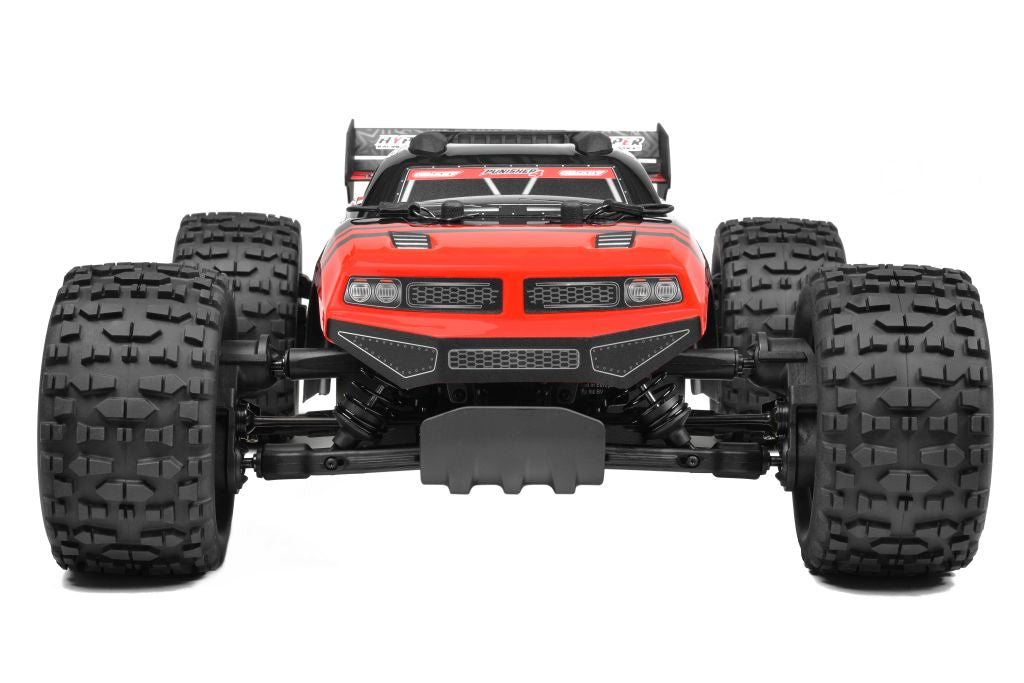

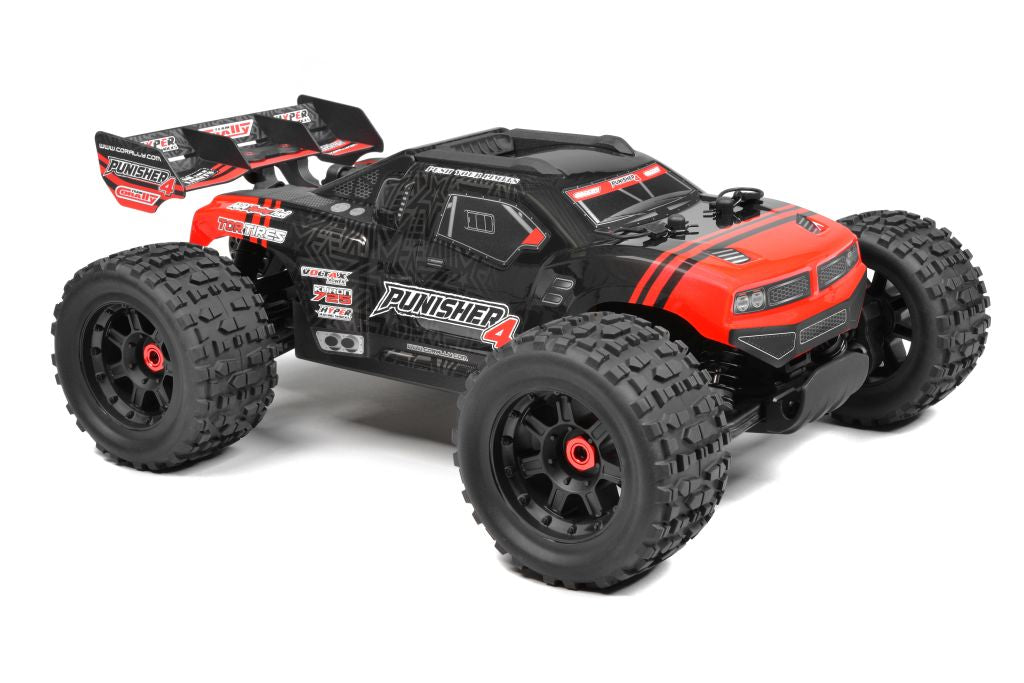

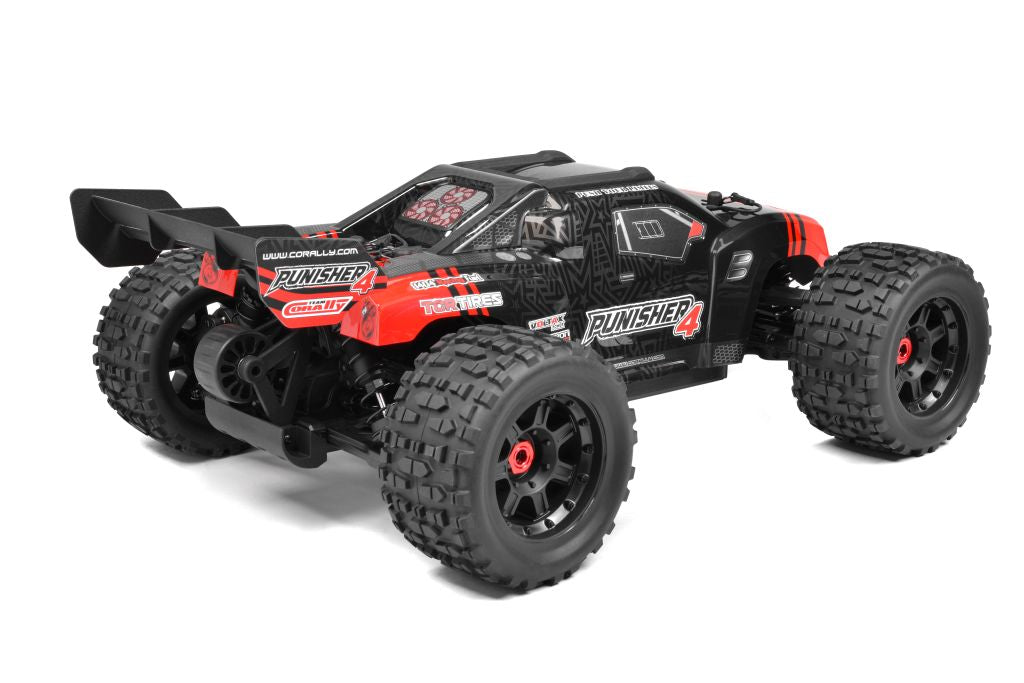

The Corally Punisher 4S 1/10 4WD Monster Truck RTR (Red) is Team Corally's striking 1/10-scale brushless monster truck built on the proven Syncro 4 platform — a "truggified" hybrid that fuses the agility of a competition buggy with the imposing stance, big tires, and aggressive styling of a true monster truck. Sharing its chassis and drivetrain DNA with the Kagama 4 (the two trucks differ primarily in body styling), the Punisher 4 carries the iconic Punisher livery in scale form, delivering serious 4S brushless performance and engineering depth typically reserved for much higher-priced platforms.

At its heart sits a Kuron 725 4-pole 2150kV sensorless brushless motor paired with the Torox 135 ESC (2-4S LiPo with built-in LiPo protection). On a 4S pack, the Punisher 4 hits 80+ km/h (50+ mph) — true monster-truck speed combined with the wheelies, jumps, and stunts the platform was designed for. Steering is handled by the CR-HV 7225 25kg high-voltage metal-gear digital servo, with a precision aluminum servo arm and one-piece composite steering link delivering the precise, repeatable response needed at high speed. The CT2S 2.4GHz compact transmitter includes a 50%/100% power switch — perfect for letting beginners learn at half power before unleashing the full 4S potential, with 200m+ range and rapid response across all skill levels.

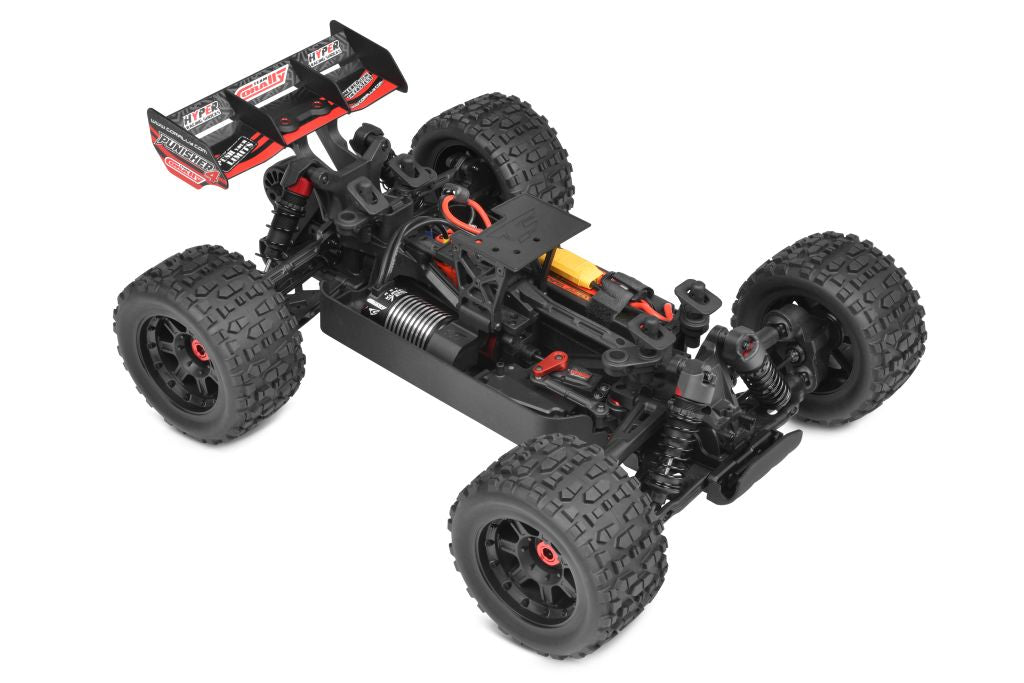

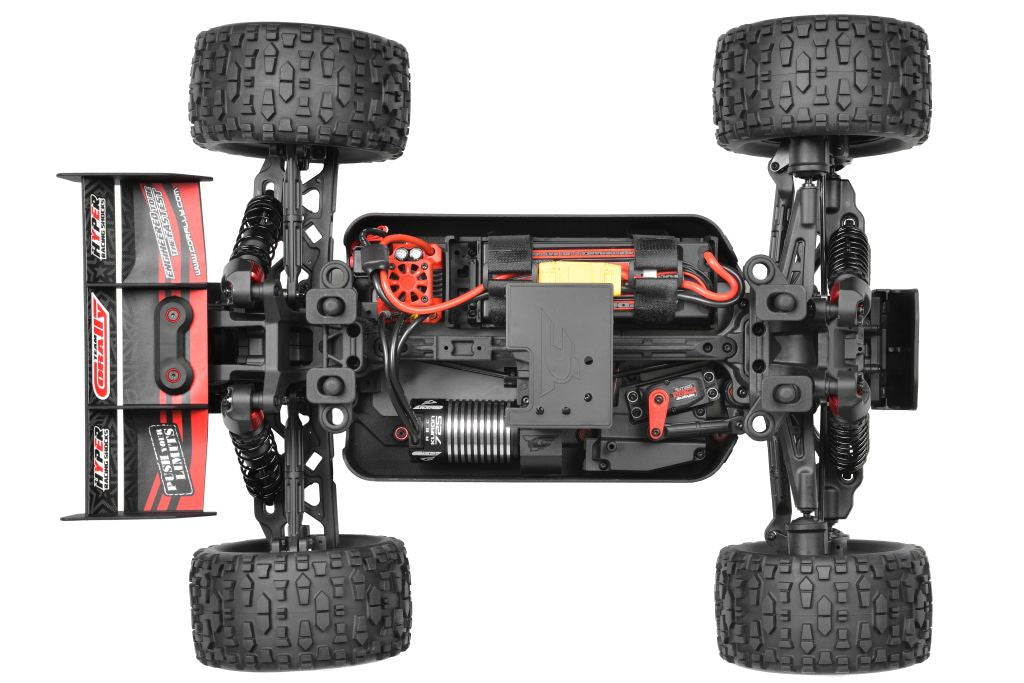

Construction reflects Team Corally's race-derived engineering philosophy. A 3mm laser-etched aluminum chassis plate, ultra-rigid composite chassis brace system, and tall reinforced side guards with integrated body protection form a backbone built to absorb hard landings and high-speed impacts. The drivetrain features all-steel components — hardened steel outdrives, extra-surface-hardened steel front CVD joints, a 52T steel central spur gear, aluminum 17mm drive hexes, and three sealed differentials individually filled with silicone oil for tunable handling. Suspension uses independent pivot-ball front and double-wishbone rear geometry inherited from the Radix6 race platform, threaded big-bore 16mm oil-filled composite shocks, 4mm aluminum suspension pin braces, and Kagama-spec wide steering blocks and rear hubs. Sketer Multi-Block Stunt tires (134×70mm) on 7-spoke composite wheels deliver the grip and stability needed for everything from lawn bashing to airtime stunts. Topping it all off: an iconic Punisher polycarbonate body in the bold red colorway, with body roof protector, adjustable mounts, and an integrated multi-position wheelie bar that helps manage the truck's prodigious power.

Key Features

• 1/10 scale 4WD shaft-driven monster truck
• 80+ km/h (50+ mph) top speed on 4S
• Kuron 725 4-pole 2150kV sensorless brushless motor
• Torox 135 ESC (2-4S LiPo with LiPo protection)
• CR-HV 7225 25kg HV metal-gear digital steering servo
• CT2S 2.4GHz transmitter with 50%/100% power switch
• 3mm laser-etched aluminum chassis plate
• Ultra-rigid composite chassis brace system
• Three sealed differentials, individually silicone-filled
• Hardened steel outdrives and front CVD joints
• 52T steel central spur gear with steel motor pinion
• 4mm aluminum suspension pin braces
• Threaded 16mm big-bore composite oil-filled shocks
• Independent pivot-ball front / double-wishbone rear suspension
• Wide HD steering blocks and rear hubs (Kagama-spec)
• 17mm aluminum drive hexes
• Adjustable XL battery holder for all common LiPo packs
• Adjustable multi-position wheelie bar
• Splash- and dustproof electronics box with transponder mount
• Sketer Multi-Block Stunt tires (134×70mm) on 7-spoke wheels
• Iconic Punisher polycarbonate body in red
• Reinforced high-downforce wing

Performance Benefits

• Genuine 50+ mph monster-truck performance: The Kuron 725 + Torox 135 combo on 4S delivers explosive acceleration and 80+ km/h top speed — true big-power monster-truck performance in a manageable 1/10 size that fits in most yards and parking lots.
• Race-bred drivetrain durability: Hardened steel CVDs, steel outdrives, and 52T steel spur gear are derived from Corally's competition platforms — they handle high-power launches, big air, and hard landings without the gear stripping common in lesser monster trucks.
• Beginner-to-expert adjustable power: The 50%/100% transmitter switch lets new drivers learn the truck at half power, then unlock full 4S aggression as skill grows — a feature that grows with the driver.
• Wheelie-and-stunt geometry: Adjustable wheelie bar with multiple positions lets you dial in launch attitude — from controlled launches to maximum air, with the bar protecting against backflip rollovers.
• Tunable handling for any surface: Three independently silicone-filled diffs let you bias traction front-to-rear; threaded shocks allow oil/spring tuning for everything from bumpy lawns to packed-dirt jumps.
• Stable airtime characteristics: The wide track, low CG aluminum chassis, and reinforced high-downforce wing keep the Punisher 4 predictable and balanced through long jumps — far more stable in the air than narrow-track monster trucks.
• Crash-resistant construction: Tall reinforced side guards, integrated body protection, heavy-duty front bumper, and roof protector mean a single bad landing doesn't end the session — most crashes need only a quick visual inspection before resuming driving.
• Splash-proof electronics: Sealed electronics box keeps moisture, dirt, and debris out of the ESC and receiver — drive through dewy grass or dusty conditions without worry.
• Battery flexibility: Adjustable XL battery holder accommodates virtually all common 2S-4S LiPo formats, so you can use packs you may already own from other vehicles.

Usage Notes

• Battery selection: Use 2S LiPo (7.4V) for casual driving with longer runtimes, 3S (11.1V) for balanced performance, or 4S (14.8V) for full 80+ km/h top speed — XT90 connector required, max 161×51×50mm pack size.
• First-run break-in: Run the first 2-3 packs at 50% power to break in the drivetrain, gear mesh, and tire glue before going to full throttle.
• Pinion options: The motor mount supports 13T, 15T, and 17T pinions — taller pinions increase top speed but raise motor temps; shorter pinions improve acceleration and run cooler. Stock pinion is well-balanced.
• Diff oil tuning: Heavier front diff oil reduces on-power push (understeer); heavier rear oil increases rear traction; center diff oil balances power transfer between axles. Adjust based on track surface.
• Shock tuning: Lighter oils (around 30-40 wt) for smooth surfaces and small jumps; heavier oils (45-55 wt) for big jumps to prevent bottoming out.
• Wheelie bar adjustment: Lower the wheelie bar for big launches and high-power runs (limits rotation); raise it for more wheelies during cruising.
• Tire wear: The bash-spec Multi-Block Stunt tires excel on dirt, grass, and packed surfaces — expect faster wear on abrasive concrete or asphalt.
• Splash precaution: Splash-proof — not waterproof. Avoid puddles deeper than the wheels and never submerge the truck.
• Post-run maintenance: Inspect drive cups, suspension pivots, shock seals, and chassis fasteners after each session; clean dirt and debris from the chassis and electronics bay.
• Motor temp monitoring: Keep motor temperatures under 180°F (82°C) under load — if temps run hot, reduce pinion size or run higher cell-count batteries with shorter sessions.

Technical Specs

• Scale: 1/10 Monster Truck
• Drive: 4WD shaft-driven
• Top Speed: 80+ km/h (50+ mph) on 4S
• Length: 515mm (20.28")
• Width: 390mm (15.35")
• Height: 182mm (7.17")
• Wheelbase: 327mm (12.87")
• Weight (no battery): 4000g (141oz)
• Ground Clearance: 55mm
• Motor: Kuron 725 2150kV 4-pole sensorless brushless
• ESC: Torox 135, 2-4S with LiPo protection
• Servo: CR-HV 7225 25kg HV metal-gear digital
• Radio: CT2S 2.4GHz with 50%/100% power switch
• Spur Gear: 52T steel
• Pinion Options: 13T, 15T, 17T
• Tires: 133mm diameter × 69mm width
• Wheel Hex: 17mm
• Battery Connector: XT90
• Max Battery Size: 161×51×50mm
• Manufacturer: Team Corally
• Color: Red

What's Included

• (1) Pre-built Punisher 4S RTR Monster Truck with painted red Punisher body
• Kuron 725 brushless motor (installed)
• Torox 135 ESC (installed)
• CR-HV 7225 25kg HV servo (installed)
• CT2S 2.4GHz transmitter
• Factory-mounted and glued tires on 7-spoke wheels
• Adjustable wheelie bar
• Reinforced high-downforce wing
• Instruction manual

Needed to Complete

• 2S, 3S, or 4S LiPo battery with XT90 connector (max 161×51×50mm)
• Compatible 2-4S LiPo battery charger
• 4× AA batteries for the CT2S transmitter

Summary

The Corally Punisher 4S 1/10 RTR Monster Truck (Red) delivers race-bred engineering, 50+ mph 4S brushless performance, and iconic Punisher styling in one bash-ready RTR package — built to handle everything from beginner-friendly cruising to expert-level stunts and jumps.
