Corally Shiroi XP6 1/8 6S Short Course Truck - Roller (Blue) | RC Vehicle

Overview

The Corally Shiroi XP6 1/8 6S Short Course Truck - Roller (Blue) is the Roller (rolling chassis) configuration of Team Corally's flagship 1/8 scale 6S short course truck. Sold without electronics, this version is designed for racers and bashers who want to install their own preferred motor, ESC, servo, and radio system to build a fully customized 6S-capable short course platform.

At its core, the Shiroi XP6 is built around a 3mm CNC-machined aluminum chassis reinforced with a tower-to-tower brace and tall composite side guards — a hyper-rigid hybrid architecture that handles repeated 6S launches, rough terrain, and demanding landings without flexing or fatiguing. A bulletproof steel drivetrain — CNC-cut hardened steel spur gear, precision-cast planetary differential gears, three silicone-oil-filled diffs, and heavy-duty CVD driveshafts — transfers full 6S power to the wheels while remaining serviceable for race-day tuning. Oversized 16mm big-bore aluminum threaded shocks mounted to 5mm CNC aluminum towers provide consistent damping that you can fine-tune via spring rates and shock oil weights to match any track or yard.

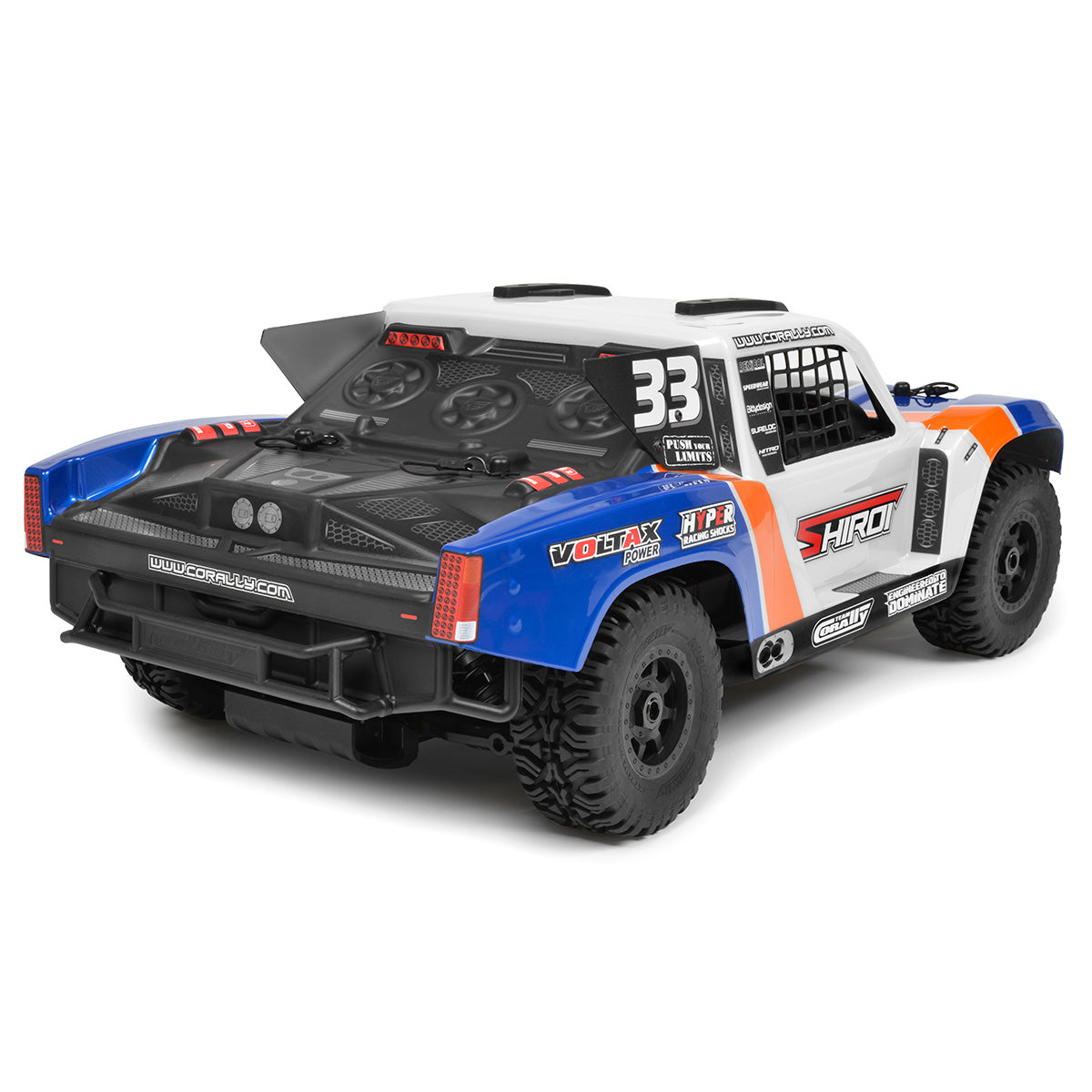

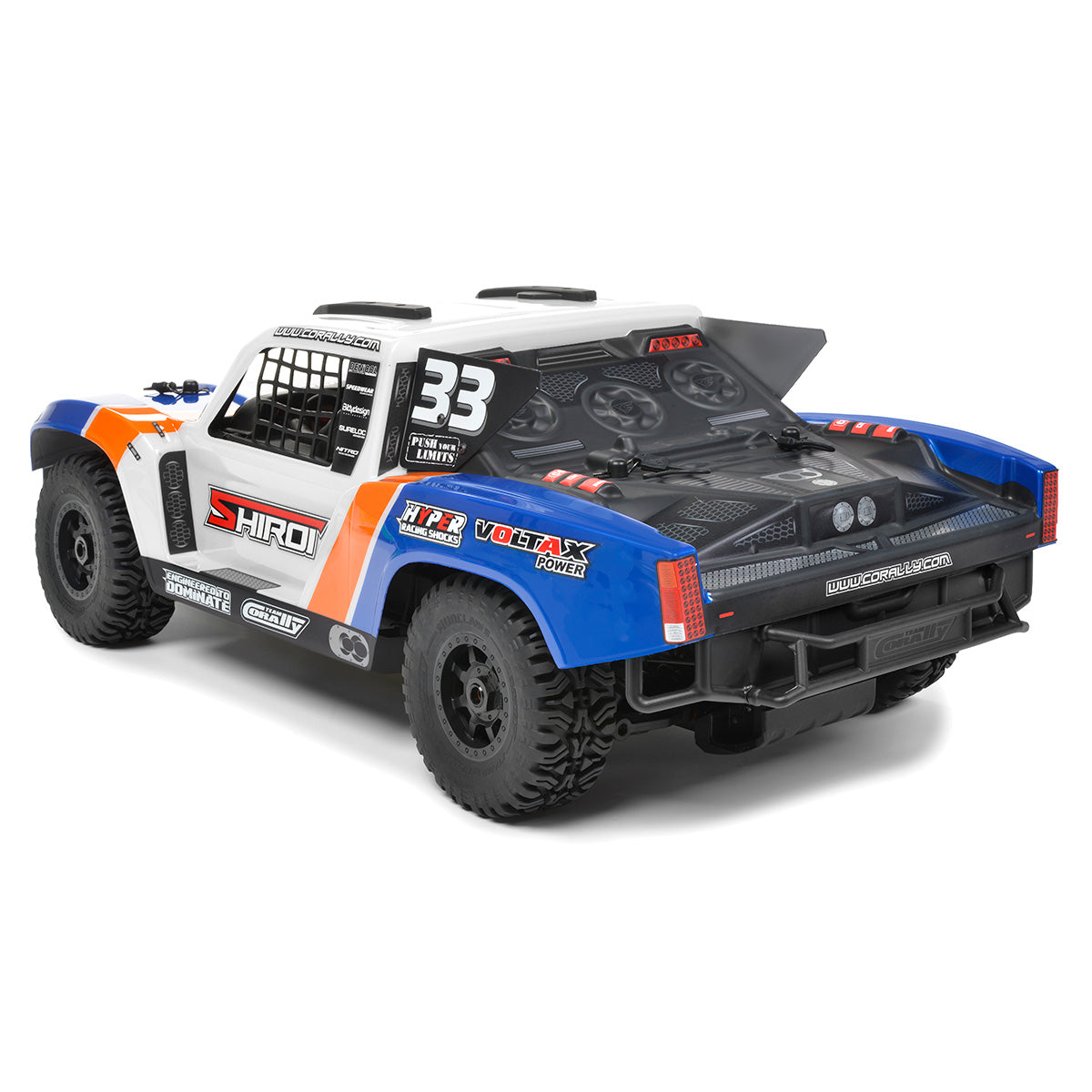

The Shiroi XP6 captures the visual aggression of full-scale Lucas Oil and Baja-style desert racers thanks to a molded interior cockpit, scale roof rack, race-correct front and rear bumpers, and a pre-cut polycarbonate body painted in the blue colorway. Custom Mudclaws SC tires on black multi-spoke composite wheels deliver real grip on loose dirt, grass, and gravel while completing the authentic short course look. With dimensions of 620mm length × 315mm width × 388mm wheelbase and a curb weight of approximately 5250g (without battery), the Shiroi XP6 sits between traditional 1/8 buggies and full-size short course trucks — large enough to soak up rough surfaces yet agile enough for technical driving. Whether you use it for backyard bashing, dirt-track speed runs, or scale-style off-road adventures, the Shiroi XP6 delivers the rugged, confidence-inspiring 6S experience hobbyists demand from a flagship Team Corally platform.

Key Features

• 6S-capable brushless power system with 4S/6S LiPo support
• 3mm CNC-machined aluminum chassis with tower-to-tower brace
• Tall composite side guards for chassis protection
• Bulletproof steel drivetrain with CNC-cut hardened gears
• Triple fluid-filled differentials for tunable handling
• Heavy-duty CVD driveshafts
• Oversized aluminum threaded big-bore oil shocks (16mm)
• 5mm CNC-machined aluminum shock towers (front and rear)
• Custom Mudclaws SC tires on multi-spoke wheels (17mm hex)
• Pre-painted polycarbonate Short Course body with molded roll cage interior
• Rolling chassis configuration — no electronics installed

Performance Benefits

• Authentic short course handling: The wide stance, scale-correct geometry, and Mudclaws SC tires deliver the planted, controllable feel of full-size desert racing trucks across dirt, gravel, grass, and packed surfaces.
• Massive 6S power headroom: The 4-pole brushless drivetrain produces aggressive acceleration and high top-end speed on 6S, while running 4S delivers a tamer, longer-runtime experience for casual driving.
• Confident high-speed launches: The reinforced 3mm aluminum chassis and tower-to-tower brace resist torsional flex during 6S launches and hard landings, keeping suspension geometry consistent.
• Tunable damping for any surface: Threaded big-bore aluminum shocks accept different oil weights and spring rates, allowing you to soften the suspension for rough yards or stiffen it for high-speed jumps.
• Race-bred drivetrain efficiency: CNC-cut steel gears and triple oil-filled diffs minimize parasitic loss, transferring more battery energy directly to the tires for longer runtimes per pack.
• Long service life under abuse: Hardened steel CVDs, sealed bearings, and reinforced composite suspension components are engineered for the repeated impacts that come with high-speed bashing.

Usage Notes

• Battery selection: Use 4S LiPo (14.8V) for relaxed driving and longer runtimes, or 6S LiPo (22.2V) for full-throttle bashing performance — XT90 connector required.
• Break-in run: For the first 1-2 packs, drive at moderate throttle to allow the gears, bearings, and tire glue to bed in properly before going full-send.
• Tire prep: Mudclaws SC tires excel on loose, soft surfaces — for hard-packed asphalt or concrete, expect faster tire wear and reduced grip; consider on-road tires for that environment.
• Post-run maintenance: After each session inspect drive cups, suspension pivots, and shock seals for wear; clean dirt from the chassis and electronics bay before storage.
• Diff oil tuning: Heavier diff oil in the front increases on-power push (understeer); heavier oil in the rear adds rear traction. Center diff oil affects how power transfers between front and rear under acceleration.
• Gearing: Stock gearing balances acceleration and top speed — monitor motor temps before changing pinion size, and never exceed 180°F (82°C) under load.
• Storage: Always store LiPo batteries at storage voltage (~3.85V/cell) in a fireproof bag; remove the battery from the truck between sessions.

Technical Specs

• Scale: 1/8
• Drive: 4WD shaft-driven
• Length: 620mm (24.4in)
• Width: 315mm (12.4in)
• Height: 235mm (9.2in)
• Wheelbase: 388mm (15.3in)
• Weight: 5250g (185oz) without battery
• Ground Clearance: Up to 70mm (2.75in)
• Wheel Hex: 17mm
• Power System: 4S–6S LiPo capable
• Manufacturer: Team Corally
• Color: Blue

What's Included

• (1) Shiroi XP6 1/8 Scale Roller Chassis with painted blue body
• Pre-mounted Mudclaws SC tires on multi-spoke wheels
• Big-bore aluminum oil shocks (factory assembled)
• Instruction manual

Needed to Complete

• 1/8 scale 4-6S brushless motor (e.g. 2050kV class)
• 1/8 scale 6S-capable brushless ESC with XT90 connector
• High-torque steering servo (25kg+ recommended)
• 2.4GHz 2-channel radio system (transmitter and receiver)
• 4S or 6S LiPo battery pack (XT90 connector)
• Compatible LiPo battery charger
• AA batteries for transmitter
• Paint for body shell (if repainting)
• Tools: hex drivers, nut drivers, threadlock

Summary

The Shiroi XP6 Roller (Blue) brings full-scale short course realism, race-bred Team Corally engineering, and 6S-capable performance together in one of the most distinctive 1/8 trucks on the market. Choose your own electronics for a fully customized build.
