Overview

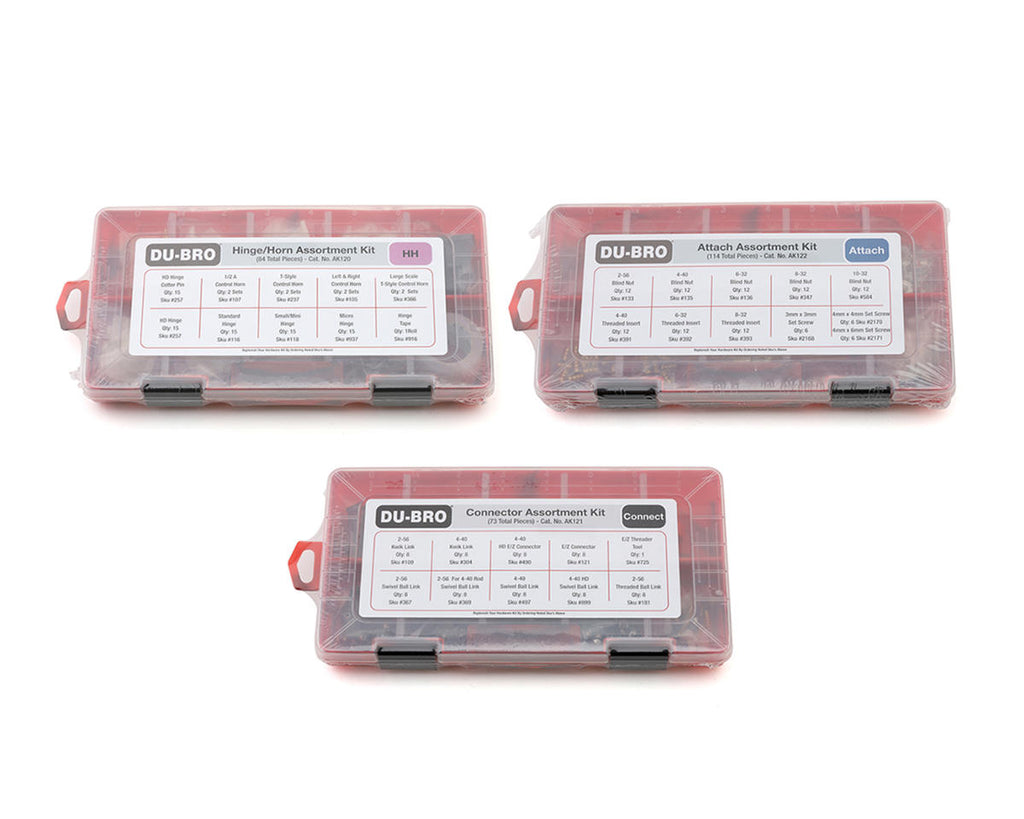

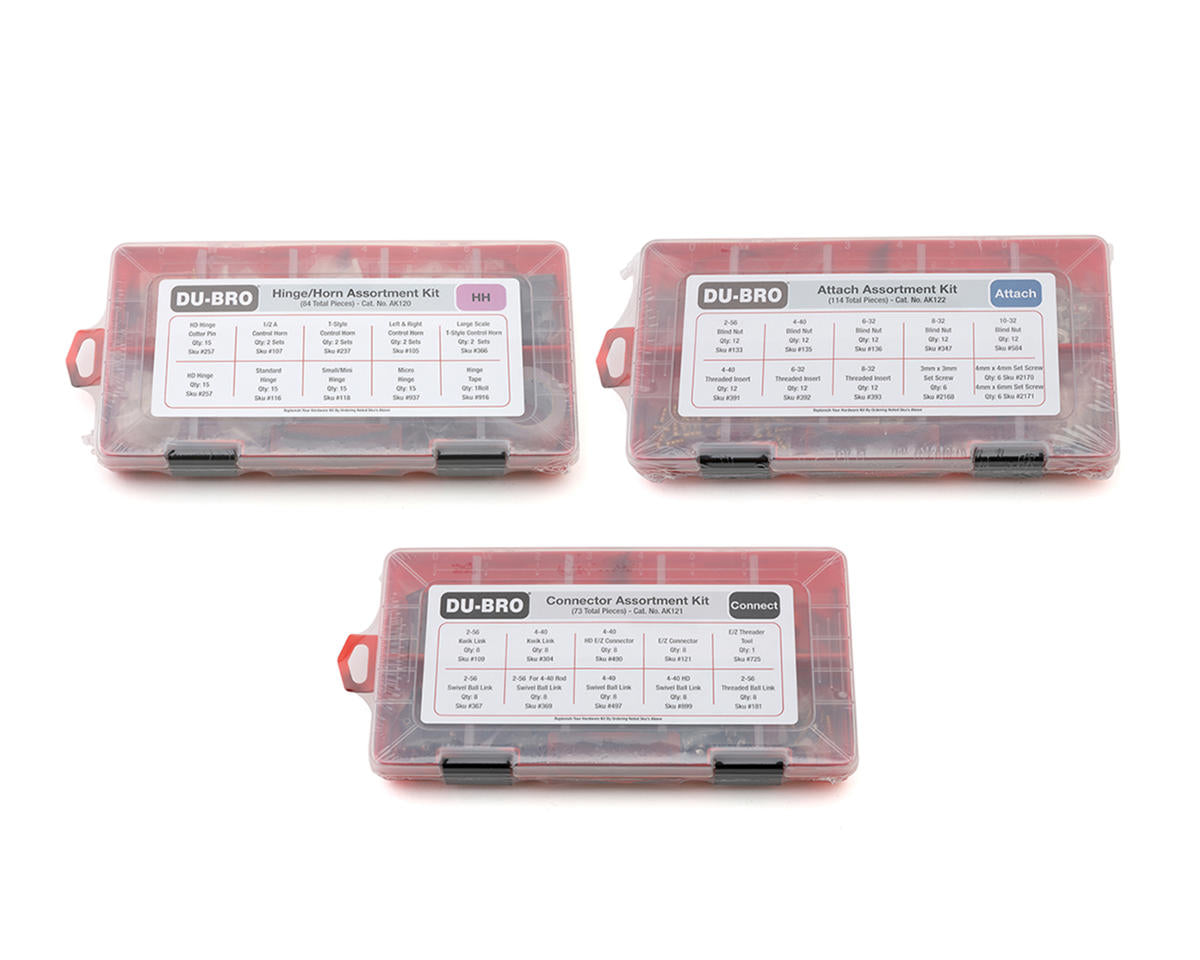

The Du-Bro Connections Kit Bundle (AK132) brings together three of Du-Bro's most useful hardware assortment boxes – the Hinge/Horn Assortment Kit (AK120), the Connector Assortment Kit (AK121) and the Attach Assortment Kit (AK122) – for a total of 271 pieces of genuine Du-Bro RC hardware. Between them, the three boxes cover control surface hinging, control horns, pushrod linkages, ball links, blind nuts, threaded inserts and set screws: the hardware used on almost every RC airplane build and repair.
Each kit comes in its own clear, compartmented storage case with a printed label that lists every part, its quantity and its individual Du-Bro SKU number, so you can see what is inside at a glance and reorder exactly the part you run low on. It is an ideal starter set for a new builder's workbench and a convenient restock for experienced modelers who want common linkage and mounting hardware organized and on hand.
Key Features
- 3-box bundle: Hinge/Horn (AK120), Connector (AK121) and Attach (AK122) assortment kits
- 271 total pieces of genuine Du-Bro RC hardware
- Covers hinges, control horns, E/Z connectors, Kwik Links, swivel ball links, blind nuts, threaded inserts and set screws
- 2-56, 4-40, 6-32, 8-32 and 10-32 thread sizes plus metric set screws
- Clear compartmented cases with labeled part lists and reorder SKU numbers
- Includes an E/Z Threader tool and a roll of hinge tape
- Trusted Du-Bro quality, made for RC modelers
Performance Benefits
- Have the right hinge, horn or connector on hand without stopping a build to order parts
- Secure, slop-free control linkages for precise control surface response
- Strong threaded mounting points for landing gear, engines, wings and hatches using blind nuts and threaded inserts
- Organized storage keeps small hardware sorted, visible and easy to find
- Labeled SKU numbers make it simple to restock individual parts
Usage Notes
- Designed primarily for RC airplanes, from micro and park flyers up to large-scale models
- Connectors, ball links and threaded hardware are also useful on RC boats, helicopters and car or truck projects
- Match the link or connector thread size (2-56 or 4-40) to your pushrod
- Blind nuts install from the back of wood or plywood for a permanent threaded anchor; threaded inserts add machine-screw threads to wood parts
- Use the E/Z Threader tool to thread pushrods cleanly through E/Z Connectors
Technical Specs
- Manufacturer part number: AK132 (Du-Bro)
- Total pieces: 271 (84 + 73 + 114)
- Pushrod / link threads: 2-56 and 4-40
- Blind nut threads: 2-56, 4-40, 6-32, 8-32 and 10-32
- Threaded insert threads: 4-40, 6-32 and 8-32
- Set screws: 3mm x 3mm, 4mm x 4mm and 4mm x 6mm
- Storage: 3 clear compartmented plastic cases with latching lids
What's Included
-

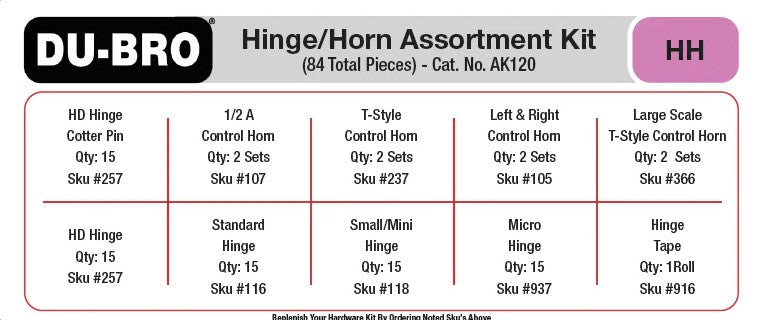

Hinge/Horn Assortment Kit – AK120 (84 pieces): (15) HD Hinge Cotter Pins, (15) HD Hinges, (15) Standard Hinges, (15) Small/Mini Hinges, (15) Micro Hinges, (2 sets) 1/2A Control Horns, (2 sets) T-Style Control Horns, (2 sets) Left & Right Control Horns, (2 sets) Large Scale T-Style Control Horns, (1 roll) Hinge Tape
-

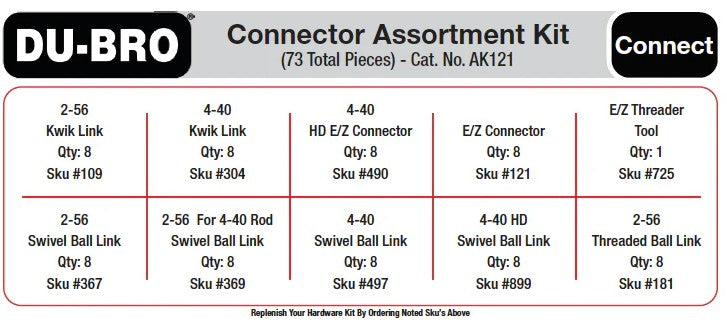

Connector Assortment Kit – AK121 (73 pieces): (8) 2-56 Kwik Links, (8) 4-40 Kwik Links, (8) 4-40 HD E/Z Connectors, (8) E/Z Connectors, (8) 2-56 Swivel Ball Links, (8) 2-56 Swivel Ball Links for 4-40 Rod, (8) 4-40 Swivel Ball Links, (8) 4-40 HD Swivel Ball Links, (8) 2-56 Threaded Ball Links, (1) E/Z Threader Tool
-

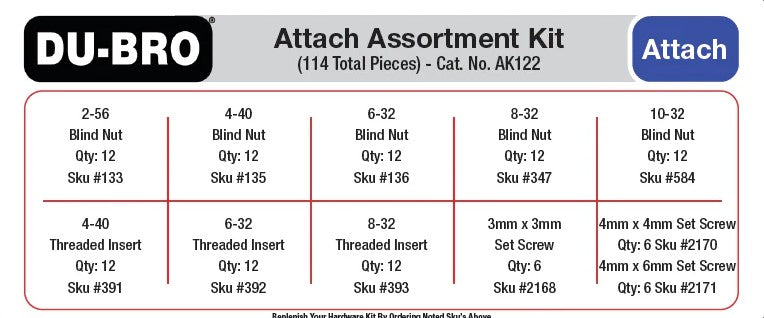

Attach Assortment Kit – AK122 (114 pieces): (12) each 2-56, 4-40, 6-32, 8-32 and 10-32 Blind Nuts, (12) each 4-40, 6-32 and 8-32 Threaded Inserts, (6) 3mm x 3mm Set Screws, (6) 4mm x 4mm Set Screws, (6) 4mm x 6mm Set Screws
Fitment
Compatible RC vehicles: Universal fit – primarily RC airplanes of all scales, also suitable for RC boats, helicopters and other RC vehicles using 2-56 or 4-40 linkage hardware.
Summary
- Du-Bro AK132 bundle: AK120 + AK121 + AK122
- 271 pieces of hinges, horns, connectors, links and mounting hardware
- Labeled, organized storage cases for the workbench
