Overview

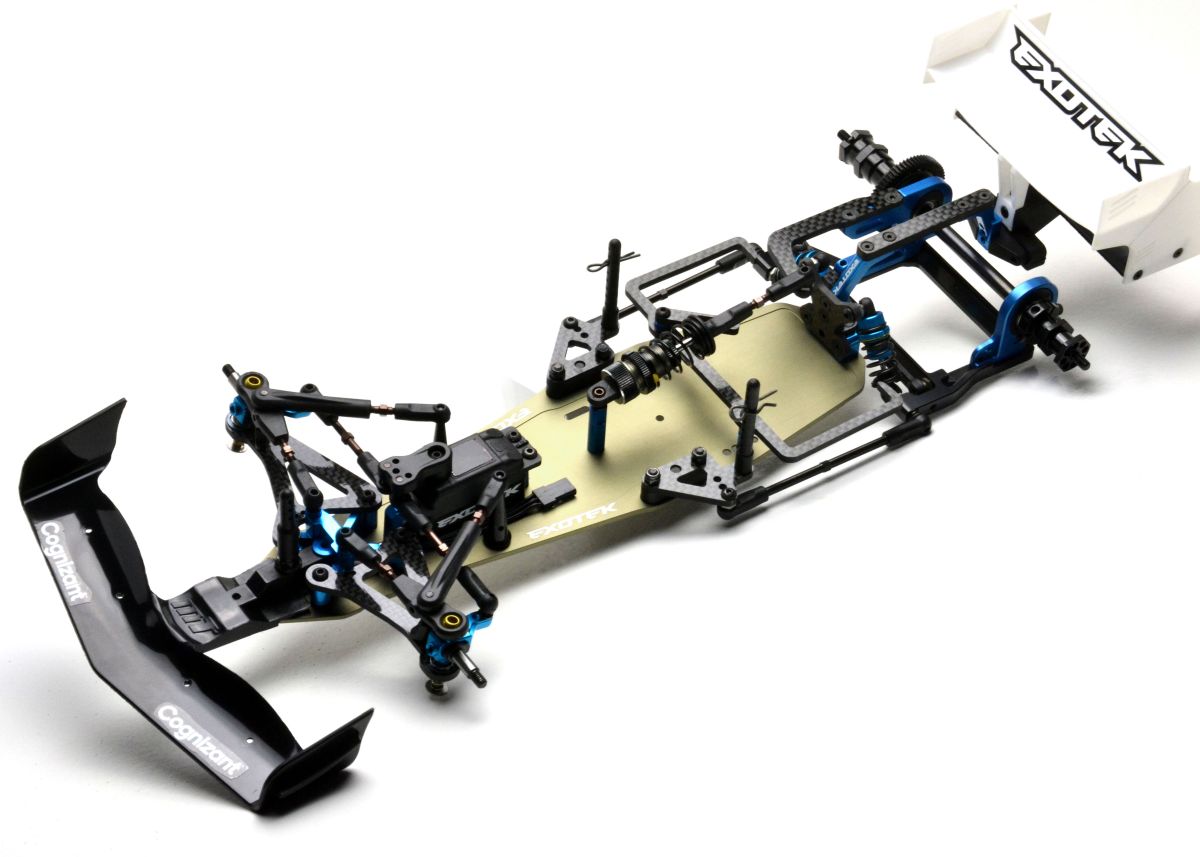

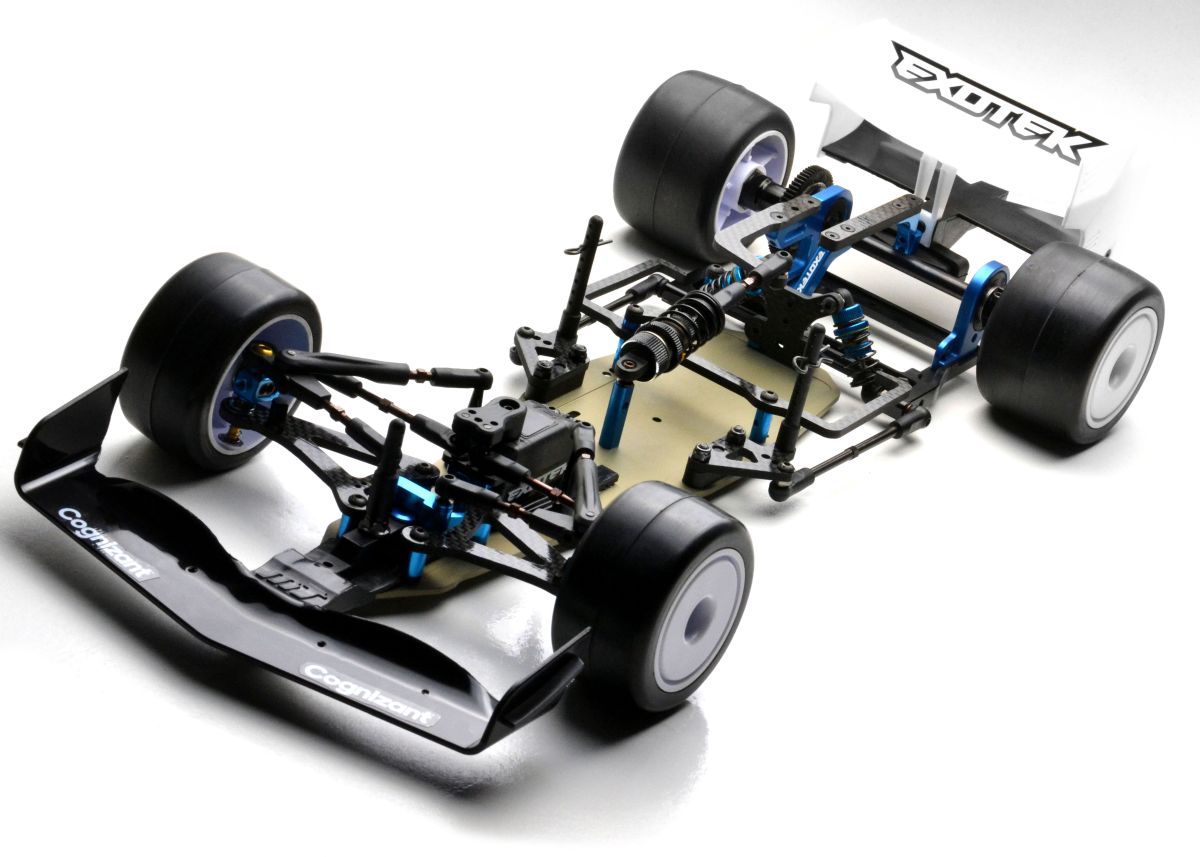

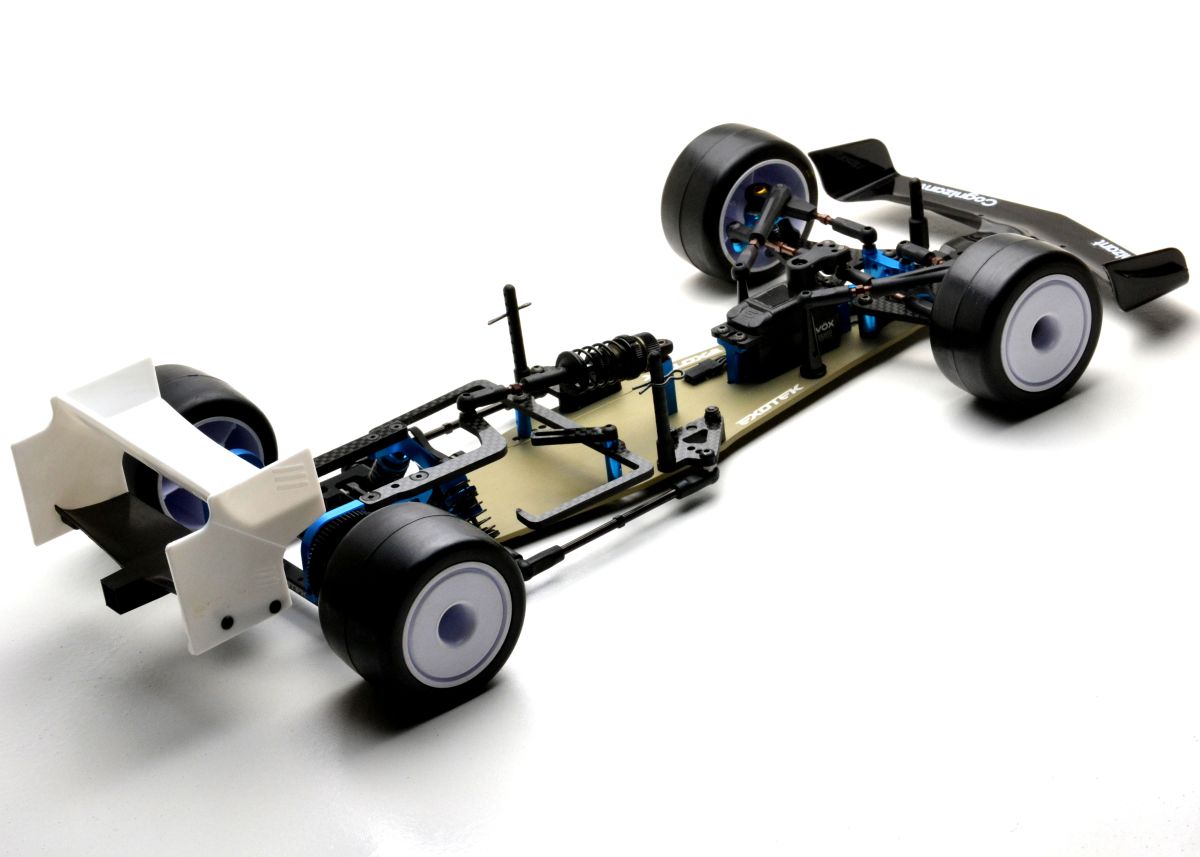

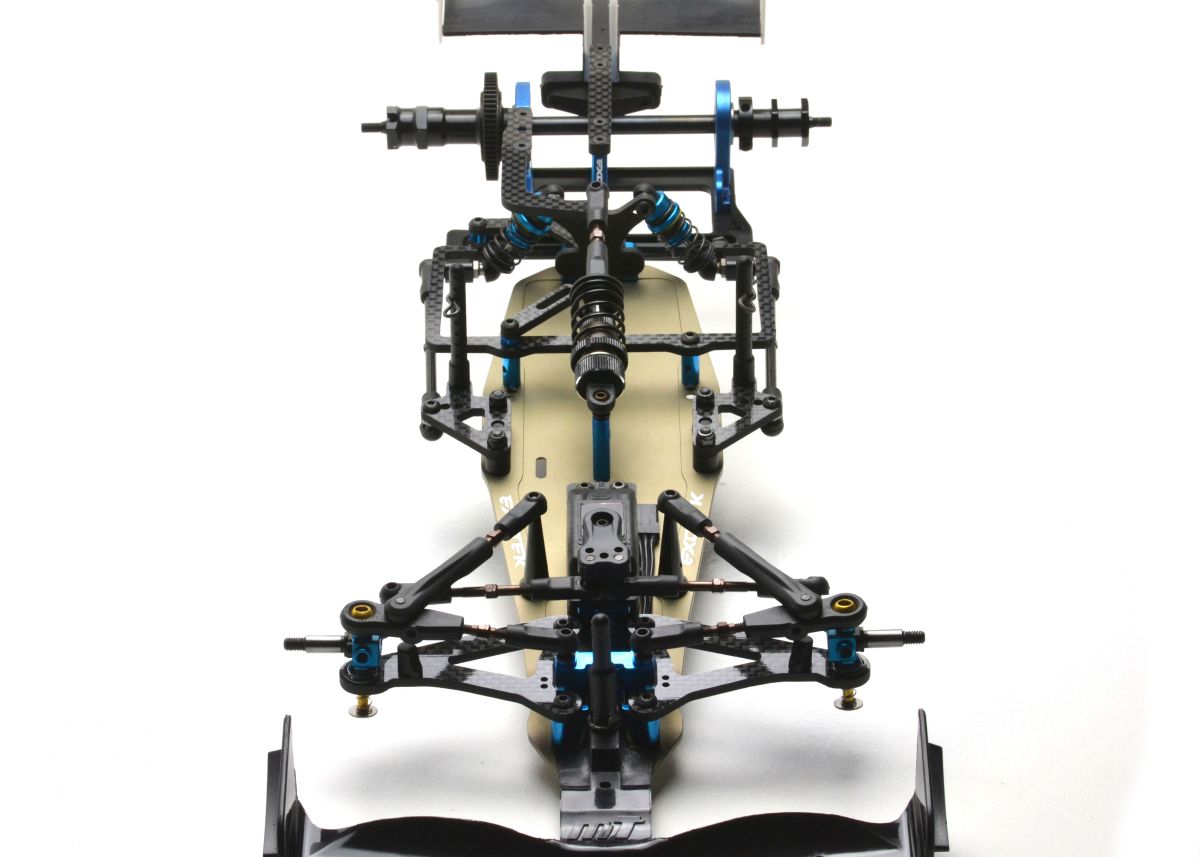

The Exotek Racing F1ULTRA R5 PRO is the team version of the F1Ultra R5 1:10 electric Formula chassis kit. It evolves the proven F1Ultra design and adds the option parts used by the Exotek team to win multiple class titles, so it is race-ready out of the box without a separate upgrade order.
Key PRO changes include a 2.5mm low-CG one-piece 7075 aluminum chassis designed for grip on asphalt, a carbon fiber adjustable battery tray, a heavy-duty alloy and carbon fiber rear wing mount, extra-long heavy-duty side links for less flex, alloy and steel offset-axle front steering hubs, +2mm carbon fiber front arms, a wide rear shock tower and alloy front pivot pin cups. It keeps Exotek's patented floating pod rear suspension, an extra-narrow 72mm chassis for reduced scrub, three oil-filled shocks and a ball differential.
Key Features

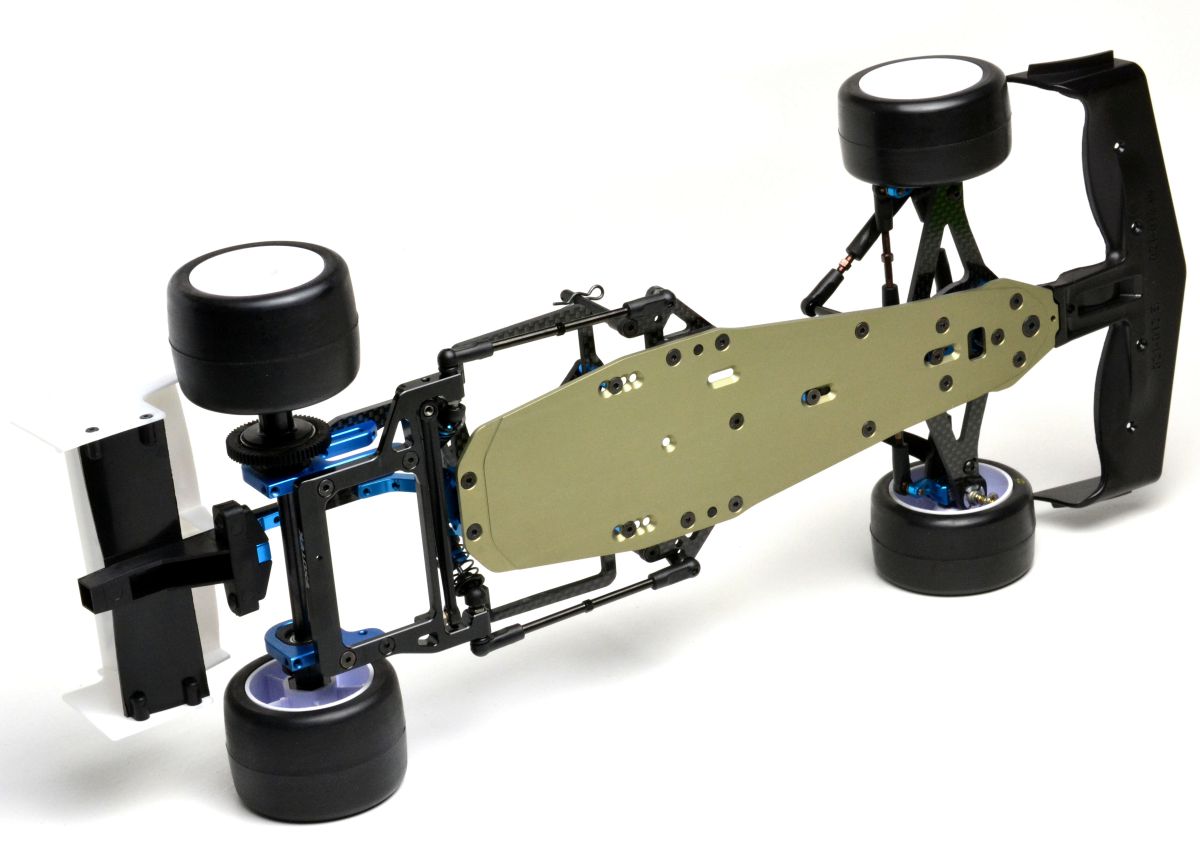

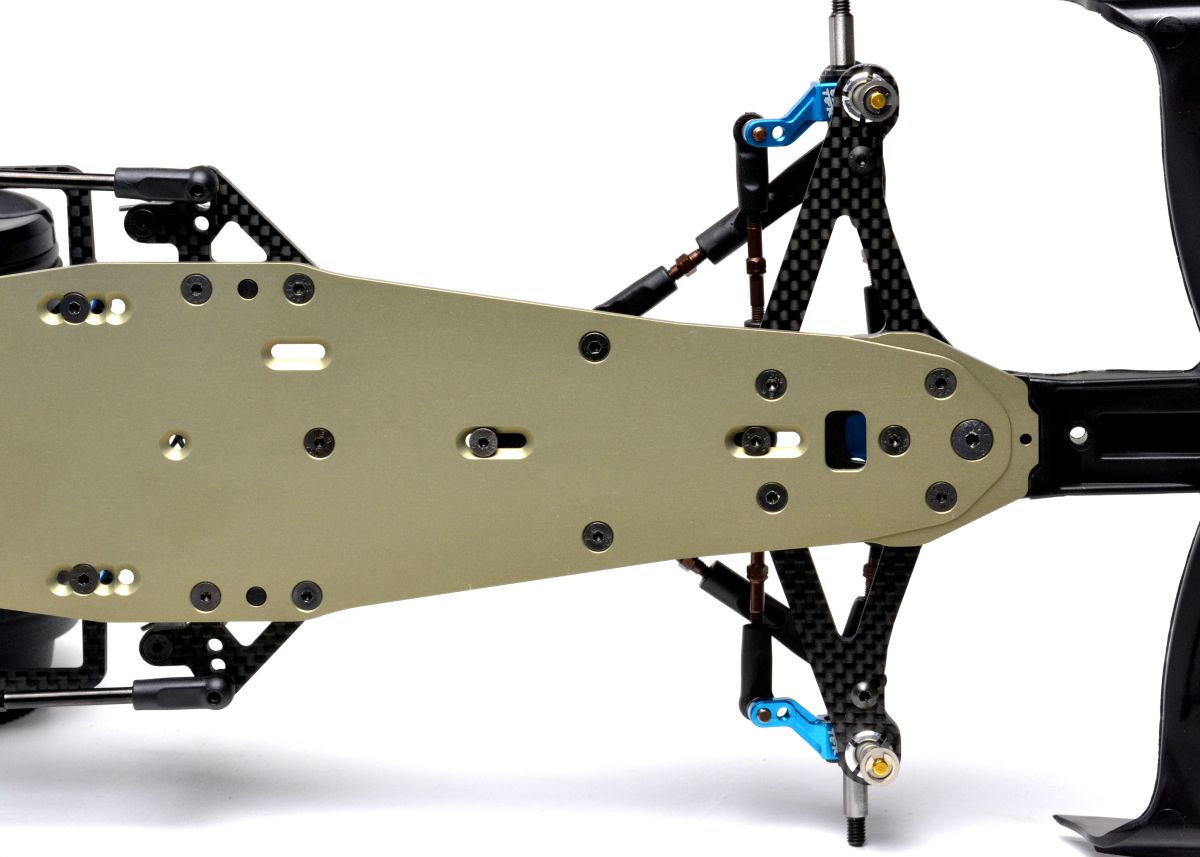

- 2.5mm low-CG one-piece 7075 aluminum chassis
- Extra-narrow 72mm chassis for less chassis scrub
- Carbon fiber adjustable battery tray

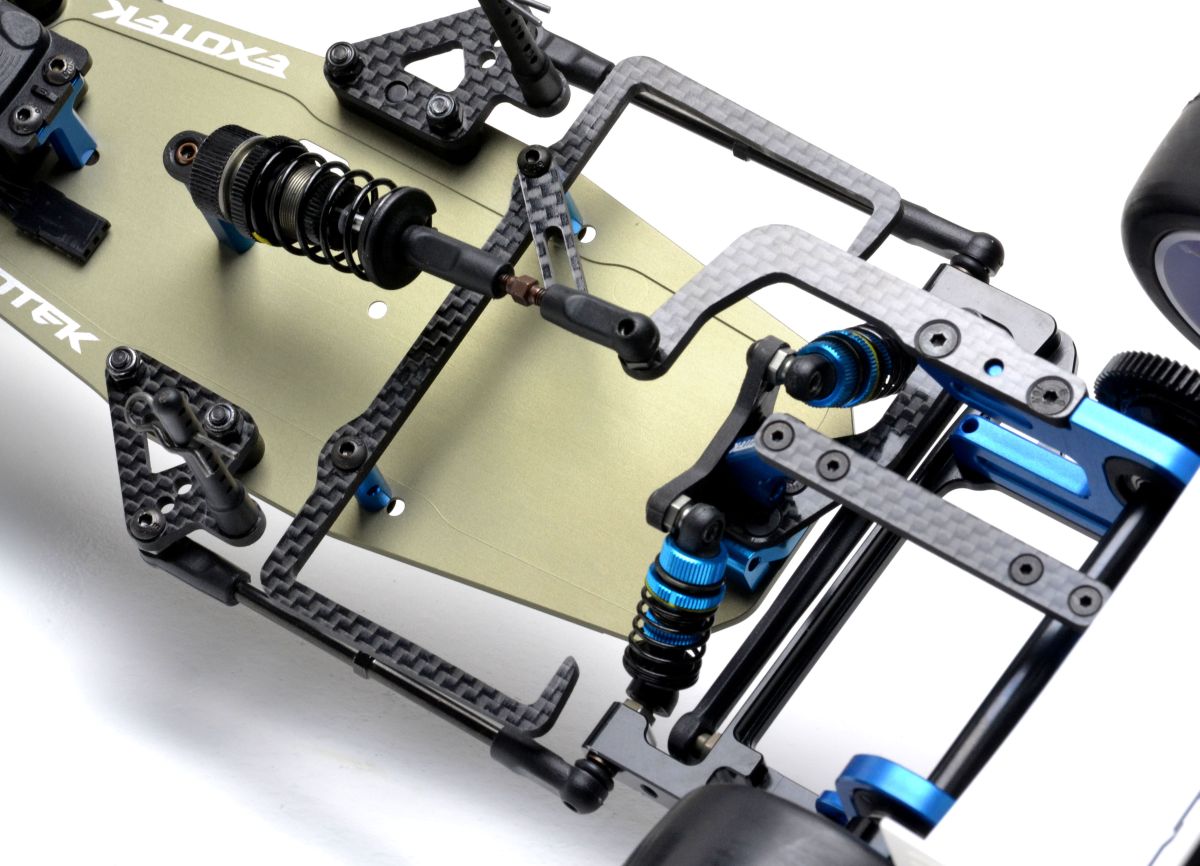

- Heavy-duty alloy and carbon fiber rear wing mount system
- Heavy-duty extra-long side links for less flex

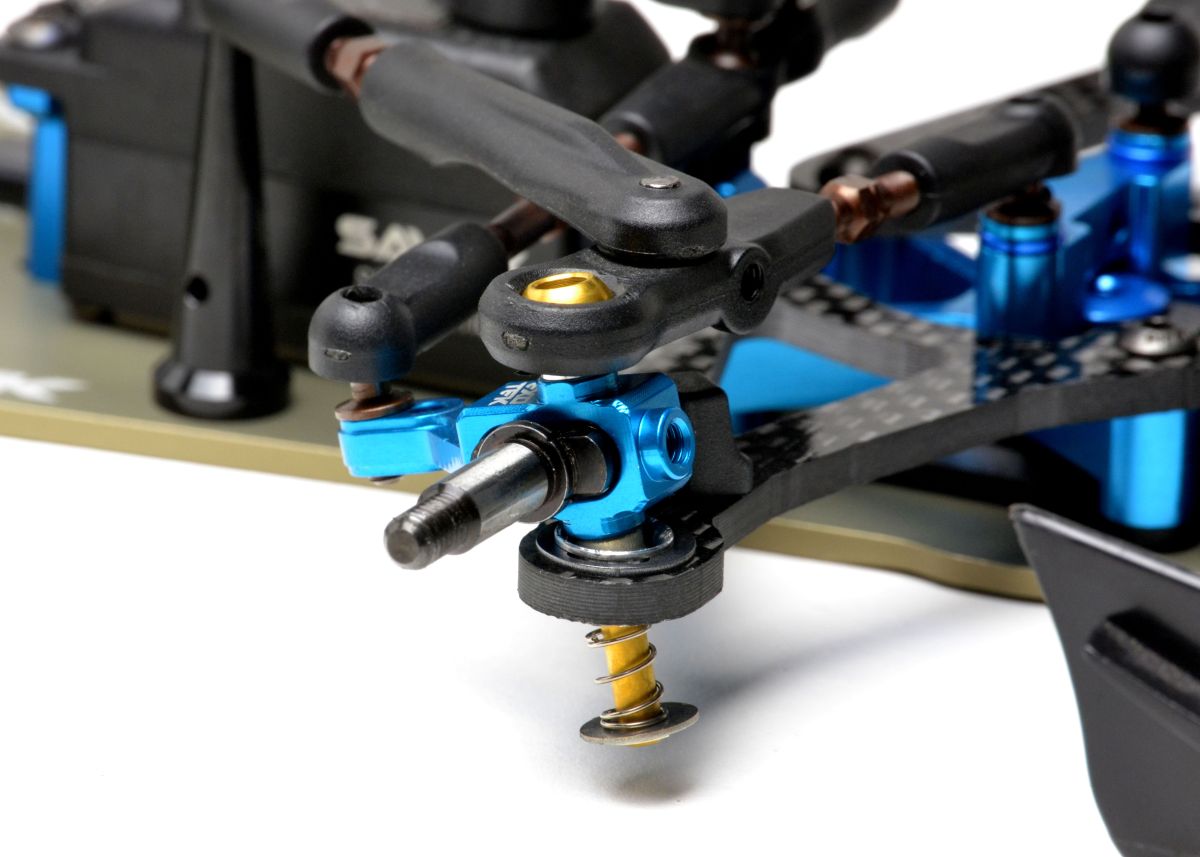

- Heavy-duty alloy and steel offset-axle front steering hubs
- +2mm carbon fiber front arms

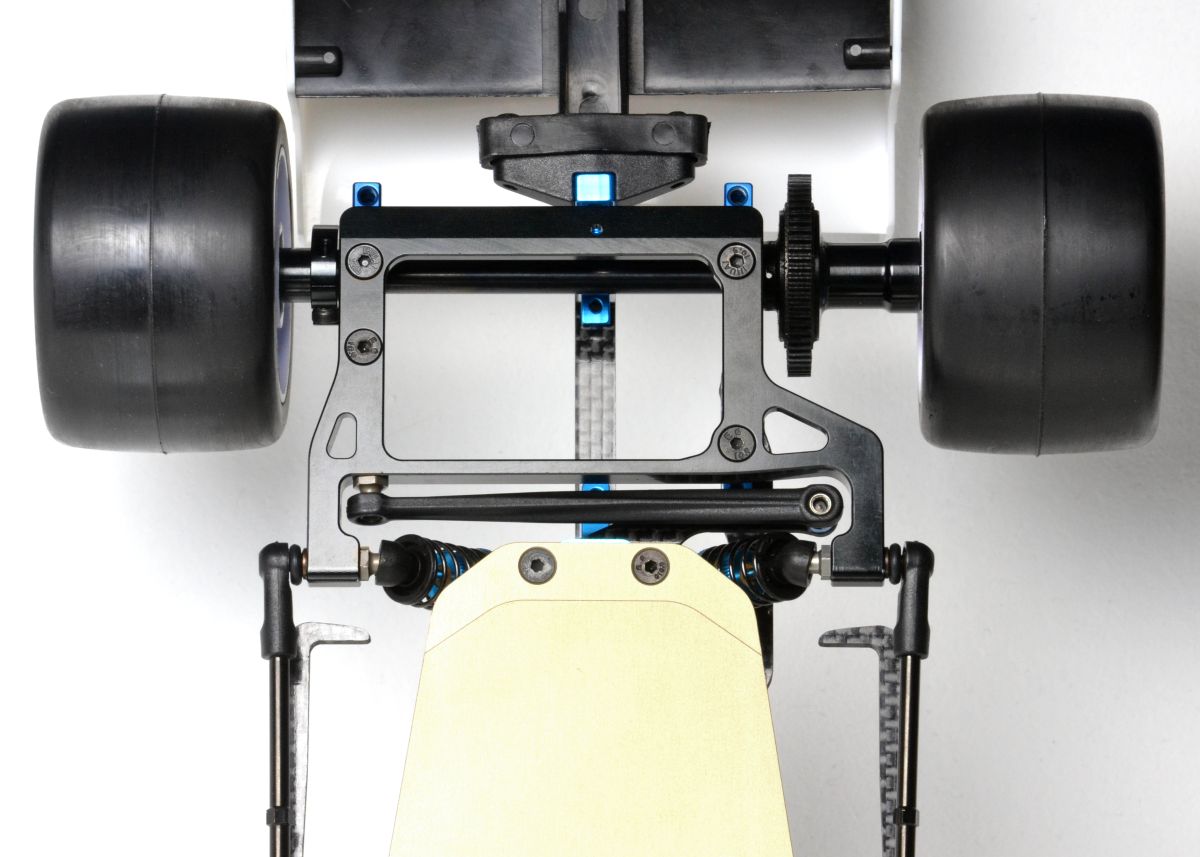

- Wide rear shock tower
- Heavy-duty alloy front pivot pin cups
- Patented floating pod rear suspension
- 3 oil-filled shocks with machined bodies and internals
- Ball differential included
- One-piece steel front suspension pins
- Double-bolt front wing mount
- Adjustable camber and caster via turnbuckles
- Adjustable servo positioning
Performance Benefits
- Low, heavy aluminum chassis lowers the center of gravity and adds traction on asphalt
- Floating pod rear suspension maximizes rubber tire grip
- Stiffer side links and wing mounts keep settings consistent through a race
- Included team option parts save the cost and time of upgrading a standard kit
Usage Notes
- Supplied as an unassembled kit – requires building with basic tools
- Built for 1:10 electric Formula 1 racing on carpet or asphalt, including rubber-tire classes
- Use a 1:10 on-road motor and compact ESC, a low-profile steering servo and a shorty or LCG-style 2S LiPo
- Check your local class rules for motor, body and tire requirements
Technical Specs
- Scale: 1:10
- Type: Electric Formula 1 chassis kit
- Drive: 2WD rear
- Chassis: 2.5mm one-piece 7075 aluminum
- Chassis width: 72mm
- Rear suspension: Floating pod
- Shocks: 3 oil-filled
- Differential: Ball differential
- Battery: 2S LiPo, shorty or LCG style
- Assembly: Kit (requires assembly)
What's Included
- (1) F1ULTRA R5 PRO chassis kit, unassembled
- (1) Set of PRO team option parts, installed in kit
- (3) Oil-filled shocks
- (1) Ball differential
- (1) Front and rear wing set
- (1) Instruction manual
Needed to Complete
- 1:10 electric motor
- Compact ESC
- Low-profile steering servo
- 2-channel transmitter and receiver
- 2S LiPo battery (shorty or LCG)
- LiPo-compatible charger
- 1:10 F1 wheels and tires
- 1:10 F1 polycarbonate body and paint
- Pinion gear to suit your motor
- Servo tape and basic building tools
- AA batteries for the transmitter (if required)
Fitment
Compatible RC vehicles: 1:10 scale electric Formula 1 racing; Exotek F1ULTRA R5 platform.
Summary
- Team version of Exotek's F1Ultra R5 1:10 Formula kit
- 2.5mm 7075 aluminum low-CG chassis with carbon battery tray
- Includes team option parts: heavy-duty side links, steering hubs, wing mount and more
- Floating pod rear suspension, three oil shocks and ball diff
- Requires electronics, battery, wheels, tires and body to complete
