Overview
The Futaba 4GRS is a 4-channel digital proportional 2.4GHz radio system built for surface models such as RC cars, trucks and crawlers. It pairs the T4GRS pistol-grip transmitter with the compact R304SB receiver for a complete, ready-to-bind control package.
The transmitter supports T-FHSS, S-FHSS and FHSS protocols, stores up to 40 models and adds car-specific mixing such as brake mixing, 4WS and dual ESC control, making it a strong choice for bashers and racers alike.
Key Features
- 4-channel 2.4GHz digital proportional system for surface models
- T-FHSS, S-FHSS and FHSS protocol support
- 40 model memory with names up to 10 characters and model copy
- Racing lap timer recording 100 laps plus total time
- Digital trims with on-screen position display
- Two assignable function switches/dials
Performance Benefits
- Brake mixing, 4WS, dual ESC and gyro sensitivity mixing options
- TH A.B.S anti-skid braking and ESC-link for compatible Futaba ESCs
- Adjustable throttle acceleration, throttle speed and steering speed
- Adjustable stick/trigger spring tension and mechanical throttle travel limits
Usage Notes
- Transmitter requires 4 AA batteries (not included)
- Receiver operating voltage is 4.8-7.4V; check your ESC/BEC output
- Bind the receiver and set failsafe before first run
- Range test before each session
Technical Specs
- Brand: Futaba
- Item No.: FUT01004366-1
- Channels: 4
- Frequency: 2.4GHz
- Protocols: T-FHSS / S-FHSS / FHSS
- Model memory: 40 models
- Range: approx. 100 m (optimum conditions)
- Safety: failsafe, battery failsafe, ID
- Transmitter power: 6V (4x AA), 150 mA max
- Receiver: R304SB, 35.1 x 23.2 x 8.5 mm, 6.6 g, 4.8-7.4V
- Country of Origin: Japan
What's Included

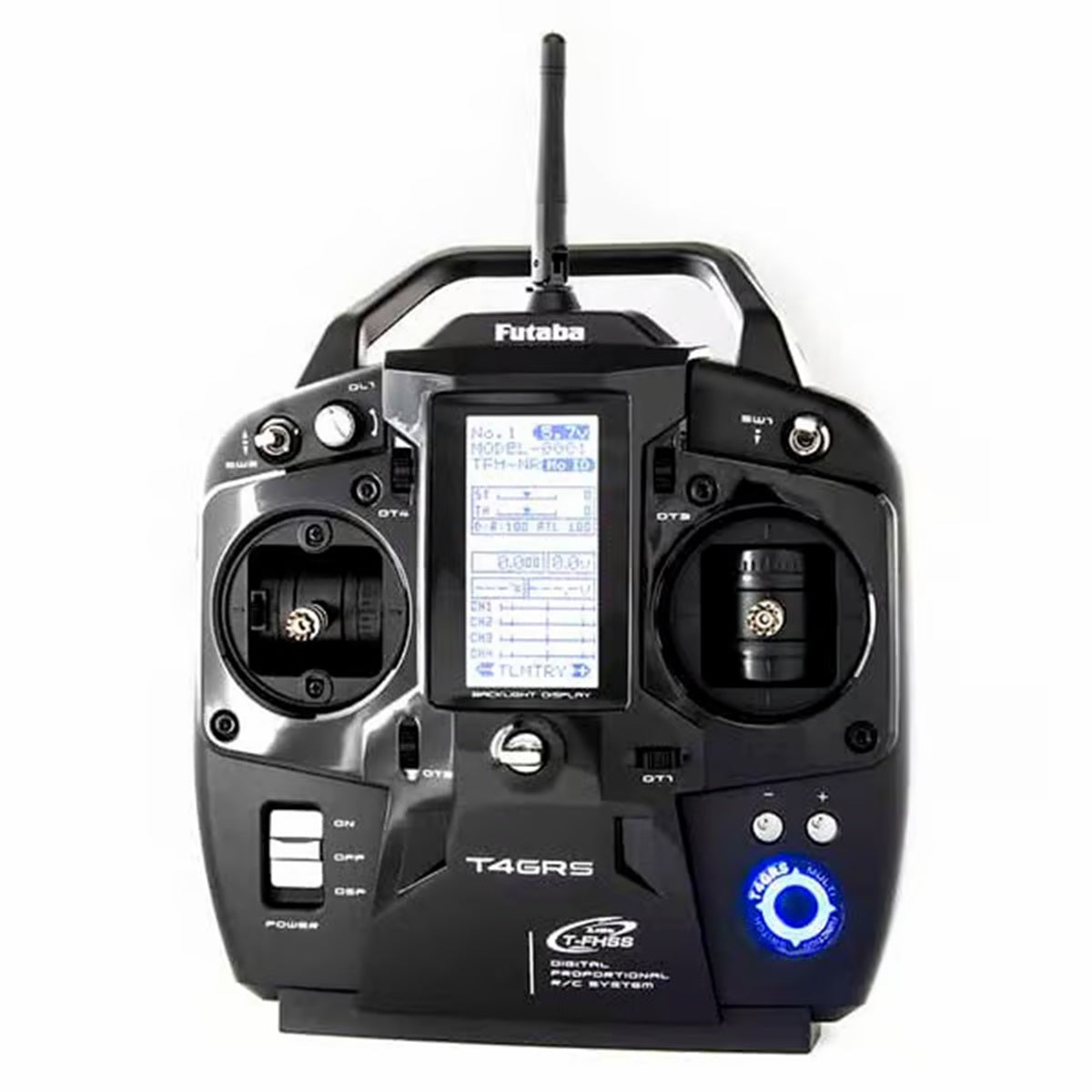

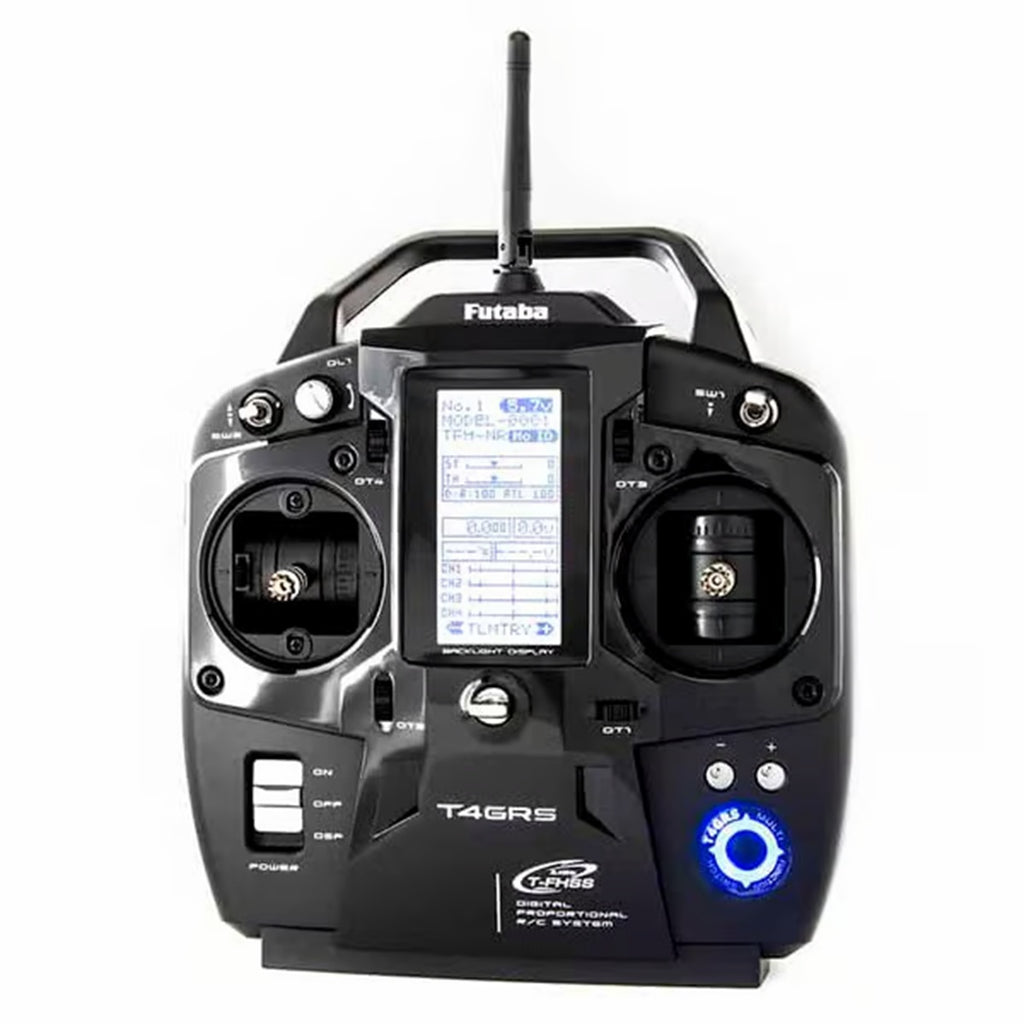

- (1) T4GRS transmitter

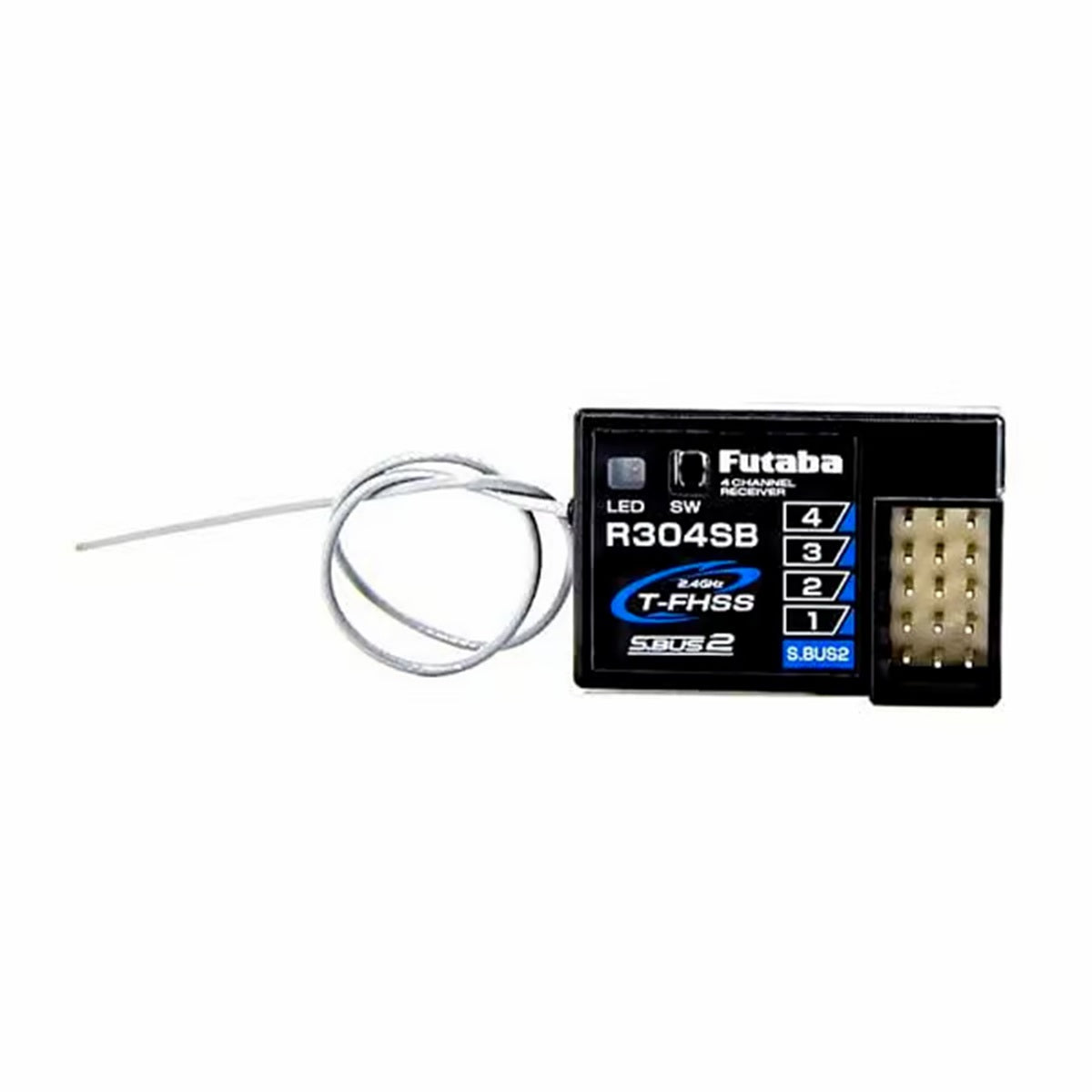

- (1) R304SB receiver
- (1) Receiver switch
- (1) Mini screwdriver
Needed to Complete
- (4) AA batteries for the transmitter
Fitment
Compatible RC vehicles: Universal 2.4GHz surface radio for RC cars, trucks, buggies and crawlers using standard servos and ESCs. Check your electronics for voltage compatibility with the R304SB receiver.
Summary
- Futaba 4-channel 2.4GHz surface radio with R304SB receiver
- T-FHSS / S-FHSS / FHSS, 40 model memory
- Car mixing, lap timer and ABS braking functions
