Overview

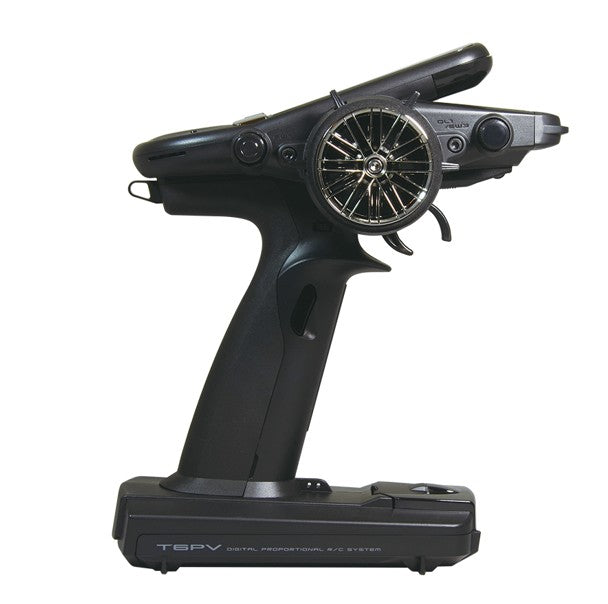

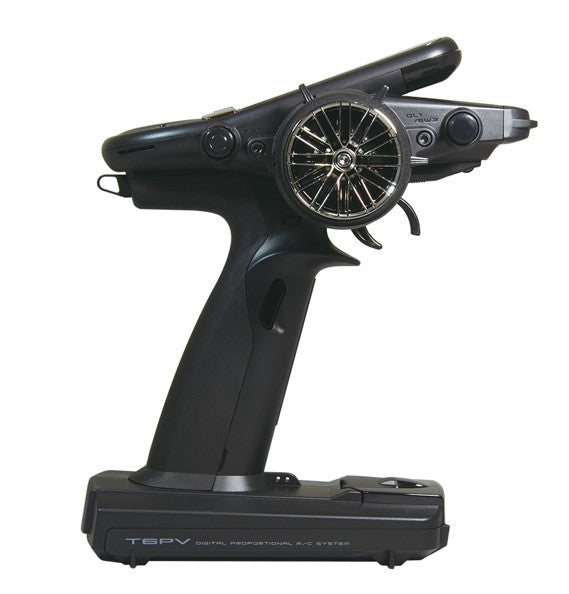

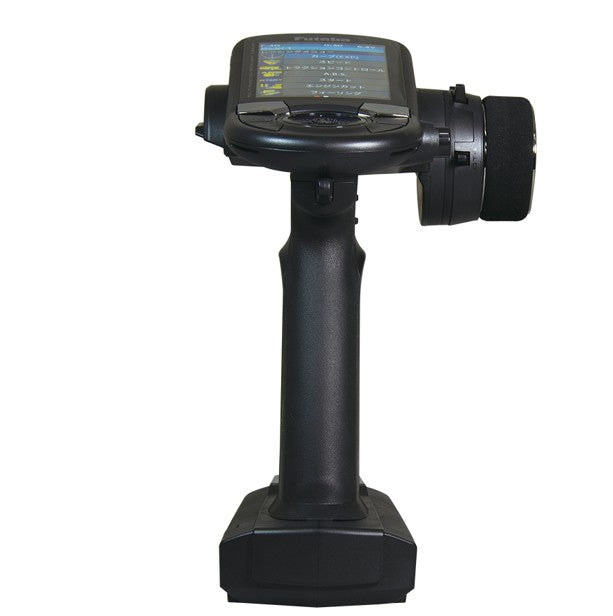

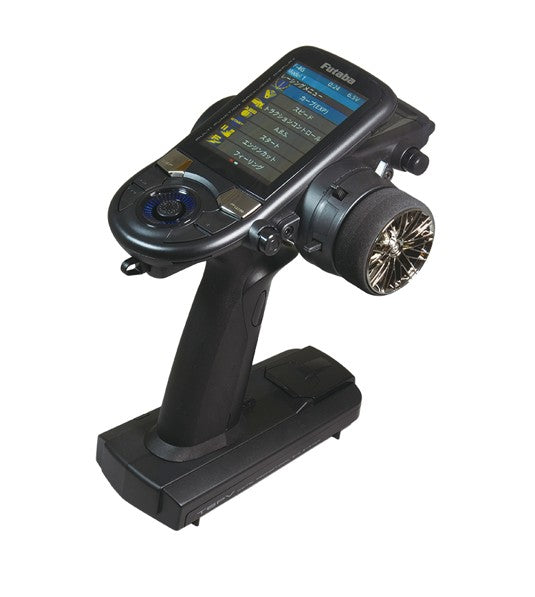

The Futaba 6PV (T6PV) represents the pinnacle of surface radio technology with its revolutionary F-4G system that delivers even faster response times than T-FHSS SR while maintaining full telemetry capability via S.Bus2. This high-performance 6-channel transmitter is engineered for drivers who demand the absolute fastest control response, advanced mixing, and deep customization for competitive racing, crawling, and large-scale vehicles.
Featuring a full-color backlit LCD with transflective technology for clear indoor/outdoor visibility, the 6PV provides intuitive access to its comprehensive feature set. With 40-model memory, wireless gyro adjustment, MC-Link ESC programming, and extensive mixing capabilities, this system handles everything from high-grip racing to technical rock crawling. The included R404SBS-E receiver delivers F-4G ultra-response performance in a compact, lightweight package.
Key Features
- F-4G system—faster than T-FHSS SR with telemetry
- Full-color backlit transflective LCD display
- 40-model memory with 15-character naming
- S.Bus2 telemetry and sensor support
- 4WS mixing for crawlers and specialty vehicles
- Dual ESC mixing (front/rear independent)
- Gyro mixing with sensitivity control
- Tank mixing capability
- CPS lighting mixing with CPS-1 power switch
- MC-Link ESC programming for compatible ESCs
- S.Bus servo parameter setting
- Built-in vibration motor for alerts
- MicroSD slot for data/software updates
- USB port for PC game controller use
Performance Benefits
- Industry-leading response times with F-4G
- Real-time telemetry in ultra-fast mode
- Throttle speed control for smoother acceleration
- Steering speed control for taming servos
- ABS braking configuration
- Extensive dial and switch customization
- Left-hand compatible (reversible wheel)
Usage Notes
- Designed for surface RC vehicles (racing, crawling, large-scale)
- Supports F-4G, T-FHSS SR, T-FHSS, and S-FHSS protocols
- Compatible with T-FHSS Mini-Z system (requires RA-42 receiver)
- MC-Link requires compatible Futaba ESCs
- Supports optional LiPo or LiFe transmitter batteries
Technical Specs
-
Frequency: 2.4GHz
-
Protocols: F-4G / T-FHSS SR / T-FHSS / S-FHSS
-
Channels: 6 (via S.Bus2)
-
Model Memory: 40 models
-
Display: 4.3" full-color HVGA transflective LCD
-
RF Output: 100mW EIRP or less
-
Power Options: LiPo NLF2F2000B (7.4V) or LiFe FT2F1700BV2 (6.6V)
-
Current Draw: ?350mA (T-FHSS, vibration off, backlight on)
-
Antenna: 1/2? dipole

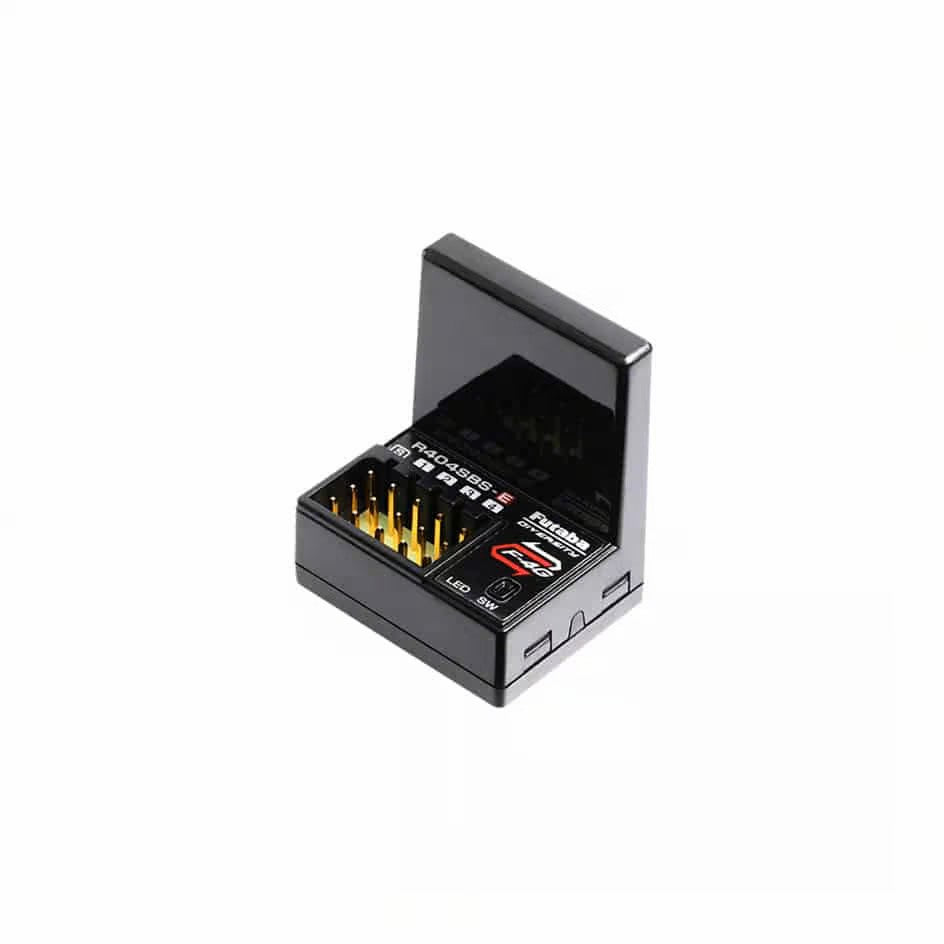

Included Receiver - R404SBS-E Specs
-
System: F-4G
-
Dimensions: 25.5 × 20.7 × 10.6 mm (1.00 × 0.81 × 0.42 in)
-
Weight: 5.7 g (0.2 oz)
-
Operating Voltage: DC 3.7V - 7.4V
What's Included
- (1) T6PV Transmitter
- (1) R404SBS-E Receiver
- (1) Dry battery holder
- (2) Wheel offset adapters (APA, two sizes)
- APA mounting screws (plus spares)
- (1) 32-degree wheel adapter
- (1) 5-degree wheel angle spacer
- (1) Large-diameter steering wheel
- (2) Trigger guards (Left and Right)
- (1) Rubber grip
- (2) Blind paddles
- (1) Hex wrench
- (1) Short manual
Summary
- Ultimate F-4G ultra-response radio system with telemetry
- 6-channel with full-color LCD and 40-model memory
- Advanced mixing for racing, crawling, and large-scale
- Includes compact R404SBS-E F-4G receiver
- The most advanced Futaba surface system available
