Description
Overview

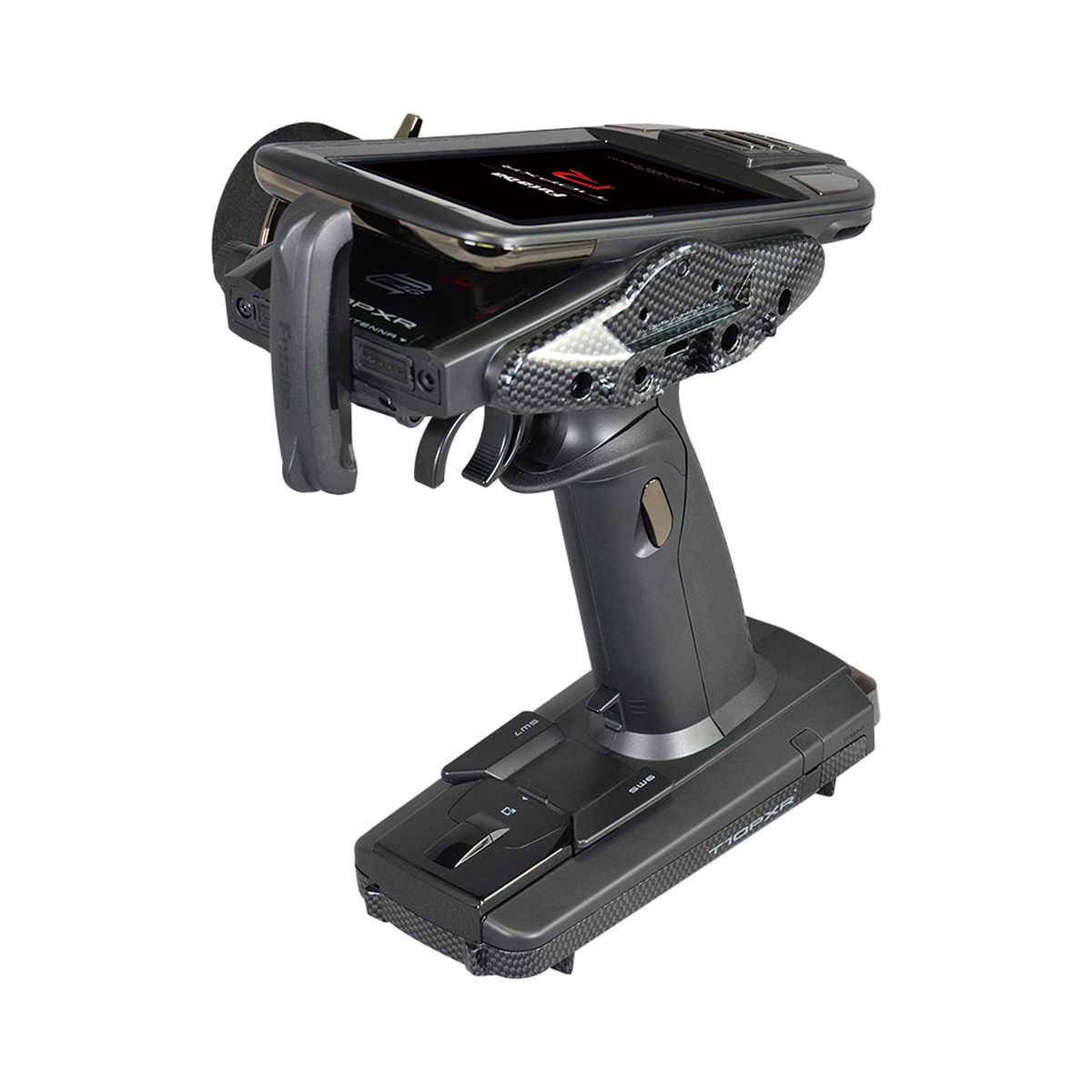

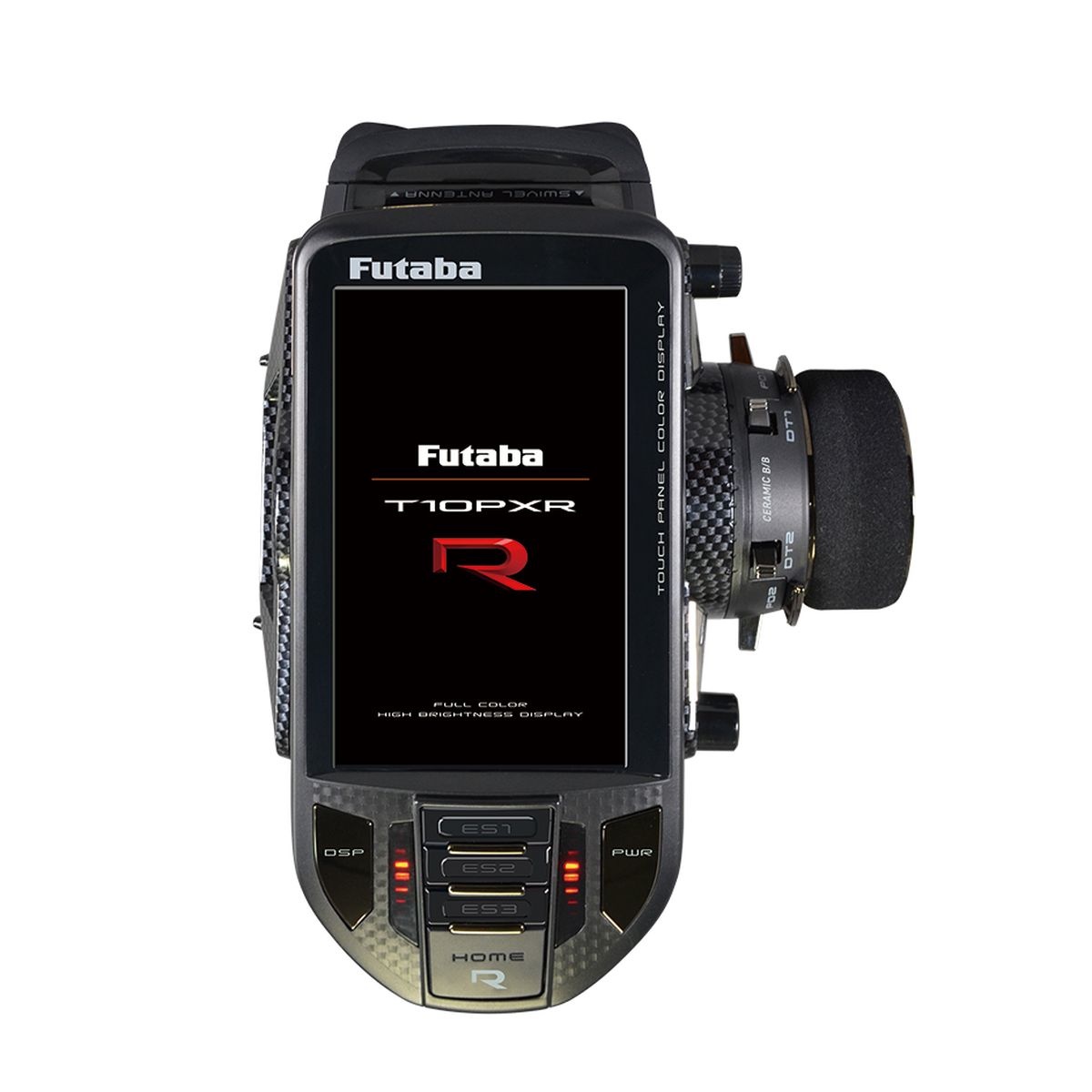

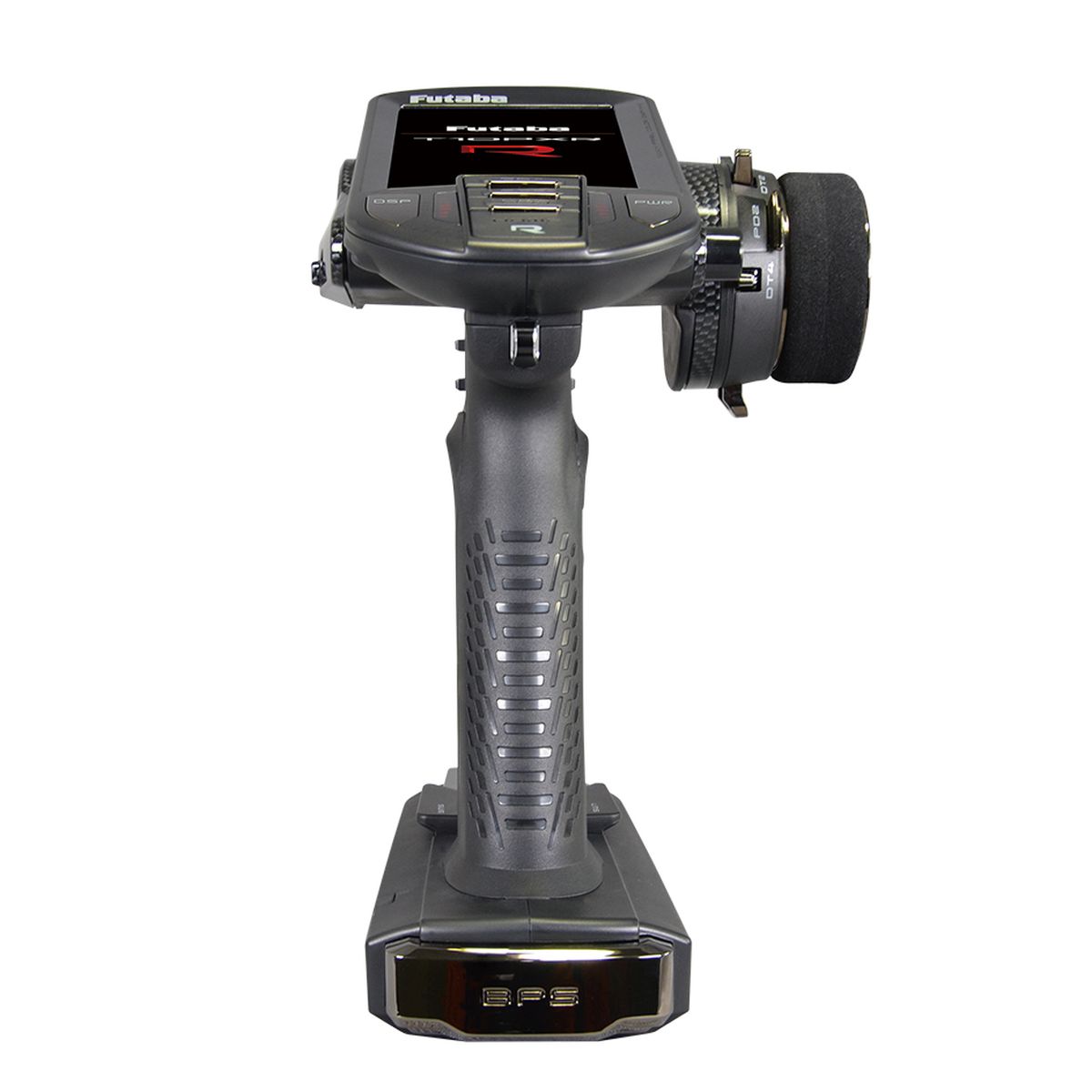

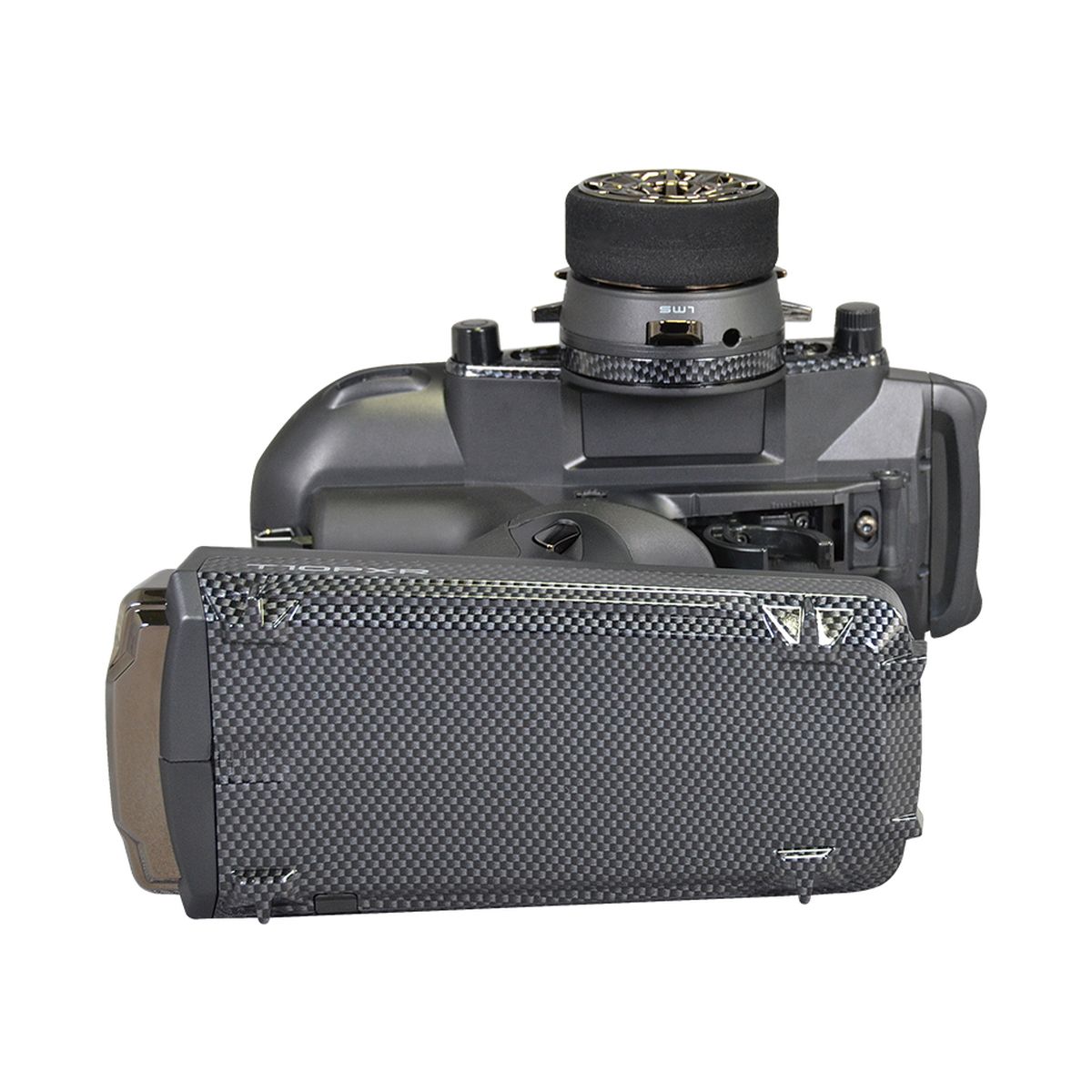

The Futaba 10PXR with R404SBS-E receiver is a flagship 10-channel 2.4GHz surface radio system for serious RC racers and advanced builders. It combines Futaba's F-4G high-speed response system, telemetry capability, a 4.3-inch full-color touchscreen, and deep tuning menus for precision control across competition cars, crawlers, drift vehicles, and complex specialty builds.
This package includes the R404SBS-E receiver, which is designed for Futaba F-4G electric-powered surface models. It is an excellent choice for racers who want the speed and telemetry advantages of F-4G in EP cars while keeping the installation compact and clean.
The 10PXR is more than a basic transmitter. It supports advanced mixing, model memory, microSD updates, customizable switches, S.BUS servo programming, MC-Link ESC setup, steering and throttle speed control, left-hand conversion support, and ergonomic wheel/trigger adjustments for drivers who want the radio to match their exact driving style.
Key Features
- 10-channel Futaba surface transmitter system
- F-4G high-speed response system with telemetry
- Includes R404SBS-E F-4G receiver for electric-powered surface models

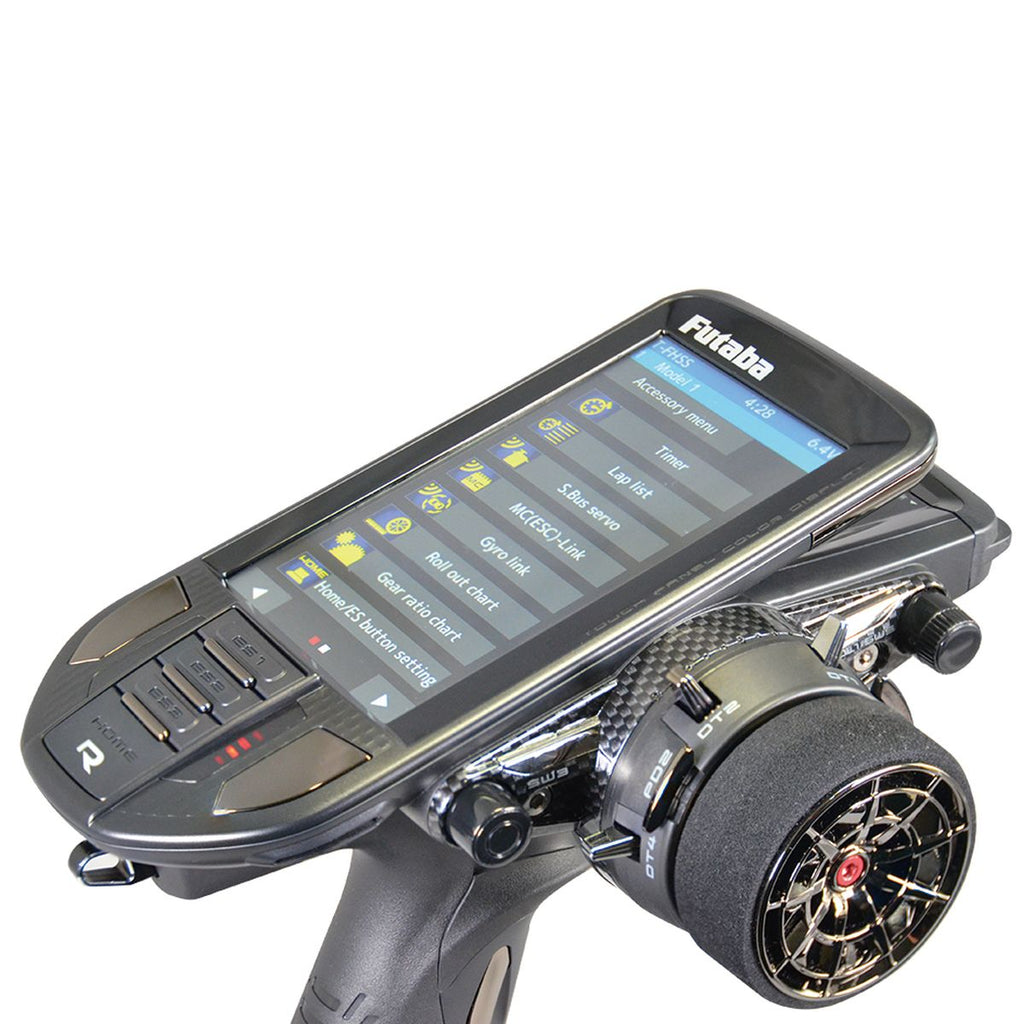

- 4.3-inch HVGA full-color backlit touchscreen
- Transflective display for indoor and outdoor visibility
- Supports T-FHSS-SR, T-FHSS, S-FHSS, and F-4G protocols
- 40-model memory with model copy function
- microSD support for software updates, model data, and telemetry logs
- Paddle switch, bottom switch, 3-position switch, programmable dials, and switch selection
- Brake mixing, steering mixing, 4WS crawler mixing, dual ESC mixing, gyro mixing, tank mixing, and CPS lighting control
- S.BUS servo setup and Futaba MC-Link ESC programming support

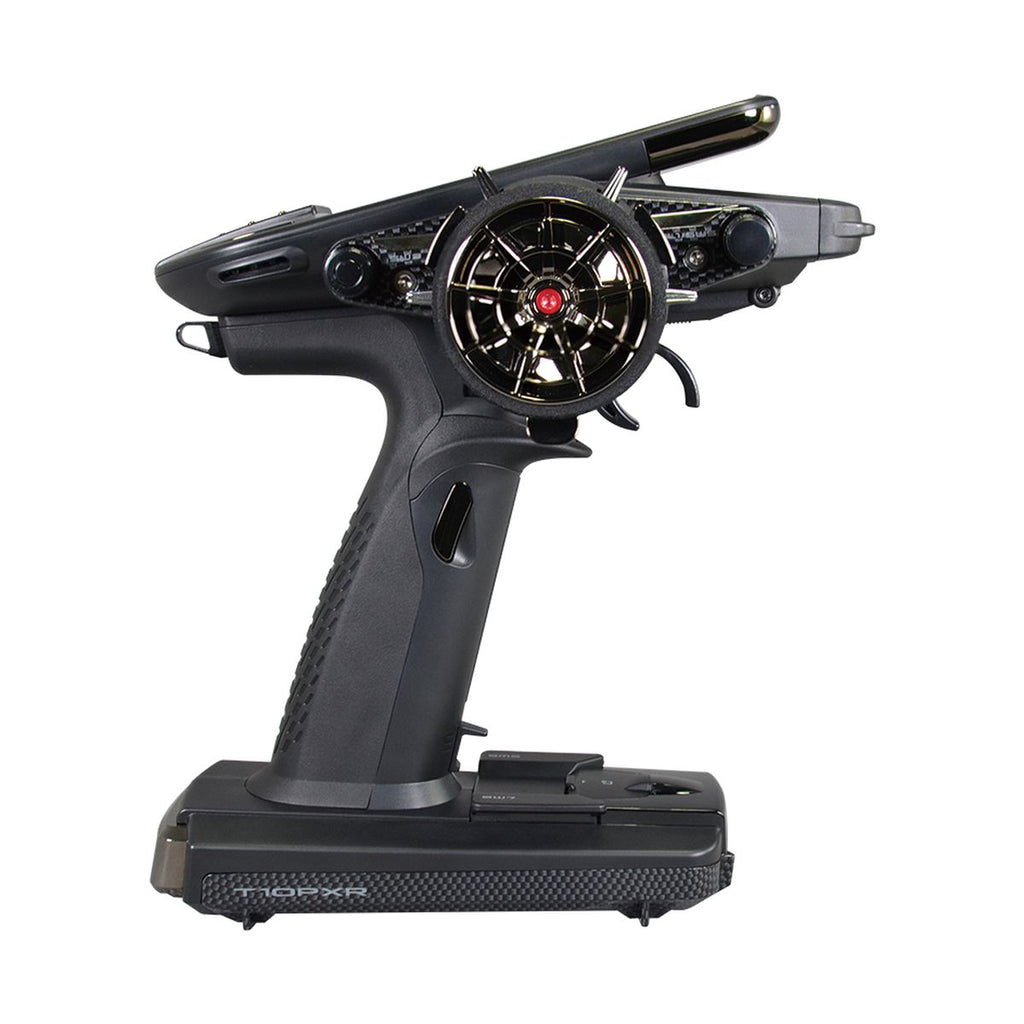

- Adjustable wheel position, wheel angle, trigger position, grip options, and left-handed wheel conversion
Performance Benefits
- F-4G delivers faster response than T-FHSS SR while supporting telemetry feedback.
- Advanced mixing makes the radio suitable for 1:5 cars, crawlers with four-wheel steering, dual-ESC vehicles, drift cars with gyros, tanks, and complex custom builds.
- Throttle speed control can soften trigger response on low-grip surfaces to reduce wheelspin and conserve battery.
- Steering speed adjustment helps calm overly fast servos and improve drivability on technical tracks.
- microSD support makes it easier to back up model settings and update transmitter software.
- The R404SBS-E receiver provides a compact F-4G/S.BUS2 installation for EP surface vehicles.
Usage Notes
- Use the R404SBS-E only with Futaba F-4G transmitter settings and compatible electric-powered surface models.
- The R404SBS-E should not be used in GP/nitro engine cars and should not be powered by dry batteries.
- When using SR mode, use SR-compatible servos only; analog or incompatible servos can be damaged.
- Best for 1:10 and 1:8 electric race cars, touring cars, buggies, truggies, drift cars, crawlers, and advanced custom surface vehicles.
- Wrap the receiver in foam or mount it securely to reduce vibration, and keep the antenna area clear of conductive materials.
- After linking, cycle receiver power and verify the receiver is controlled by the correct transmitter before connecting drive power.
Technical Specs
- Transmitter channels: 10 channels with F-4G system
- Frequency: 2.4GHz band
- Protocols: T-FHSS-SR, T-FHSS, S-FHSS, and F-4G
- Transmitter RF output: 100mW EIRP
- Display: 4.3-inch backlit color TFT touchscreen
- Model memory: 40 models
- Current drain: 350mA or less with T-FHSS, vibration off, backlight on
- Optional transmitter battery support: Futaba LT2F2000B LiPo or FT2F1700BV2 LiFe

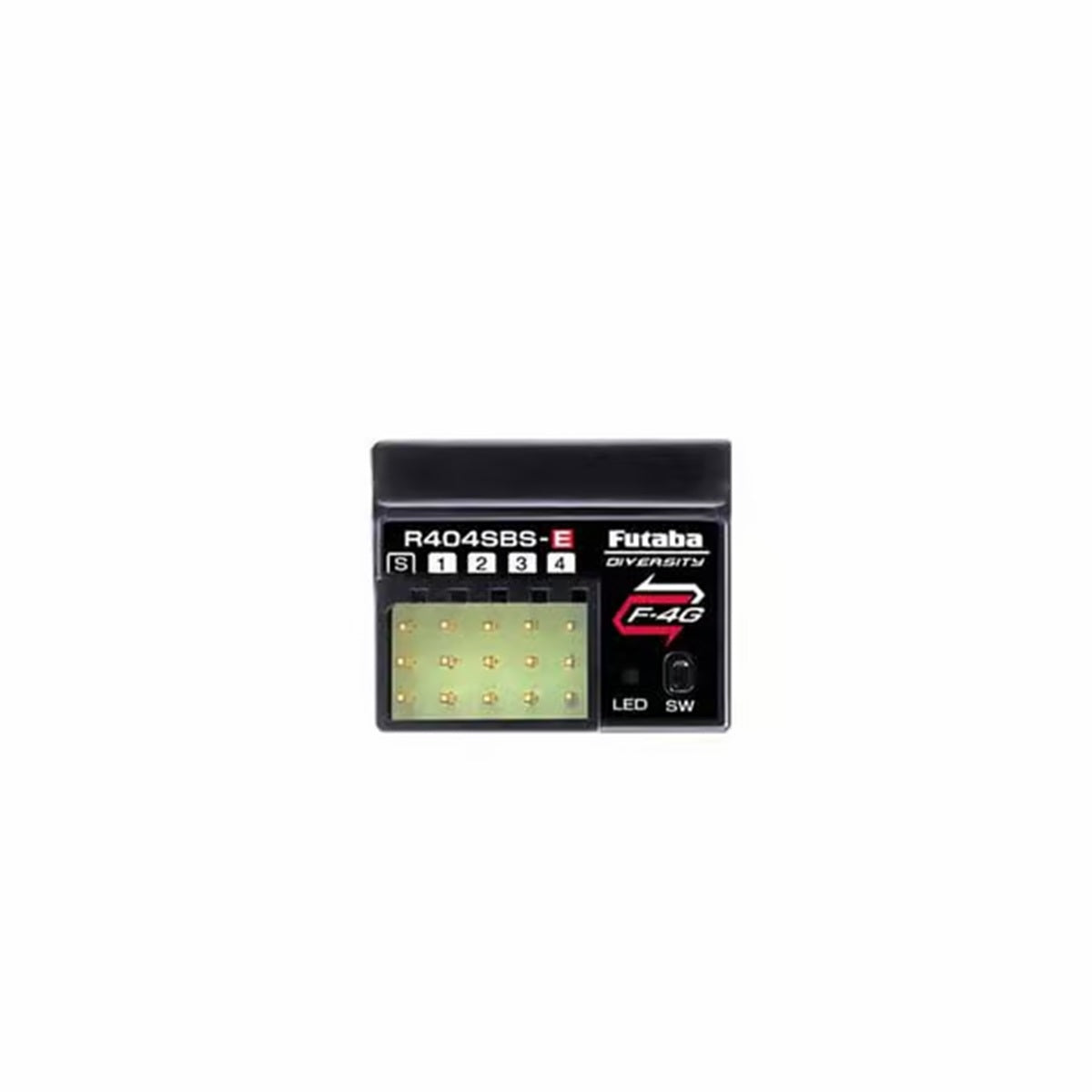

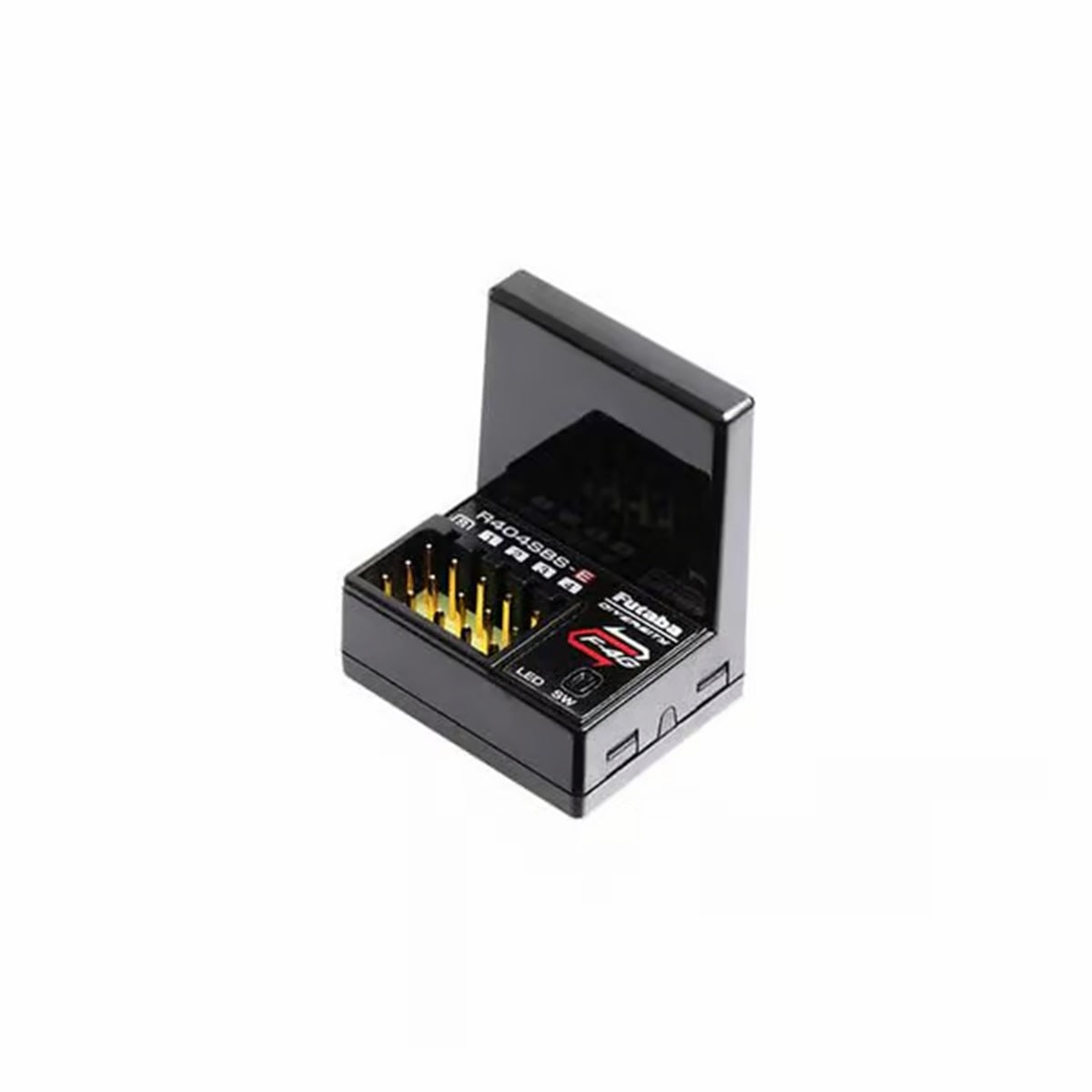

- Receiver: R404SBS-E F-4G S.BUS2 receiver
- R404SBS-E size: 25.5 x 20.7 x 10.6mm, approximately 30.5mm including antenna
- R404SBS-E operating voltage: DC 3.7V to 7.4V
- R404SBS-E weight: approximately 5.7g to 7.2g depending listed measurement method
Fitment
- Universal scale surface RC applications using compatible Futaba protocols
- R404SBS-E receiver is for compatible electric-powered surface models
What's Included
- Futaba T10PXR transmitter
- R404SBS-E receiver
- Dry battery holder
- Two wheel offset adapters
- Mounting screws and spare screws
- 32-degree wheel adapter
- 5-degree wheel angle spacer
- Large diameter steering wheel
- Left and right trigger guards
- Grip rubber
- Two blind paddles
- Hex wrench and short manual
Summary
The Futaba 10PXR with R404SBS-E is a premium radio system for electric surface racers who want elite response, telemetry, extensive mixing, and deep setup control. It is especially strong for competitive EP cars and advanced vehicles that benefit from F-4G speed and S.BUS2 expandability.
