Description
Overview

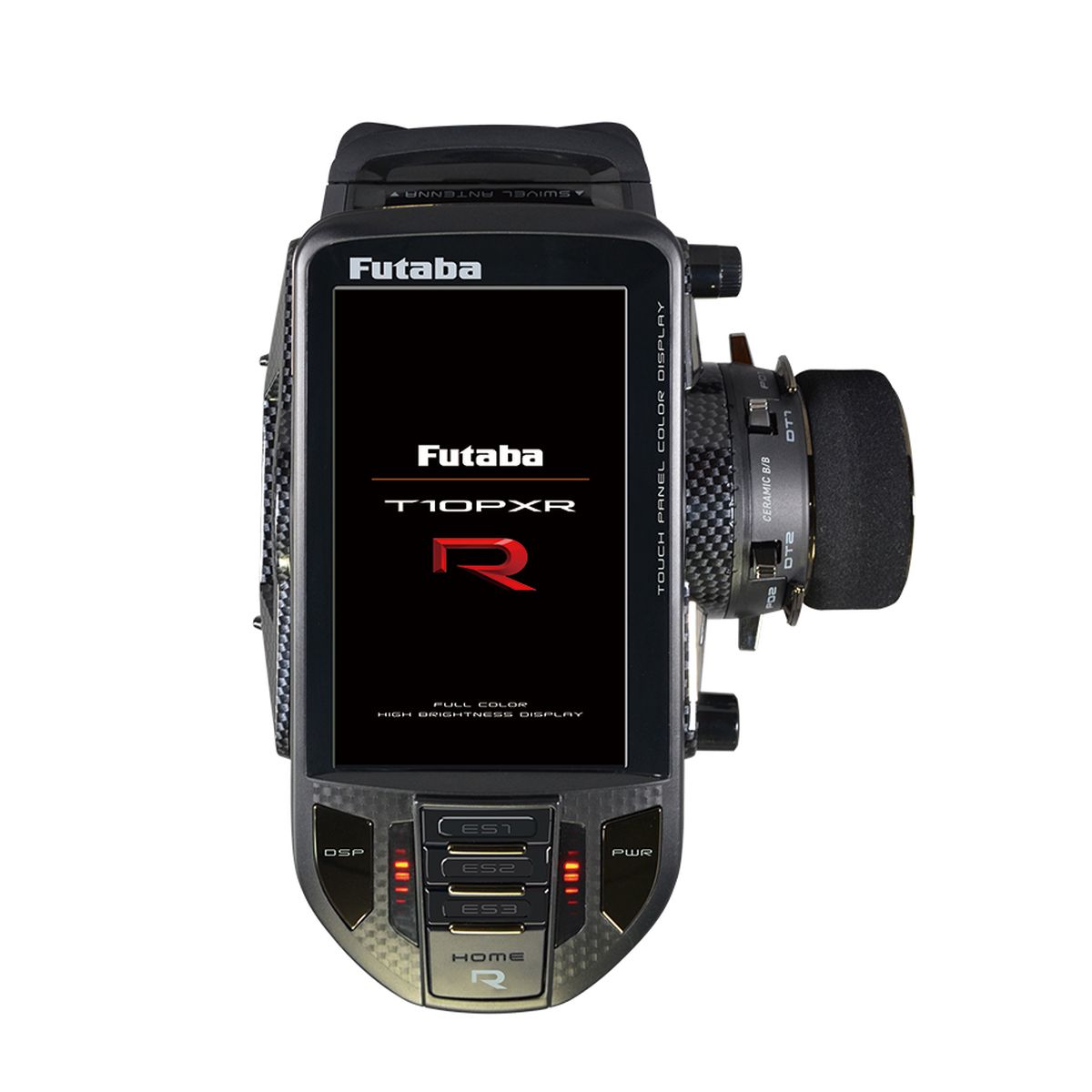

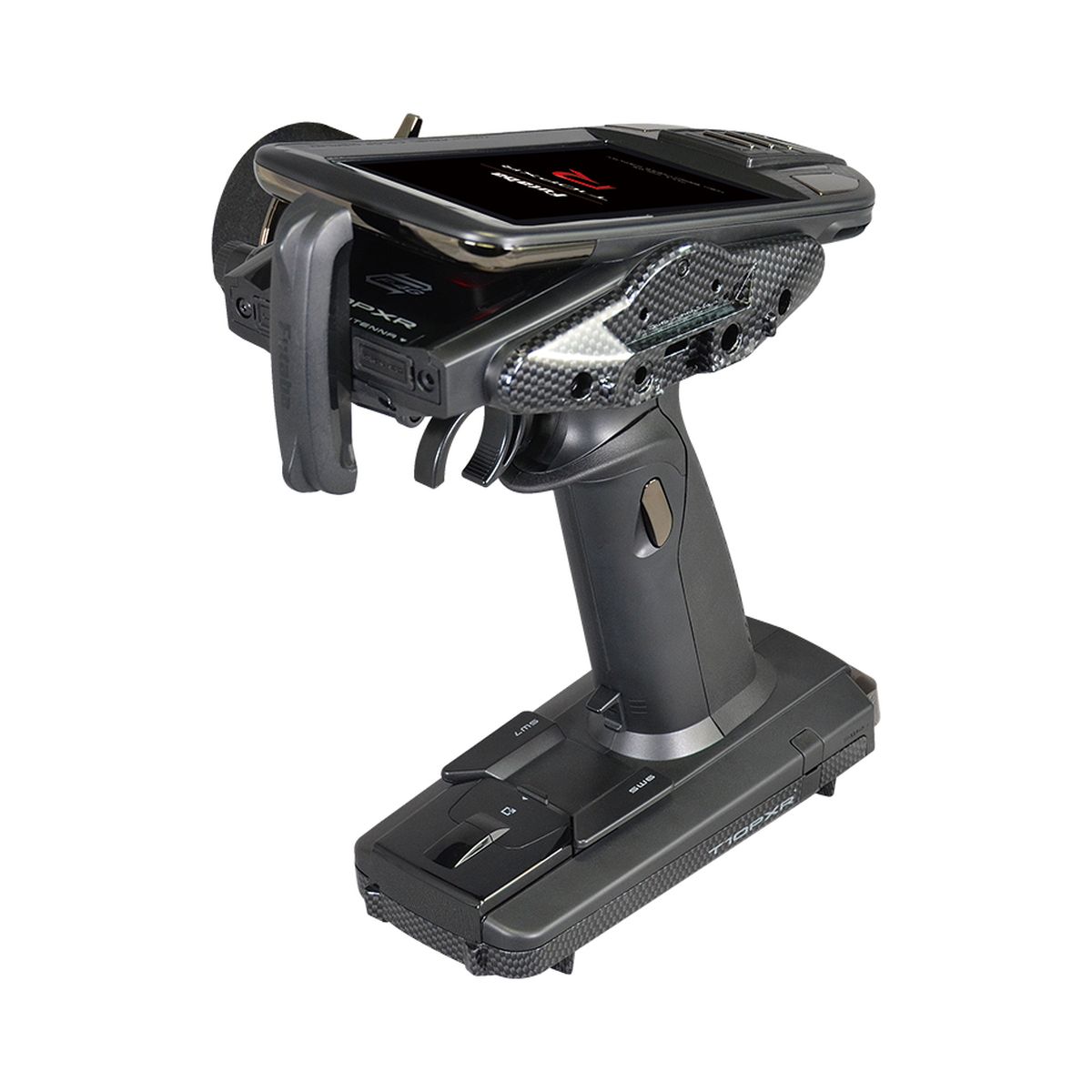

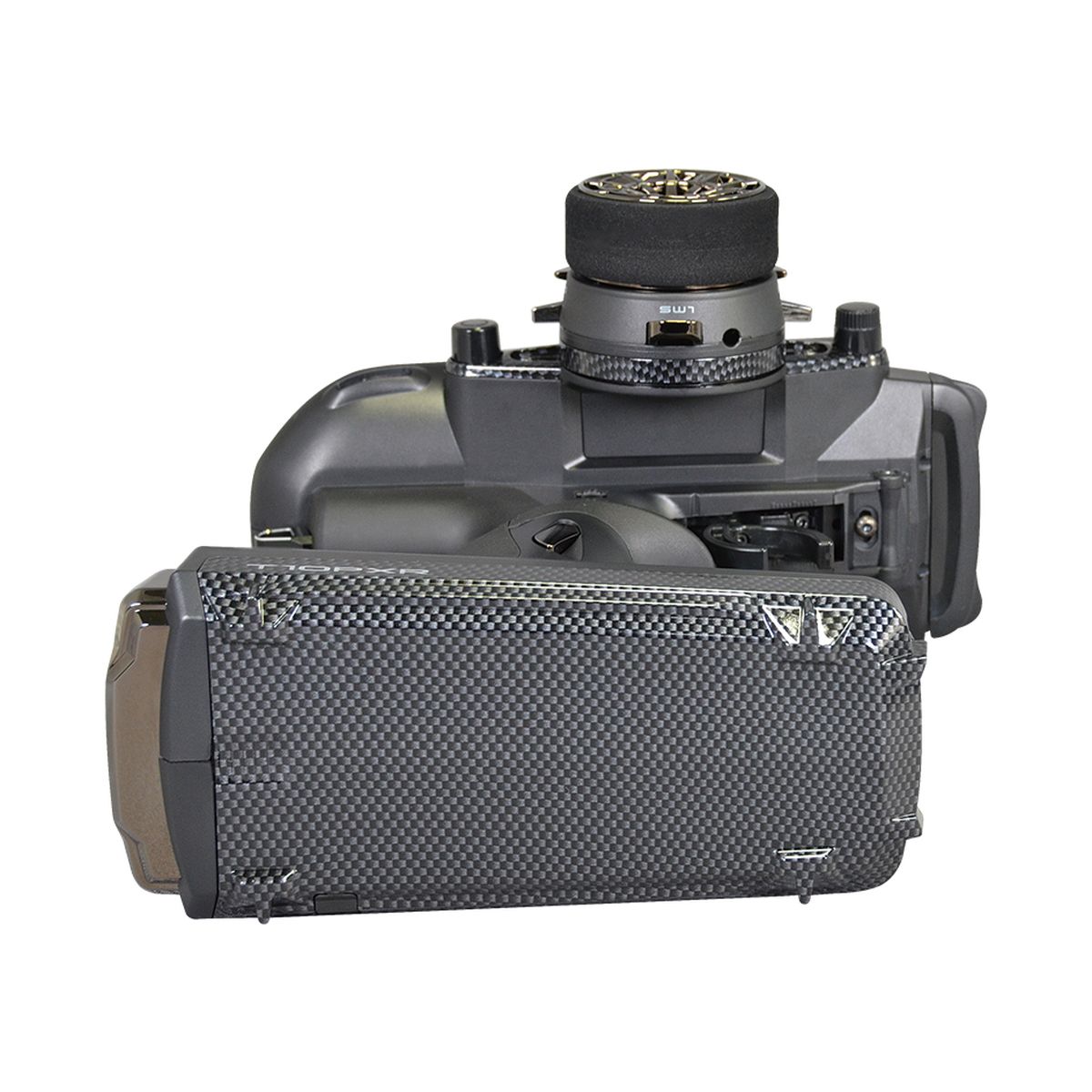

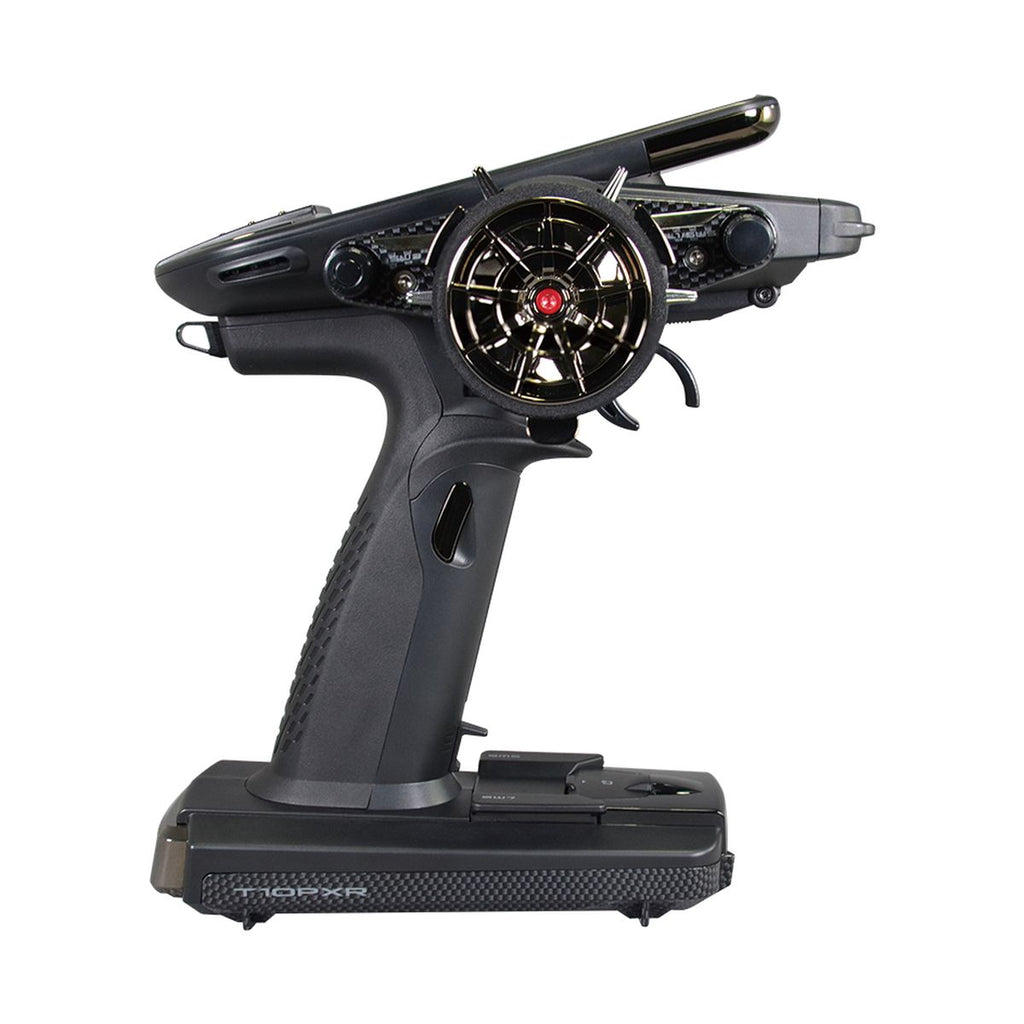

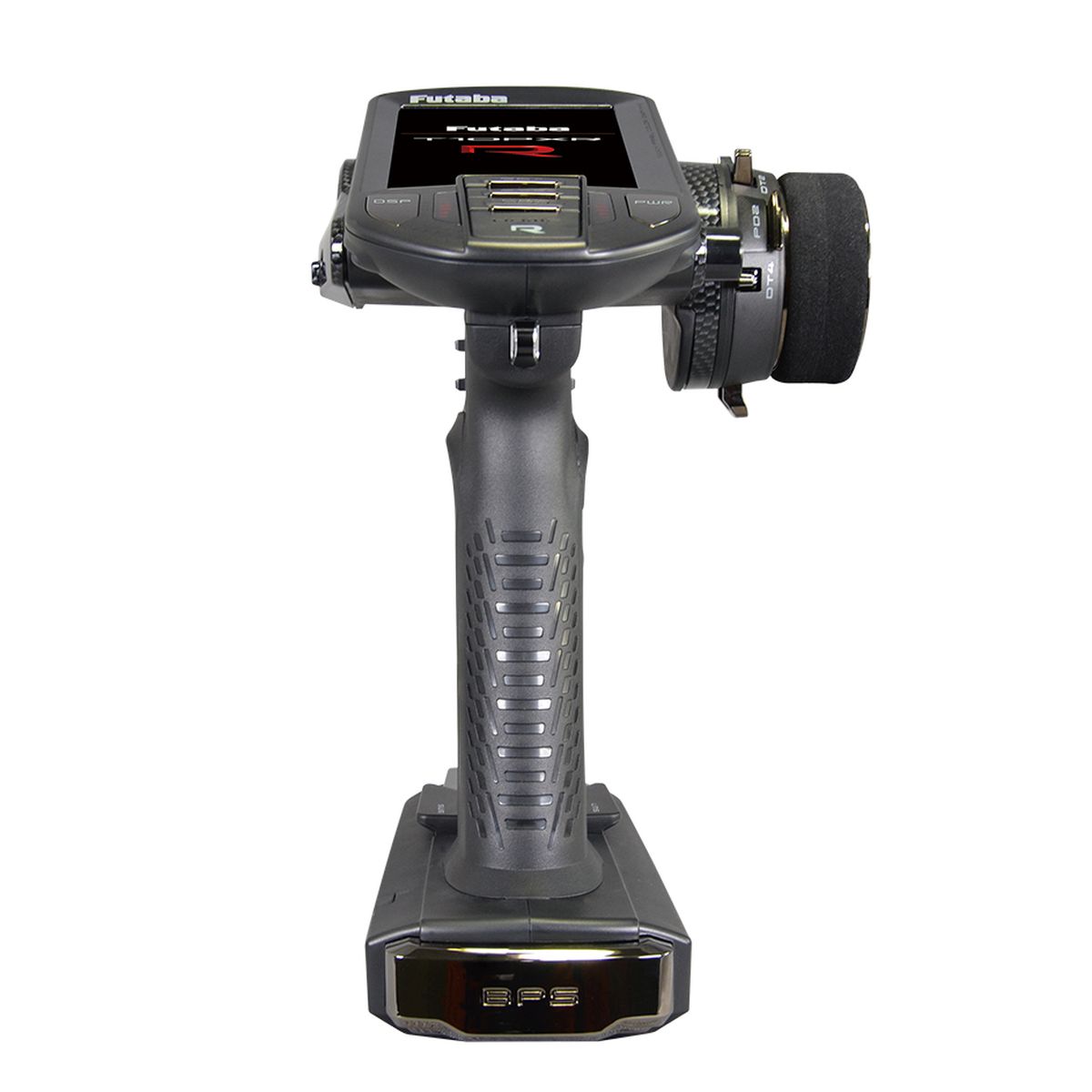

The Futaba 10PXR with R404SBS receiver is a high-end 10-channel 2.4GHz surface radio system built for competitive RC drivers who demand fast response, deep tuning, telemetry, and ergonomic adjustment. It is designed for cars, trucks, crawlers, drift vehicles, and advanced surface builds where a standard 2- or 3-channel radio does not provide enough flexibility.
This version includes the R404SBS receiver, a compact F-4G receiver with S.BUS2 support and a wider listed voltage range than the R404SBS-E. It is a strong match for serious surface users who want Futaba F-4G performance, telemetry capability, and receiver flexibility in demanding builds.
The 10PXR's touchscreen interface gives drivers direct access to model setup, mixing, trim, speed, gyro, telemetry, and accessory functions. With 40-model memory, microSD storage, and extensive switch assignment, one transmitter can manage a full stable of race cars, crawlers, drifters, large-scale vehicles, and specialty projects.
Key Features
- 10-channel Futaba surface transmitter system
- Includes R404SBS F-4G receiver
- F-4G high-speed response with telemetry support

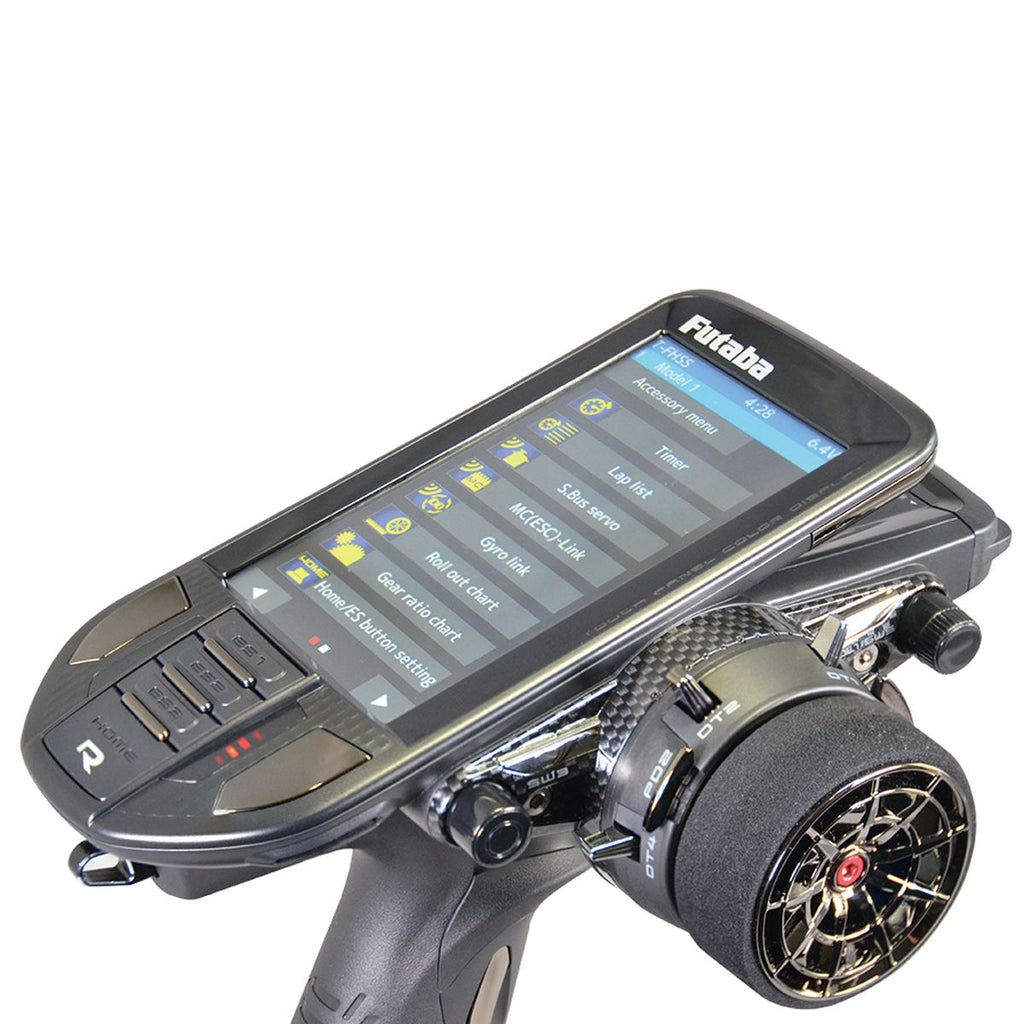

- 4.3-inch HVGA full-color backlit touchscreen
- Transflective LCD for indoor and outdoor visibility
- Compatible protocol support for T-FHSS-SR, T-FHSS, S-FHSS, and F-4G
- 40-model memory with copy function and detailed model naming
- microSD card support for updates, model data, and telemetry logging
- Brake mixing for large-scale cars and independent front/rear brake control
- Steering mixing, 4WS crawler mixing, dual ESC mixing, gyro mixing, tank mixing, and CPS lighting control
- S.BUS servo setup and MC-Link support for compatible Futaba ESC programming
- Adjustable wheel offset, wheel angle, throttle trigger position, grip size, and left-hand configuration
Performance Benefits
- F-4G response gives racers a fast, precise control feel while keeping telemetry available.
- Advanced steering and brake mixing support complex vehicles that need more than basic throttle and steering control.
- 4WS and dual-ESC crawler functions let drivers tune front/rear steering and motor behavior from the transmitter.
- Gyro mixing allows Futaba car rate gyro sensitivity adjustment directly from the 10PXR.
- Throttle and steering speed functions help smooth vehicle response on slippery or high-grip surfaces.
- Digital trims and assignable switches reduce setup drift when changing between stored models.
Usage Notes
- Use F-4G receiver type settings when pairing with the included R404SBS receiver.
- Best for advanced 1:10, 1:8, and 1:5 surface vehicles, including touring cars, buggies, truggies, drift cars, crawlers, monster trucks, and large-scale gas cars.
- When using high-speed or SR-style features, confirm servo compatibility before enabling fast response modes.
- Use telemetry sensors and S.BUS2 accessories only as supported by the receiver and transmitter setup.
- Back up important model settings to microSD before major radio software updates.
- Always verify failsafe, steering direction, throttle direction, and brake operation before running any vehicle.
Technical Specs
- Transmitter channels: 10 channels with F-4G system
- Frequency: 2.4GHz band
- Protocols: T-FHSS-SR, T-FHSS, S-FHSS, and F-4G
- Transmitter RF output: 100mW EIRP
- Display: 4.3-inch backlit color TFT touchscreen
- Model memory: 40 models
- Current drain: 350mA or less with T-FHSS, vibration off, backlight on
- Optional transmitter battery support: Futaba LT2F2000B LiPo or FT2F1700BV2 LiFe
- Receiver: R404SBS F-4G receiver
- R404SBS size: 25.5 x 20.7 x 10.6mm
- R404SBS weight: 5.7g / 0.2oz
- R404SBS operating voltage: DC 3.7V to 8.4V
Fitment
- Universal scale surface RC applications using compatible Futaba protocols
- R404SBS receiver supports compatible surface models
What's Included
- Futaba T10PXR transmitter
- R404SBS receiver
- Dry battery holder
- Two wheel offset adapters
- Mounting screws and spare screws
- 32-degree wheel adapter
- 5-degree wheel angle spacer
- Large diameter steering wheel
- Left and right trigger guards
- Grip rubber
- Two blind paddles
- Hex wrench and short manual
Summary
The Futaba 10PXR with R404SBS is a top-tier surface radio package for drivers who need fast response, telemetry, wide programming depth, and strong receiver flexibility. It is a serious radio system for racers and builders who want one transmitter capable of managing advanced surface vehicles.
