Overview

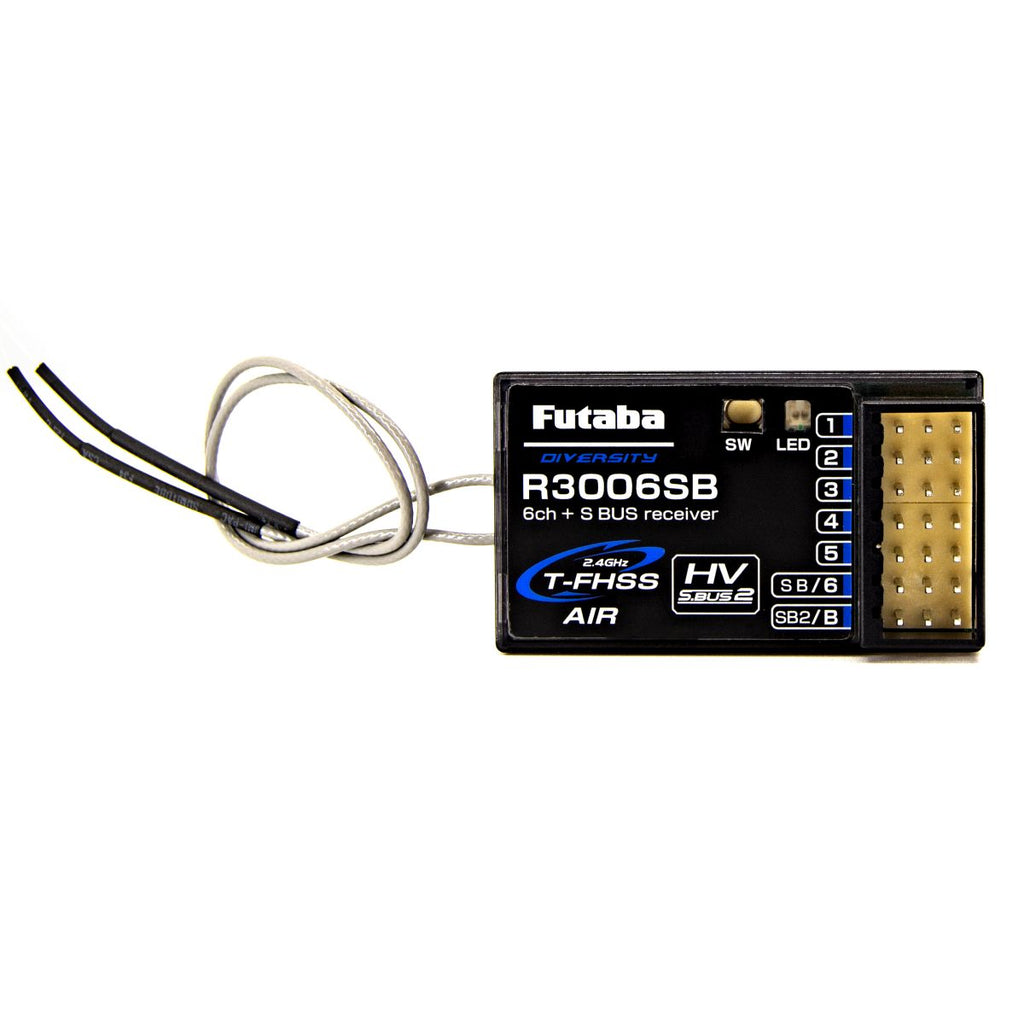

The Futaba R3006SB is a compact, high-performance 2.4GHz T-FHSS receiver featuring S.Bus/S.Bus2 output and bidirectional telemetry capabilities for RC aircraft. With six conventional PWM channels plus full 18-channel S.Bus capacity, this receiver enables clean, flexible installations while delivering the stable signal performance and precise response that Futaba is known for.
Designed to exacting Futaba standards, the R3006SB incorporates dual antenna diversity for optimal signal reception in all flight attitudes. The telemetry system allows real-time monitoring of flight data when paired with compatible S.Bus2 sensors and T-FHSS Air transmitters, providing critical information like battery voltage, RPM, and temperature directly to your transmitter display.
Key Features
- T-FHSS Air 2.4GHz bidirectional communication protocol
- S.Bus2 port for telemetry sensors and advanced accessories
- S.Bus output for simplified wiring (up to 18 channels)
- 6 conventional PWM channel outputs
- Dual antenna diversity system for reliable reception
- Compact, lightweight design (8.5g)
- Wide operating voltage range (4.0V - 8.4V)
- Easy Link ID for cable-free transmitter binding
Performance Benefits
- Reduced wiring complexity with S.Bus connectivity
- Real-time telemetry feedback during flight
- Stable signal reception through dual diversity antennas
- Clean, professional installations with fewer cables
- Low latency response for precise aircraft control
- Excellent interference resistance
Usage Notes
- Designed for RC aircraft (fixed-wing and helicopters)
- Compatible with Futaba T-FHSS Air transmitters only
- Not compatible with T-FHSS Surface, S-FHSS, FHSS, FASST, or FASSTest
- Mount securely away from heat and vibration sources
- Position antennas at 90° angles for optimal reception
- Keep antennas away from motors, ESCs, and carbon fiber
- Leave 30mm antenna tip exposed outside carbon fuselages
Technical Specs
-
Frequency: 2.4GHz
-
Protocol: T-FHSS Air
-
PWM Channels: 6
-
S.Bus Channels: Up to 18
-
Command Protocols: PWM, S.Bus, S.Bus2
-
Dimensions: 43.1 × 25.0 × 8.8 mm (1.70 × 0.98 × 0.35 in)
-
Weight: 8.5 g (0.3 oz)
-
Rated Voltage: DC 4.8V - 7.4V
-
Operating Voltage: DC 4.0V - 8.4V
-
Antenna System: Dual antenna diversity
-
Telemetry: Yes (via S.Bus2 port)
What's Included
- (1) Futaba R3006SB T-FHSS S.Bus2 6-Channel Telemetry Receiver
Summary
- Compact T-FHSS Air 2.4GHz receiver with S.Bus2 telemetry
- 6 PWM channels plus 18-channel S.Bus capability
- Dual antenna diversity for reliable signal reception
- Lightweight 8.5g design for any aircraft
- Wide voltage compatibility (4.0V - 8.4V)
