Overview

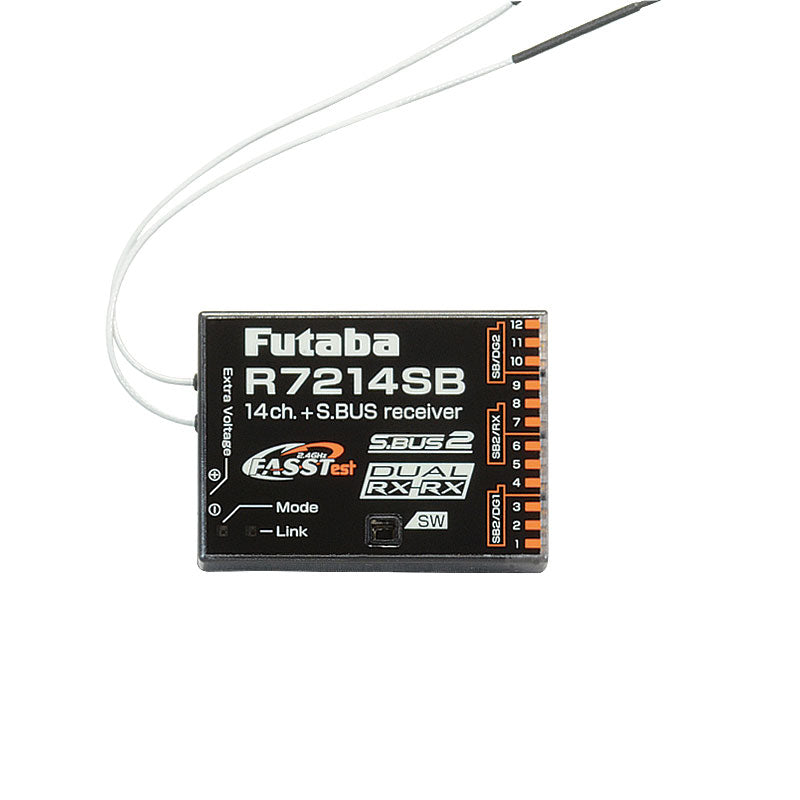

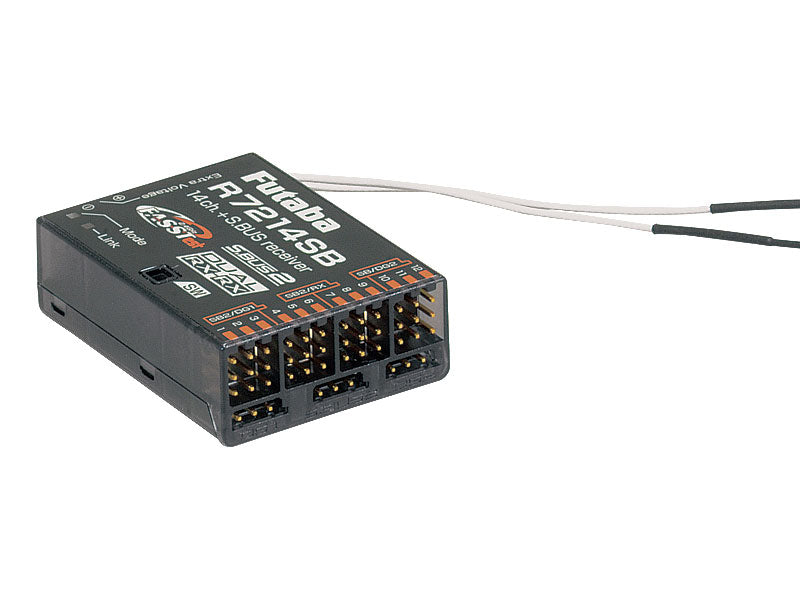

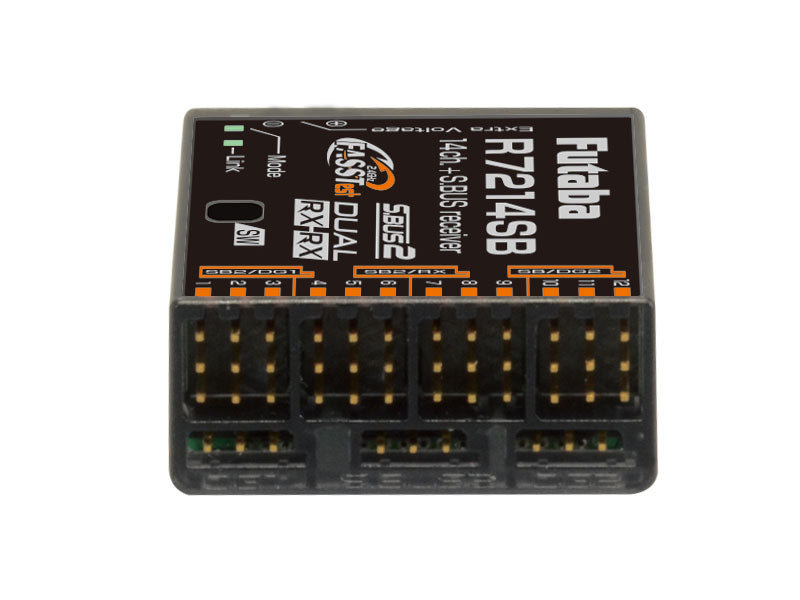

The Futaba R7214SB is a high-performance 14-channel 2.4GHz receiver designed for advanced airplanes and helicopters requiring multiple control channels and telemetry capability. Supporting both FASSTest and FASST transmission systems, this receiver provides ultra-responsive control with secure communication for demanding RC applications.
With S.Bus and S.Bus2 outputs, the R7214SB enables clean installations with minimal wiring while supporting Futaba's comprehensive telemetry sensor ecosystem. The HV-compatible design handles input voltages up to 8.4V for modern battery systems, and the compact, lightweight construction fits easily into most aircraft without affecting balance.
Key Features
- FASSTest and FASST 2.4GHz protocol support
- 14-channel capacity for complex aircraft
- S.Bus and S.Bus2 outputs
- Telemetry capable with S.Bus2 sensors
- HV-compatible (3.5V - 8.4V)
- Super lightweight construction (20.8g)
- Compact design (50 × 37 × 15.9 mm)
- High-speed signal processing
Performance Benefits
- High-speed response for precise control
- Real-time telemetry feedback
- Excellent interference resistance
- Streamlined wiring with S.Bus
- Wide voltage compatibility
- Reliable performance in all conditions
Usage Notes
- Designed for airplanes and helicopters
- Compatible with FASSTest and FASST transmitters
- Supports S.Bus/S.Bus2 servos and sensors
- Mount securely away from vibration and heat
- Battery failsafe voltage: 3.8V
Technical Specs
-
Frequency: 2.4GHz
-
Protocols: FASSTest / FASST
-
Channels: 14
-
Bus System: S.Bus / S.Bus2
-
Telemetry: Yes (via S.Bus2)
-
Input Voltage: DC 3.5V - 8.4V
-
Battery Failsafe Voltage: 3.8V
-
Dimensions: 50 × 37 × 15.9 mm (1.98 × 1.45 × 0.63 in)
-
Weight: 20.8 g (0.73 oz)
-
Application: Airplane / Helicopter
What's Included
- (1) Futaba R7214SB FASSTest/FASST 14-Channel S.Bus2 Receiver
Summary
- 14-channel FASSTest/FASST aircraft receiver
- S.Bus and S.Bus2 with telemetry support
- HV-compatible up to 8.4V
- Lightweight 20.8g compact design
- Ideal for complex aircraft and helicopters
