Overview

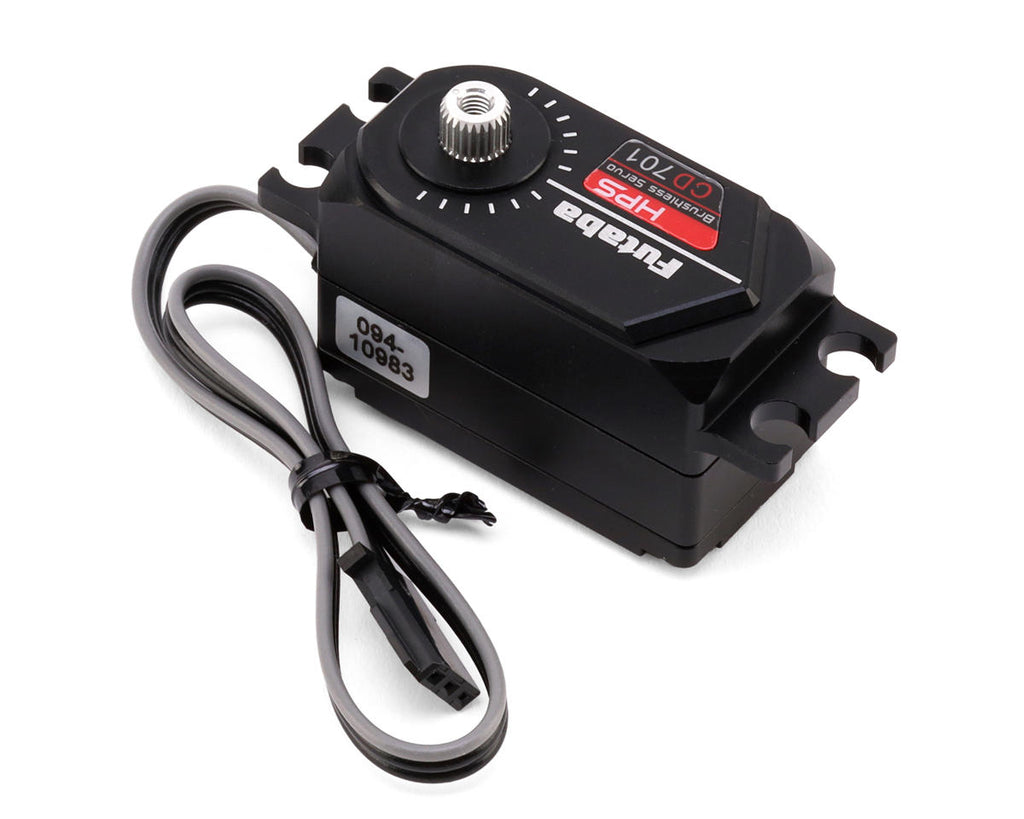

The Futaba HPS-CD701 is a premium brushless low-profile servo engineered specifically for competitive 1/10 scale RC drift cars. Featuring advanced S.Bus2 protocol compatibility and UR/SR mode support, this servo delivers lightning-fast 0.045 sec/60° response times with exceptional 17.0 kgf·cm torque at 7.4V for razor-sharp steering precision during drift transitions and counter-steer maneuvers.
Built with Futaba's high-performance HPS brushless motor technology, the CD701 combines incredible power efficiency with extended service life. The full aluminum case construction provides superior heat dissipation and chassis-mounting rigidity, while the metal gear train ensures long-lasting durability under the demanding conditions of competitive drift racing.
Key Features
- UR/SR Mode compatibility for ultra-responsive steering
- S.Bus/S.Bus2 protocol support for advanced digital communication
- High-performance HPS brushless motor
- 3-stage metal gears with high-strength metal final gear
- Full aluminum case construction (top/middle/bottom)
- High-voltage operation up to 7.4V
- PC-programmable via CIU-2/CIU-3 interface
- Low-profile design for drift chassis compatibility
Performance Benefits
- Ultra-fast 0.045 sec/60° speed at 7.4V for instant steering response
- Massive 17.0 kgf·cm (236 oz-in) torque output at 7.4V
- Efficient brushless operation with minimal power consumption
- Excellent heat management from aluminum housing
- Consistent, fade-free performance during extended drift sessions
- Precise centering for smooth drift transitions
Usage Notes
- Designed for 1/10 scale RC drift cars
- Requires S.Bus/S.Bus2 compatible receiver
- UR mode requires compatible transmitter/receiver (T10PX, T6PV, R404SBS)
- Program servo parameters via Futaba CIU-2 or CIU-3 interface
- Mount securely to chassis for optimal performance
Technical Specs
-
Dimensions: 40.5 × 21.0 × 26.2 mm (1.59 × 0.82 × 1.03 in)
-
Weight: 53 g (1.86 oz)
-
Speed @ 7.4V: 0.045 sec/60°
-
Speed @ 6.0V: 0.055 sec/60°
-
Torque @ 7.4V: 17.0 kgf·cm (236 oz-in)
-
Torque @ 6.0V: 14.0 kgf·cm (194.4 oz-in)
-
Operating Voltage: 4.8V - 7.4V
-
Motor Type: Brushless HPS
-
Gear Material: Metal (3-stage + high-strength final)
-
Output Spline: 25T (Futaba/ProTek compatible)
-
Case Material: Aluminum
-
Protocol: S.Bus / S.Bus2
What's Included
- (1) Futaba HPS-CD701 S.Bus2 Brushless Low-Profile Drift Servo
Summary
- Premium brushless low-profile drift servo with UR/SR mode support
- Ultra-fast 0.045 sec response with 17.0 kgf·cm torque at 7.4V
- Full aluminum construction with metal gear train
- S.Bus2 programmable for advanced tuning
- Purpose-built for competitive 1/10 scale drift racing
Fitment
Compatible Scale: 1:10
Compatible RC Vehicles: 1:10 Drift Cars
