Overview

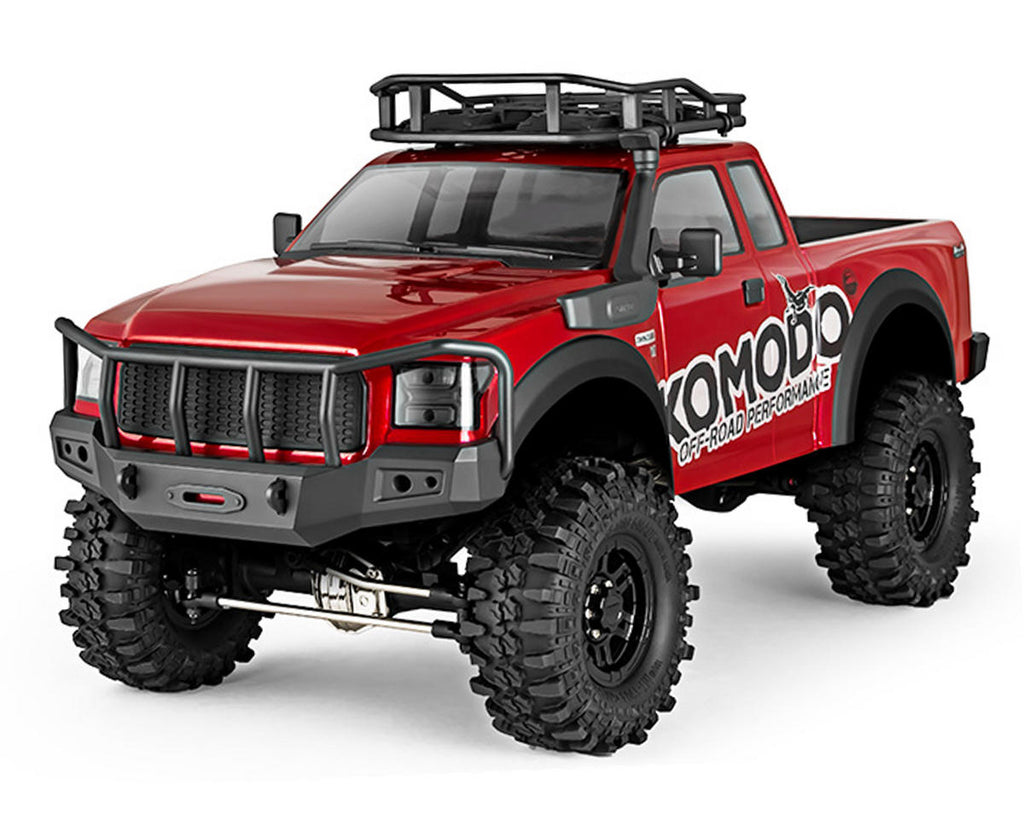

The Gmade KOMODO Off-Road Adventure Vehicle Kit (GM54000) is a 1/10 scale 4WD off-road adventure vehicle assembly kit featuring the proven Gmade GS01 nickel-plated steel ladder-frame chassis and the iconic KOMODO SUV/pickup body. The KOMODO platform is designed for trail driving, scale crawling, and adventure-style off-road exploration with authentic styling and outstanding scale detail.

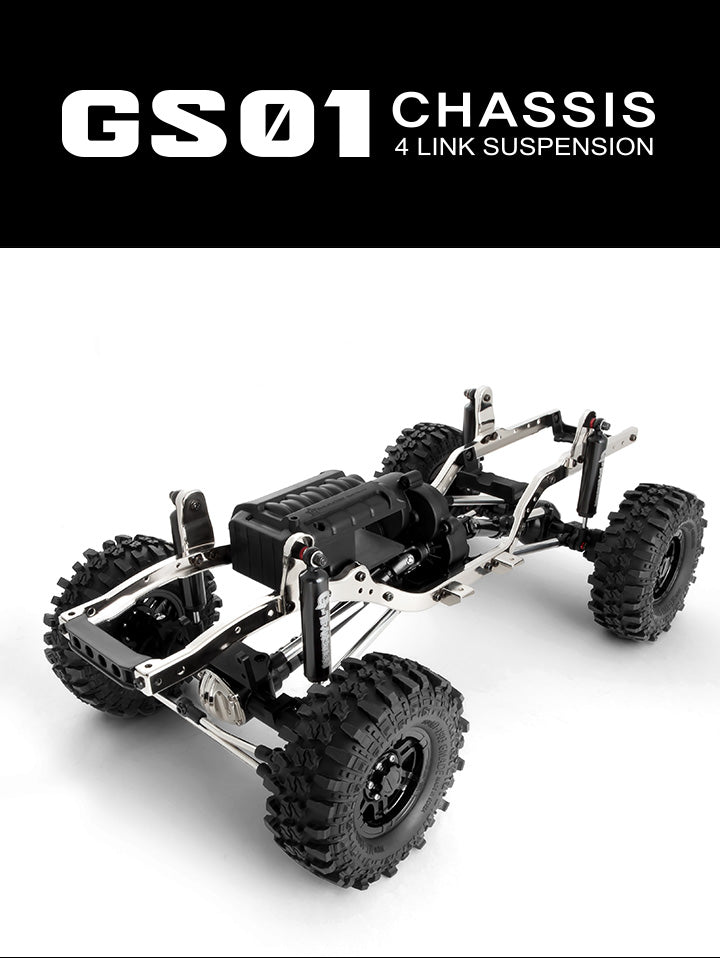

Built around a 4-link suspension system with G-Transition aluminum oil-filled internally-sprung shocks, the GS01 chassis blends scale realism with capable trail performance. A dust-proof receiver box (styled like an engine cover) doubles as an ESC mount and helps protect electronics from debris, while the adjustable battery plate accommodates a range of pack sizes and keeps the center of gravity low. A smooth central skid plate lets the chassis glide over obstacles, and a dust-proof transmission with metal motor mount delivers reliable power to one-piece graphite (high-strength plastic) axle housings with metal differential covers and solid diff gears. Universal driveshafts and full ball-bearing rolling components round out the drivetrain.
The kit ships with the heavy-duty 1.5mm clear lexan KOMODO body and a generous set of scale accessories — front grille, mirrors, light buckets, wipers, door handles, heavy-duty bumpers, roof rack, snorkel, sand ladder, hooks, and shovel — plus a decal sheet, MT-1903 1.9" off-road tires, and NR02 1.9" beadlock wheels.
Key Features
- 1/10 scale 4WD off-road adventure vehicle kit
- GS01 nickel-plated steel C-channel ladder-frame chassis
- 4-link suspension system with G-Transition aluminum oil-filled internally-sprung shocks
- Adjustable battery plate for low CG and pack flexibility
- Dust-proof receiver box with integrated ESC mount
- Smooth central skid plate
- Dust-proof transmission with metal motor mount
- One-piece high-strength axle housings with metal differential covers and solid diff gears
- Universal driveshafts and full ball-bearing rolling components
- NR02 1.9" beadlock wheels with MT-1903 1.9" off-road tires (12mm hex)
- Heavy-duty 1.5mm clear lexan KOMODO body with extensive scale accessories
- Decal sheet and detail accessory parts included
Performance Benefits
- Versatile trail and scale crawler performance
- Smooth suspension travel and axle articulation from G-Transition shocks
- Reduced torque-twist and improved traction from 4-link geometry
- Strong, dependable drivetrain with universal shafts and ball bearings
- Authentic scale appearance with extensive finishing accessories
- Tunable suspension geometry and ride height
- Standard 12mm hex accepts a wide range of aftermarket wheels and tires
Usage Notes

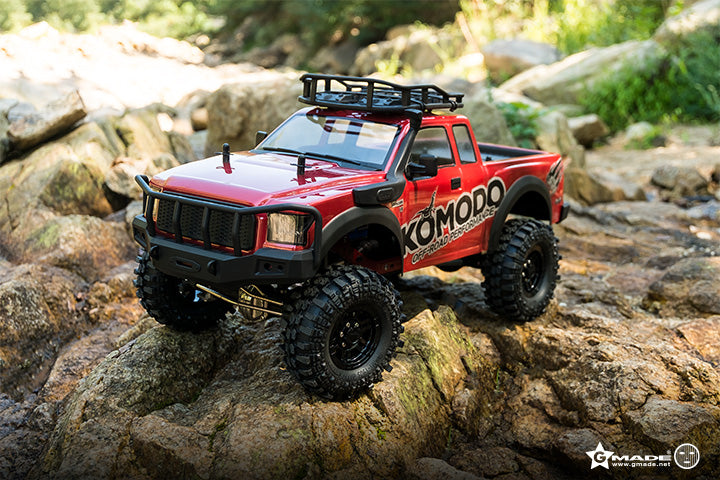

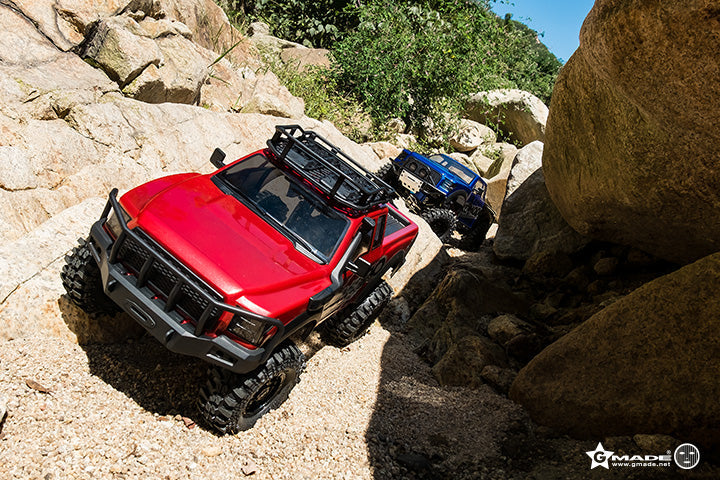

Ideal for trail driving, scale crawling, and adventure-style RC use where authentic SUV/pickup styling and capable performance go hand in hand. The kit requires full assembly and is best suited to enthusiasts comfortable with hands-on RC builds — gear meshing, suspension setup, body painting, and electronics installation. Plan dedicated build time to take advantage of the extensive scale accessory set.
Technical Specs
-
Brand: Gmade
-
Model: KOMODO (GM54000)
-
Scale: 1/10
-
Drivetrain: 4WD full-time
-
Chassis: GS01 nickel-plated steel C-channel ladder frame
-
Wheelbase: 287mm
-
Length / Width / Height: 506mm / 236mm / 247mm (215mm without roof rack)
-
Ground Clearance: 65mm
-
Weight (no electronics): ~1.9 kg
-
Suspension: 4-link with G-Transition aluminum oil-filled internally-sprung shocks
-
Axles: One-piece high-strength axle housings with metal diff covers and solid diff gears
-
Driveshafts: Universal driveshafts
-
Bearings: Full ball-bearing rolling components
-
Body: KOMODO SUV/pickup, 1.5mm clear lexan
-
Tires: MT-1903 1.9" off-road (109mm tall x 40mm wide)
-
Wheels: NR02 1.9" beadlock (12mm hex, 1mm negative offset)
-
Motor Compatibility: 540-size brushed crawler motor
-
Vehicle Type: Trail Crawler / Adventure SUV
-
Assembly Required: Yes
What's Included
- (1) Gmade KOMODO Adventure Vehicle Kit
- GS01 nickel-plated steel ladder-frame chassis components
- Clear 1.5mm heavy-duty KOMODO lexan body
- Front and rear axles with metal diff covers and solid diff gears
- Dust-proof transmission with metal motor mount
- 4-link suspension components and G-Transition aluminum oil-filled shocks
- Universal driveshafts and full ball bearings
- NR02 1.9" beadlock wheels with MT-1903 1.9" off-road tires
- Scale accessories: front grille, mirrors, light buckets, wipers, door handles, heavy-duty bumpers, roof rack, snorkel, sand ladder, hooks, shovel
- Decal sheet, hardware, and instruction manual

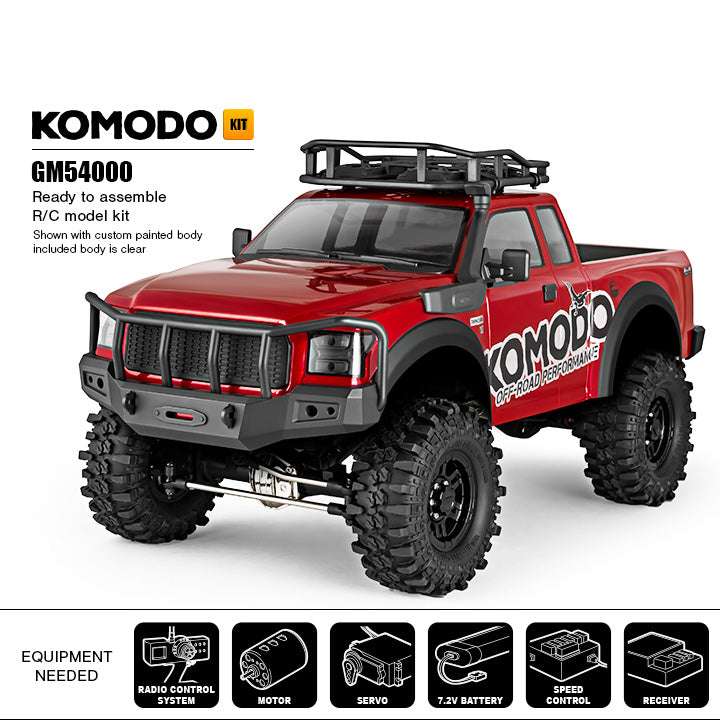

Needed to Complete
- 540-size brushed crawler motor
- Crawler-rated Electronic Speed Controller (ESC)
- High-torque steering servo
- 2-channel radio system (transmitter and receiver)
- 7.2V battery (NiMH or compatible LiPo) and charger
- Polycarbonate paint and finishing supplies
- AA batteries for the transmitter
- Hobby tools for assembly (hex drivers, body scissors, threadlock, shock oil)
Summary
Adventure awaits with the genuine Gmade KOMODO Off-Road Adventure Vehicle Kit — proven GS01 4-link chassis engineering, authentic SUV/pickup styling, an extensive scale accessory set, and capable G-Transition suspension combine for a versatile, classic Gmade trail crawler.
