Overview

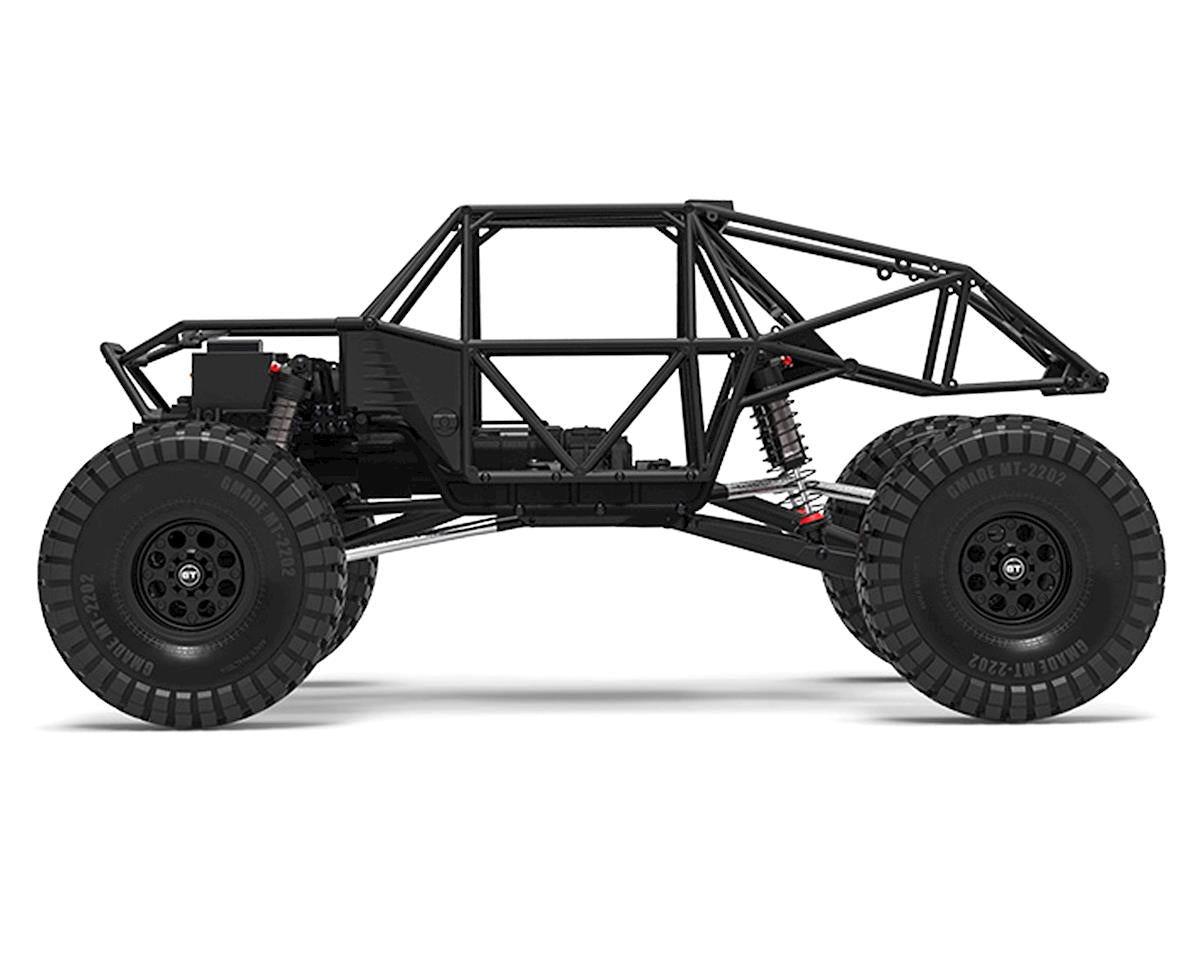

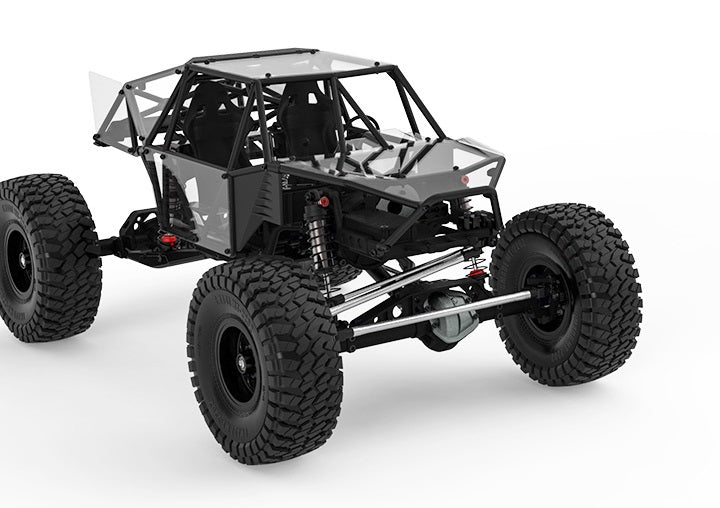

The Gmade GR01 GOM 1/10 4WD Rock Crawler Buggy Kit (GM56000) is a 1/10 scale 4WD rock crawler buggy assembly kit featuring the unique GR01 full tube-frame chassis and aggressive open-cockpit GOM Rockbuggy body styling. The GR01 platform is engineered for technical crawling and trail-buggy performance with serious tuning flexibility — making this kit a favorite of builders who want a distinctive scale rig with no-compromise capability.

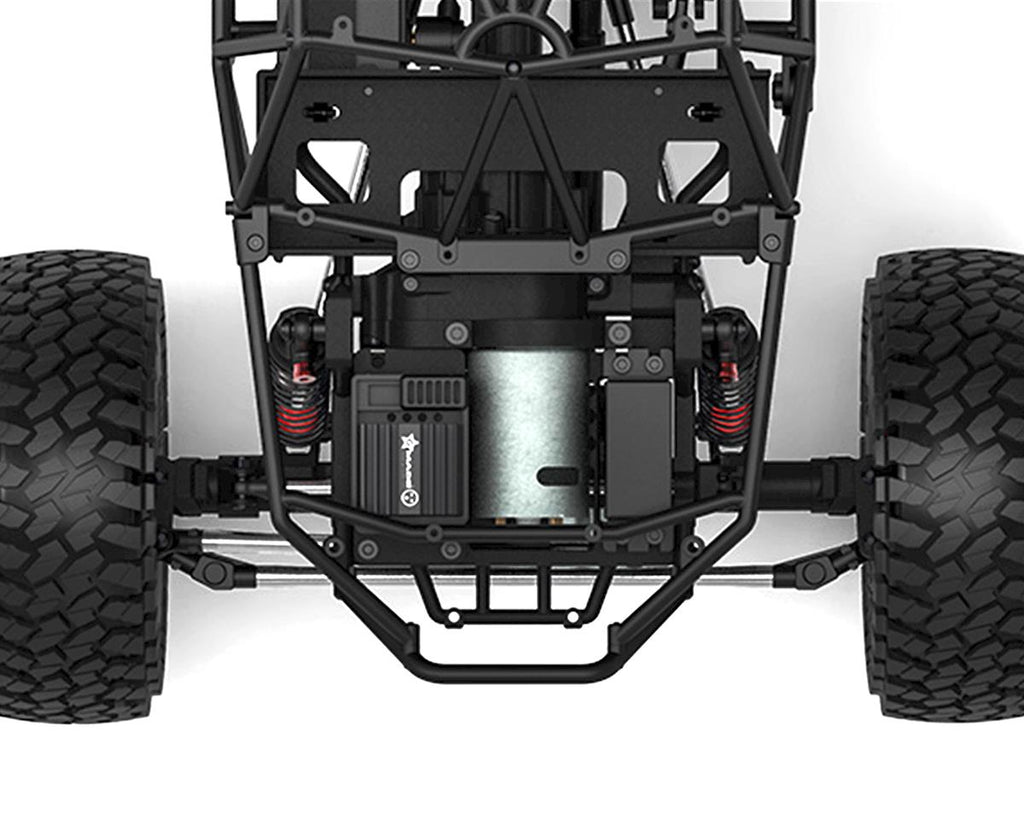

The full tube-frame chassis is lightweight yet extremely rigid, and the structure effectively absorbs external impacts. A forward weight balance, chassis-mounted servo with Panhard bar, dustproof receiver box, easy-access battery door, and central skid plate combine for a clean, durable, and serviceable layout. The drivetrain centers on a 2-speed transmission paired with the ROCK transfer case (with dig function) — enabling tight technical turns and extreme climbs/descents — backed by a dual slipper clutch, GA60 metal axles, hardened steel internals, and XD Aeration 103mm coil-over shocks.
Realistic interior details — racing bucket seats, handles, and gearbox — add scale presence to the open cockpit, while the wide 2.2" beadlock rolling stock provides serious traction and ground clearance.
Key Features
- 1/10 scale 4WD rock-crawler buggy kit

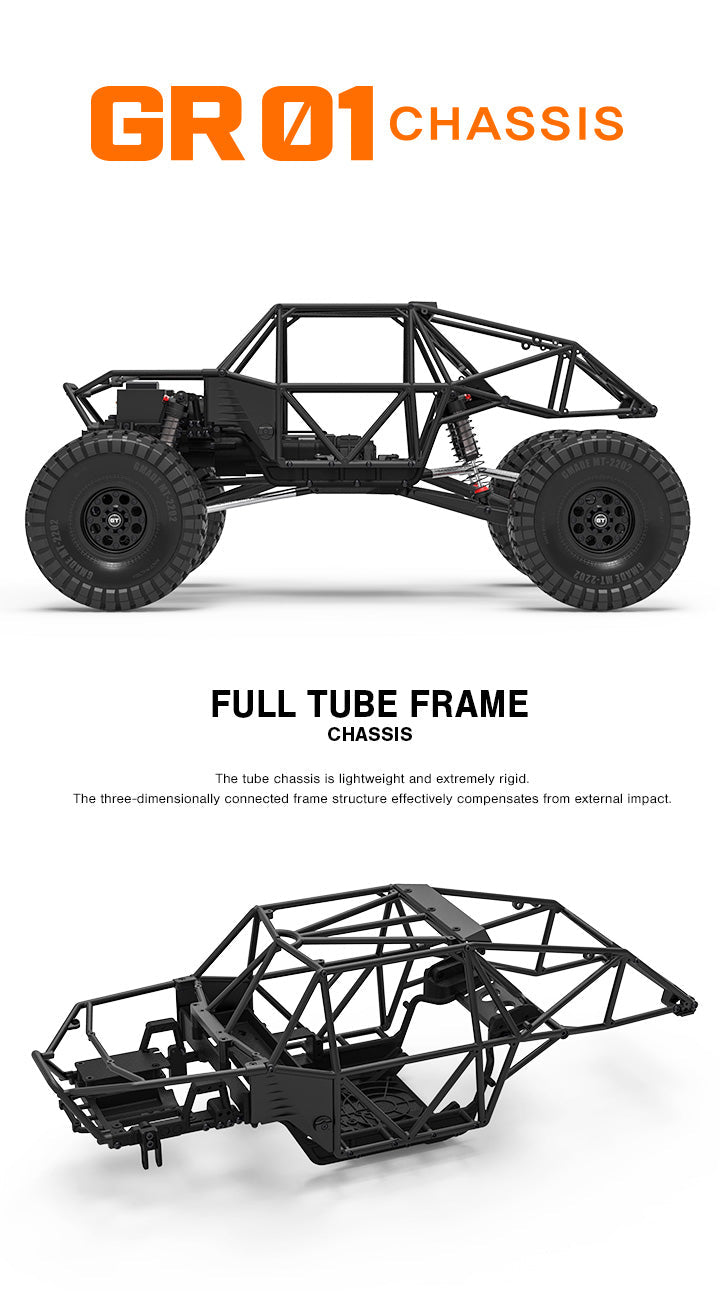

- Lightweight, rigid GR01 full tube-frame chassis
- Aggressive open-cockpit GOM Rockbuggy body styling

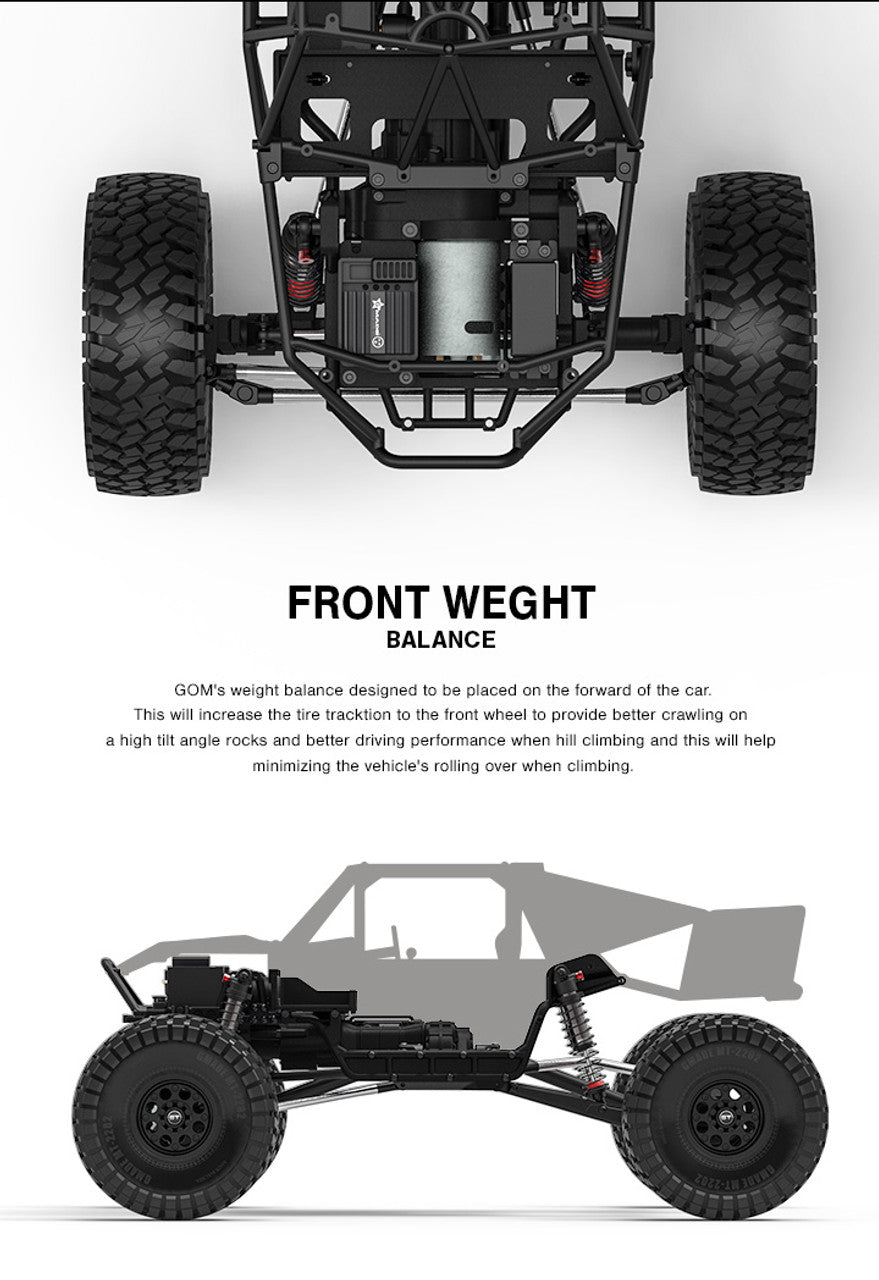

- Forward weight balance for superior front-tire traction

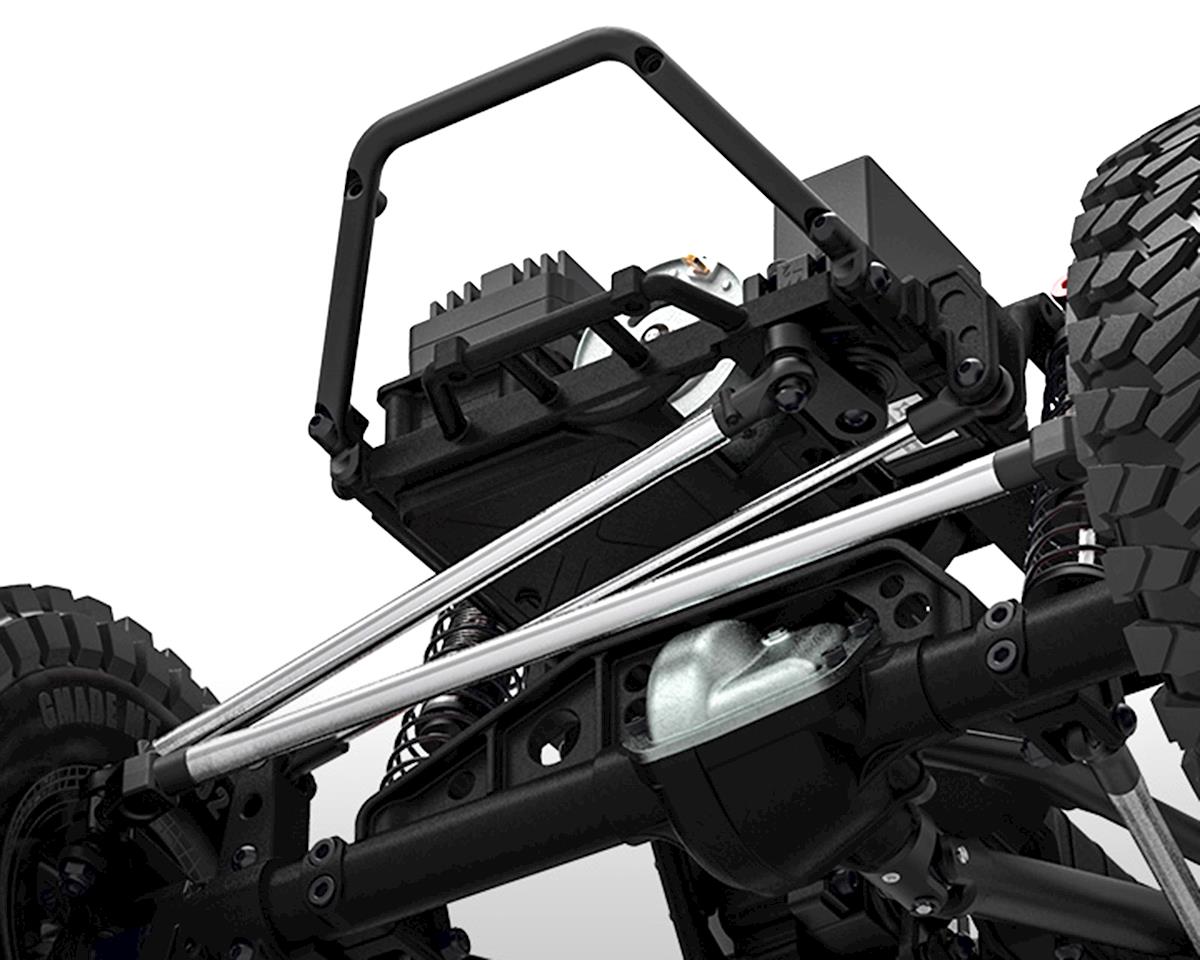

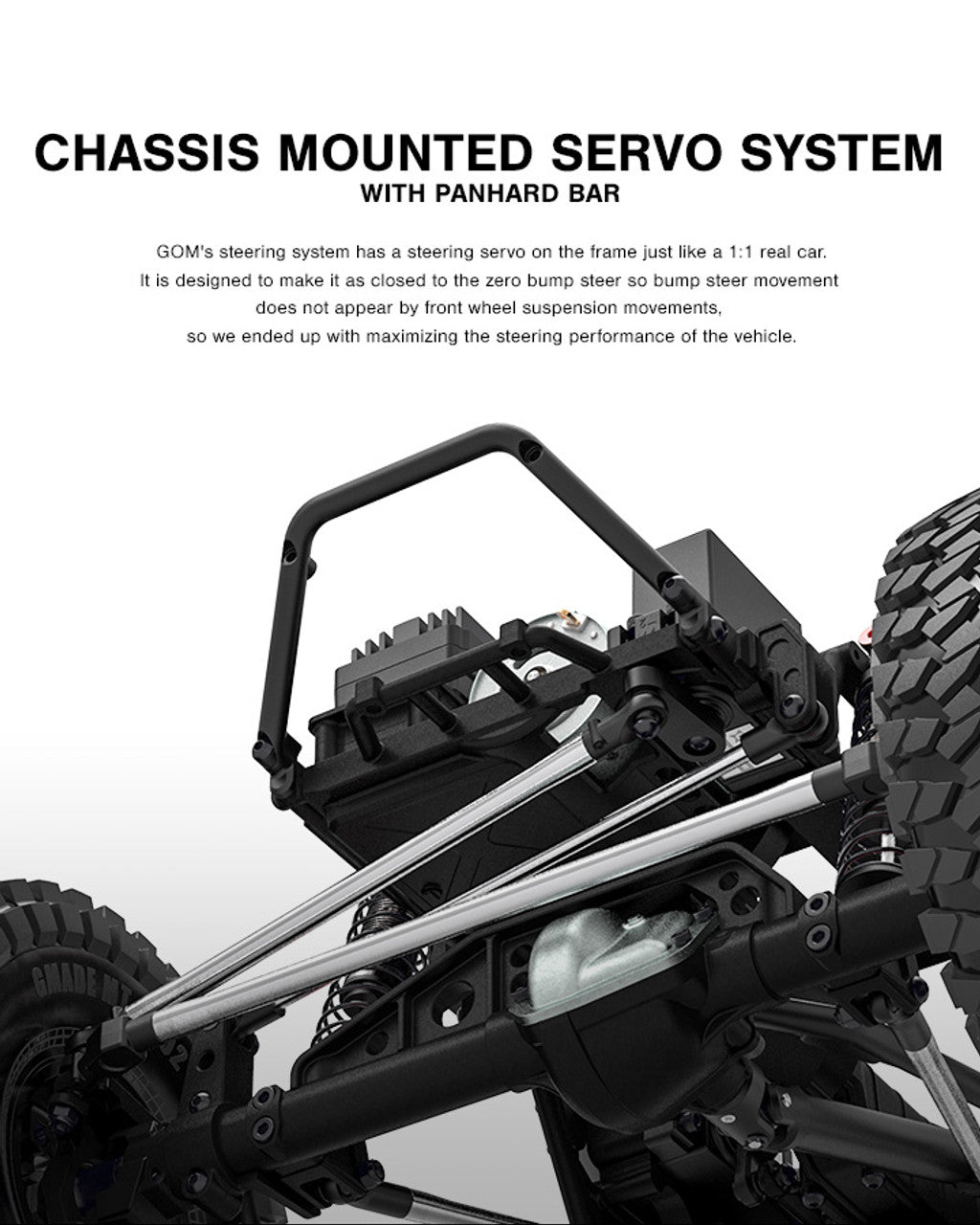

- Chassis-mounted servo with Panhard bar (near-zero bump steer)

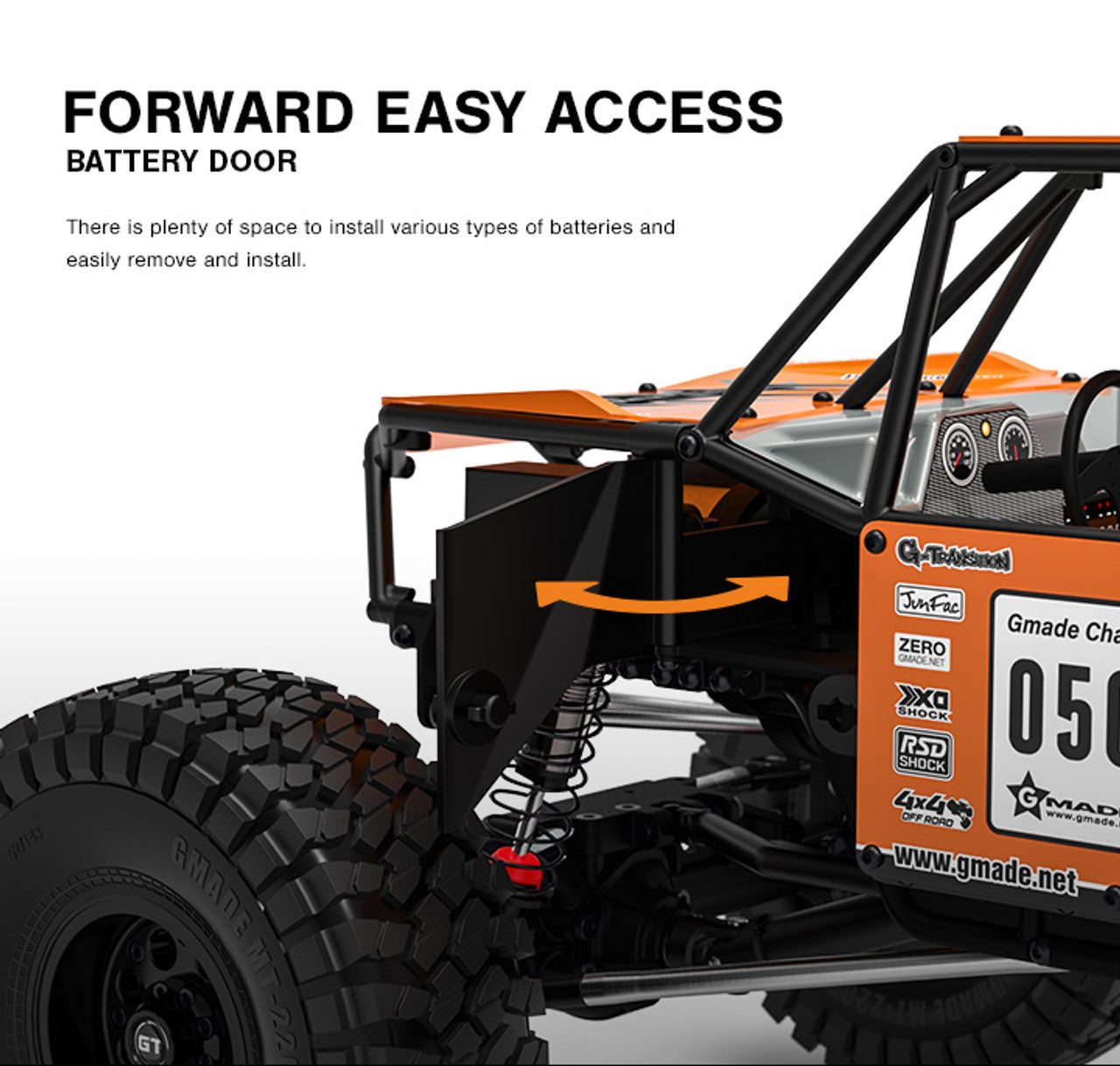

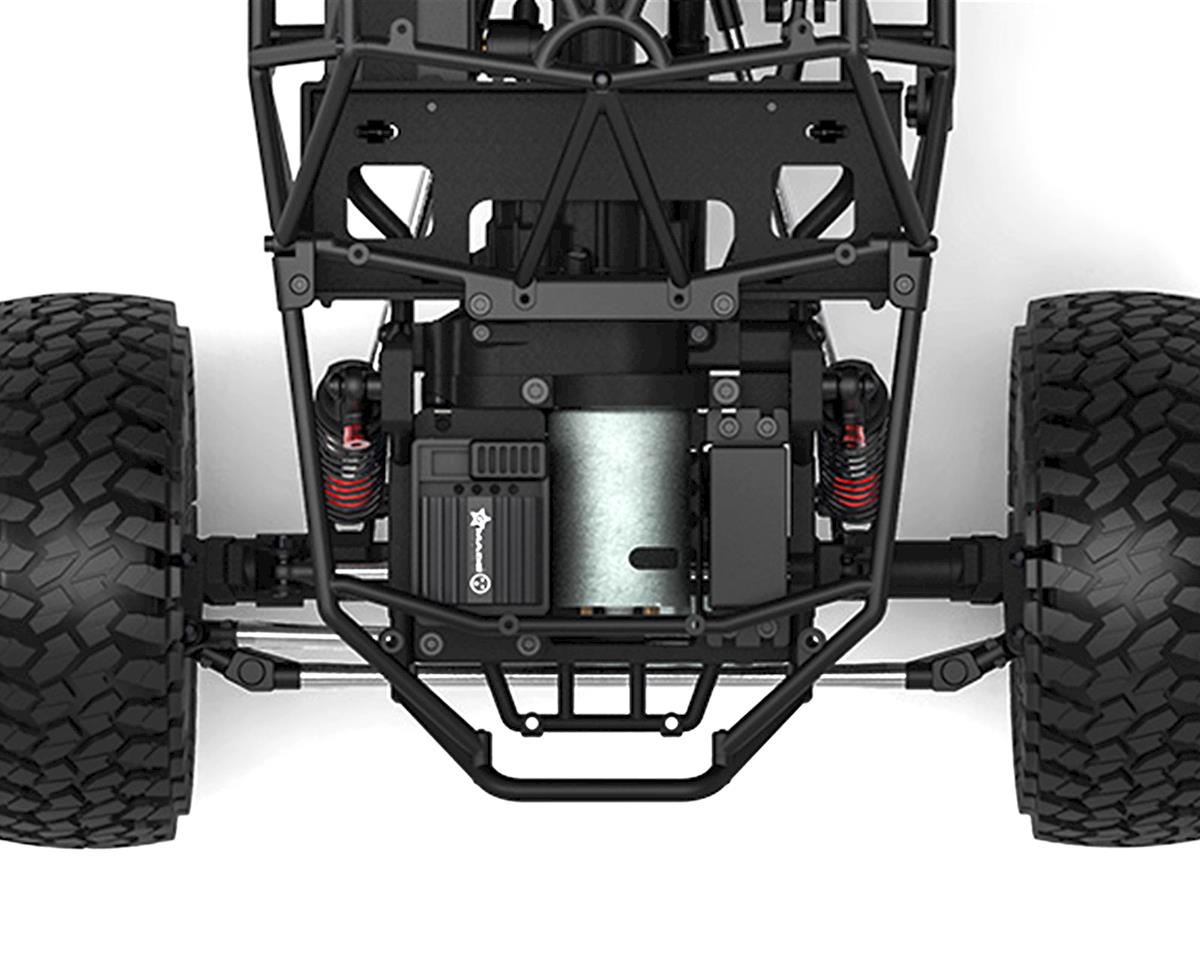

- Dustproof receiver box and easy-access forward battery door
- Central skid plate to glide over obstacles
- 2-speed transmission (1st for crawling, 2nd for hill climbs/high speed)
- ROCK transfer case with reduction gear and dig function
- Dual slipper clutch and easy-adjust motor mount

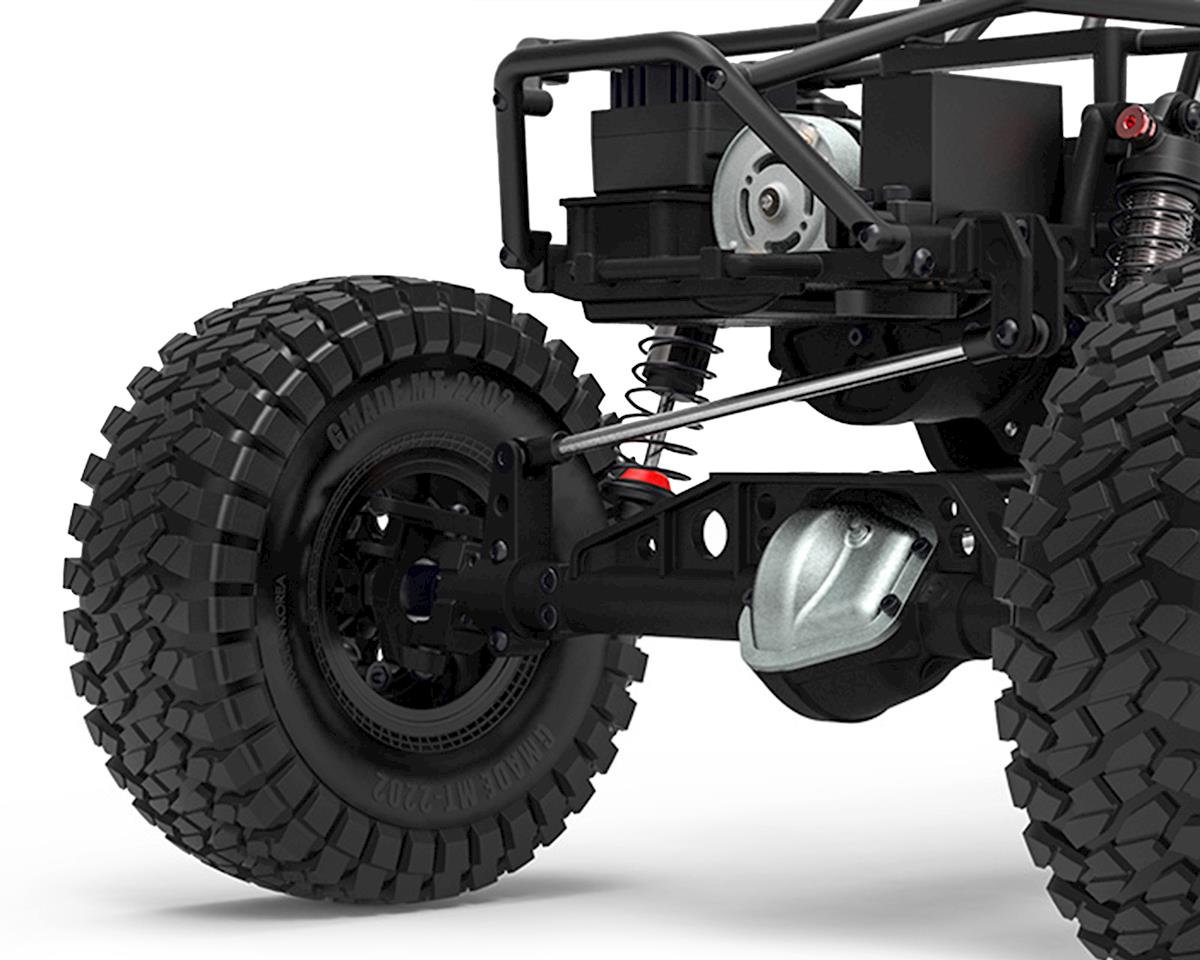

- GA60 metal axles with high-steer zero-Ackerman knuckle arms, adjustable caster
- Panhard bar axle mounts for varied suspension link setups
- Rear dual-shock-mount option for advanced suspension tuning
- XD Aeration 103mm coil-over shocks with CNC aluminum bodies (3.5mm shafts)
- 2.2" M/T off-road tires on Gmade 2.2" beadlock wheels (12mm hex)
- Detailed interior cockpit with racing bucket seats and gearboxes
Performance Benefits
- Excellent rock-crawler buggy performance with distinctive scale appearance
- Tight technical turns and extreme climbs/descents enabled by the dig function
- Strong, durable drivetrain optimized for high-torque crawler motors
- Outstanding articulation from link suspension and XD Aeration shocks
- Tunable suspension geometry, ride height, and gearing
- Lightweight, rigid tube frame for confident handling
- Easy access to battery and electronics for servicing
Usage Notes
Ideal for technical trail driving and rock-crawler buggy applications, with the dig function adding a competition-grade dimension for serious scale events. The kit requires full assembly and is best suited to builders comfortable with hands-on RC projects — including suspension tuning, dual-shock setup options, and electronics installation. The GOM body comes clear and requires paint and finishing.
Fitment
Compatible RC vehicles: Gmade GR01.
Technical Specs
-
Brand: Gmade
-
Model: GR01 GOM (GM56000)
-
Scale: 1/10
-

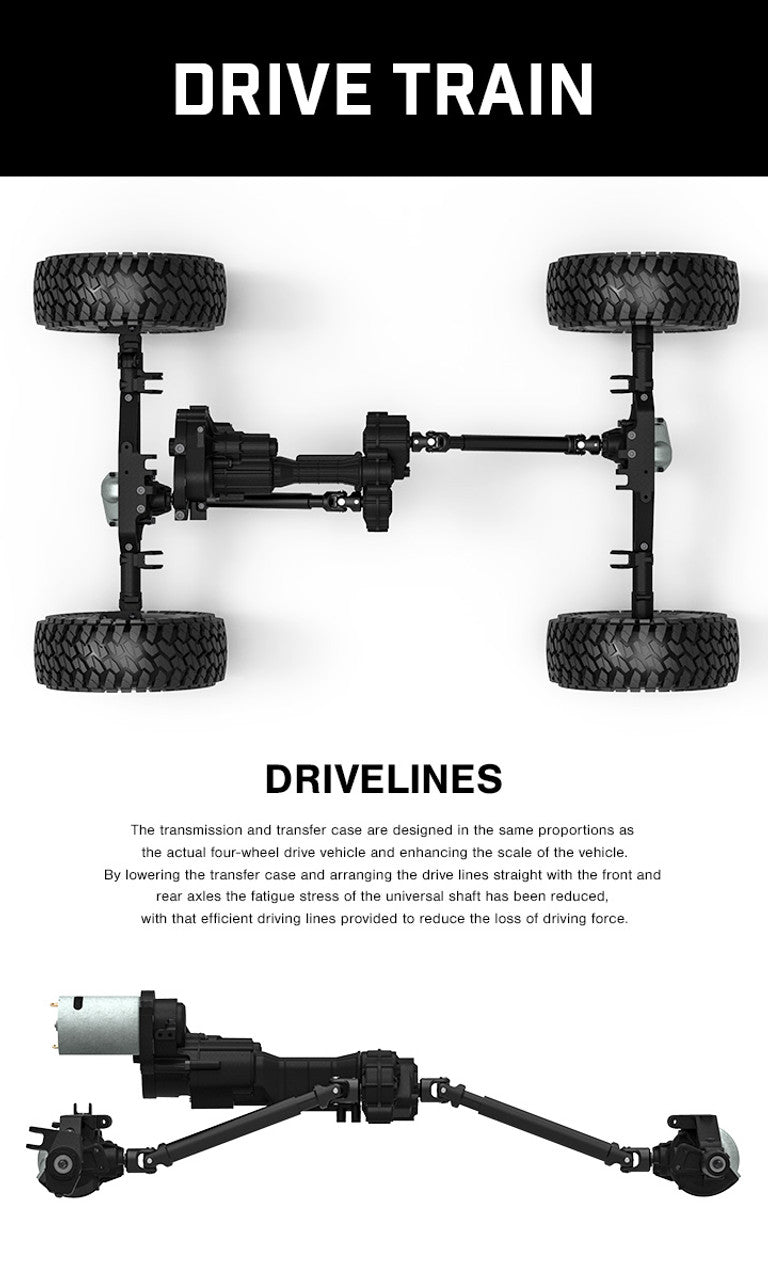

Drivetrain: 4WD full-time with 2-speed transmission and ROCK transfer case (dig)
-
Chassis: GR01 full tube frame
-

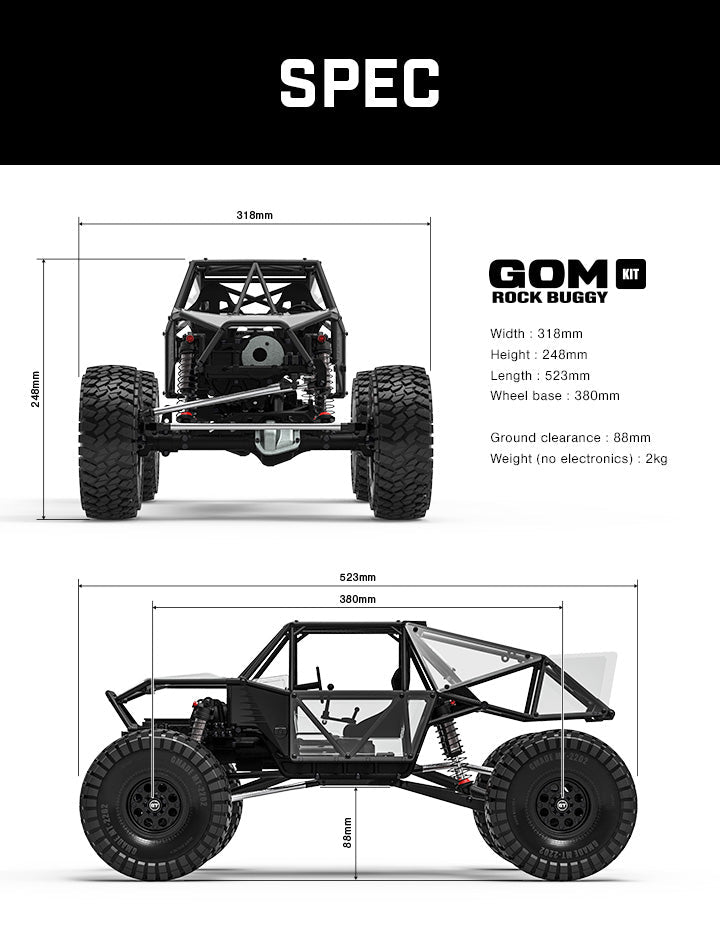

Wheelbase: 380mm
-
Length / Width / Height: 523mm / 318mm / 248mm
-
Ground Clearance: 88mm
-
Weight (no electronics): ~2.0 kg
-
Axles: GA60 metal axles, front and rear, with high-steer zero-Ackerman knuckle arms and adjustable caster
-
Suspension: Link with XD Aeration 103mm coil-over shocks (rear dual-shock option)
-
Body: GOM Rockbuggy lexan (clear)
-
Tires: 2.2" M/T off-road on Gmade 2.2" beadlock wheels (12mm hex)
-
Motor Compatibility: 540-size brushed crawler motor
-
Vehicle Type: Open-cockpit Rock-Crawler Buggy
-
Assembly Required: Yes
What's Included

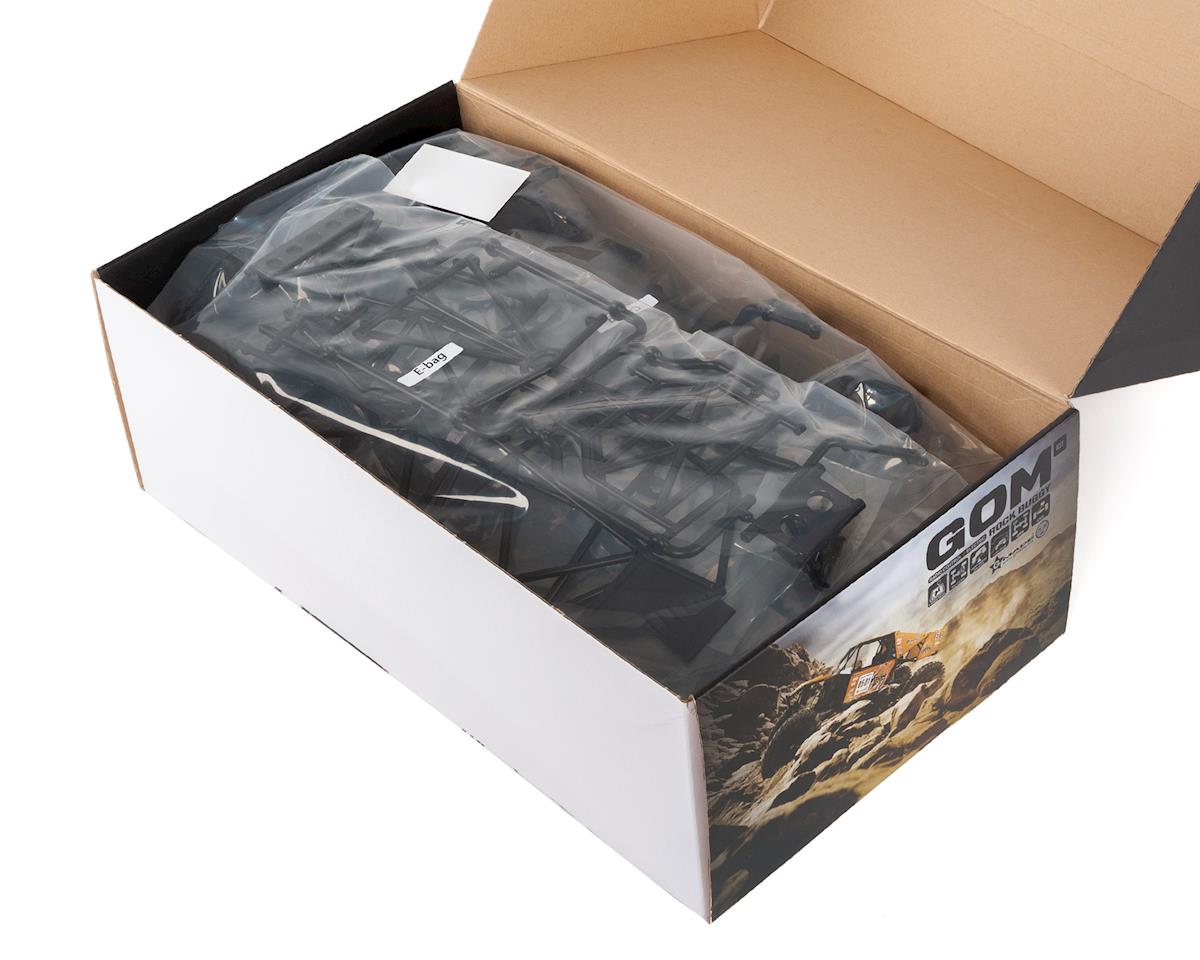

- (1) Gmade GR01 GOM 4WD Rock Crawler Buggy Kit
- GR01 full tube-frame chassis components
- GA60 front and rear metal axles
- 2-speed transmission with ROCK transfer case and dig function
- Dual slipper clutch and easy-adjust motor mount
- XD Aeration 103mm coil-over shocks with CNC aluminum bodies
- Clear GOM Rockbuggy lexan body with interior cockpit details (bucket seats, handles, gearboxes)
- 2.2" M/T tires on Gmade 2.2" beadlock wheels
- Driveshafts, suspension links, and mounting hardware
- Decals and detailed instruction manual
Needed to Complete
- 540-size brushed crawler motor
- Crawler-rated Electronic Speed Controller (ESC)
- High-torque steering servo
- 2-channel radio system (transmitter and receiver, minimum)
- Battery (LiPo or NiMH) and compatible charger
- Polycarbonate paint and finishing supplies
- AA batteries for the transmitter
- Hobby tools for assembly (hex drivers, body scissors, threadlock, shock oil)
Summary
Build the iconic Gmade GOM Rockbuggy with the genuine GR01 GOM Assembly Kit — distinctive open-cockpit styling, lightweight tube-frame chassis, GA60 metal axles, ROCK transfer case with dig function, and XD Aeration shocks combine for serious scale crawler-buggy performance and unmistakable trail presence.
