Overview

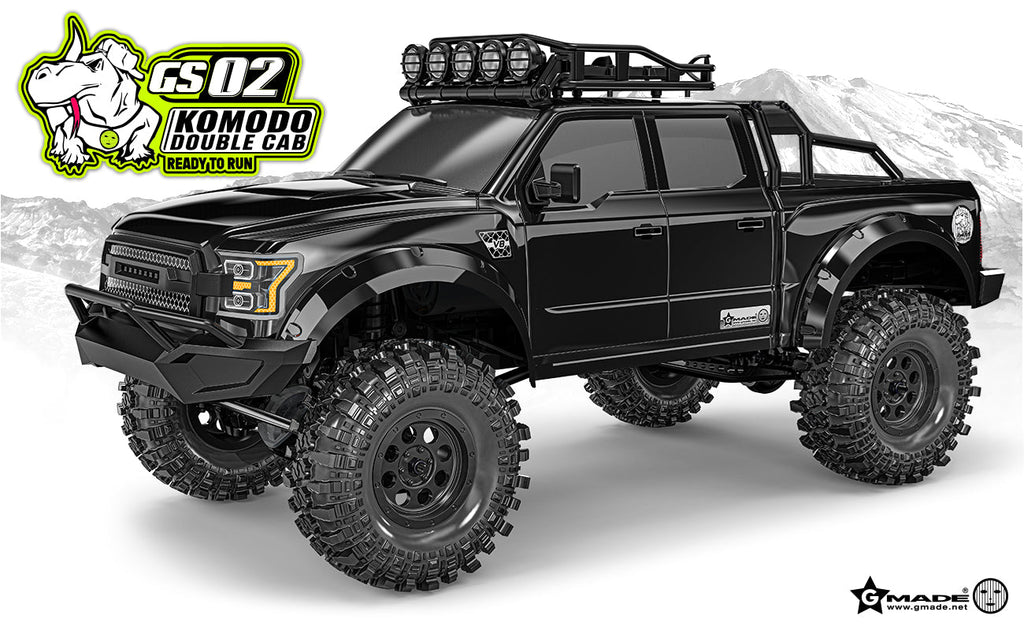

The Gmade KOMODO Double Cab TS RTR (GM57005) is a fully Ready-to-Run 1/10 scale 4WD rock crawler featuring the iconic KOMODO Double Cab body on Gmade's proven GS02F steel ladder-frame chassis. Pre-assembled, pre-tuned, and pre-wired at the factory, this RTR delivers exceptional scale crawling performance with the unmistakable four-door KOMODO look — straight out of the box.
Underneath the painted body sits the full-time 4WD GS02F drivetrain with a 2-speed HI/LO transmission, overdrive front output, Torque Twist Reduce (TTR) gearing, and GA44 metal axles. The chassis-mounted servo with Panhard bar virtually eliminates bump steer, and SD Scaler aluminum oil-filled coil-over shocks deliver the smooth damping you expect from a high-end Gmade scale crawler. Add a battery, charger, and AA batteries for the included 2.4GHz transmitter, and you're ready to crawl.
Key Features
- Fully assembled, pre-tuned, ready-to-run package
- 1/10 scale 4WD rock crawler with full-time drivetrain
- Steel C-channel GS02F ladder-frame chassis
- Painted KOMODO Double Cab body
- Pre-installed 540-size crawler motor, ESC, steering servo, and receiver
- Included 2.4GHz transmitter
- 2-speed HI/LO transmission with overdrive front output
- Torque Twist Reduce (TTR) drivetrain
- GA44 metal axles with zero-Ackerman steering
- SD Scaler aluminum oil-filled coil-over shocks
- Mounted scale wheels and 1.9" off-road tires
Performance Benefits
- Trail-ready performance straight out of the box
- Proven Gmade scale crawling capability and authentic KOMODO presence
- Excellent axle articulation across uneven terrain
- Predictable, controlled climbs and descents
- Tighter steering radius thanks to overdrive front output
- Smooth, consistent damping from oil-filled coil-over shocks
- Tunable platform — extensive Gmade option parts available
Usage Notes
Add a compatible battery, a battery charger, and AA batteries for the transmitter to start crawling. No build, paint, or wiring required. The KOMODO Double Cab TS RTR is an excellent introduction to scale crawling for newcomers and a great no-fuss platform for experienced drivers who want immediate trail time with iconic four-door styling.
Fitment
Compatible RC vehicles: Gmade Komodo Double Cab.
Technical Specs
-
Brand: Gmade
-
Model: KOMODO Double Cab TS RTR (GM57005)
-
Scale: 1/10
-
Drivetrain: 4WD full-time with 2-speed HI/LO transmission
-
Chassis: Steel C-channel GS02F ladder frame
-
Body: KOMODO Double Cab (painted and finished)
-
Axles: GA44 metal straight axles, front and rear
-
Suspension: 4-link with SD Scaler aluminum oil-filled coil-over shocks
-
Motor: 540-size crawler motor (pre-installed)
-
ESC, Servo, Receiver: Pre-installed and wired
-
Radio: Included 2.4GHz transmitter
-
Vehicle Type: Rock Crawler / Scale Double-Cab SUV
-
Assembly Required: No (RTR)
What's Included
- (1) Gmade KOMODO Double Cab TS RTR crawler, fully assembled
- Pre-installed 540-size motor, ESC, steering servo, and receiver
- Included 2.4GHz transmitter
- Mounted 1.9" wheels and off-road tires
- Painted and finished KOMODO Double Cab body
- Instruction manual and quick-start guide
Needed to Complete
- Compatible battery (LiPo or NiMH, check manual for specs)
- Battery charger compatible with your battery chemistry
- AA batteries for the transmitter
Summary
Hit the trail fast with the Ready-to-Run Gmade KOMODO Double Cab TS RTR — proven GS02F chassis engineering, iconic four-door KOMODO styling, and full-time 4WD performance with a 2-speed transmission, all assembled and pre-tuned for immediate scale crawling fun out of the box.
