Overview
The Gmade GS02F KOMODO Double Cab TS (GM57010) is a 1/10 scale 4WD rock crawler assembly kit featuring the iconic KOMODO Double Cab body styling on Gmade's proven GS02F steel ladder-frame chassis. The TS (Trail Series) configuration emphasizes scale realism, drivetrain durability, and tuning flexibility — making it an outstanding platform for serious trail builders who want a four-door SUV/pickup look with full crawler capability.
This kit pairs the full-time 4WD GS02F drivetrain — including the 2-speed HI/LO transmission, overdrive front output, Torque Twist Reduce (TTR) gearing, and hardened carbon steel U-joints — with GA44 metal axles, SD Scaler aluminum oil-filled coil-over shocks, and a chassis-mounted servo with Panhard bar. The result is a rugged, capable scale rig that climbs predictably, articulates smoothly, and looks the part on any trail.
Key Features
- 1/10 scale 4WD rock crawler kit with iconic KOMODO Double Cab body
- Steel C-channel GS02F ladder-frame chassis, powder-coated
- Adjustable wheelbase (313mm standard, 324mm with optional links)
- Forward weight balance with front-mounted 540/550 motor
- Chassis-mounted servo with Panhard bar (near-zero bump steer)
- 2-speed HI/LO transmission with overdrive front output
- Torque Twist Reduce (TTR) counter-rotating drivetrain
- GA44 metal axles with high-steer knuckle arms and zero-Ackerman steering
- Hardened carbon steel universal joints
- SD Scaler aluminum oil-filled coil-over shocks (3.5mm shafts)
- Adjustable suspension link mounting positions
- Adjustable battery tray and easy-adjust motor mount
Performance Benefits
- Predictable, controlled crawling on technical terrain
- Excellent axle articulation across uneven obstacles
- Balanced, forward-biased weight distribution for stable climbs
- Tunable suspension geometry, ride height, and gearing
- Tighter steering radius thanks to overdrive front output
- Reduced torque-twist body roll for cleaner power delivery
- Smooth, consistent damping from oil-filled coil-over shocks
Usage Notes
Ideal for 1/10 scale trail driving, scale competitions, and rock crawling where the iconic KOMODO Double Cab styling is desired. The kit requires full assembly and is best suited to enthusiasts comfortable with hands-on RC builds — gear meshing, suspension tuning, and electronics installation. Plan time for body painting and accessory installation to take full advantage of the included scale details.
Technical Specs
-
Brand: Gmade
-
Model: GS02F KOMODO Double Cab TS (GM57010)
-
Scale: 1/10
-
Drivetrain: 4WD full-time with 2-speed HI/LO transmission
-

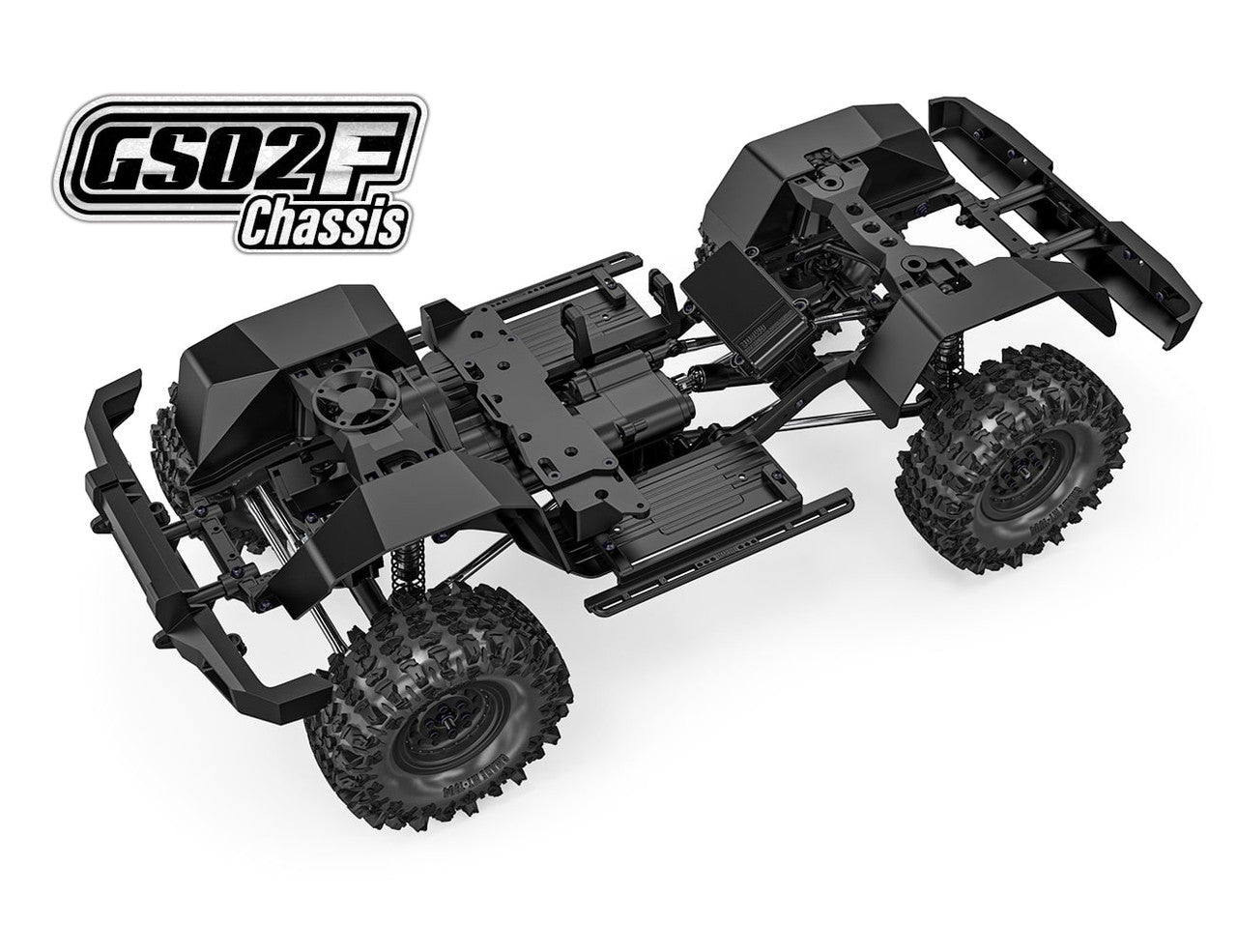

Chassis: GS02F steel C-channel ladder frame, powder-coated
-

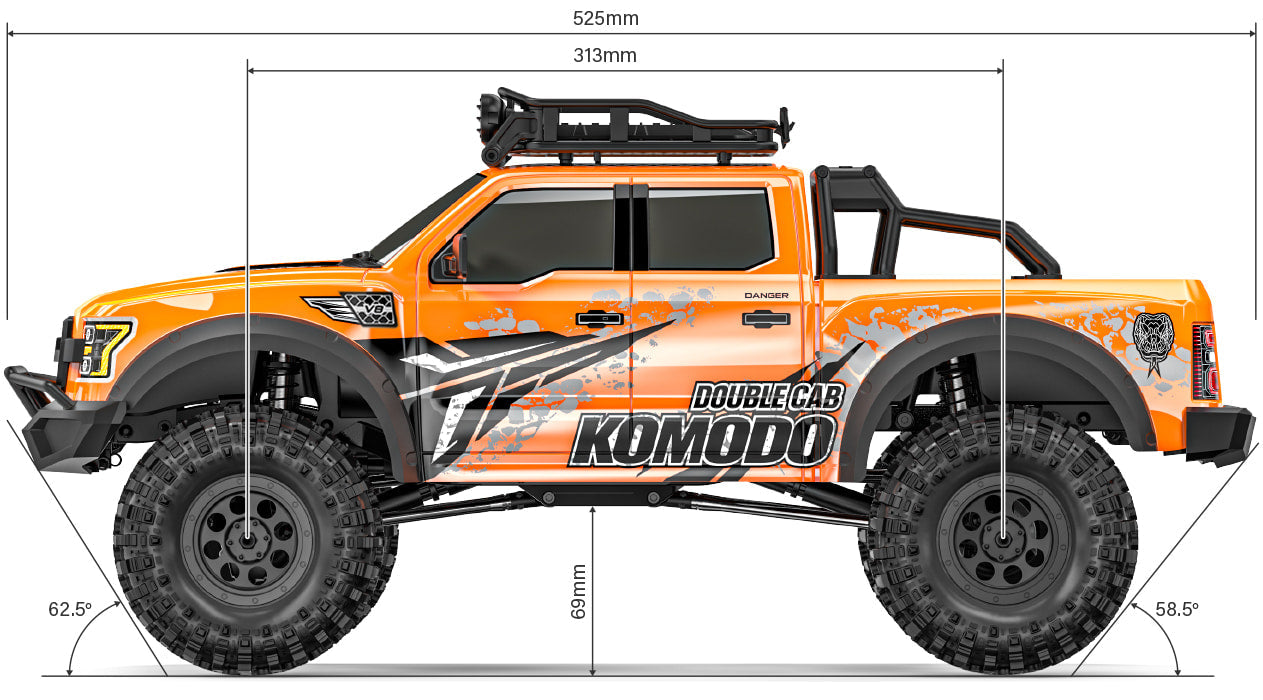

Wheelbase: 313mm (adjustable to 324mm)
-
Axles: GA44 metal straight axles, front and rear
-
Steering: Chassis-mounted servo with Panhard bar; zero-Ackerman with CVA
-
Suspension: 4-link with SD Scaler aluminum oil-filled coil-over shocks
-
Driveshafts: Hardened carbon steel universal joints
-
Body: KOMODO Double Cab lexan (clear, requires paint)
-
Motor Compatibility: 540 or 550-size brushed crawler motor
-
Vehicle Type: Rock Crawler / Scale SUV / Double-Cab Pickup
-
Assembly Required: Yes
What's Included
- (1) Gmade GS02F KOMODO Double Cab TS Scale Crawler Kit
- Steel ladder-frame chassis components and inner fenders
- KOMODO Double Cab lexan body (clear) with detail accessories
- GA44 front and rear axles with zero-Ackerman steering and CVA
- 2-speed HI/LO transmission with all-metal internal gears
- Hardened carbon steel universal driveshafts
- SD Scaler aluminum oil-filled coil-over shock absorbers
- Suspension links, mounting brackets, and adjustable body posts
- Adjustable battery tray and motor mount
- Complete assembly hardware and instruction manual
Needed to Complete
- 540 or 550-size brushed crawler motor
- Crawler-rated Electronic Speed Controller (ESC)
- High-torque steering servo
- 2-channel radio system (transmitter and receiver)
- Battery (LiPo or NiMH) and compatible charger
- 1.9" wheels and tires
- Polycarbonate paint and finishing supplies
- AA batteries for the transmitter
- Hobby tools for assembly (hex drivers, body scissors, threadlock, shock oil)
Summary
Build the iconic KOMODO Double Cab with the genuine Gmade GS02F KOMODO Double Cab TS Scale Crawler Kit — classic four-door SUV styling, GA44 metal axles, and a 2-speed full-time 4WD transmission combine for proven crawler performance and authentic scale presence.
