Description
Overview

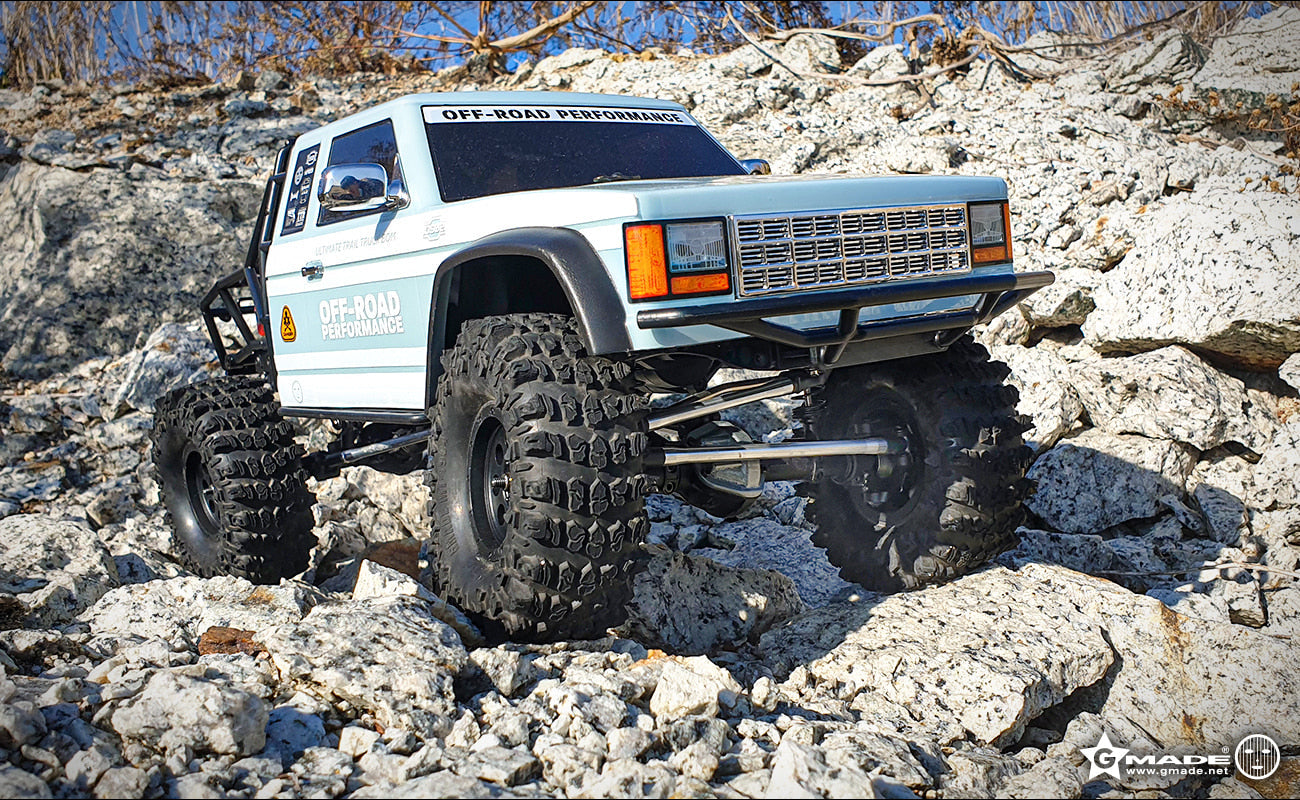

The Gmade GS02F BOM TC (GM57011) is a high-performance 1/10 scale 4WD off-road rock crawler assembly kit featuring Gmade's proven GS02F steel ladder-frame chassis paired with a unique rear cantilever suspension system. The TC (Trail Competition) designation reflects this kit's competition-focused tuning — refined geometry, durable internals, and the kind of articulation and stability that excels in scale competition events.
The standout feature is the GS02 BOM rear cantilever suspension, which relocates the shocks for a cleaner flat-bed/full-drop-bed layout, smoother shock motion, and impressive wheel travel. Combined with GA44 metal axles, hardened steel universal joints, an all-metal 2-speed HI/LO transmission with overdrive and Torque Twist Reduce (TTR), and a dual slipper clutch, the BOM TC delivers a precise, predictable feel through the most technical sections of any course.
Topping the kit is the BOM lexan body with hinged rear cage, a dustproof electronic box, and detailed scale accessories — front grille, light buckets, side mirrors, door handles, and rear cage — for an authentic and competition-ready scale truck.
Key Features
- GS02F steel C-channel ladder-frame chassis, powder-coated
- Adjustable wheelbase: 313mm standard, configurable to 324mm
- BOM rear cantilever suspension system for big wheel travel and clean bed layout
- Forward weight balance with front-mounted 540/550 motor
- Chassis-mounted servo with Panhard bar (near-zero bump steer)
- 2-speed HI/LO transmission with all-metal internal gears
- Overdrive front output and Torque Twist Reduce (TTR) drivetrain
- Dual slipper clutch for precise gear protection and tuning
- GA44 metal axles with metal diff lockers, hardened carbon steel CVA, zero-Ackerman steering
- Hardened carbon steel universal driveshafts
- SD Scaler aluminum oil-filled coil-over shocks (3.5mm shafts)
- Hinged BOM lexan body with dustproof electronic box and rear cage
- MT-1904 1.9" M/T off-road tires on NR03 1.9" wheels (12mm hex)
Performance Benefits
- Exceptional rear-axle articulation from cantilever suspension geometry
- Big wheel travel for confident obstacle clearance
- Predictable, competition-ready handling and stability
- Tighter steering radius from overdrive front output
- Reduced torque-twist body roll for cleaner power delivery
- Smooth, consistent damping from oil-filled coil-over shocks
- Strong, durable drivetrain optimized for high-torque crawler motors
- Fully tunable suspension geometry, gearing, and ride height
Usage Notes
Ideal for competitive scale crawling, technical trail driving, and any application where rear articulation and bed-flat layout matter. The kit requires full assembly and is best suited to experienced builders comfortable with gear meshing, cantilever suspension setup, and electronics installation. The included Buffalo body is clear lexan and requires paint and finishing.
Technical Specs
- Brand: Gmade
- Model: GS02F BOM TC (GM57011)
- Scale: 1/10
- Drivetrain: 4WD full-time with 2-speed HI/LO transmission
- Chassis: GS02F steel C-channel ladder frame, powder-coated
- Wheelbase: 313mm (adjustable to 324mm)
- Length / Width / Height: 515mm / 240mm / 226mm
- Ground Clearance: 77mm
- Weight (no electronics): ~1.97 kg
- Axles: GA44 metal axles, front and rear, with metal diff lockers and CVA
- Suspension: Front 4-link, rear cantilever with SD Scaler oil-filled shocks
- Driveshafts: Hardened carbon steel universal joints
- Body: BOM lexan (clear) with hinged rear cage and dustproof electronic box
- Tires: MT-1904 1.9" M/T off-road (121mm tall x 45mm wide)
- Wheels: NR03 1.9" (12mm hex)
- Motor Compatibility: 540 or 550-size brushed crawler motor
- Assembly Required: Yes
What's Included
- (1) Gmade GS02F BOM TC 4WD Rock Crawler Assembly Kit
- Steel ladder-frame chassis components and inner fenders
- GA44 front and rear axles with metal diff lockers and CVA
- 2-speed HI/LO transmission with all-metal internal gears
- Dual slipper clutch and easy-adjust motor mount
- Hardened carbon steel universal driveshafts
- BOM rear cantilever suspension components
- SD Scaler aluminum oil-filled coil-over shocks
- Clear BOM lexan body with hinged rear cage, dustproof electronic box, and accessories (grille, light buckets, mirrors, door handles)
- MT-1904 1.9" tires and NR03 1.9" wheels
- Decals, hardware, and detailed instruction manual
Needed to Complete
- 540 or 550-size brushed crawler motor
- Crawler-rated Electronic Speed Controller (ESC)
- High-torque steering servo
- 2-channel radio system (transmitter and receiver)
- Battery (LiPo or NiMH) and compatible charger
- Polycarbonate paint and finishing supplies
- AA batteries for the transmitter
- Hobby tools for assembly (hex drivers, body scissors, threadlock, shock oil)
Summary
The Gmade GS02F BOM TC Crawler Kit delivers competition-ready scale crawling performance with its unique rear cantilever suspension, proven GS02F ladder-frame chassis, GA44 metal axles, all-metal 2-speed transmission, and detailed BOM lexan body — a complete platform for serious builders.
