Overview

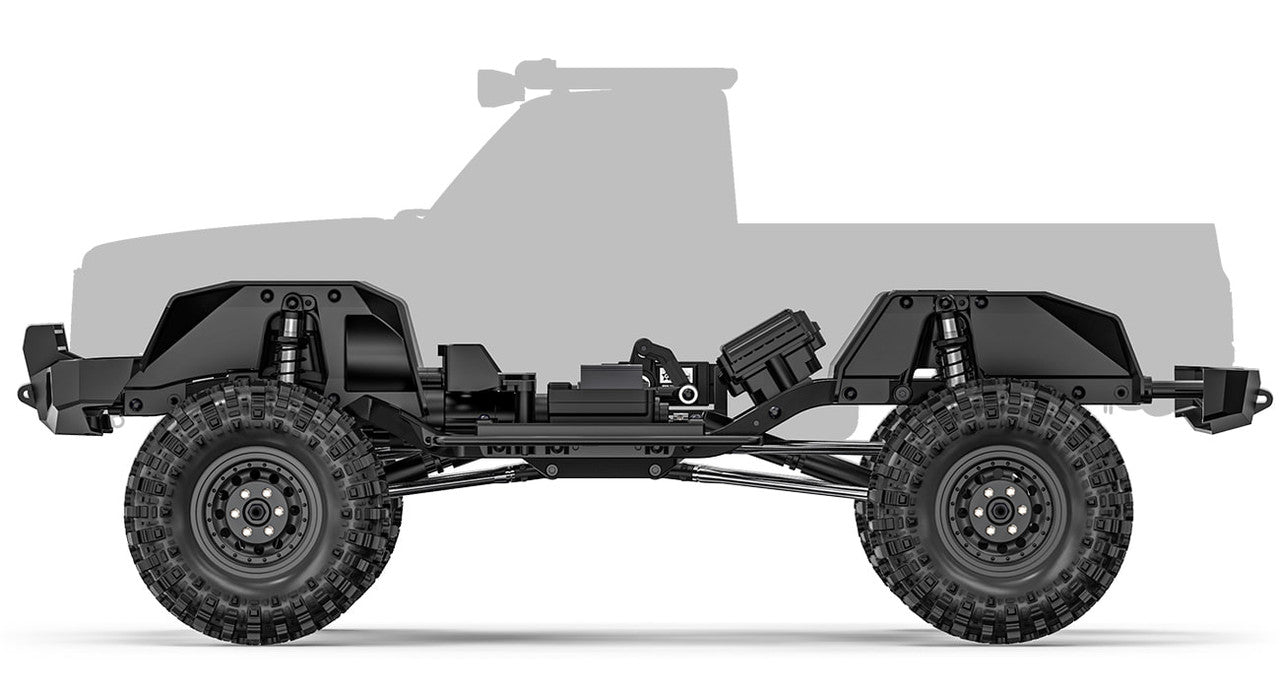

The Gmade GS02F Buffalo Pickup TS (GM57013) is a high-performance 1/10 scale 4WD rock crawler assembly kit built around the proven Gmade GS02F steel ladder-frame chassis and dressed in classic Buffalo Pickup styling. The TS (Trail Series) configuration delivers a refined balance of scale realism, drivetrain durability, and tuning flexibility for serious crawler builders who want an authentic pickup look without compromising trail capability.
This kit pairs the full-time 4WD GS02F drivetrain — including the 2-speed HI/LO transmission, overdrive front output, Torque Twist Reduce (TTR) gearing, and hardened carbon steel U-joints — with GA44 metal axles, SD Scaler aluminum oil-filled shocks, and a chassis-mounted servo with Panhard bar. The result is a rugged, capable scale trail truck that climbs predictably, articulates smoothly, and looks the part on any trail.
Key Features
- 1/10 scale 4WD rock crawler kit with classic Buffalo Pickup body

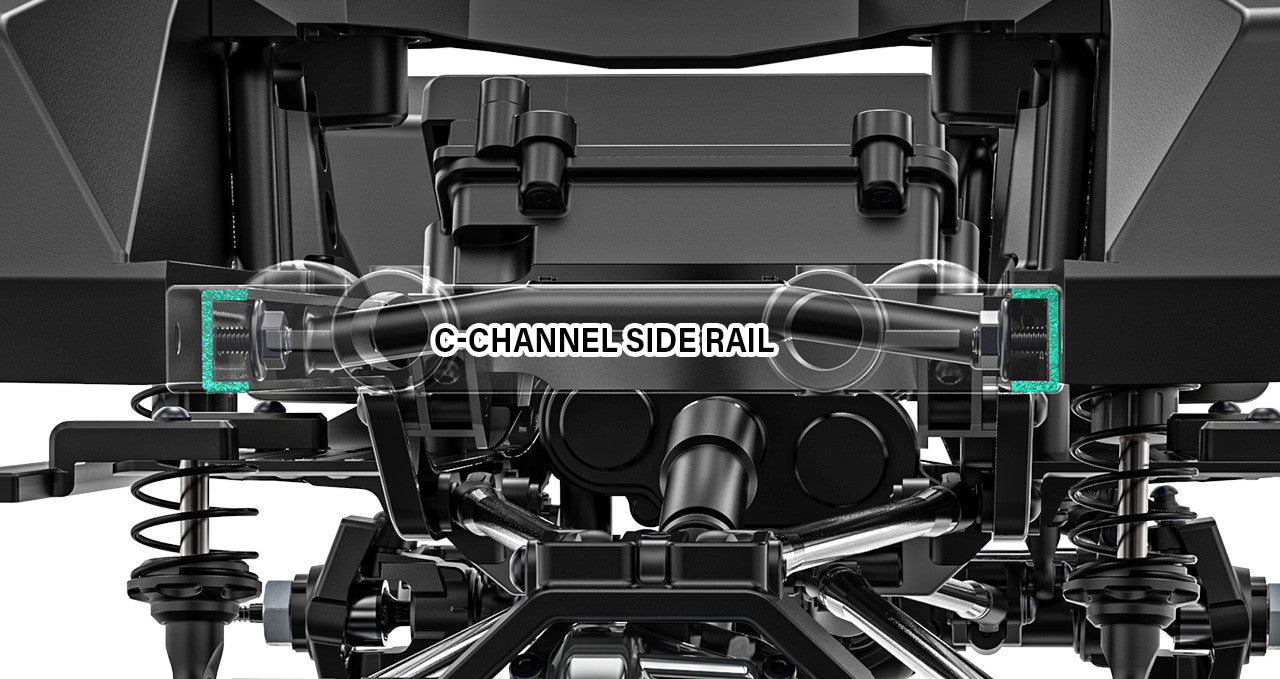

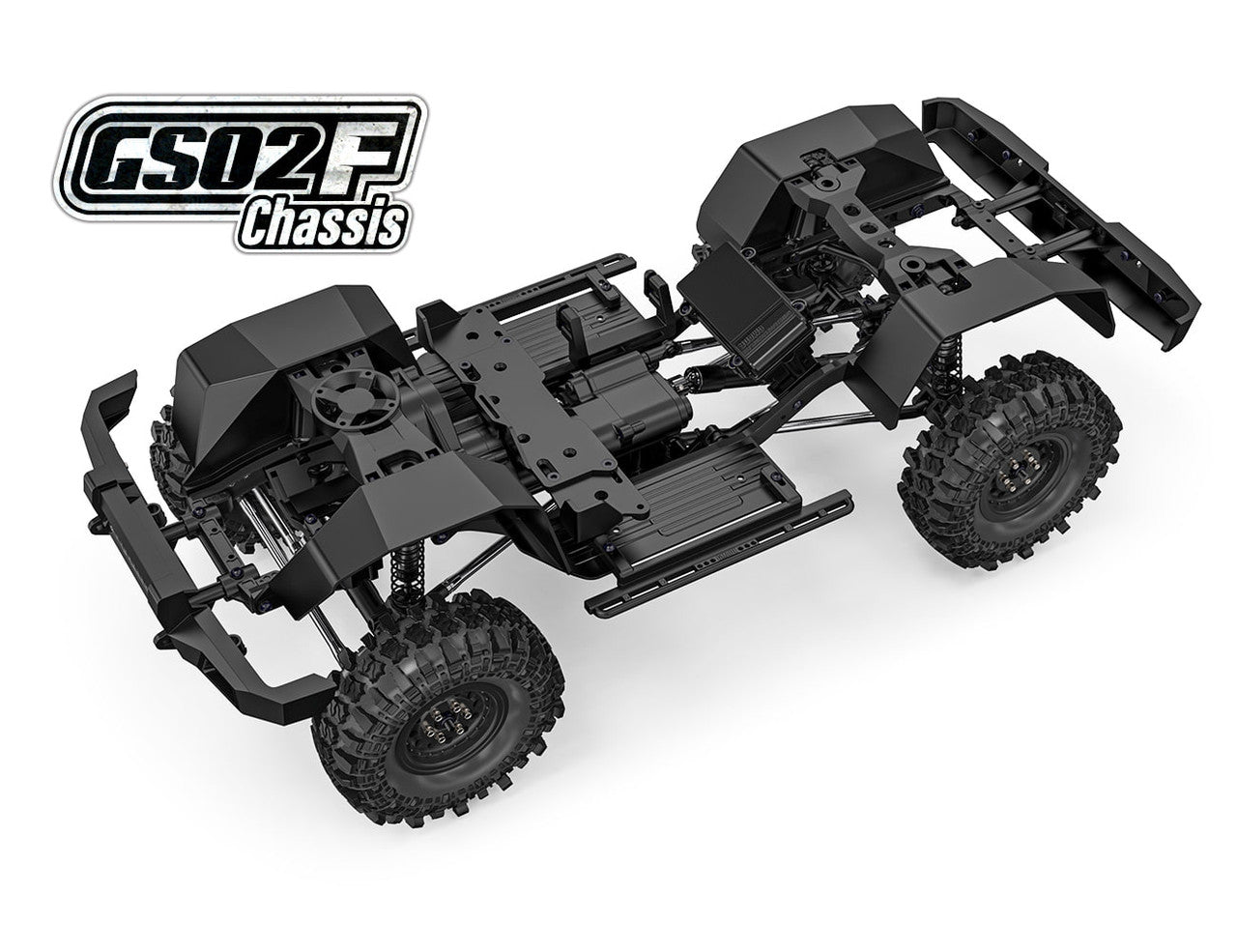

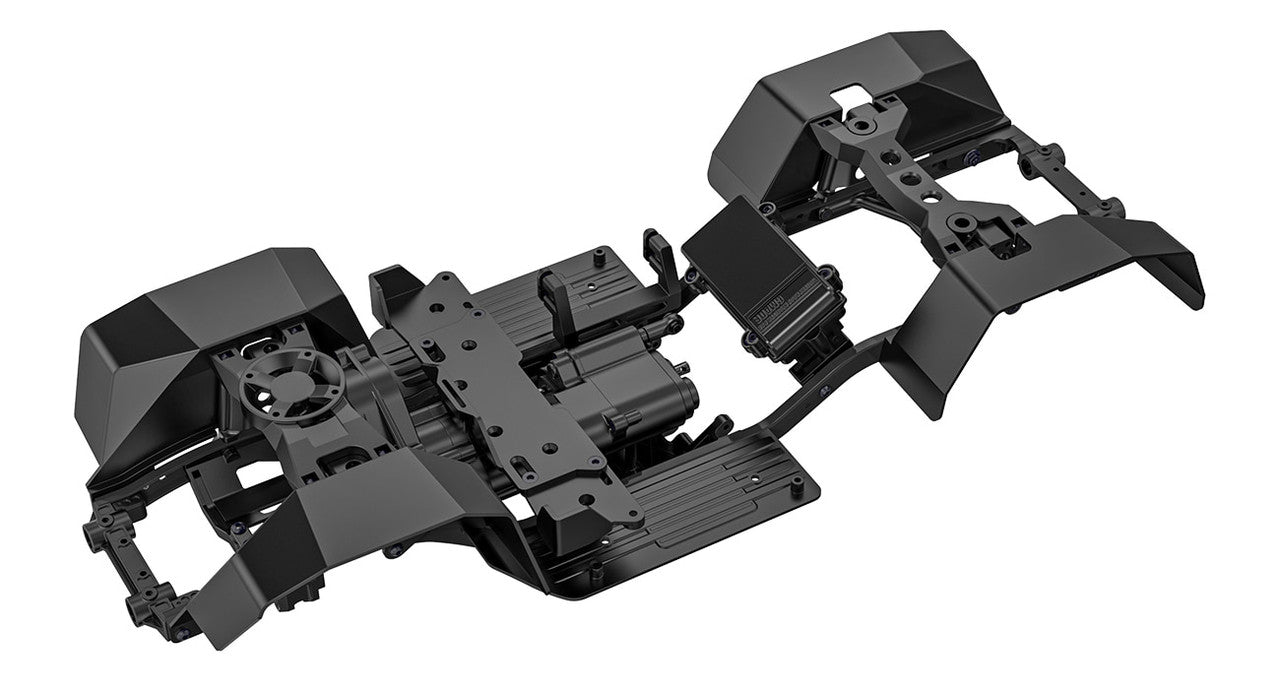

- Steel C-channel GS02F ladder-frame chassis, powder-coated

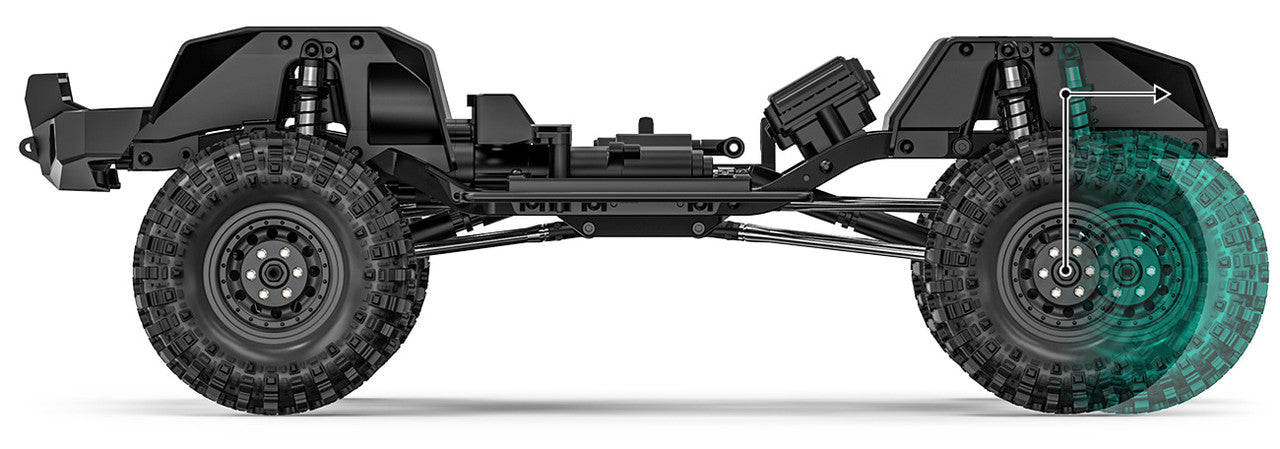

- Adjustable wheelbase (313mm standard, 324mm with optional links)
- Forward weight balance with front-mounted 540/550 motor
- Chassis-mounted servo with Panhard bar (near-zero bump steer)
- 2-speed HI/LO transmission with overdrive front output
- Torque Twist Reduce (TTR) counter-rotating drivetrain
- GA44 metal axles with high-steer knuckle arms, adjustable caster, zero-Ackerman steering
- Hardened carbon steel universal joints
- SD Scaler aluminum oil-filled coil-over shocks (3.5mm shafts)
- Adjustable suspension link mounting positions
- Adjustable body posts and battery tray
Performance Benefits
- Predictable, controlled crawling on technical terrain
- Excellent axle articulation for uneven obstacles
- Balanced, forward-biased weight distribution for stable climbs and descents
- Tunable suspension geometry, ride height, and gear ratio
- Tighter steering radius thanks to overdrive front output
- Reduced torque-twist body roll for cleaner power delivery
- Smooth, consistent damping from oil-filled coil-over shocks
Usage Notes
Ideal for 1/10 scale trail driving, scale competition events, and rock crawling where authentic pickup styling is desired. The kit requires full assembly and is best suited to enthusiasts comfortable with hands-on RC builds — gear meshing, suspension tuning, body painting, and electronics installation. Plan dedicated build sessions to take full advantage of the platform's adjustability and scale detail.
Technical Specs
-
Brand: Gmade
-
Model: GS02F Buffalo Pickup TS (GM57013)
-
Scale: 1/10
-
Drivetrain: 4WD full-time with 2-speed HI/LO transmission
-
Chassis: Steel C-channel ladder frame, powder-coated
-
Wheelbase: 313mm (adjustable to 324mm)
-
Axles: GA44 metal straight axles, front and rear
-
Steering: Chassis-mounted servo with Panhard bar; zero-Ackerman with CVA
-
Suspension: 4-link with SD Scaler aluminum oil-filled coil-over shocks
-
Driveshafts: Hardened carbon steel universal joints
-

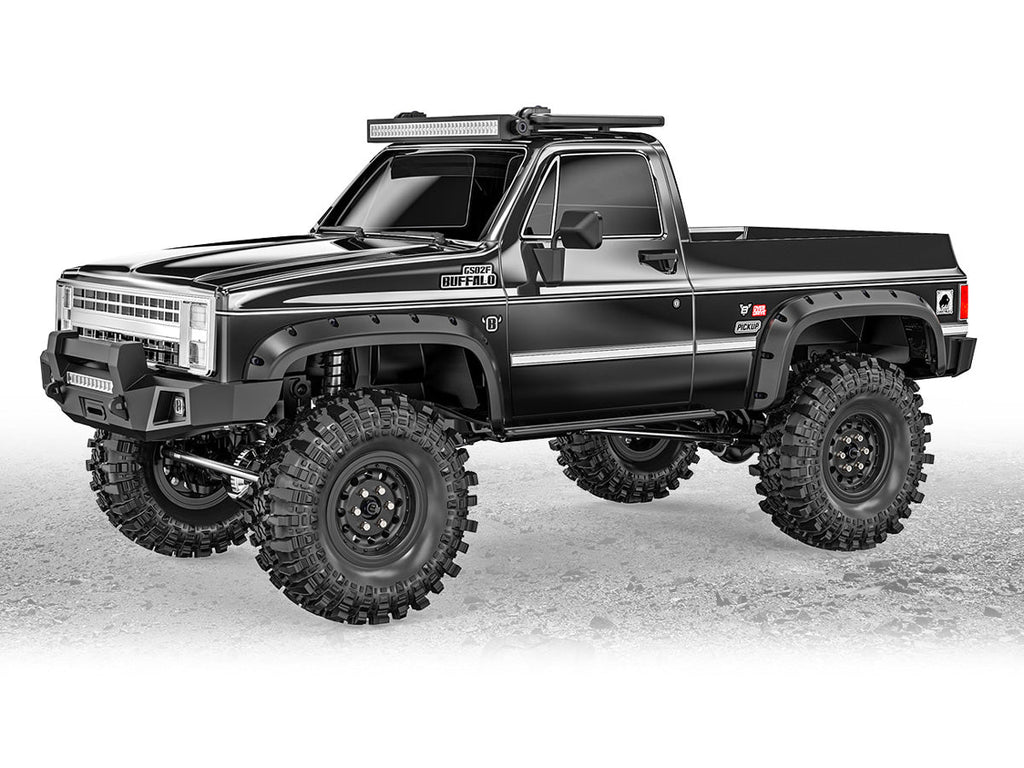

Body: Buffalo Pickup lexan (clear, requires paint)
-
Motor Compatibility: 540 or 550-size brushed crawler motor
-
Vehicle Type: Rock Crawler / Scale Pickup Trail Truck
-
Assembly Required: Yes
What's Included
- (1) Gmade GS02F Buffalo Pickup TS Assembly Kit
- Steel ladder-frame chassis components and inner fenders
- Buffalo Pickup lexan body (clear) with detail accessories
- GA44 front and rear axles with zero-Ackerman steering and CVA
- 2-speed HI/LO transmission with all-metal internal gears
- Hardened carbon steel universal driveshafts
- SD Scaler aluminum oil-filled coil-over shock absorbers
- Suspension links, mounting brackets, and adjustable body posts
- Adjustable battery tray and easy-adjust motor mount
- Complete assembly hardware and instruction manual
Needed to Complete
- 540 or 550-size brushed crawler motor
- Crawler-rated Electronic Speed Controller (ESC)
- High-torque steering servo
- 2-channel radio system (transmitter and receiver)
- Battery (LiPo or NiMH) and compatible charger
- 1.9" wheels and tires
- Polycarbonate paint and finishing supplies
- AA batteries for the transmitter
- Hobby tools for assembly (hex drivers, body scissors, threadlock, shock oil)
Summary
Build the ultimate scale pickup trail truck with the genuine Gmade GS02F Buffalo Pickup TS Crawler Kit — proven GS02F chassis engineering, classic pickup styling, GA44 metal axles, and a 2-speed transmission combine for endless trail capability and authentic scale presence.
