Description
Overview

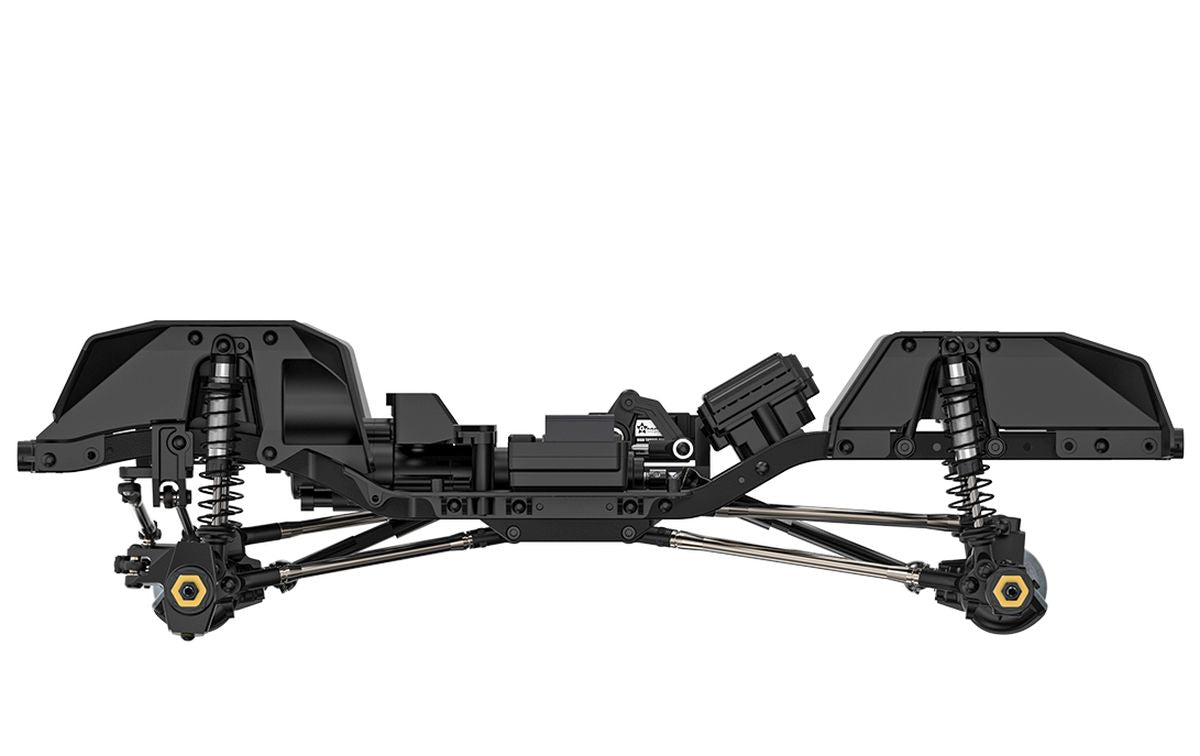

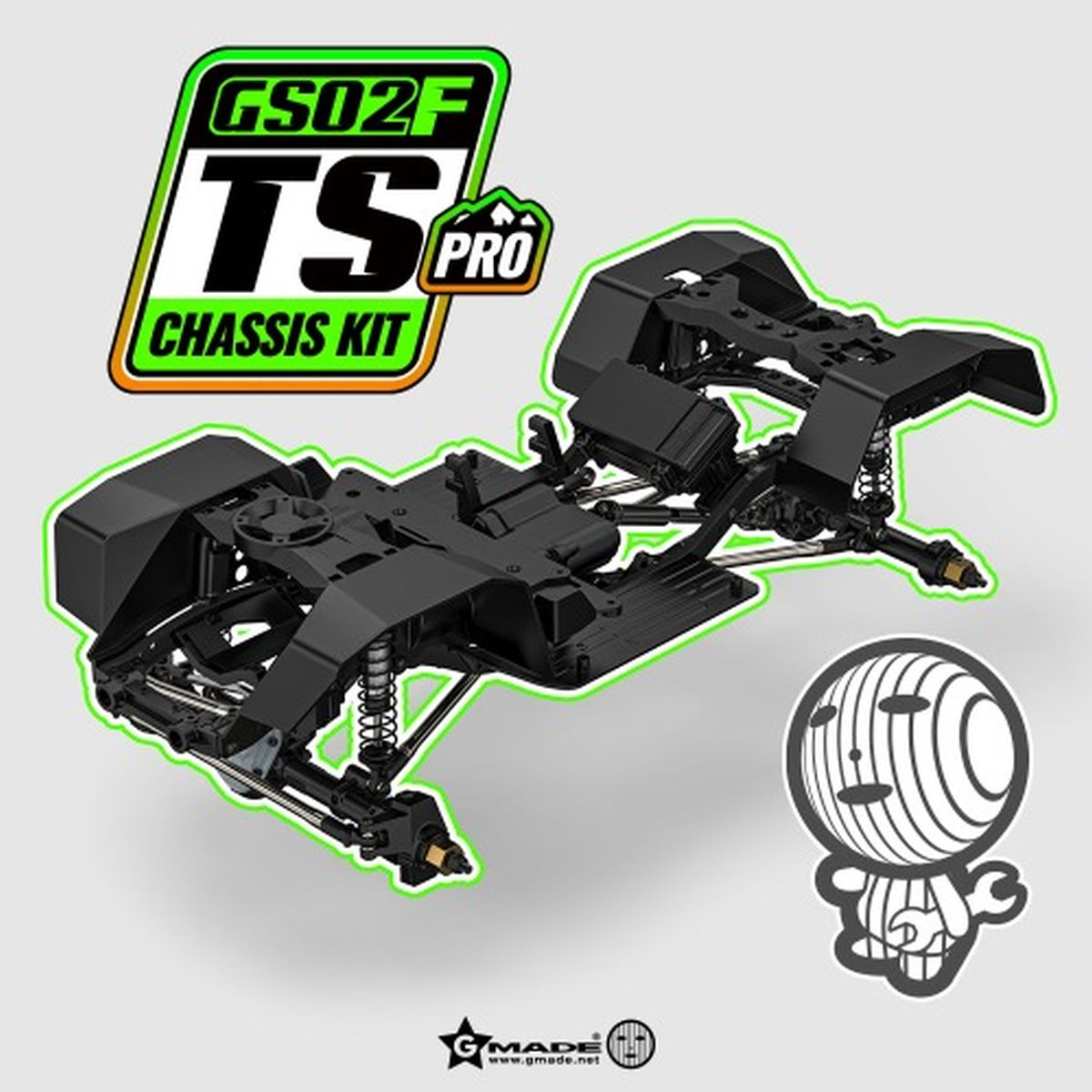

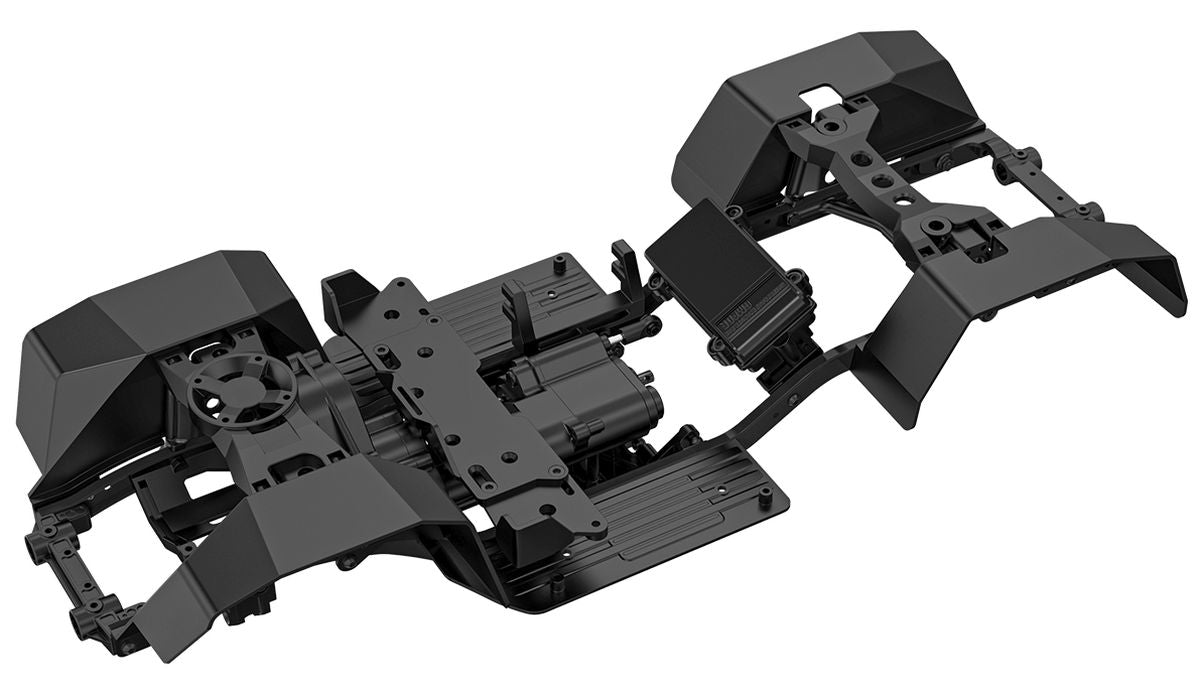

The Gmade GS02F TS Pro (GM57017) is a premium 1/10 scale 4WD rock crawler chassis kit engineered for builders who demand uncompromising realism, durability, and trail performance. Built around Gmade's proven GS02F steel ladder-frame platform, the TS Pro version represents the top-tier configuration of the lineup, incorporating refined geometry, hardened internals, and pro-grade hardware throughout. Its high-strength steel C-channel side rails are bolted with hex cross members and finished in black powder coat to resist twisting, warping, and corrosion under heavy use.
What sets the TS Pro apart is its purposeful weight distribution and serious drivetrain engineering. The forward-biased weight balance and front-mounted 540/550 motor maximize front tire traction for steep climbs, while the chassis-mounted servo with Panhard bar virtually eliminates bump steer. The 2-speed HI/LO transmission with Torque Twist Reduce (TTR) technology and overdrive front output delivers a tighter steering radius, better climbing grip, and remarkable on-trail stability. Hardened carbon steel universal joints, GA44 axles with zero-Ackerman steering, and SD Scaler oil-filled shocks round out a drivetrain and suspension package built for serious crawling.
Whether you are building a dedicated competition rig or a detailed scale trail truck, the TS Pro provides the rugged, tunable foundation that experienced builders rely on. Adjustable wheelbase (313mm / 324mm), multiple battery tray positions, and a wide aftermarket support ecosystem make this kit an outstanding long-term platform.
Key Features
- High-strength steel C-channel ladder-frame chassis with powder-coated finish
- Realistic inner fenders fixed directly to the frame to reduce flex and block debris
- Adjustable wheelbase: 313mm standard, configurable to 324mm with optional links

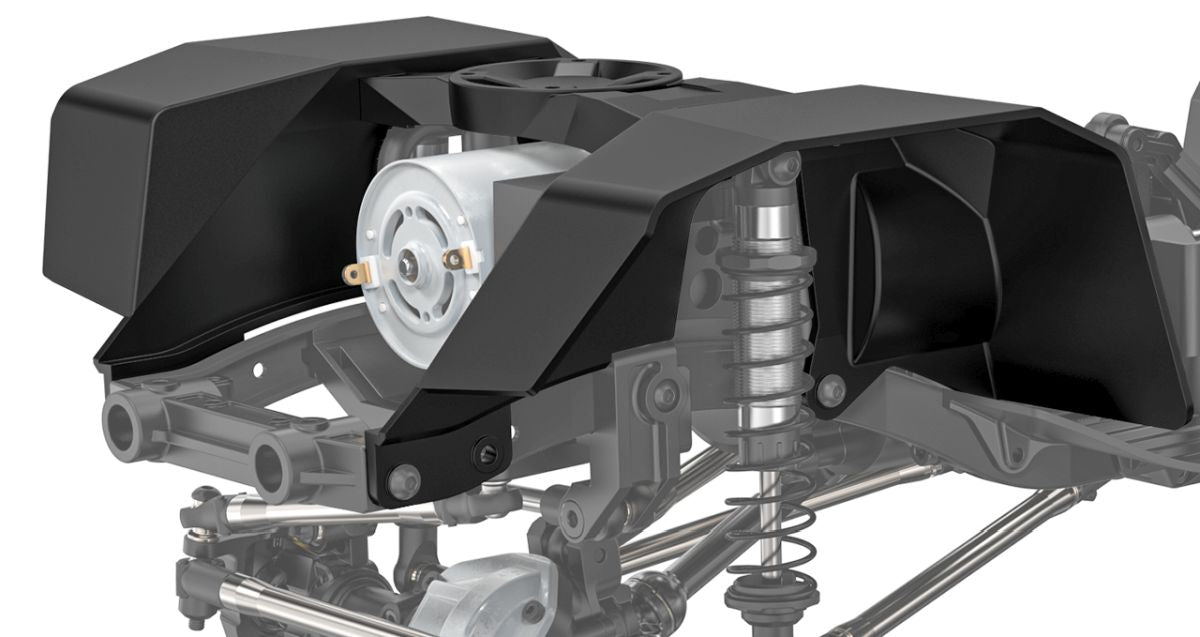

- Forward-biased weight distribution with front-mounted 540/550 motor for superior climbing traction
- Chassis-mounted servo with Panhard bar for near-zero bump steer
- 2-speed HI/LO transmission (1st for crawling, 2nd for hill climbs and high-speed running)
- Overdrive front output for tighter steering radius and improved climbing
- Torque Twist Reduce (TTR) transmission with counter-rotating shafts for stability
- Hardened carbon steel universal joints with included spare-length shafts
- GA44 metal axles with high-steer knuckle arms, adjustable caster, and zero-Ackerman steering
- SD Scaler aluminum coil-over oil shocks with 3.5mm heavy-duty shock shafts
- Easy-adjust motor mount for fast pinion gear changes
- Multiple battery tray positions accommodating LiPo and NiMH packs
Performance Benefits
- Predictable, controlled crawling on technical, high-angle terrain
- Superior front-tire traction for steep ascents and tilted obstacles
- Tighter steering radius thanks to front-axle overdrive
- Outstanding axle articulation across uneven and broken surfaces
- Reduced rollover risk during steep climbs from forward weight bias
- Smooth, consistent damping from oil-filled coil-over shocks
- Stable power delivery with minimal torque-twist body roll
- Fully tunable suspension geometry, ride height, and gear ratio
Usage Notes
The TS Pro is purpose-built for 1/10 scale technical rock crawling, scale trail driving, and competition events. The kit requires full assembly and is best suited to hobbyists comfortable with hands-on RC builds, gear meshing, suspension tuning, and electronics installation. Plan an evening or two of careful assembly to take full advantage of the platform's adjustability. While the chassis comes ready to accept a wide range of bodies, the included hardware is optimized for scale-style builds with realistic ride heights and stance.
Technical Specs
- Brand: Gmade
- Model: GS02F TS Pro (GM57017)
- Scale: 1/10
- Drivetrain: 4WD full-time with 2-speed HI/LO transmission
- Chassis: High-strength steel C-channel ladder frame, powder-coated
- Wheelbase: 313mm (adjustable to 324mm)
- Axles: GA44 metal straight axles, front and rear
- Steering: Chassis-mounted servo with Panhard bar; zero-Ackerman with CVA
- Suspension: 4-link with SD Scaler aluminum oil-filled coil-over shocks
- Driveshafts: Hardened carbon steel universal joints
- Motor Compatibility: 540 or 550-size brushed crawler motor
- Vehicle Type: Rock Crawler / Scale Trail Truck
- Assembly Required: Yes
What's Included
- (1) Gmade GS02F TS Pro 1/10 scale chassis kit
- Steel C-channel ladder-frame rails with cross members and hardware
- Inner fender panels
- Assembled 2-speed HI/LO transmission with all-metal internal gears
- GA44 front and rear axles with zero-Ackerman steering and CVA
- SD Scaler aluminum oil-filled coil-over shock absorbers
- Suspension links, mounting brackets, and adjustable body posts
- Hardened carbon steel universal driveshafts (with extra lengths)
- Adjustable battery tray and motor mount
- Complete assembly hardware and detailed instruction manual
Needed to Complete
- 1/10 scale crawler body (polycarbonate or hard body)
- 540 or 550-size brushed crawler motor
- Crawler-rated Electronic Speed Controller (ESC)
- High-torque steering servo
- 2-channel radio system (transmitter and receiver)
- Battery (LiPo or NiMH) and compatible charger
- 1.9" wheels and tires
- Polycarbonate paint and finishing supplies
- AA batteries for the transmitter
- Hobby tools for assembly (hex drivers, pliers, threadlock, shock oil)
Summary
The Gmade GS02F TS Pro Chassis Kit is the definitive starting point for builders who want a realistic, durable, and highly tunable 1/10 scale 4WD rock crawler. With its proven steel ladder-frame chassis, GA44 metal axles, 2-speed transmission with TTR technology, and pro-grade hardware throughout, it delivers the perfect balance of trail capability, scale realism, and custom-build potential.
