Overview

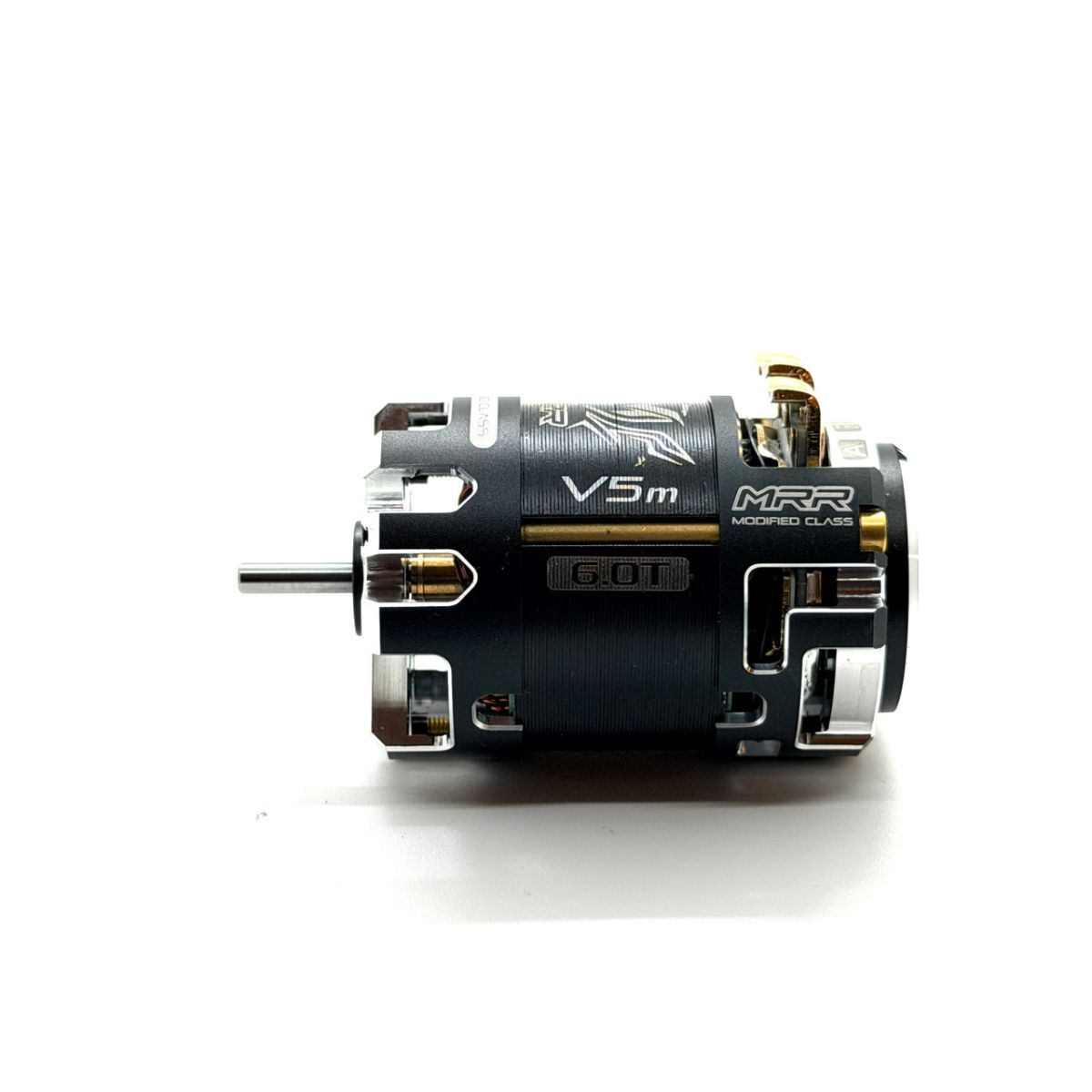

The Maclan Racing MRR V5m 6.0T Sensored Competition Motor is built for racers who need a true modified-class 540 motor, not a warmed-over stock platform. Its dedicated V5m internal architecture, precision-vented can, and optimized sensor system are designed for high-RPM operation where throttle feel, temperature control, and consistency decide the main.
Choose the 6.0T version for smooth even-wind throttle response for high-grip modified setups. The motor uses a 36mm case, 14mm shaft extension, 3.17mm shaft, two-pole layout, and the MCL4503 12.3mm default rotor for 5.5T–9.5T applications.
Key Features
- 6.0T sensored brushless modified competition motor
- Dedicated modified stator engineered for high-RPM efficiency
- V5m-specific sensor unit and internal hardware
- Precision-vented housing to help manage heat during race runs
- Compatible with Maclan tuning rotors for track-specific power delivery
- Manufacturer SKU: HADMCL1113
Performance Benefits
- Delivers sharper throttle response and higher usable RPM for modified racing
- Helps maintain consistent performance through long mains and repeated qualifiers
- Allows racers to tune torque, braking feel, and top-end speed with rotor selection
Usage Notes
- Match motor turn to class rules, gearing, traction level, and ESC capability before running.
- Use a sensored brushless ESC rated for the current draw of modified 1/10 racing.
- Monitor motor temperature after gearing changes and during hot track conditions.
Technical Specs
- Brand: Maclan Racing
- SKU: HADMCL1113
- Type: Electric Motors & ESC's
- Turn: 6.0T
- Case diameter: 36mm
- Shaft: 3.17mm diameter, 14mm extension
- Motor layout: 2-pole sensored brushless
- Default rotor: MCL4503 12.3mm
- Approx. weight: 153g
- Condition: New
Fitment
- Designed for competitive 1/10 RC applications using 540-size sensored brushless motors.
- Verify class rules, gearing, ESC limits, battery voltage, and mounting pattern before installation.
What's Included
- 1 x Maclan Racing MRR V5m 6.0T Sensored Competition Motor
- Factory packaging/documentation when supplied
Summary
Maclan Racing MRR V5m 6.0T gives modified RC racers a purpose-built, ROAR-style competition motor platform with high-RPM power, cooling-focused construction, and real tuning flexibility.
