Overview

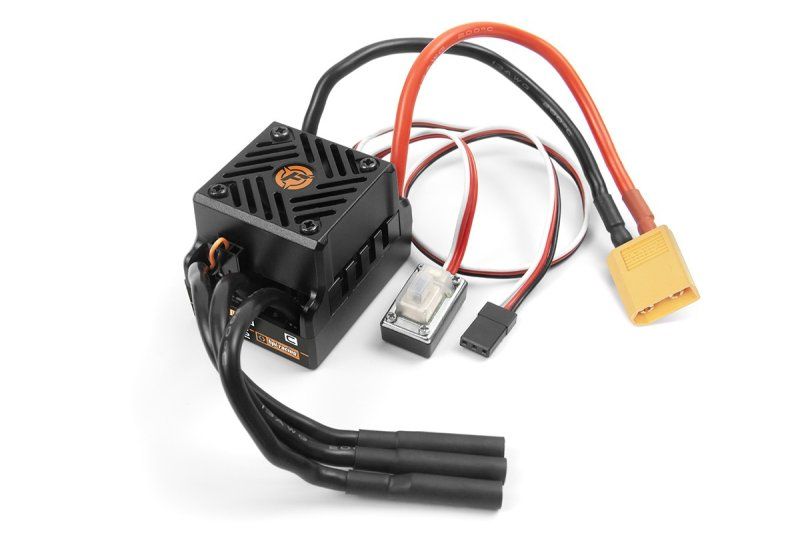

The HPI Racing FLX-10 3S802 Flux ESC is a high-performance, waterproof sensorless brushless electronic speed controller designed for 1/10 scale RC vehicles. Capable of delivering up to 80A continuous current, it provides strong, reliable power for aggressive driving on-road and off-road, while maintaining smooth throttle control and dependable protection features.
Pre-wired with an XT-60 battery connector, it's ready for easy installation and is a perfect match for popular 1/10 brushless motors.
Key Features
- Sensorless brushless ESC
- Designed for 1/10 scale vehicles
- 2-3S LiPo compatible
- 80A continuous current output
- XT-60 battery connector pre-installed
- 4.0mm bullet motor connectors
- Built-in cooling fan under protective shroud
- Over-temperature and low-voltage protection
- Programmable with Hobbywing LED Program Card
- Compact, durable, water-resistant design
Performance Benefits
- Strong, smooth power delivery for buggies, trucks, SC, and touring
- Worry-free running through puddles, mud, and wet terrain
- Active fan cooling manages heat under hard driving
- Built-in safeguards protect motor and ESC during demanding use
Usage Notes
-
Best RC Scale: 1/10 scale buggies, trucks, short-course, and touring cars
- Ideal for HPI 1/10 platforms and brushless conversions
- Verify motor KV against ESC limits before installation
- Programmable via Hobbywing-style LED program card (sold separately)
Technical Specs - ESC
-
Brand: HPI Racing
-
Model: FLX-10 3S802 Flux ESC
-
ESC Type: Sensorless Brushless
-
Input Voltage: 2-3S LiPo (7.4-11.1V)
-
Continuous Current: 80A
-
BEC Output: 6V Switching BEC, 3A
-
Motor Limit (2S): up to 6000KV
-
Motor Limit (3S): up to 3700KV
-
Battery Connector: XT-60 (pre-installed)
-
Motor Connector: 4.0mm bullet
-
Dimensions: 46 x 36.5 x 35.5 mm
-
Waterproof: Yes (water-resistant)
-
Part Number: 160942
What's Included
- (1) HPI Racing FLX-10 3S802 Flux ESC with XT-60
- Integrated cooling fan and wiring
Summary
A waterproof 80A brushless ESC for 1/10 scale on- and off-road - smooth power, robust protection, and easy XT-60 installation in genuine HPI quality.
