Overview

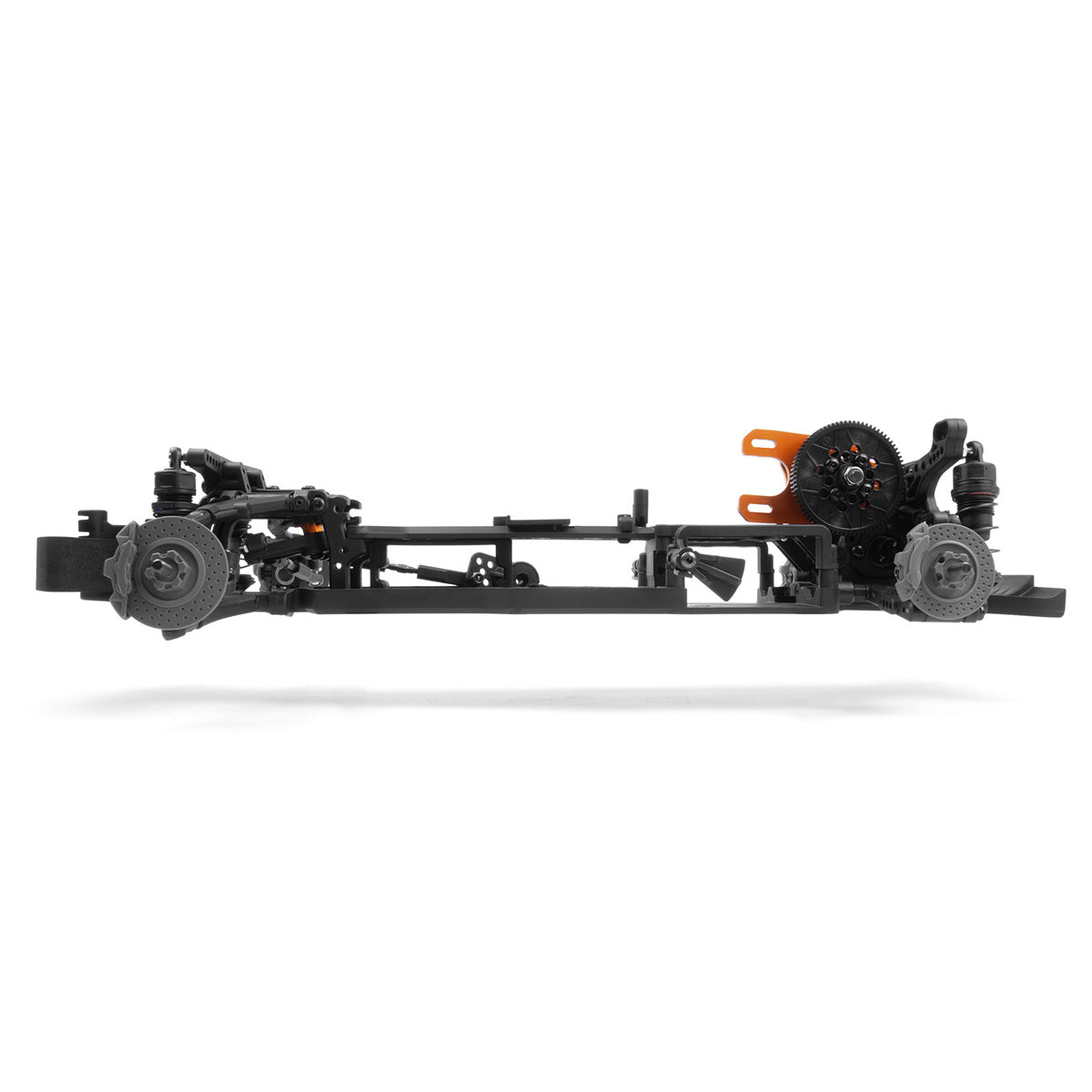

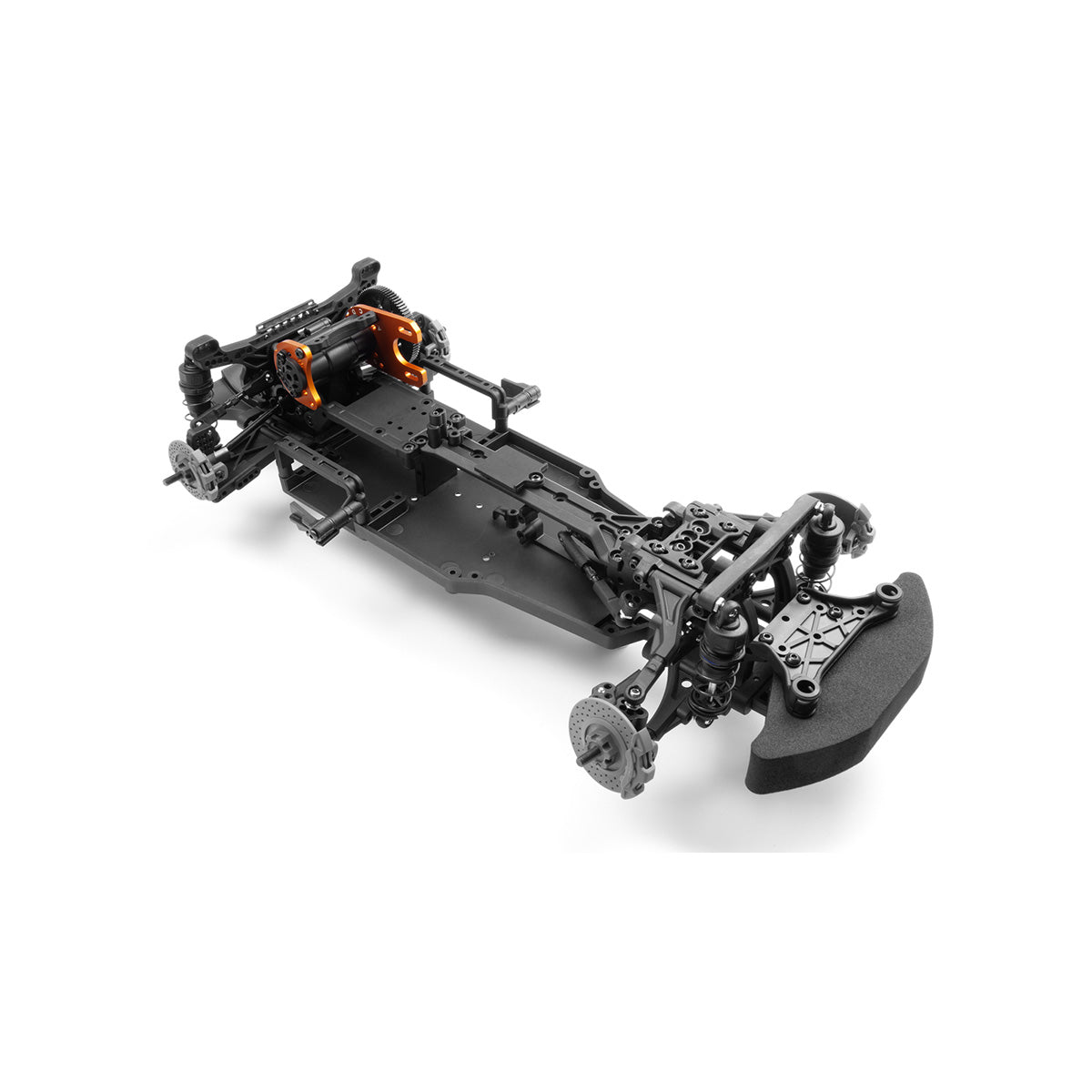

The HPI Stage-D10 Creator Edition is a fully assembled 1/10-scale rear-wheel-drive drift chassis for builders who want to select every visible and electronic component. It provides the core platform without forcing a body, wheel or power-system choice.
The chassis offers adjustable wheelbase, Ackermann, suspension geometry, battery placement and gearbox configuration, plus more than 100 motor locations for major rear weight-distribution changes.
Key Features
- Assembled purpose-built RWD chassis
- 246–264mm adjustable wheelbase
- Three- or four-gear transmission options
- More than 100 motor positions
- Mid or rear shorty-battery mounting
- Threaded oil-filled shocks
- Sealed composite gear differential
- Metal-shielded bearings
Performance Benefits
A broad tuning range lets builders create a balanced street-style drifter or a more competition-focused setup around their preferred electronics and body.
Usage Notes
Choose 1/10 drift components that match the chassis dimensions and power limits. Establish a safe baseline before experimenting with gearbox direction or aggressive steering geometry.
Technical Specs
- Scale: 1/10
- Drive: 2WD rear-wheel drive
- Length: approximately 420mm without body
- Width: approximately 198mm
- Wheelbase: 255mm standard; 246–264mm adjustable
- Internal final drive ratio: 2.6
- Battery type: 2S shorty LiPo format
What’s Included
- Assembled Stage-D10 Creator Edition chassis
- Transmission configuration parts
- Body-mounting options
- Setup parts and instructions
Needed to Complete
- 1/10 drift body
- Compatible wheels and drift tires
- Motor and ESC
- Steering servo
- Drift gyro
- Transmitter and receiver
- 2S shorty LiPo and charger
Summary
A highly adjustable blank-canvas drift chassis for a truly personal Stage-D10 build.
