Overview

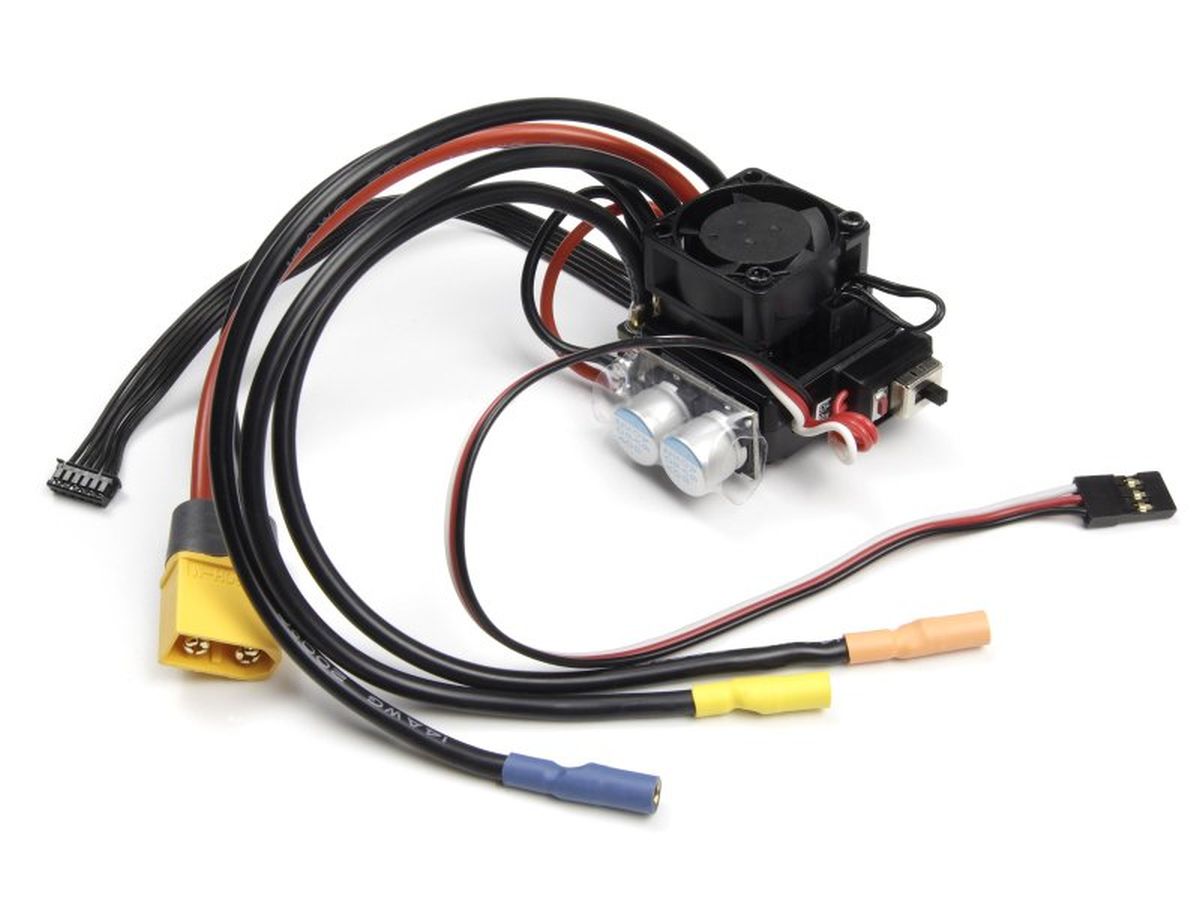

Smooth, precise throttle control is essential for holding speed, balance and angle while drifting. The HPI Racing FLX-D10 80A Sensored Flux ESC (SD-10BL80-RTR-G2) delivers responsive, predictable power for confident drift initiation, controlled transitions and consistent laps.
Rated at 80A continuous and 240A burst, it is designed for 2S LiPo systems using compatible 3650-size sensored brushless motors. A built-in switch-mode BEC provides a stable 6V/4A supply for the receiver and steering servo and also powers the cooling fan.
Key Features
- Sensored brushless operation
- 80A continuous / 240A burst current
- 2S LiPo input
- Switch-mode 6V/4A BEC
- Programmable drag brake, reverse, punch and timing
Performance Benefits
- Smooth low-speed throttle for precise drift control
- Tunable power, braking and timing for your car and track
- Stable BEC voltage for the servo and receiver
Usage Notes
- For 3650-size sensored motors rated 8.5T or higher
- Motor limit 6000KV; 2S LiPo maximum
- Ideal for 1/10 drift cars; also suits touring cars, buggies, rally and F1 cars
- Set the cutoff voltage to suit LiPo batteries
Technical Specs
-
Brand: HPI Racing
-
Item No.: HPI161065
-
Continuous Current: 80A
-
Burst Current: 240A
-
Battery: 2S LiPo
-
Motor Type: Sensored brushless, 3650 size, 8.5T or higher
-
Motor Limit: 6000KV
-
BEC: 6V/4A switching
-
Dimensions: 35.0 x 31 x 30.8mm
What's Included
- (1) HPI Racing FLX-D10 80A Sensored Flux ESC
Fitment
Compatible RC vehicles: HPI Racing Stage-D10 Flux drift cars, and 1/10 drift, touring, buggy, rally and F1 cars running 3650-size sensored brushless motors of 8.5T or higher on 2S LiPo.
Summary
- 80A sensored brushless ESC for 2S LiPo
- 6V/4A BEC with cooling fan supply
- Programmable brake, reverse and timing
- Pairs with the FLX-D10-3650 10.5T motor
