Overview

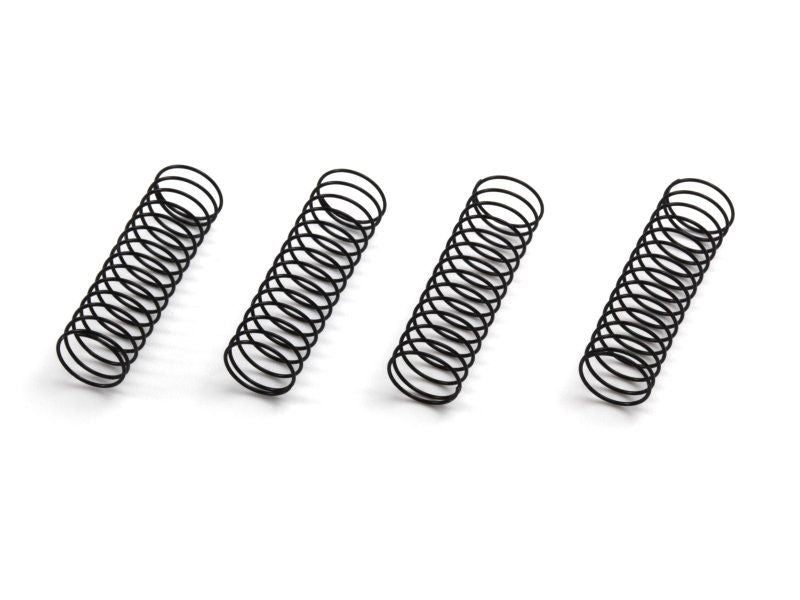

The HPI Racing Shock Spring (Soft) is a precision-wound 13.75-coil spring designed as a direct-fit replacement or tuning option for the HPI Venture18. With a 10mm OD, 33mm length, and 0.5mm wire diameter, this soft-rate spring is ideal for technical crawling, rock work, and slow-speed scale driving where maximum suspension compliance is needed.
Softer springs allow the suspension to articulate more freely over uneven terrain, helping the tires stay in contact with the ground for better traction.
Key Features
- Genuine HPI Racing OEM shock spring
- 10mm OD x 33mm length
- 0.5mm wire diameter
- 13.75 coils
- Soft spring rate
- Direct fit for Venture18 shocks
Performance Benefits
- Maximum suspension compliance for technical terrain
- Improves tire contact and crawling traction
- Allows full articulation over rocks and ledges
- Ideal for slow-speed scale driving
Usage Notes
- Sold individually – install per shock
- Pair with appropriate shock oil weight for soft setup
- Best suited to crawling and trail driving, not high-speed bashing
Technical Specs
-
Type: Shock Spring
-
Outer Diameter: 10mm
-
Free Length: 33mm
-
Wire Diameter: 0.5mm
-
Coil Count: 13.75
-
Rate: Soft
-
Manufacturer: HPI Racing
-
Part Number: 161237
Fitment
- HPI Venture18 (1/18 scale crawler/trail platform)
- Compatible with HPI shocks specifying 10x33mm springs
- Verify part number against your vehicle's manual prior to ordering
What's Included
- (1) HPI Racing 10x33x0.5mm 13.75 Coil Soft Shock Spring
Summary
Maximize crawling traction and articulation with the HPI Racing 10x33x0.5mm Soft Shock Spring – the perfect tuning option for technical Venture18 trail and rock driving.
