Overview
Replace the failure-prone stock plastic steering knuckles on your Axial AX10, Wraith, or XR10 with the Hot Racing 6061 Aluminum Front Steering Knuckles. CNC-milled from 6061 aluminum and finished in black anodizing with CNC-engraved lettering and machined chamfered edges, these knuckles are a major upgrade in both durability and aesthetics over the factory plastic AX80061 components.
Plastic stock steering knuckles are notorious for cracking under impact loads, particularly on hard rock-crawling lines and aggressive trail driving. These aluminum knuckles eliminate that failure point completely, giving you confidence to push your scale crawler harder than ever before.
Key Features
- CNC-milled 6061 aluminum construction
- Black anodized finish with CNC-engraved lettering
- Machined chamfered edges for premium aesthetics
- Direct replacement for Axial AX80061 plastic knuckles
- Replacement brass kingpin bushings available (Hot Racing RAXR21K)
- Total knuckle height: ~36mm
Performance Benefits
- Eliminates the cracking common to stock plastic knuckles
- Survives hard impacts that destroy factory parts
- More consistent steering geometry under load
- Long-lasting durability for aggressive trail and crawler use
Usage Notes
Requires a 2mm hex wrench for installation. Apply removable thread-locker on screws during installation. Replacement brass kingpin bushings are available separately as Hot Racing RAXR21K. Inspect bushings periodically and replace as needed for smooth steering action.
Technical Specs
- Material: CNC-milled 6061 aluminum
- Finish: Black anodized with CNC-engraved lettering and chamfered edges
- Total Height: ~36mm
- Replaces: Axial AX80061 plastic steering knuckles

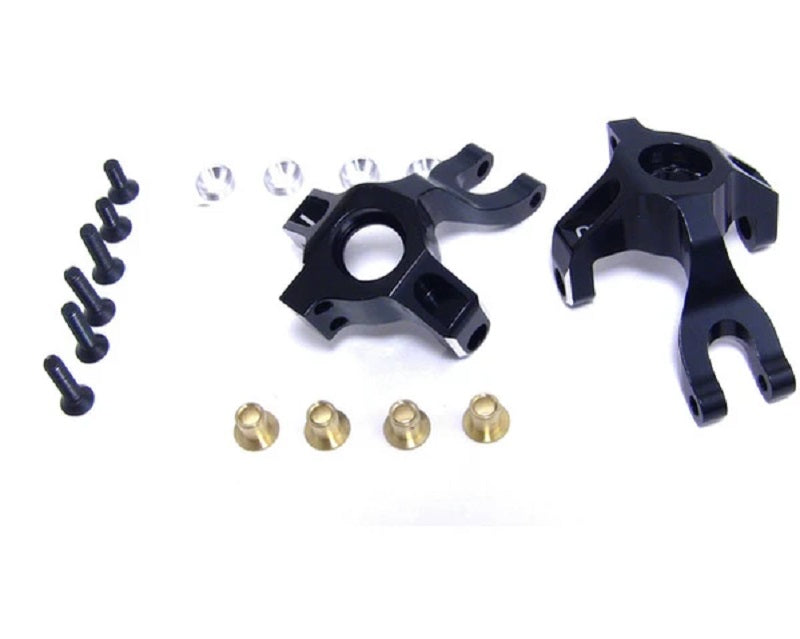

What's Included
- One (1) left front steering knuckle
- One (1) right front steering knuckle
- Two (2) M3x16mm button head cap screws
- Four (4) M3x8mm button head cap screws
- Four (4) M3x12mm flat head cap screws
- Four (4) countersunk washers
- Four (4) brass bushings
Fitment
- Axial AX10 Deadbolt
- Axial AX10 Ridgecrest
- Axial Wraith
- Axial Wraith Spawn
- Axial XR10
- Replaces Axial AX80061 plastic steering knuckles
Summary
The Hot Racing 6061 Aluminum Front Steering Knuckles are an essential, no-compromise upgrade for any serious Axial AX10, Wraith, or XR10 driver. Stronger, better-looking, and built for the long haul — bolt them on and forget about cracked plastic knuckles for good.
