Overview

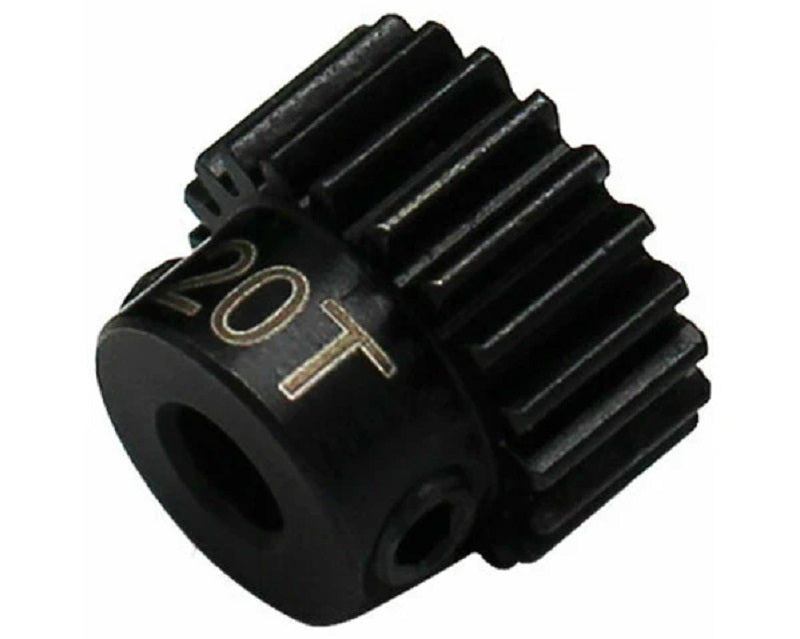

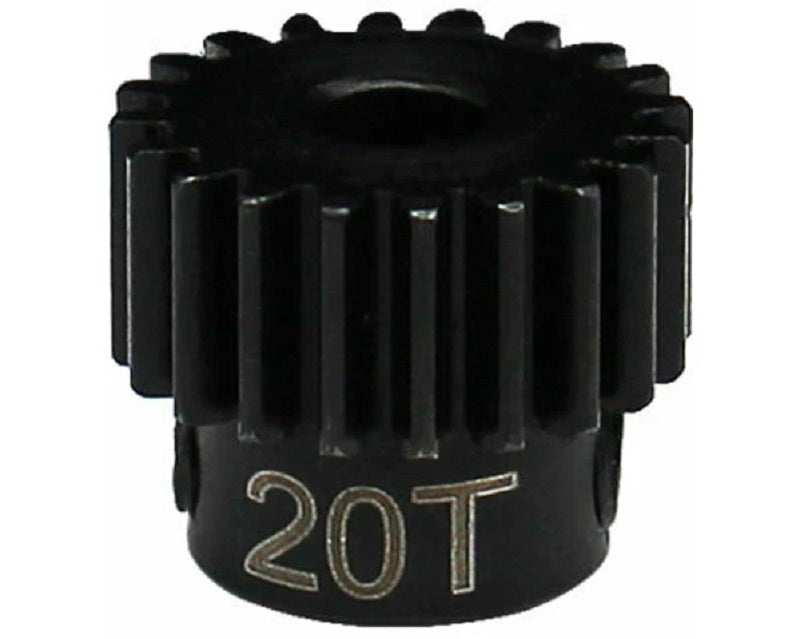

The Hot Racing 20T 0.5 Mod Hardened Steel Pinion Gear is a precision-machined drivetrain upgrade designed to deliver dependable, high-strength power transfer in 0.5 module RC gear systems. The 20-tooth count strikes a versatile balance between acceleration and top-end speed — a smart all-around choice for everyday driving and tuning.
Built from hardened steel with a black protective finish, this pinion outlasts and outperforms soft stock pinions in every way that matters. The 1/8-inch (3.2mm) bore is sized for motors with a 3.2mm output shaft, including the Hot Racing CSG182R08, and pairs cleanly with any 0.5 Mod spur gear.
Key Features
- Hardened steel construction with blackened finish
- 0.5 module (Mod) tooth profile
- 20-tooth count — versatile, all-around gear ratio
- 1/8-inch (3.2mm) bore — fits 3.2mm motor shafts
- Includes 3mm set screw for secure mounting
Performance Benefits
- Far stronger and more durable than soft stock pinions
- Precision-cut teeth for smoother gear mesh
- Balanced acceleration and top-end performance
- Long service life under demanding drivetrain loads
Usage Notes
Designed for the Hot Racing CSG182R08 motor and other motors with a 3.2mm (1/8") output shaft. Verify spur gear pitch is 0.5 Mod before installing. Apply removable thread-locker to the set screw and check gear mesh by hand before powering on.
Technical Specs
- Material: Hardened steel, blackened finish
- Number of Teeth: 20
- Bore Diameter: 1/8 inch (3.2mm)
- Gear Pitch: 0.5 Mod
- Length: 0.35 in (8.9mm)
- Tooth Face Width: 0.20 in (5mm)
- Hub Outer Diameter: 0.32 in (8mm)
What's Included
- One (1) 20T 0.5 Mod pinion gear
- One (1) 3mm set screw
Fitment
- Hot Racing CSG182R08 motor and other motors with a 3.2mm (1/8") output shaft
- RC drivetrains using a 0.5 Mod spur gear
Summary
The Hot Racing 20T 0.5 Mod Hardened Steel Pinion Gear is a precision-machined, hardened-steel pinion that delivers strength, smoothness, and a versatile gear ratio. The right pick for drivers who want reliable, long-lasting performance from their 0.5 Mod drivetrain.
