Overview

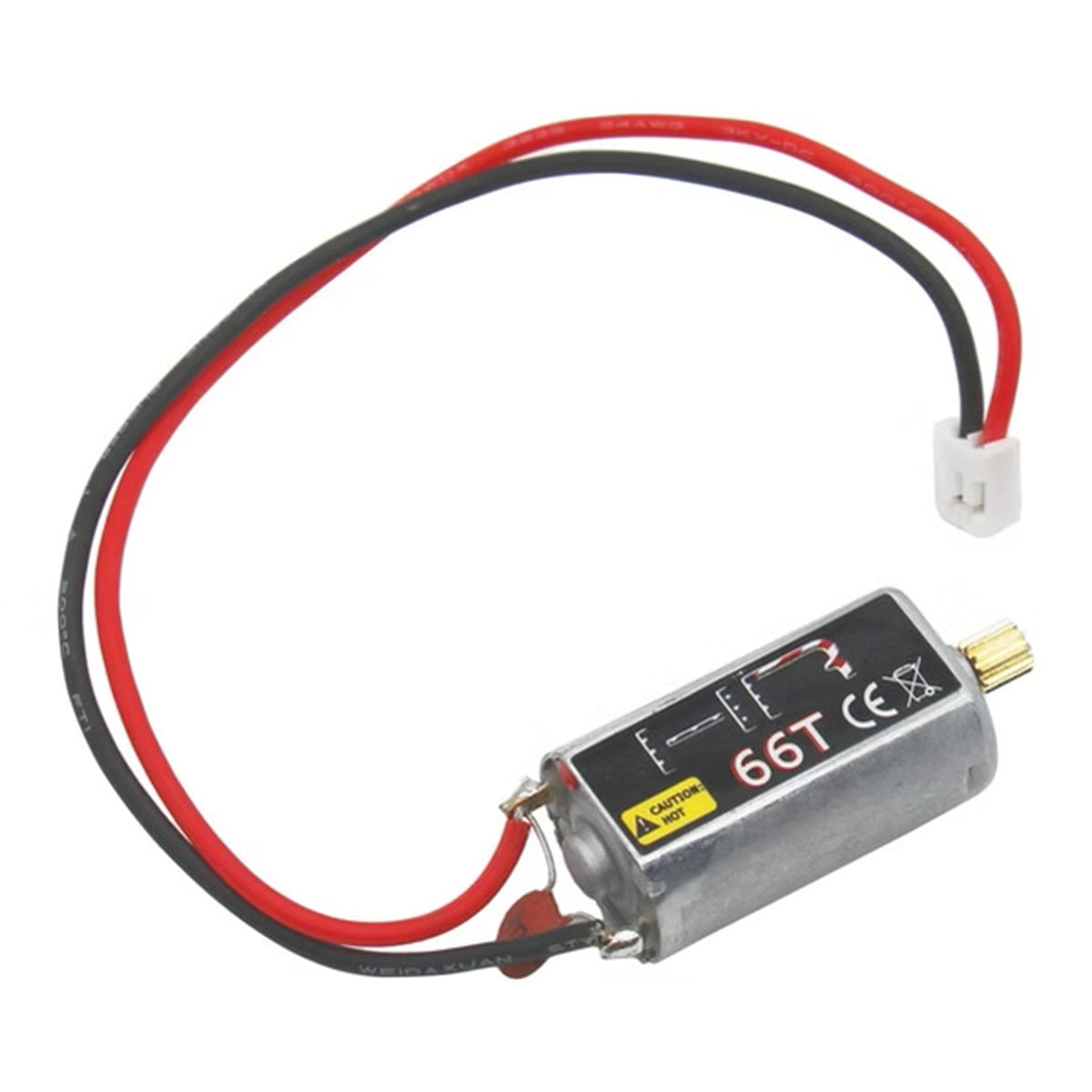

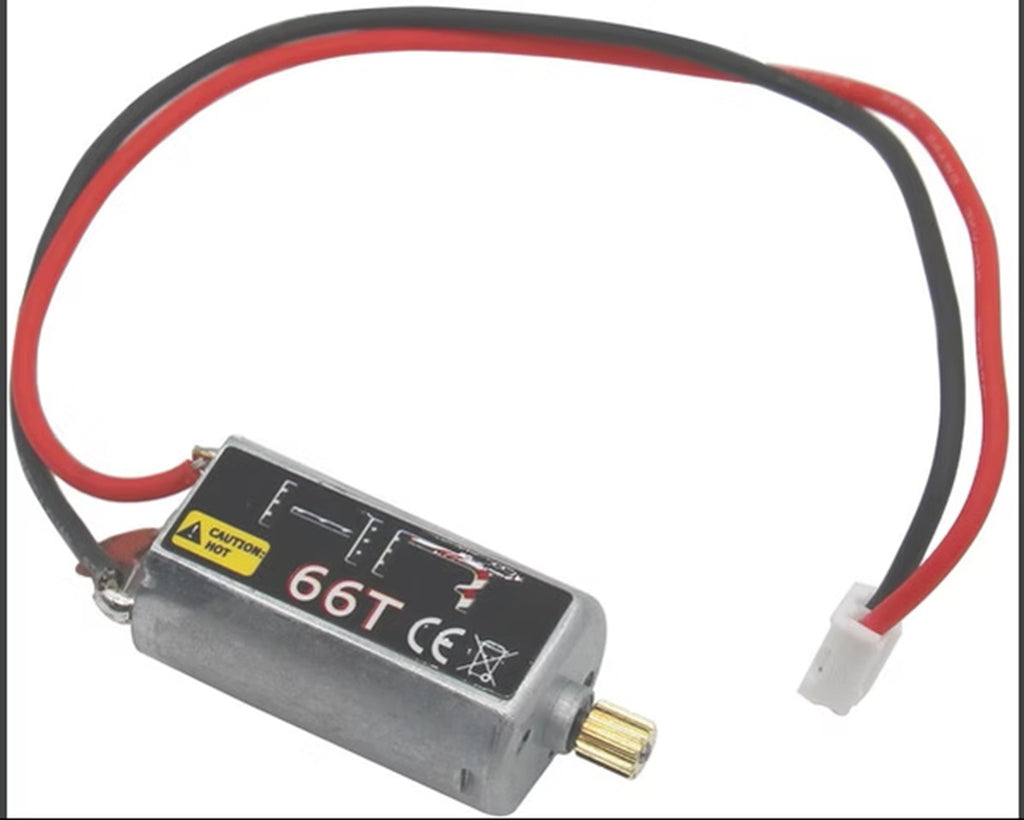

The Hot Racing 66T High-Torque 050 Brushed Motor with 11T Pinion (SXTF50M11) is purpose-built for the Axial SCX24 platform, delivering massive low-end torque and silky-smooth crawling control. The 66-turn winding paired with an 050-size can creates a motor specifically tuned for technical rock crawling, ledge climbing, and trail driving — exactly where stock motors run out of grunt.
Each motor ships with a pre-installed 64-pitch 11-tooth brass pinion gear, making installation a near-bolt-on affair. Note that the longer 050-size can may require a battery mount modification or relocation depending on your specific SCX24 chassis configuration.
Key Features
- 050-size high-torque brushed motor
- 66-turn winding for excellent low-speed control
- Pre-installed 11T brass pinion gear (64 pitch)
- Rated for 7.4V (2S LiPo) operation
- Tuned specifically for rock crawling
- Durable construction for sustained torque output
Performance Benefits
- Far stronger low-end torque than the stock motor
- Smooth, controlled throttle response at crawling speeds
- Better climbing on steep ledges and technical lines
- More consistent power delivery in long crawl sessions
Usage Notes

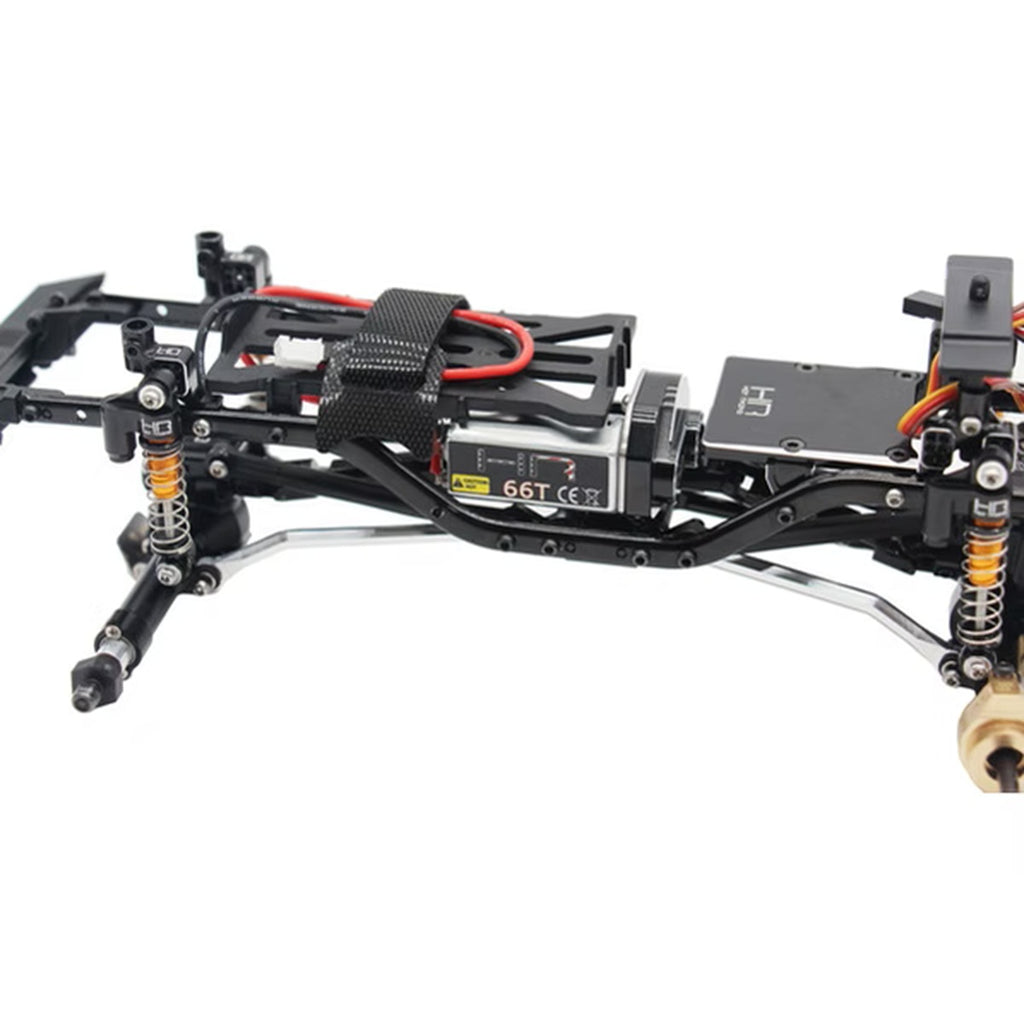

RC Scale: Designed for 1/24 scale Axial SCX24 micro crawlers. Compatible with standard SCX24 brushed ESCs. Due to the 050-size motor's increased length, installation may require a battery mount modification or relocation depending on your specific chassis. Use medium thread-locker on motor mount and pinion screws.
Technical Specs
- Brand: Hot Racing
- Model: SXTF50M11
- Motor Type: Brushed
- Motor Size: 050 can
- Turns: 66T
- Pinion Gear: 11T brass, 64 pitch (pre-installed)
- Rated Voltage: 7.4V (2S LiPo)
- Total Length: 28.5 mm (1.12 in)
- Output Shaft Length: 5.1 mm (0.20 in)
- Output Shaft Diameter: 1.5 mm (0.06 in)
- Weight: 19 g (0.67 oz)
What's Included
- One (1) Hot Racing 66T 050 brushed motor
- One (1) 11T brass pinion gear (pre-installed)
- Motor wires and capacitor
Summary
The Hot Racing 66T High-Torque 050 Brushed Motor is the gold-standard crawling motor upgrade for the Axial SCX24. More torque, smoother throttle, and bulletproof construction — everything you want in a serious crawler motor, with the convenience of a pre-installed pinion gear ready to go.
