Description

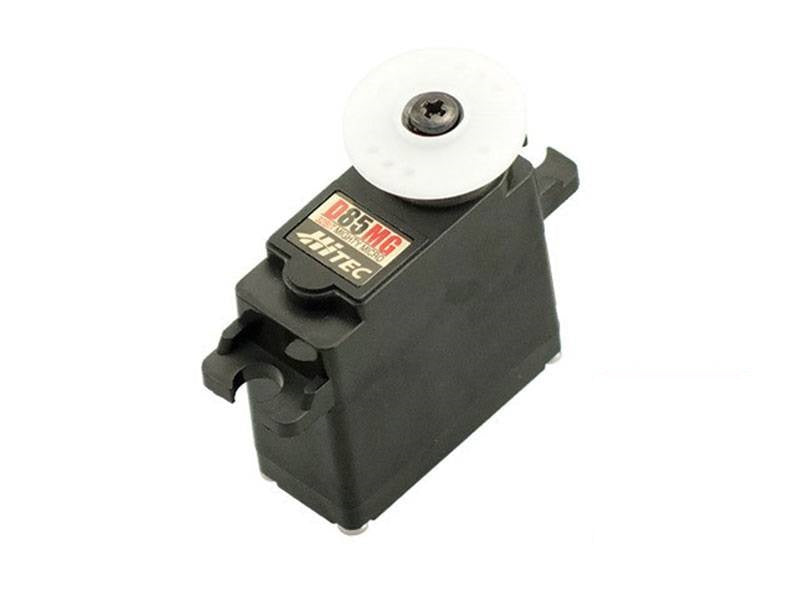

Engineered with state-of-the-art D-Series technology, this "micro but mighty" servo is an upgrade from the popular HS-5085MG. With soft-start enabled circuitry, 4096 high-resolution and a long-life potentiometer, the D85MG allows for smooth and decisive movement and accuracy. Programmable application-specific parameters provide the ultimate in maximum servo performance.
Ideal for 3m gliders; < 40 oz. 3D airplanes; < 70 oz. scale planes and 1/16 or smaller surface vehicles (no internal combustion engines, electric only)
Performance Specifications Operating Voltage Range (Volts DC) 4.8V ~ 6.0V Speed (Second @ 60 degrees) 0.17 ~ 0.13 Maximum Torque Range oz. / in. 50 ~ 60 Maximum Torque Range kg. / cm. 3.6 ~ 4.3 Current Draw at Idle 3 mA No Load Operating Current Draw 290 mA Stall Current Draw 2,150 mA Dead Band Width 2 microsecond

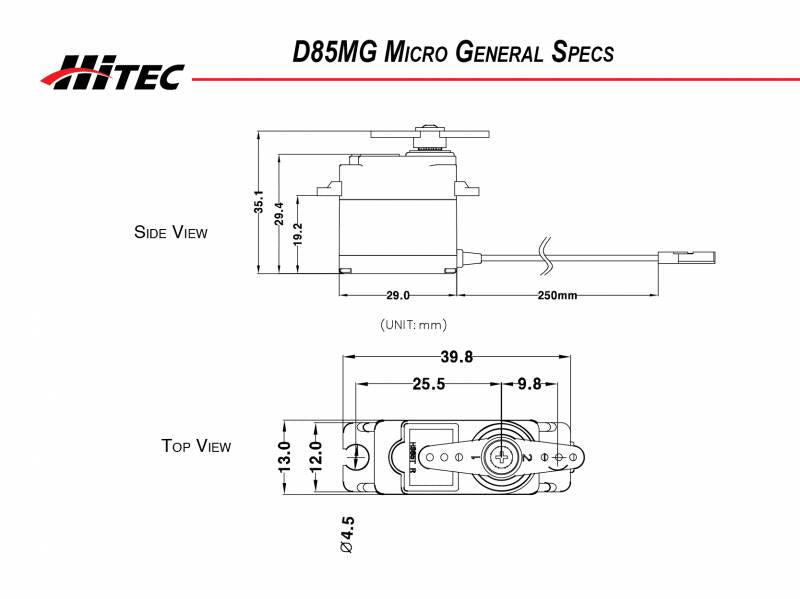

Physical Specifications Dimensions (Inches) 1.14 x 0.51 x 1.18 Dimensions (Metric) 29.0 x 13.0 x 30.0 Weight (Ounces) 0.77 Weight (Gram) 21.9 Circuit Type 32bit Programmable Digital Motor Type 3 Pole Metal Brush Ferrite Gear Material Metal Bearing Type Top Ball Bearing Output Shaft Standard 24 Case Material Plastic Dust / Water Resistance N / A Connector Gauge (AWG) / Strand Count 28 / 20
