Overview

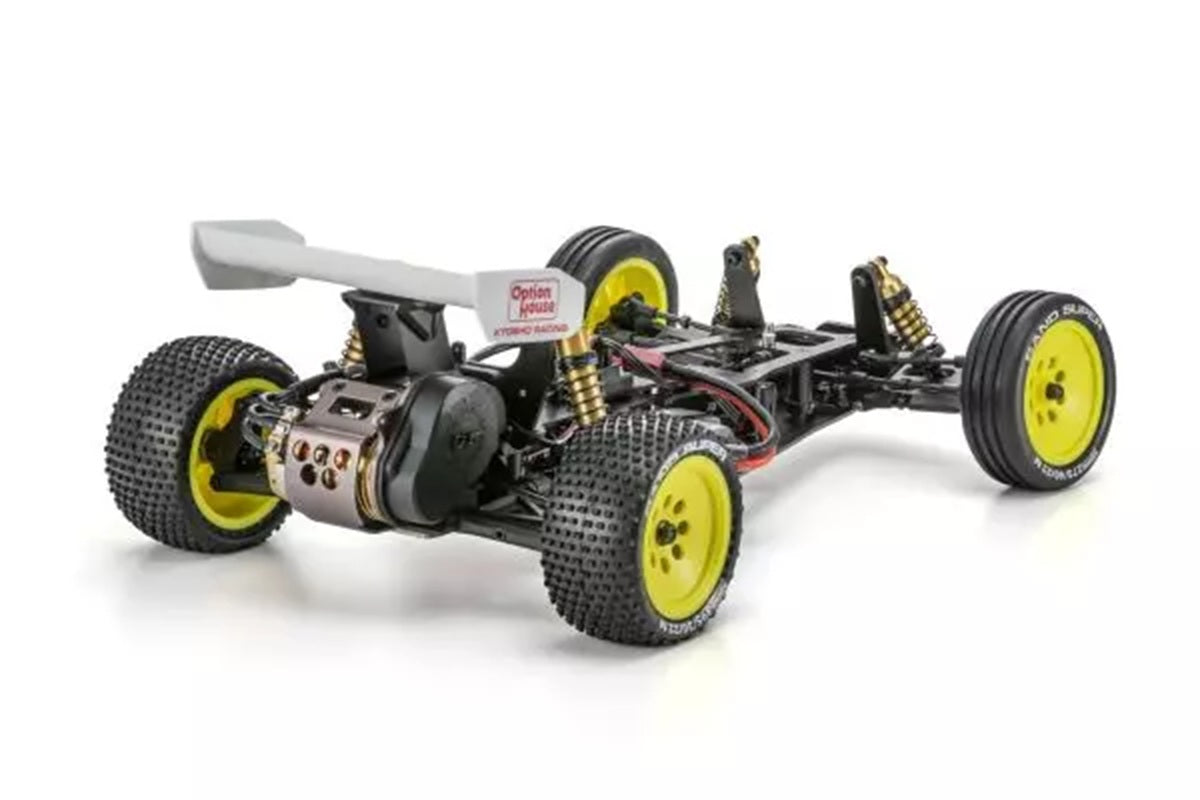

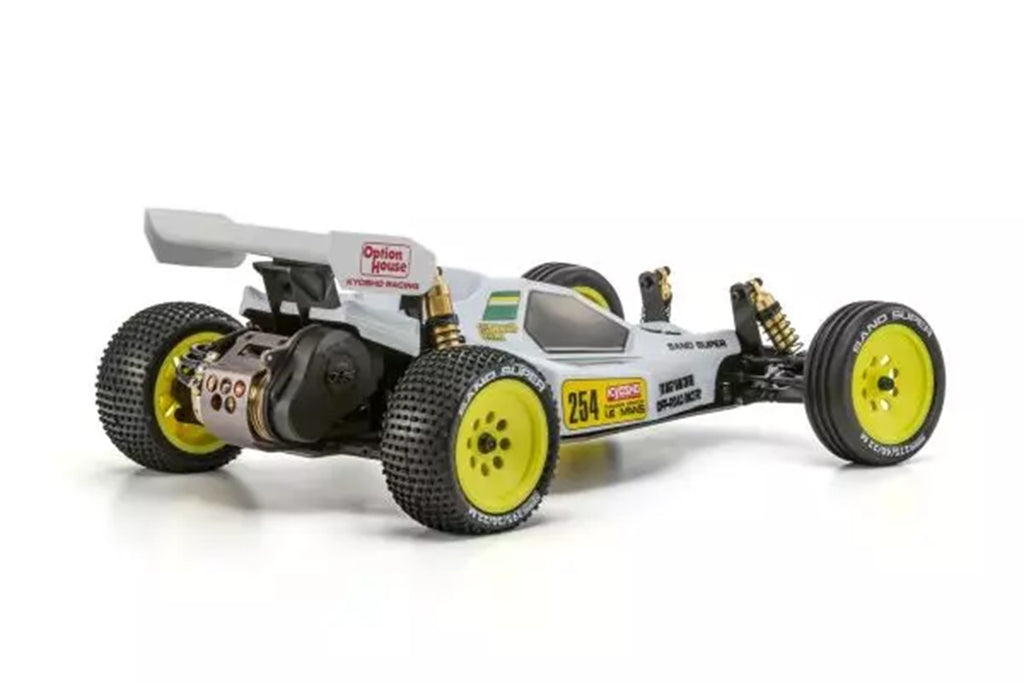

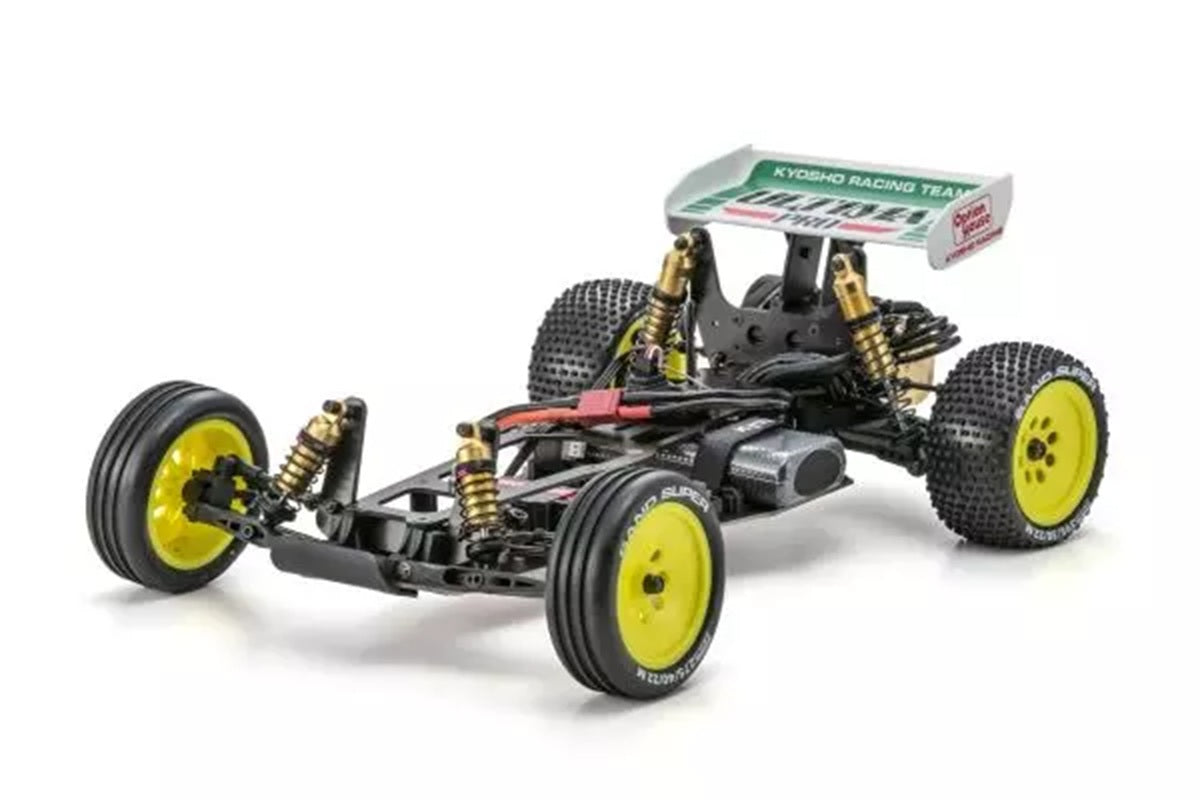

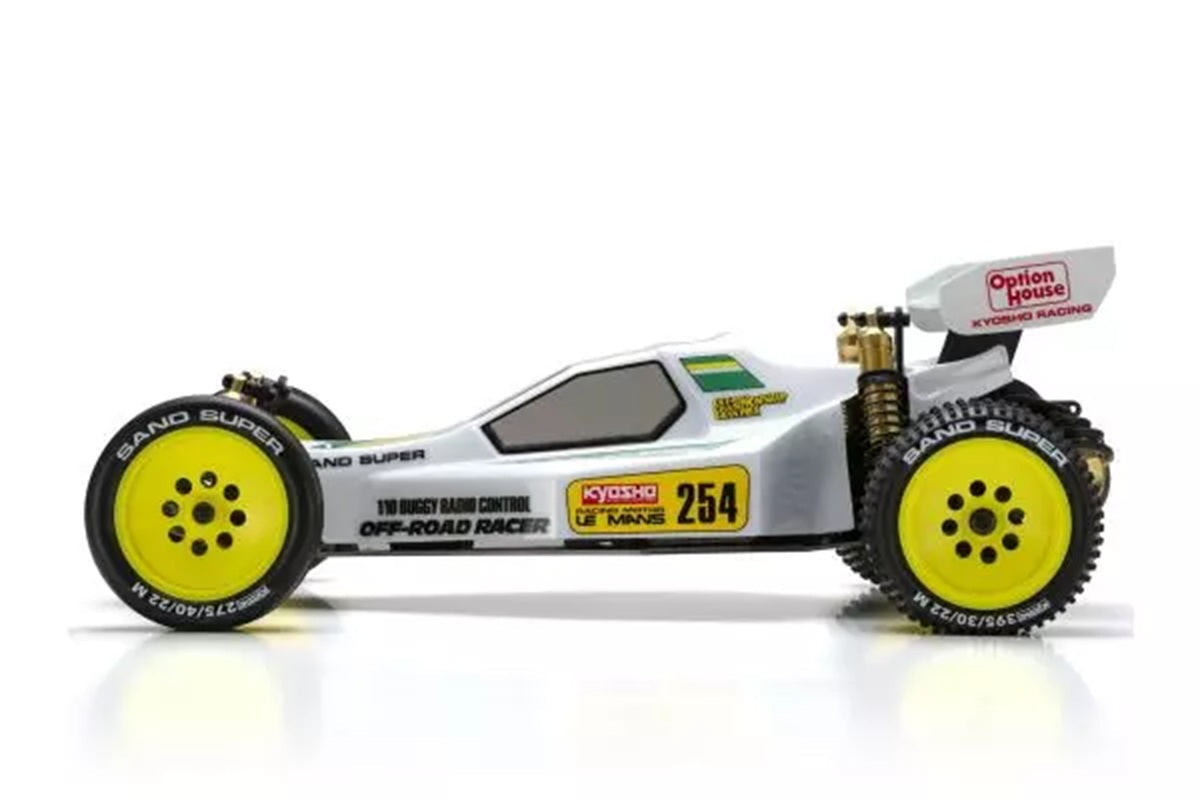

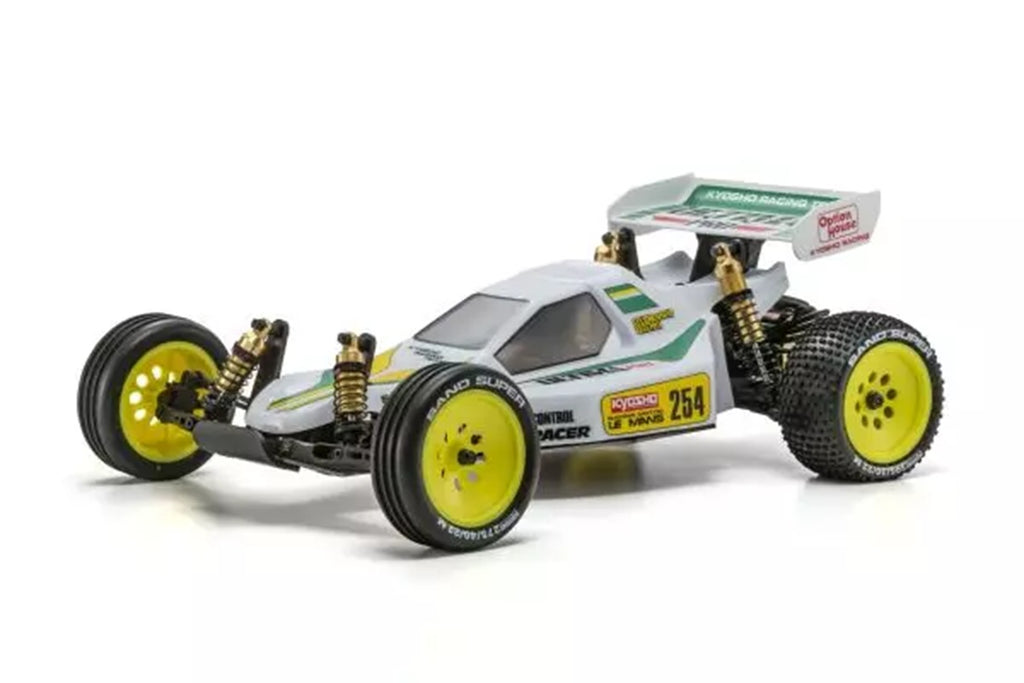

The Kyosho Ultima Pro returns as the 21st release in the Kyosho Vintage Series. This 1/10 scale electric 2WD off-road buggy kit revives the 1988 evolution of the Ultima, the buggy that took a 1-2-3 finish in the 2WD class at the 1987 World Championships.
The reissue blends the early 1988 model with the later long-wheelbase version, adding a wider front track, a 10mm longer wheelbase and practical modern updates while keeping the classic double-deck design.
Key Features
- Revival body molded from the original Ultima Pro mold
- Decals to reproduce the original early-model package color
- 6061 aluminum main chassis with FRP upper deck
- Gold anodized dial-adjustable oil dampers front and rear
- FRP front and rear damper stays exclusive to the Ultima Pro
- Double wishbone suspension with front widened 10mm per side
- Turnbuckle rods for fine camber and toe adjustment
- Full ball bearing specification, including the servo saver
Performance Benefits
- Double-deck chassis balances rigidity and flex
- Longer wheelbase and wider track improve driving stability
- 2.2-inch wheels open up a wide range of tire options
- Rear wheels compatible with Optima series offsets
Usage Notes
- Assembly kit; radio, ESC, motor and battery sold separately
- Supports shorty batteries and vertical battery mounting
- Designed for low-profile servos
- Clear body must be painted before use
Technical Specs
- Brand: Kyosho
- Item No.: KYO30626
- Scale: 1/10
- Drive: 2WD
- Power Source: Electric
- Terrain: Off-Road
- Chassis: 6061 aluminum with FRP upper deck
- Shocks: Gold dial-type oil dampers
- Wheel Size: 2.2-inch
- Assembly Level: Kit
What's Included
- (1) Ultima Pro chassis parts set
- (1) Clear body
- (1) Decal sheet
- (1) Hex wrench set (1.5/2/2.5mm)
- (1) Cross wrench (4/5/5.5/7mm)
- (1) Shock wrench
- (1) #200 damper oil
- (1) Ball differential grease
Needed to Complete
- 2-channel 1-servo car radio system
- ESC
- 540 class motor
- Driving battery
- Charger
- Transmitter batteries
- Polycarbonate body paint
Summary
- Kyosho Vintage Series revival of the legendary Ultima Pro
- Aluminum chassis, FRP deck and gold dial oil shocks
- Wider front track and longer wheelbase for stability
- Classic 1/10 2WD buggy kit for collectors and vintage racing
