Overview
The Kyosho Mini-Z AWD MA-030EVO2 Chassis Set brings the sensored brushless motor system from the flagship RWD MR-04 to the Mini-Z AWD line. It's fast and precise in high-speed grip racing and just as capable in drift.
A separate receiver unit lets you pair it with Kyosho, KO, Futaba or Flysky transmitters. A redesigned speed controller improves low-speed motor response.
Key Features
- Kyosho Speed House XSPEED 85 8500KV sensored brushless motor
- Separate receiver design – works with multiple radio brands
- Full ball bearing drivetrain
- Front mid-ship motor layout for balanced weight distribution
- VCS front suspension with optimized camber control
- Adjustable wheelbase: L (94mm) and LL (98mm)
Performance Benefits
- Smooth, strong sensored brushless power
- Better low-speed control for technical tracks and drift
- Runs brushless or brushed – switchable via I.C.S. Manager
- Six gear ratio options (6.4 to 4.5:1)
Usage Notes
- Chassis set only – requires EVO2-compatible receiver unit and transmitter (sold separately)
- Body, wheels and tires sold separately
- Requires 4 AAA batteries for the chassis
- Kyosho lists 16 ready-to-mount Mini-Z AWD bodies
Technical Specs
-
Brand: Kyosho
-
Item No.: 32181
-
Chassis: Mini-Z AWD MA-030EVO2
-
Motor: XSPEED 85 8500KV sensored brushless
-
Dimensions: 126 x 65 x 34mm
-
Weight: Approx. 135g
-
Wheelbase: 94mm (L) / 98mm (LL)
-
Gear Ratios: 6.4, 6.0, 5.7, 5.3, 5.0, 4.5:1
-
Tire Size: 25.0 x 8.5mm
What's Included

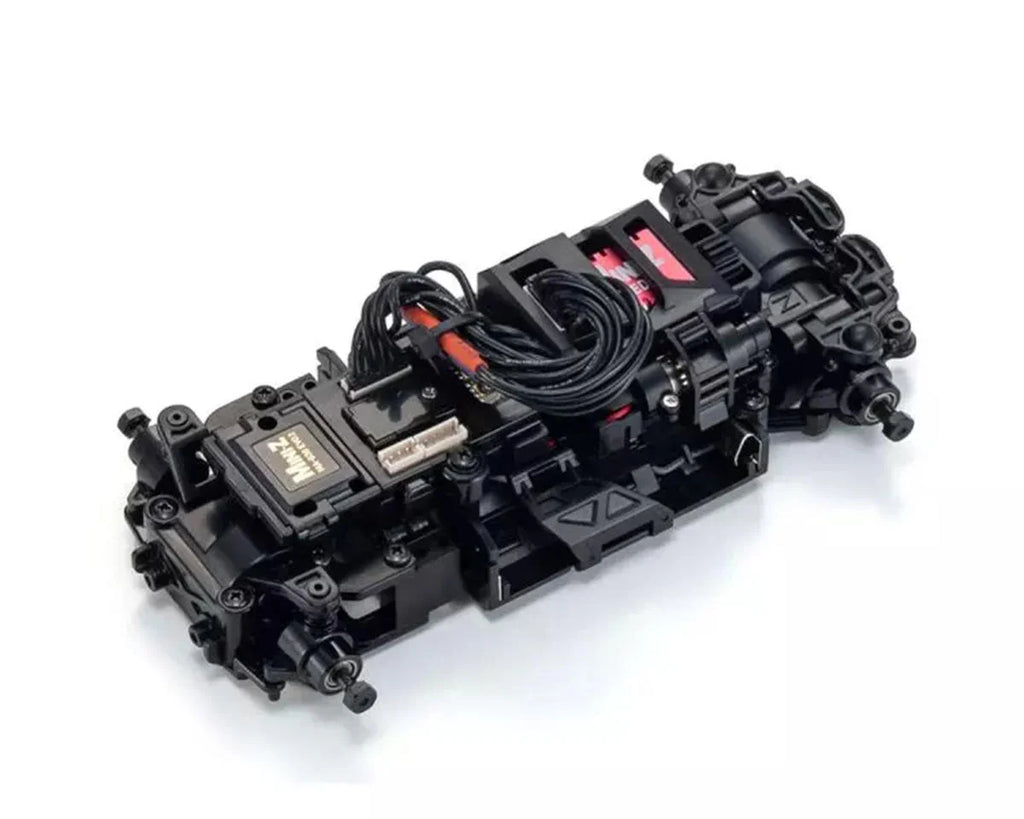

- (1) Factory-assembled MA-030EVO2 chassis with EVO main unit
- (1) Set of pinion gears (15T, 17T, 19T, 21T)
- (1) Set of spur gears (27T, 29T, 31T)
- (1) Center shaft for L wheelbase
- (1) Set of tools: pinion gear tool, wheel wrench, spare wheel nuts
Summary
- Sensored brushless AWD Mini-Z chassis
- Separate receiver works with multiple radio brands
- Adjustable L/LL wheelbase for many AWD bodies
