Overview

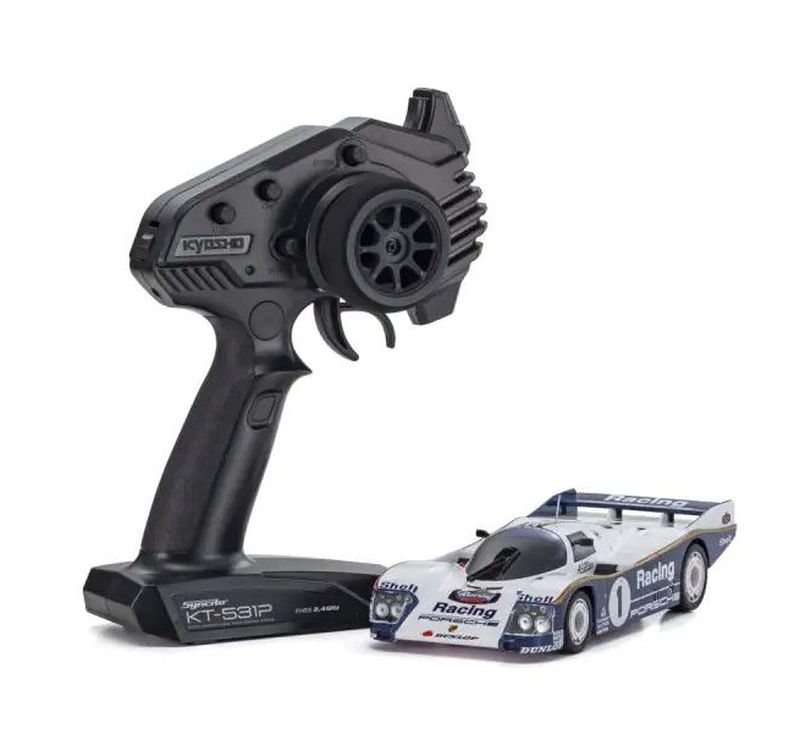

The Kyosho Mini-Z RWD Porsche 962 C Coupe LH No.1 brings one of endurance racing's most legendary prototypes to life in 1/28 scale, built on Kyosho's latest MR-04 rear-wheel-drive chassis. Featuring the iconic Works Porsche Group C factory machine with its signature long-tail design, this Ready Set combines authentic Le Mans styling with refined Mini-Z handling and modern electronics.
The MR-04 chassis represents a major evolution from the previous MR-03, featuring a lower center of gravity, remodeled steering design, and improved handling characteristics. Just insert batteries and experience high-performance R/C racing right out of the box—the simplicity of Kyosho Readyset packages.
Key Features
- 4th generation MR-04 RWD chassis with lower center of gravity
- New front knuckles with integrated kingpins reduce scrub by 1.5mm per side
- 3mm inner diameter ball bearings reduce rotational resistance
- Dynamic camber alignment maintains optimal tire contact during cornering
- Revised caster angle for improved steering response
- Full ball bearing specifications throughout
- Geared differential for smooth cornering
- T-bar rear suspension plate for excellent suspension effect
- Coil spring damper rear suspension
- Display-quality factory-finished Porsche 962 C body
- Compatible with optional gyro unit (MZW711)
Performance Benefits
- Sharper and more linear steering control vs MR-03
- Lower battery position improves cornering stability
- Improved straight-line handling
- Smooth, progressive throttle response
- Realistic rear-wheel-drive driving feel
- Compatible with wide range of Mini-Z optional parts
Usage Notes
Recommended Scale: 1/28 scale indoor racing
Best For: Indoor tracks, RCP circuits, smooth surfaces, collectors
Skill Level: Beginner to advanced
Technical Specs
-
Brand: Kyosho
-
Series: Mini-Z RWD
-
Chassis: MR-04W-LM
-
Scale: 1/28
-
Length: 178.0mm
-
Width: 78.0mm
-
Height: 40.0mm
-
Wheelbase: 102.0mm (3L)
-
Tread (F/R): 66.5mm / 65.0mm
-
Weight: 130g
-
Front Wheel Offset: Narrow +2.5mm
-
Rear Wheel Offset: Wide +1.0mm
-
Motor: 130-class brushed
-
R/C System: Syncro KT-531P
-
Part Number: 32363PR
What's Included
- Factory assembled MR-04 chassis with R/C system installed
- Pre-painted Porsche 962 C Coupe LH No.1 body with markings
- 2.4GHz Syncro KT-531P transmitter
- Front tread adjustment parts set
- Pinion gears: 6T, 7T, 8T, 9T
- Spare nuts
- Wheel wrench
- Pinion gear tool
- Tires and wheels (installed)
Needed to Complete
- 4x AAA batteries for chassis
- 4x AAA batteries for transmitter
Summary
The Kyosho Mini-Z RWD Porsche 962 C Coupe LH No.1 combines one of Group C racing's most iconic machines with the latest MR-04 chassis technology. With its lower center of gravity, improved steering geometry, and display-quality body, this Ready Set delivers exceptional indoor racing performance and motorsport heritage in a compact 1/28 scale package.
