Overview

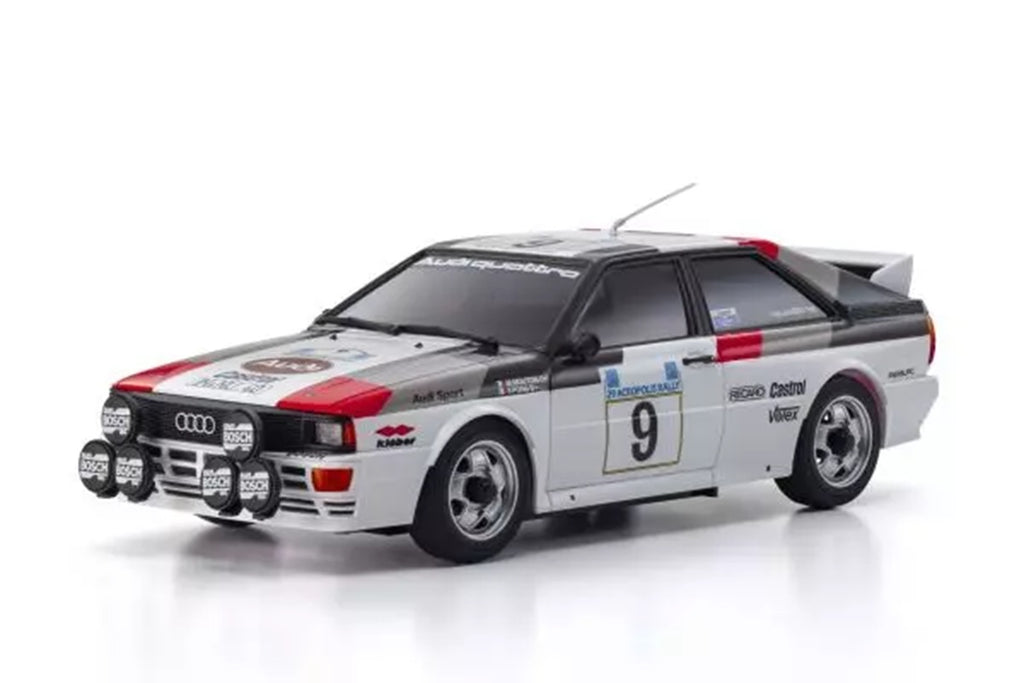

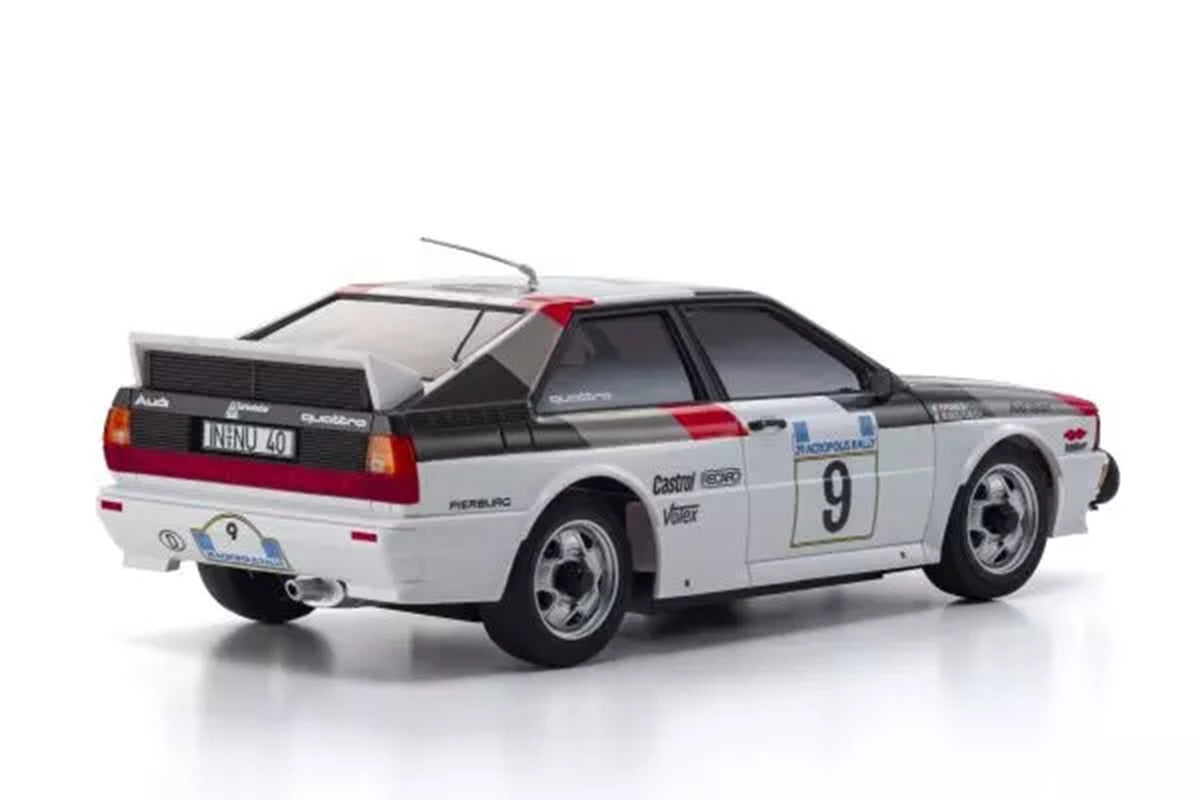

The Kyosho Mini-Z AWD Audi Rallye quattro Group 4 #9 Acropolis is a ready-to-run 1/27 scale four-wheel-drive electric R/C car built on the MA-020 series chassis with a factory-finished, display-quality body. Drift tires come fitted, so you can start drifting as soon as the batteries are in.
A dedicated circuit board with revised steering control, VCS (Variable Camber Suspension) up front and 14 ball bearings make it efficient, durable and easy to drive.
Key Features
- MA-020 series AWD chassis with revised steering control program
- VCS front suspension optimizes camber through the stroke
- Drift tires fitted as standard
- Full ball bearing specification (14 bearings)
- Syncro KT-531P 2.4GHz transmitter included, no band management needed
Performance Benefits
- All-wheel drive delivers controlled, stable slides and strong traction
- VCS keeps the front tires working as the suspension compresses
- Gyro gain adjustment on the chassis helps beginners and lets experts fine-tune
- Included pinions and spurs allow gearing changes
Usage Notes
- Ready to run once 4 AAA batteries are installed in the car and 4 in the transmitter
- Accepts the dedicated optional gyro unit MZW711 (sold separately)
- Designed for the KT-531P only; not compatible with KT-18, KT-19, EX-5UR ASF, EX-6 or EX-6R transmitters, and optional ICS cannot be used
- Compatible with many Mini-Z ASC bodies; extra parts may be required
- The separately sold LED light unit set (MZW429R) can be installed on this Audi quattro body.
Technical Specs
- Brand: Kyosho
- Item No.: KYO32662AC
- Scale: 1/27 Mini-Z
- Drive: 4WD (AWD)
- Chassis: MA-020-N
- Overall length: 169.3mm
- Overall width: 70.0mm
- Overall height: 51.0mm
- Wheelbase: 94.0mm (L)
- Tread: F 56.5mm / R 56.5mm
- Wheel offset: Narrow ±0.0mm front and rear
- All-up weight: 178.5g
- Radio: Syncro KT-531P 2.4GHz
What's Included
- (1) Fully assembled MA-020 chassis with R/C unit installed
- (1) Factory-painted and decaled plastic body

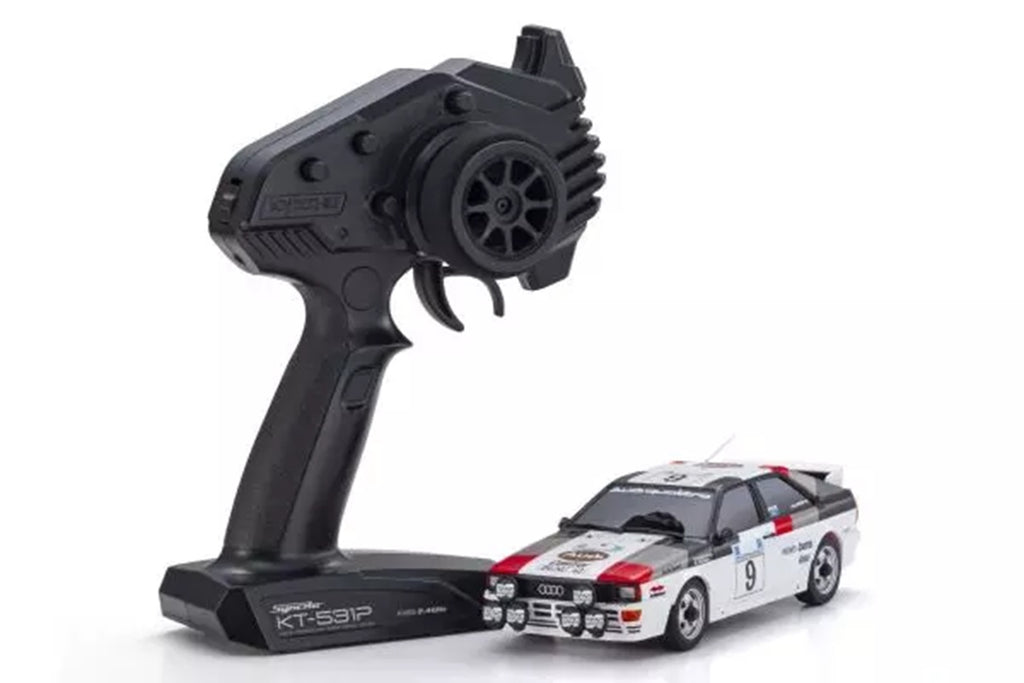

- (1) Syncro KT-531P 2.4GHz transmitter
- (1) Set of mini pylons
- (4) Pinion gears: 15T, 17T, 19T, 21T
- (3) Spur gears: 27T, 29T, 31T
- (1) Set of spare nuts
- (1) Wheel wrench
- (1) Pinion removal tool
Needed to Complete
- (4) AAA alkaline batteries for the transmitter
- (4) AAA alkaline or NiMH batteries for the car
Summary
- Ready-to-run Mini-Z AWD with a scale Audi Rallye quattro Group 4 #9 Acropolis body
- MA-020 chassis with VCS front suspension and 14 ball bearings
- Drift tires and KT-531P 2.4GHz radio included
- Just add 8 AAA batteries and start driving
