Overview

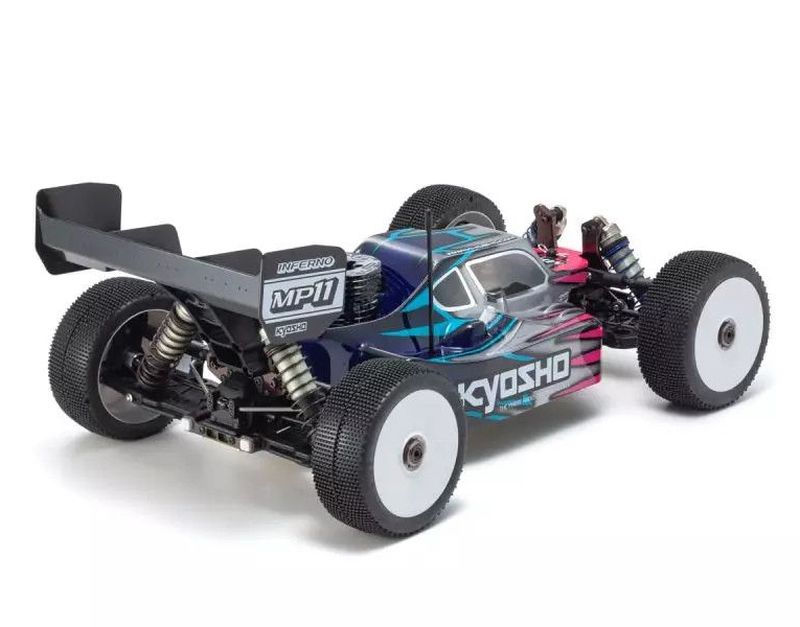

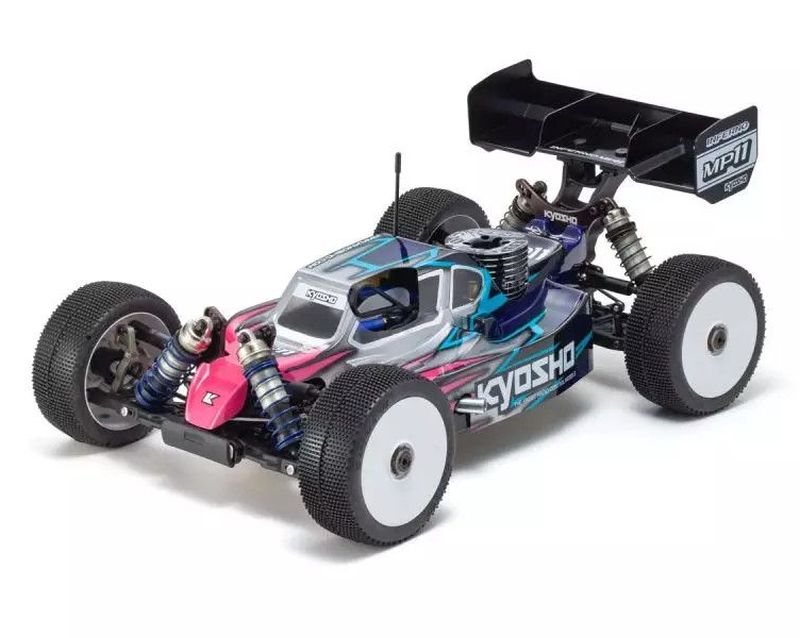

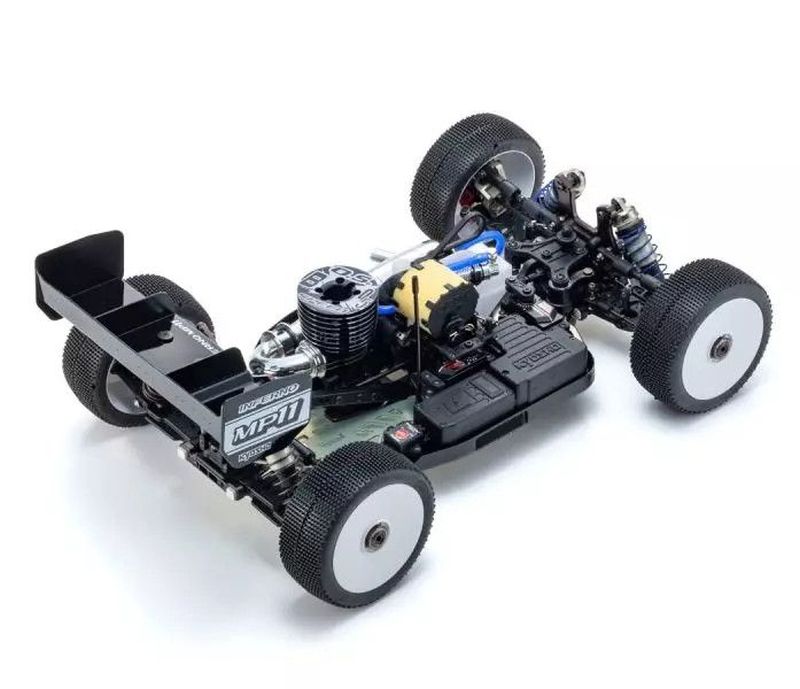

The Kyosho Inferno MP11 (33028) is the newest generation of Kyosho's flagship 1/8 scale GP racing buggy, a line that has won multiple world championship titles. It is the first full model change in six years from the MP10, with a new 3mm hard-anodized 7075 aluminum main chassis, a redesigned body and rear wing, and a front-biased layout that moves the engine forward and repositions the electronics.
This is an unassembled kit for experienced racers and builders. It keeps the Inferno's proven shaft-driven 4WD system and adds diaphragm-design oil shocks front and rear, plus revised suspension geometry with adjustable lower arms, so you can tune the car for your track.
Key Features
- 1/8 scale .21-class nitro 4WD racing buggy kit

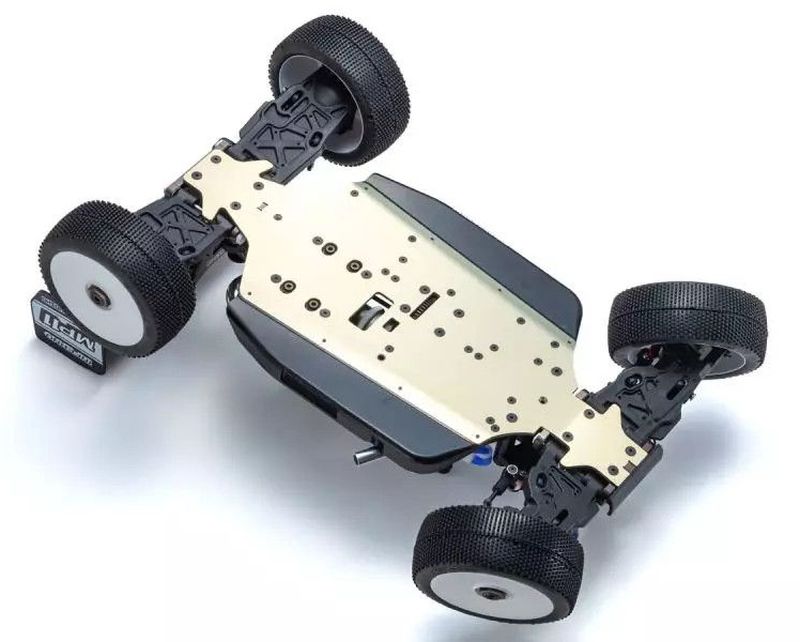

- New 3mm 7075 aluminum main chassis with hard anodizing

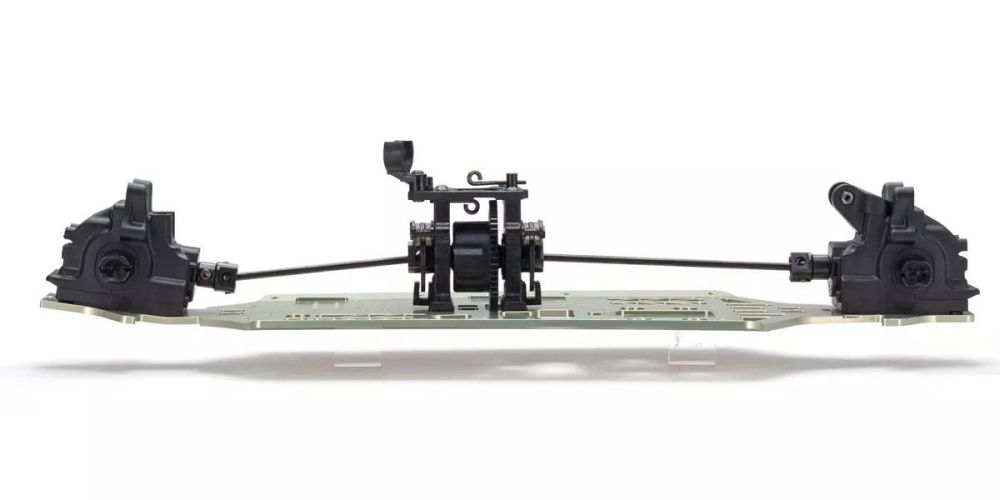

- Proven shaft-driven 4WD drivetrain
- Diaphragm-design oil shocks, front and rear

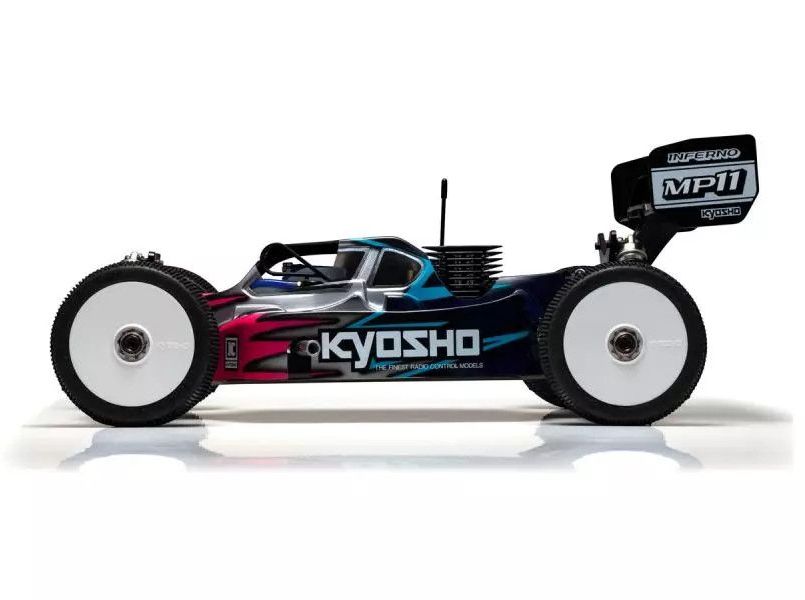

- Redesigned clear body and rear wing for improved aerodynamics

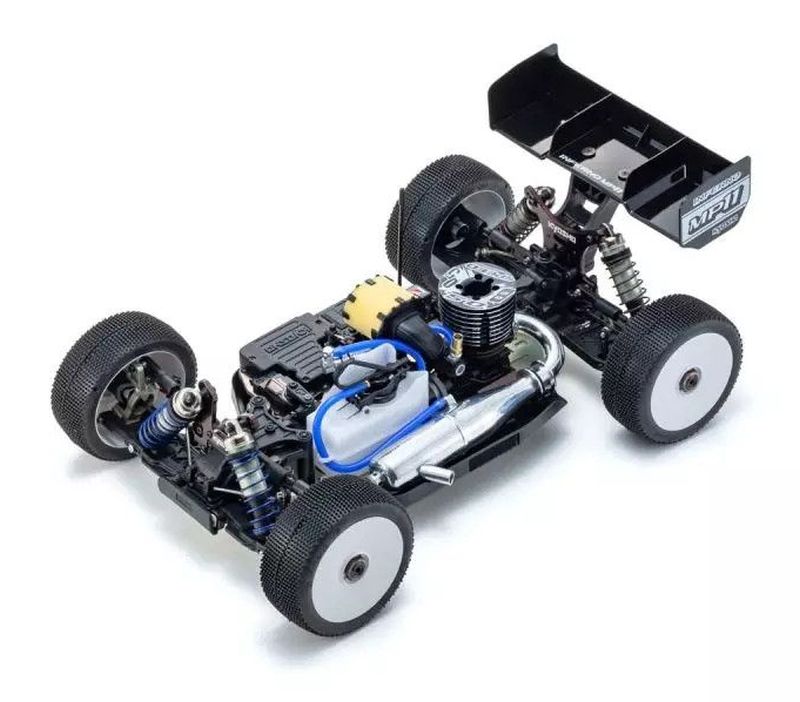

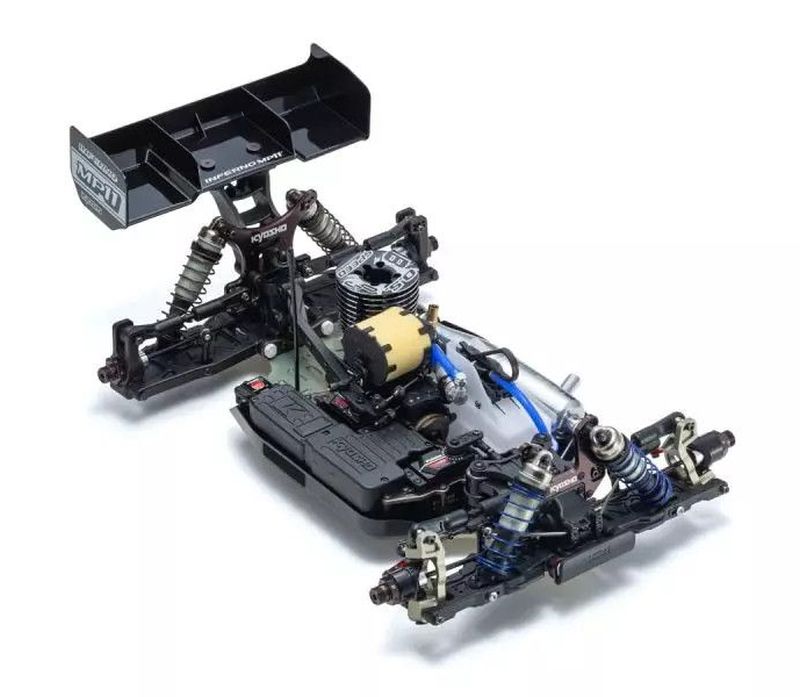

- Forward engine position and repositioned electronics for front-biased weight distribution

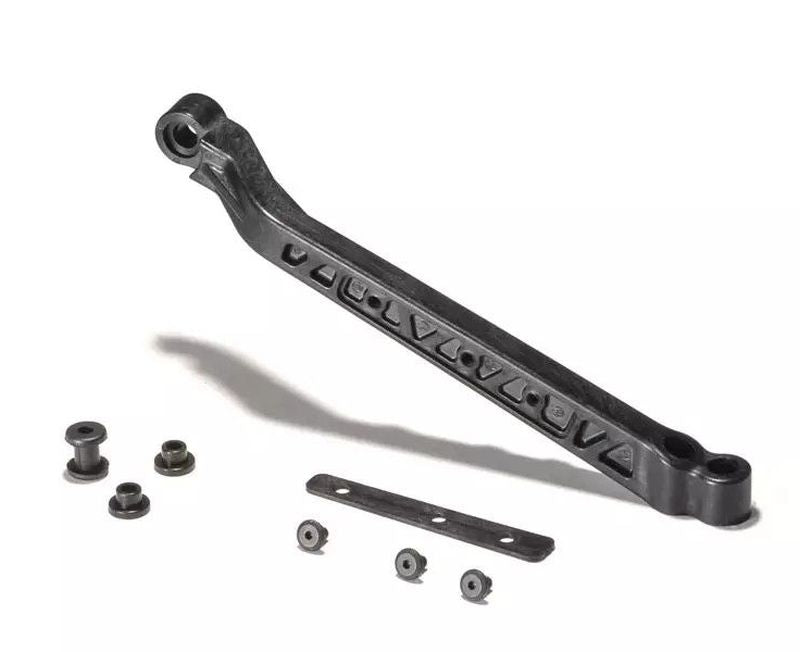

- Revised suspension geometry with adjustable lower arms
Performance Benefits
- Front-biased weight balance for sharper steering and stability over jumps
- Stiff 7075 chassis for consistent handling lap after lap
- Diaphragm shocks for smooth, consistent damping
- Wide tuning range for different track conditions
Usage Notes
- Unassembled kit: building, radio installation and setup are required
- Engine, radio system, wheels and tires are sold separately
- Uses .21-class nitro engines and nitro fuel
- Paint the included clear body with polycarbonate paint before use
Technical Specs
-
Brand: Kyosho
-
Item No.: KYO33028
-
Model: Inferno MP11
-
Scale: 1/8
-
Type: Unassembled kit
-
Drivetrain: Shaft-driven 4WD
-
Engine: .21 class (not included)
-
Length: 490mm
-
Width: 307mm
-
Height: 180mm
-
Wheelbase: 325mm
-
Tread (F/R): 254mm
-
Ground Clearance: 28mm
-
Weight: approx. 3,390g
-
Gear Ratio: 12.19:1
What's Included
- (1) Inferno MP11 unassembled chassis kit
- (1) Clear body with window mask seal and logo decals
- (1) Rear wing
- Fuel tube, linkage parts, clutch parts and air cleaner
- Ring gear grease
- Hex wrenches (1.5/2.0/2.5mm), cross wrench and wheel wrench
Needed to Complete
- .21-class nitro engine, muffler and manifold
- 1/8 buggy wheels and tires
- 2-channel radio system (transmitter, receiver and servos)
- Batteries
- Starter box and glow plug heater
- Nitro fuel
- Shock and differential oils
- Polycarbonate paint, adhesive and tools
Summary
- Kyosho's flagship 1/8 nitro race buggy, fully redesigned
- 3mm 7075 aluminum chassis and diaphragm shocks
- Front-biased layout for sharper handling
- Unassembled kit for experienced builders and racers
