Overview

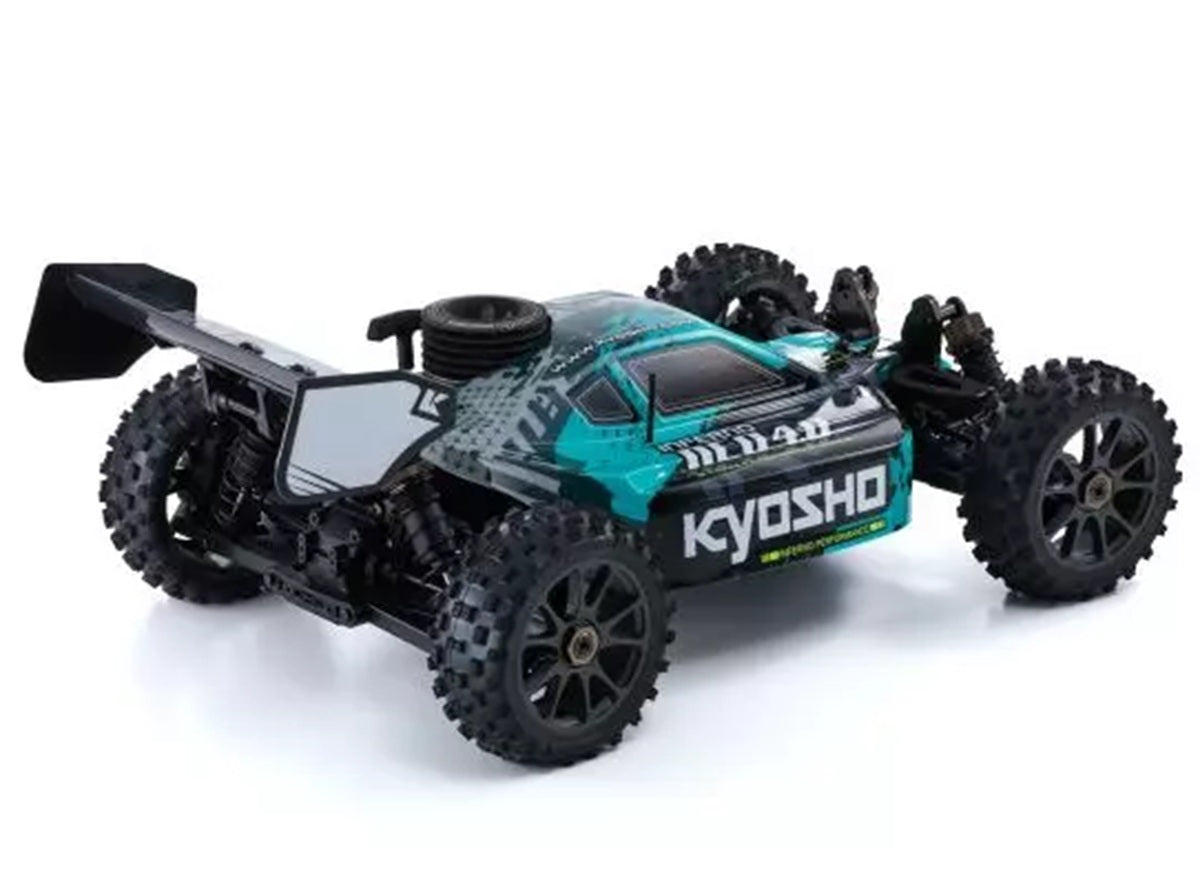

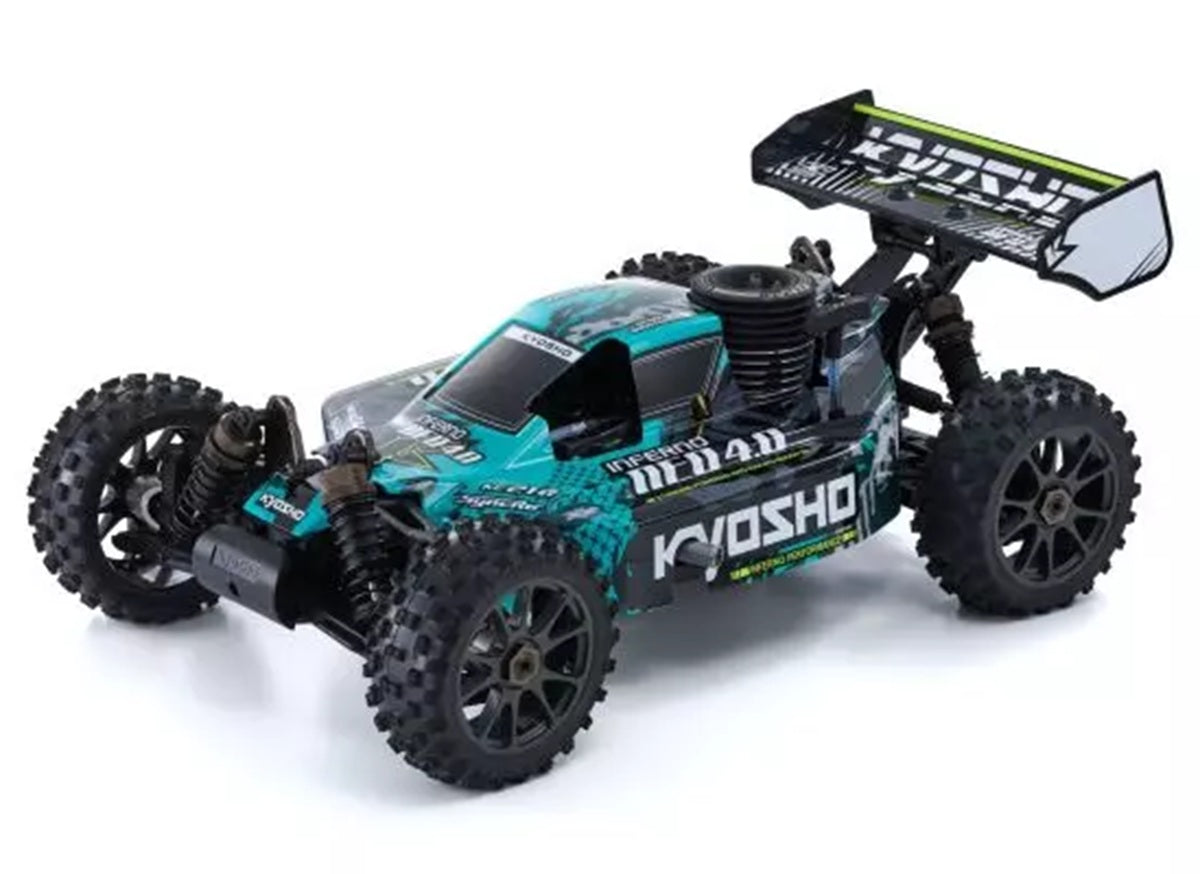

The Kyosho Inferno NEO 4.0 is a 1/8 scale nitro-powered 4WD off-road racing buggy delivered as a factory-assembled Readyset (RTR). It is based on Kyosho's competition Inferno chassis, the platform that has won races worldwide, and is set up so beginners can learn on it while experienced drivers still get a race-bred buggy. This version wears the Teal/Black Color Type 2 painted body.

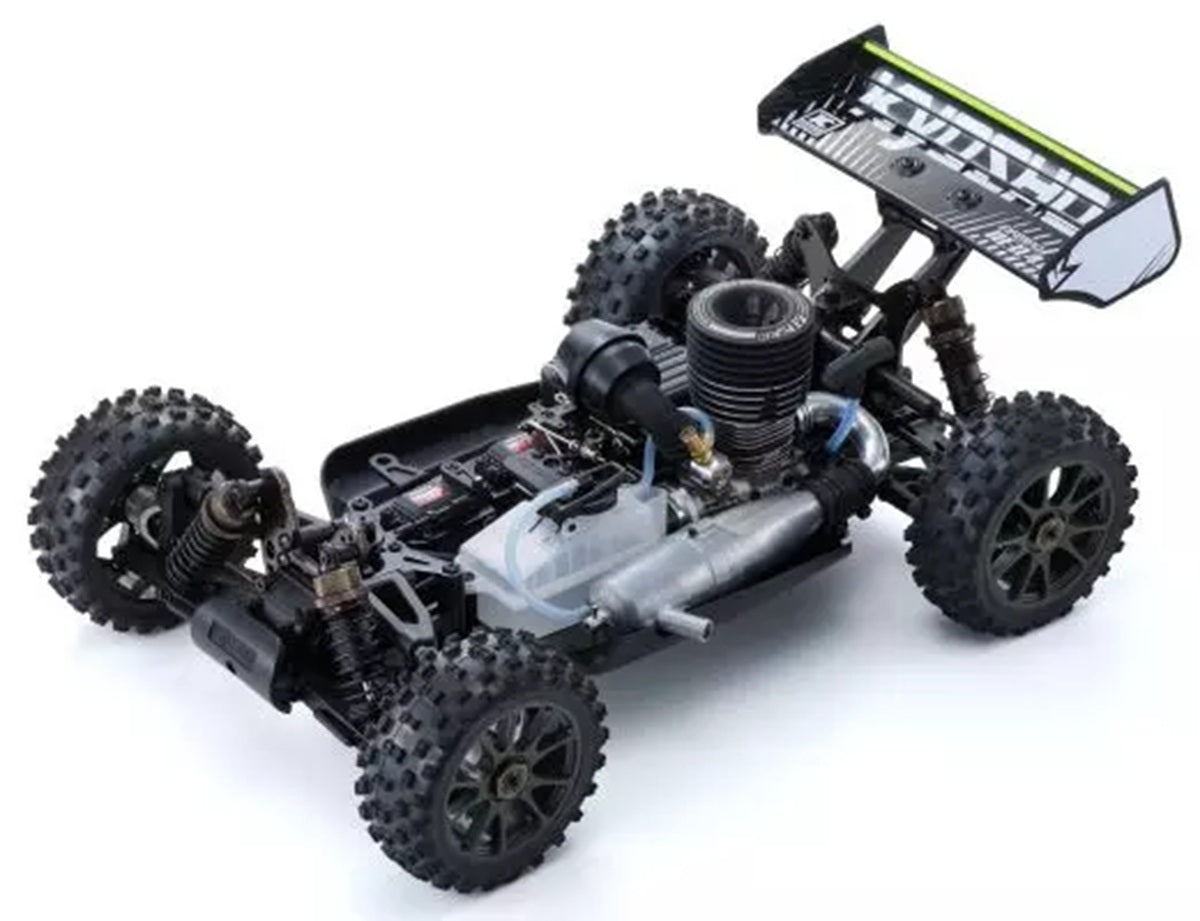

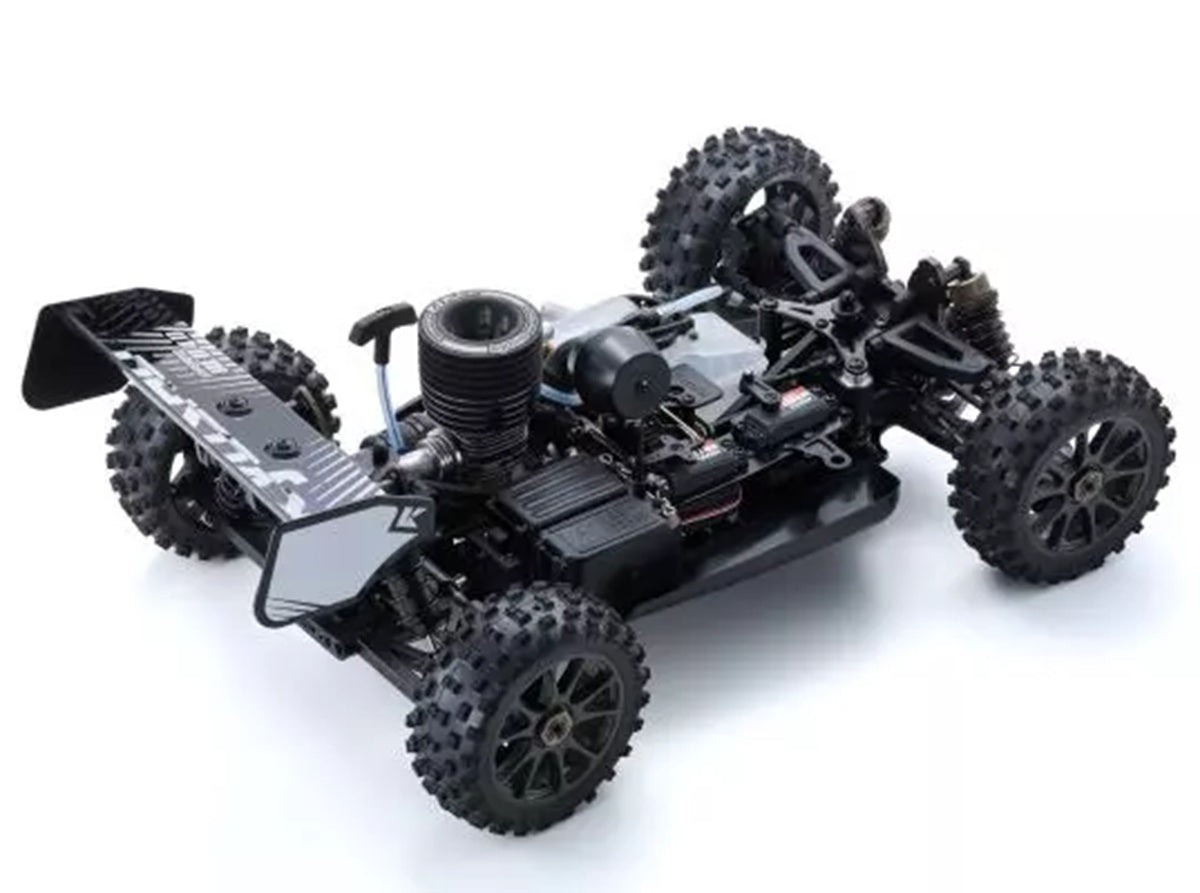

The chassis comes with a .21 class Kyosho KE21 nitro engine with pull starter already installed, plus the steering and throttle servos and the Syncro KT-231P+ 2.4GHz pistol-grip radio. Power reaches all four wheels through a shaft-driven 4WD drivetrain with front, center and rear differentials, and double disc brakes handle stopping.
The suspension uses double wishbone arms with adjustable links and large-volume oil-filled shocks, and pre-mounted KC Cross tires on spoke wheels provide grip on dirt and mixed surfaces. With a 325.5mm wheelbase and a weight of about 3,400g, it is a full-size 1/8 buggy suitable for club tracks as well as open areas.
Key Features
- Factory-assembled 1/8 nitro buggy based on Kyosho's competition Inferno chassis
- Kyosho KE21 .21 class nitro engine with pull starter installed
- Shaft-driven 4WD with three differentials (front, center, rear)
- Double disc brake system
- Double wishbone suspension with adjustable links
- Large-volume oil-filled shock absorbers
- Water-resistant steering and throttle servos installed

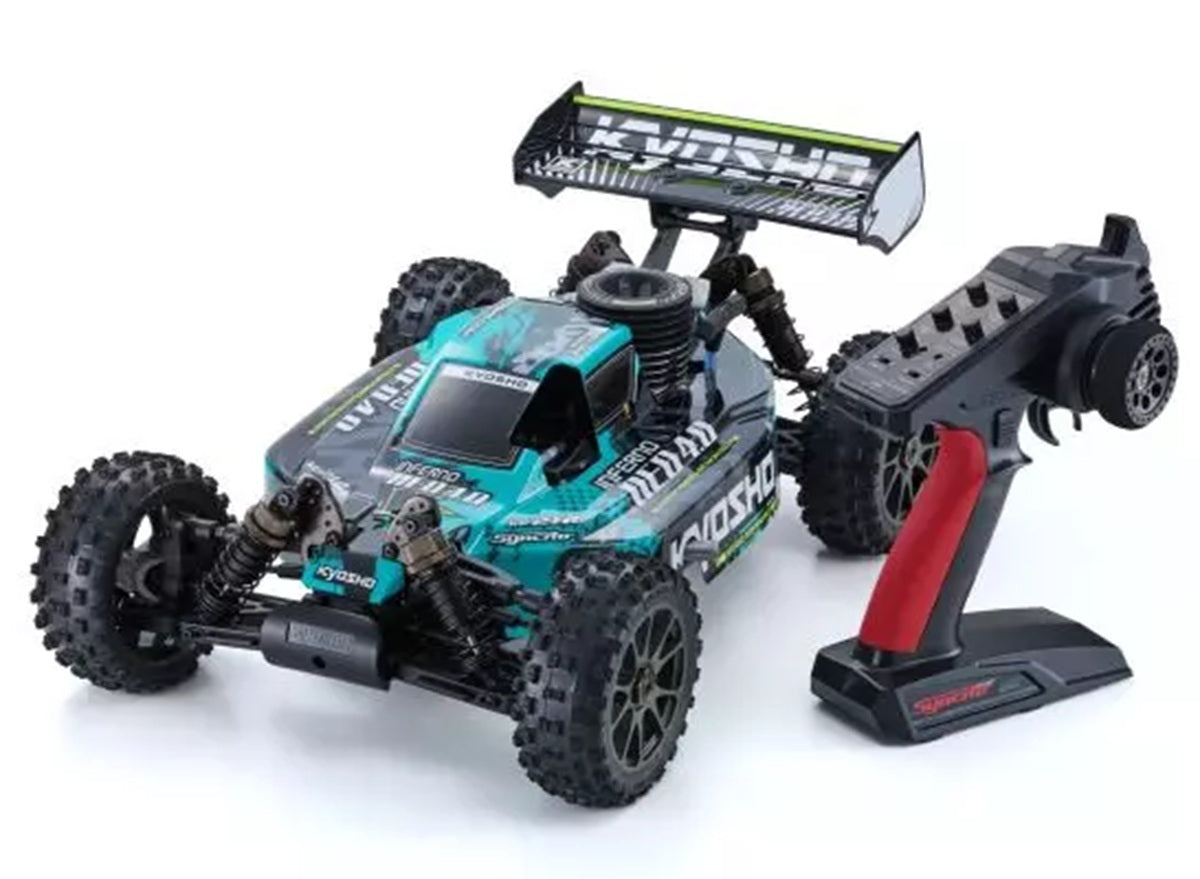

- Syncro KT-231P+ 2.4GHz pistol-grip transmitter included
- KC Cross tires pre-mounted on spoke wheels (17mm hex)
- Pre-painted Teal/Black body
Performance Benefits
- Three-differential 4WD puts power down evenly for strong acceleration out of corners
- Race-derived Inferno geometry gives stable, predictable handling at speed
- Big-bore oil shocks absorb jumps and rough ground and keep the tires planted
- Double disc brakes give strong, controllable stopping from high speed
- Pull starter means no starter box is required to start the engine
Usage Notes
- Nitro (glow) engine – requires glow fuel, a glow plug igniter and a proper engine break-in before hard running
- Kyosho recommends 20–30% nitro glow fuel
- 8 AA alkaline batteries power the transmitter and the receiver
- Run in open areas or tracks; nitro engines are loud and produce exhaust
- Clean and after-run oil the engine after each session to prevent corrosion
- Suitable for beginners through experienced drivers; adult supervision recommended for younger users
Technical Specs
- Scale: 1/8
- Type: Nitro 4WD off-road buggy, Readyset (RTR)
- Engine: Kyosho KE21 series .21 (3.5cc) with pull starter
- Drivetrain: Shaft-driven 4WD, front/center/rear differentials
- Gear ratio: 11.70:1
- Brakes: Double disc
- Length: 507mm
- Width: 307mm
- Height: 189mm
- Wheelbase: 325.5mm
- Track (F/R): 258mm / 261mm
- Weight: approx. 3,400g
- Tires: KC Cross, 116 x 44mm front and rear
- Wheel hex: 17mm
- Radio: Syncro KT-231P+ 2.4GHz
What's Included
- (1) Inferno NEO 4.0 chassis, factory assembled with engine, servos and receiver installed
- (1) Pre-painted Teal/Black body
- (1) Syncro KT-231P+ 2.4GHz transmitter
- (4) KC Cross tires pre-mounted on wheels
- (1) Set of hex wrenches (1.5, 2.0, 2.5, 3.0mm)
- (1) Cross wrench
- (1) 17mm wheel wrench
- (1) Instruction manual
Needed to Complete
- Nitro glow fuel (20–30% recommended)
- Fuel bottle / fuel pump
- Glow plug igniter (plug heater)
- (8) AA alkaline batteries – for the transmitter and receiver
- After-run oil and basic tools for maintenance
Summary
- Ready-to-run 1/8 nitro 4WD buggy on Kyosho's race-proven Inferno chassis
- .21 class KE21 engine with pull starter, 11.70:1 gearing
- Three diffs, double disc brakes, oil shocks, KC Cross tires
- Includes Syncro KT-231P+ 2.4GHz radio and Teal/Black body; add fuel, glow igniter and 8 AA batteries
